In this lesson we bring together the concepts you’ve learned by applying them to a familiar, real-world system: an online shopping website. The example is intentionally simple and practical, but it reflects the same architectural decisions used by companies like Amazon, Flipkart, and many e‑commerce startups. We’ll show how microservices, containerization, and virtual machines work together in production to make systems fast, resilient, and cost‑effective. You’ll also see where tools like Docker and Kubernetes fit into the deployment and operations workflow. Imagine you and a few colleagues launch a lightweight online store, xFusionCorp.com. Customers browse products, add items to a cart, place orders, pay, and receive notifications by email or SMS. Your primary objectives are:
  • Fast, reliable performance during normal and peak traffic.
  • Zero or minimal downtime for deployments and maintenance.
  • The ability to fix incidents quickly without bringing the site offline.

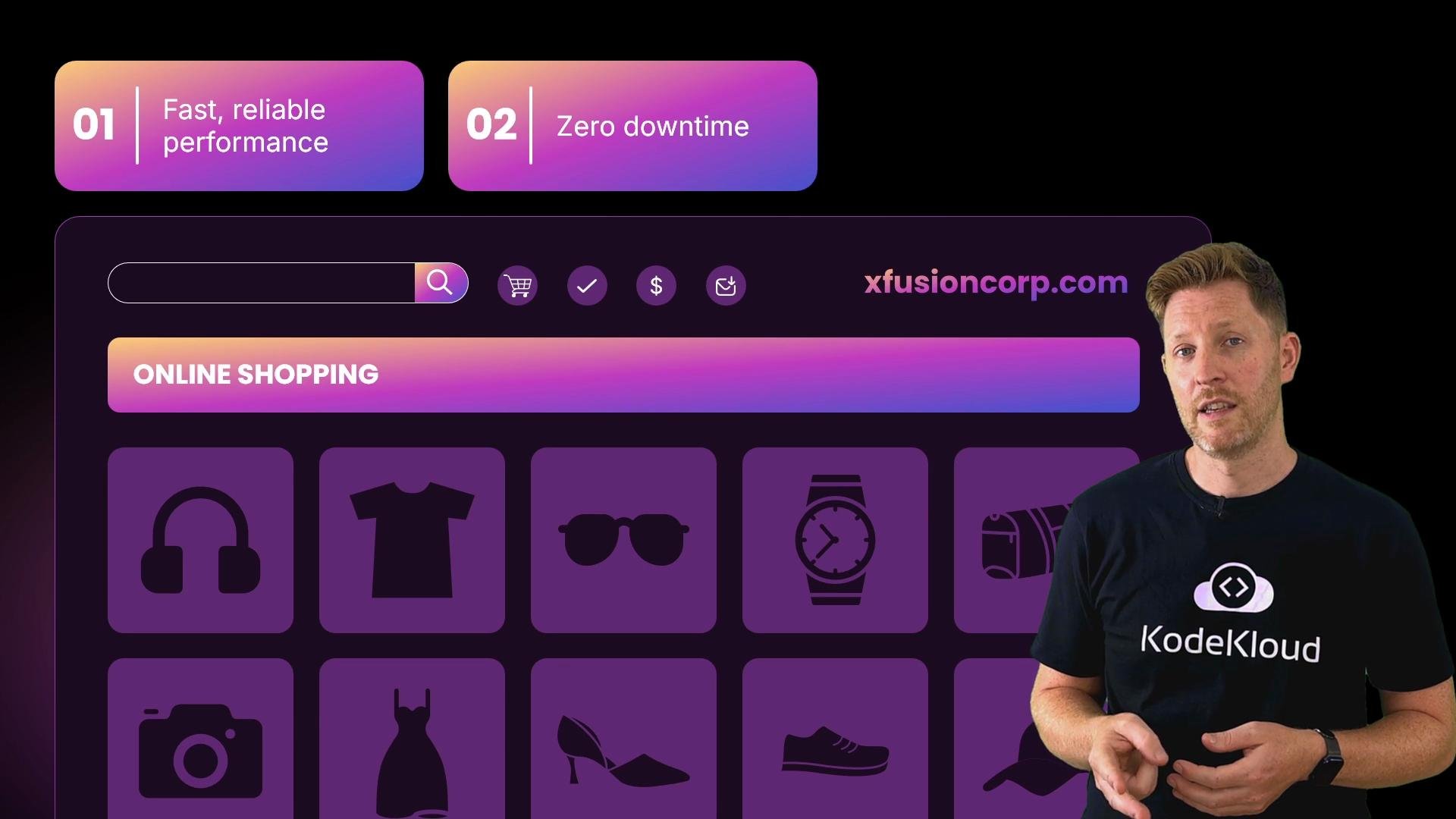

The image shows a person standing next to a graphic of an online shopping interface with icons for various product categories and features like a search bar and shopping cart. The top highlights phrases for "fast, reliable performance" and "zero downtime," with the website name "xfusioncorp.com" and the person wearing a "KodeKloud" t-shirt.

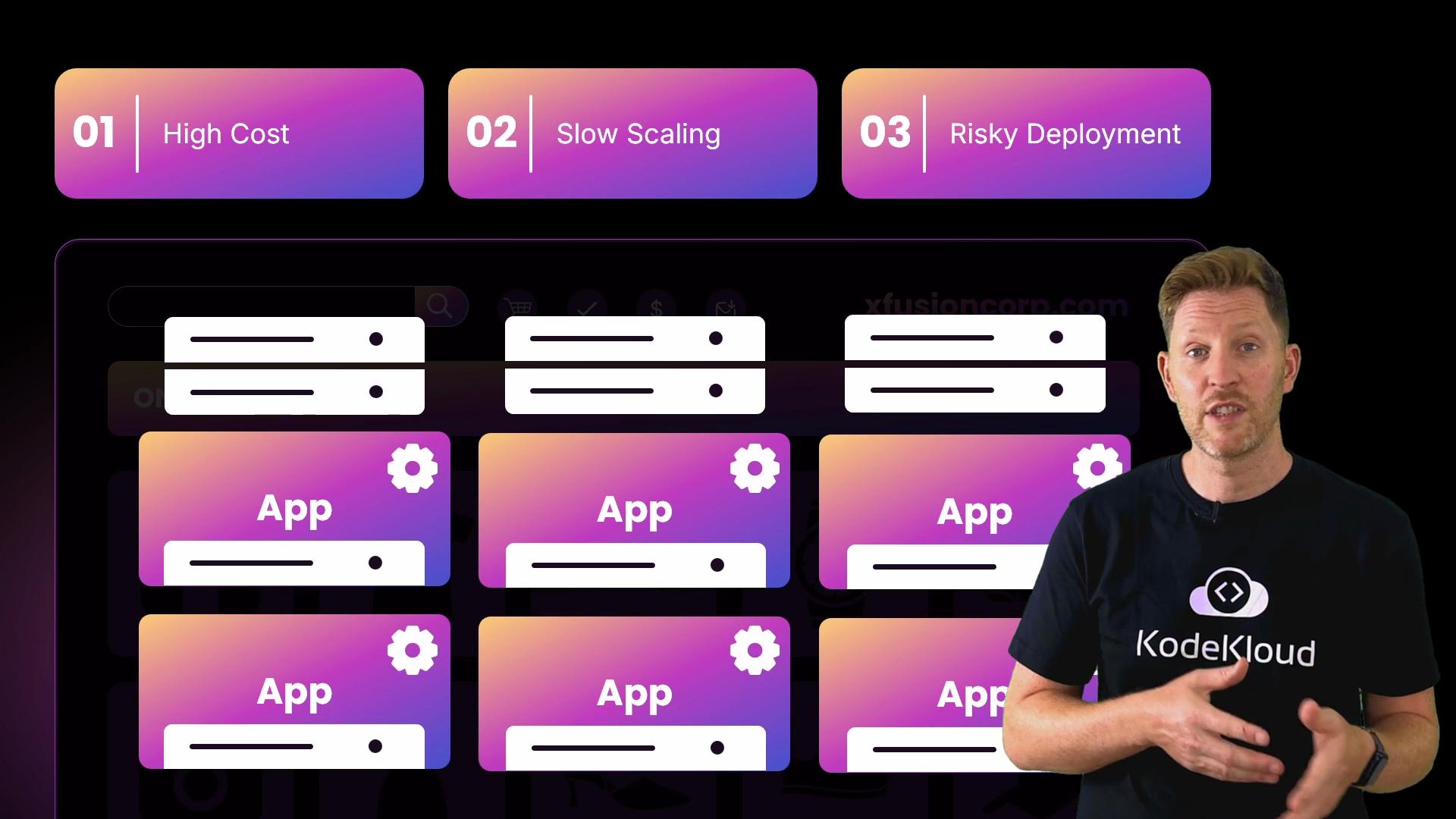

Before virtualization and containerization became mainstream, many sites were deployed as a single large application on dedicated physical servers. That monolithic approach introduced several problems:
  • High hardware cost (each replica or environment required a separate machine).
  • Slow and manual provisioning when traffic spiked.
  • Risky updates: a change in one area could break the entire site.
  • Difficult-to-isolate failures and long recovery times.
Modern systems address those problems by combining three architectural building blocks: microservices, containers, and virtual machines. We’ll examine each layer and how they interact. Microservices: split responsibilities, reduce blast radius
  • Instead of one monolith, break the application into focused services such as Product Search, Cart, Checkout, and Notification.
  • Each microservice implements specific business logic and exposes a well-defined API.
  • Teams can build, test, deploy, and scale services independently — reducing risk and speeding development.

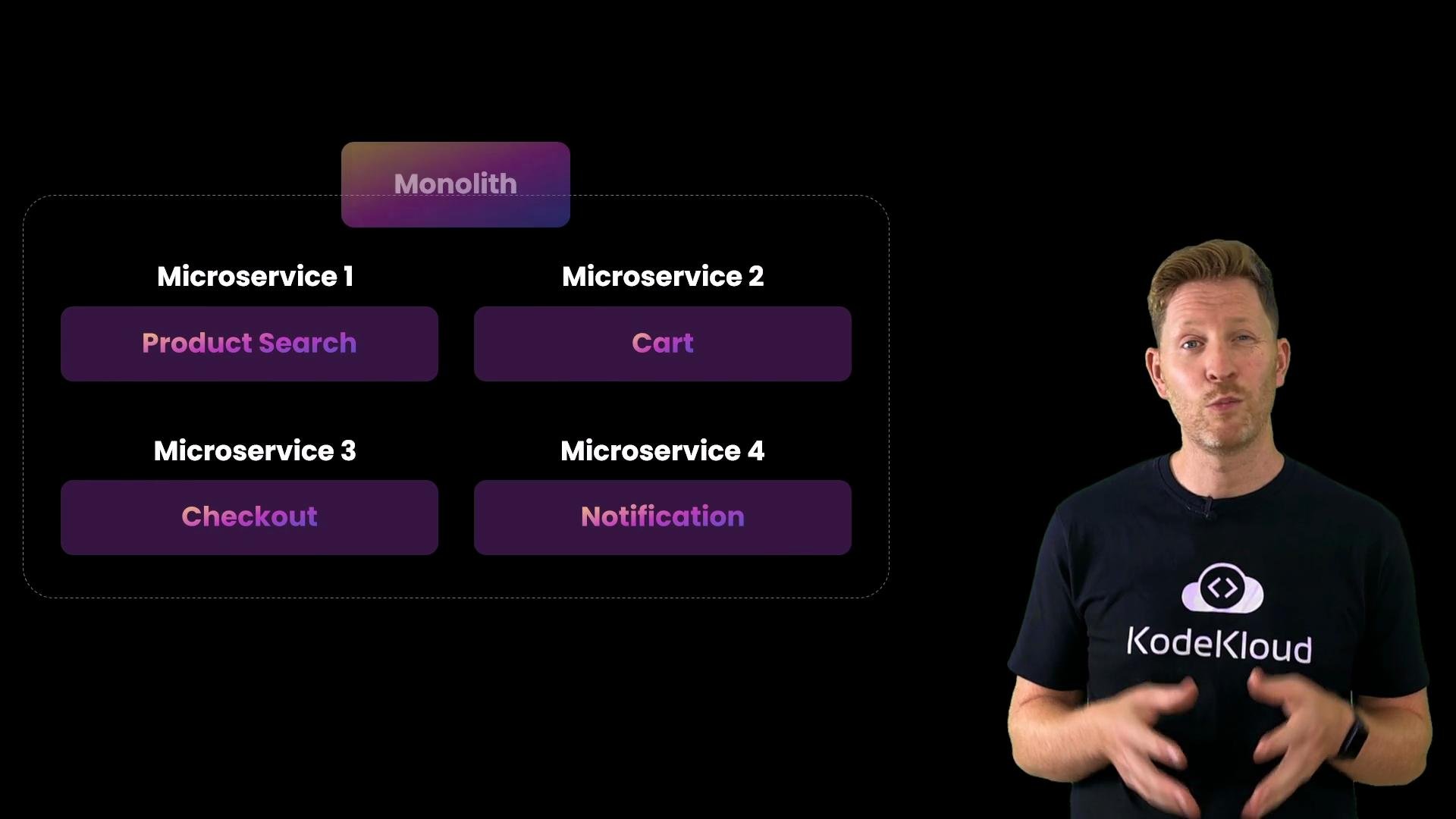

The image shows a diagram comparing a monolithic architecture with microservices, labeled as Product Search, Cart, Checkout, and Notification. There is also a person wearing a "KodeKloud" t-shirt in front of the diagram.
Because services are isolated, failures are contained. For example, an issue in Wishlist affects only that feature while Payments and Search continue serving customers. This containment reduces blast radius compared to a monolithic deployment.

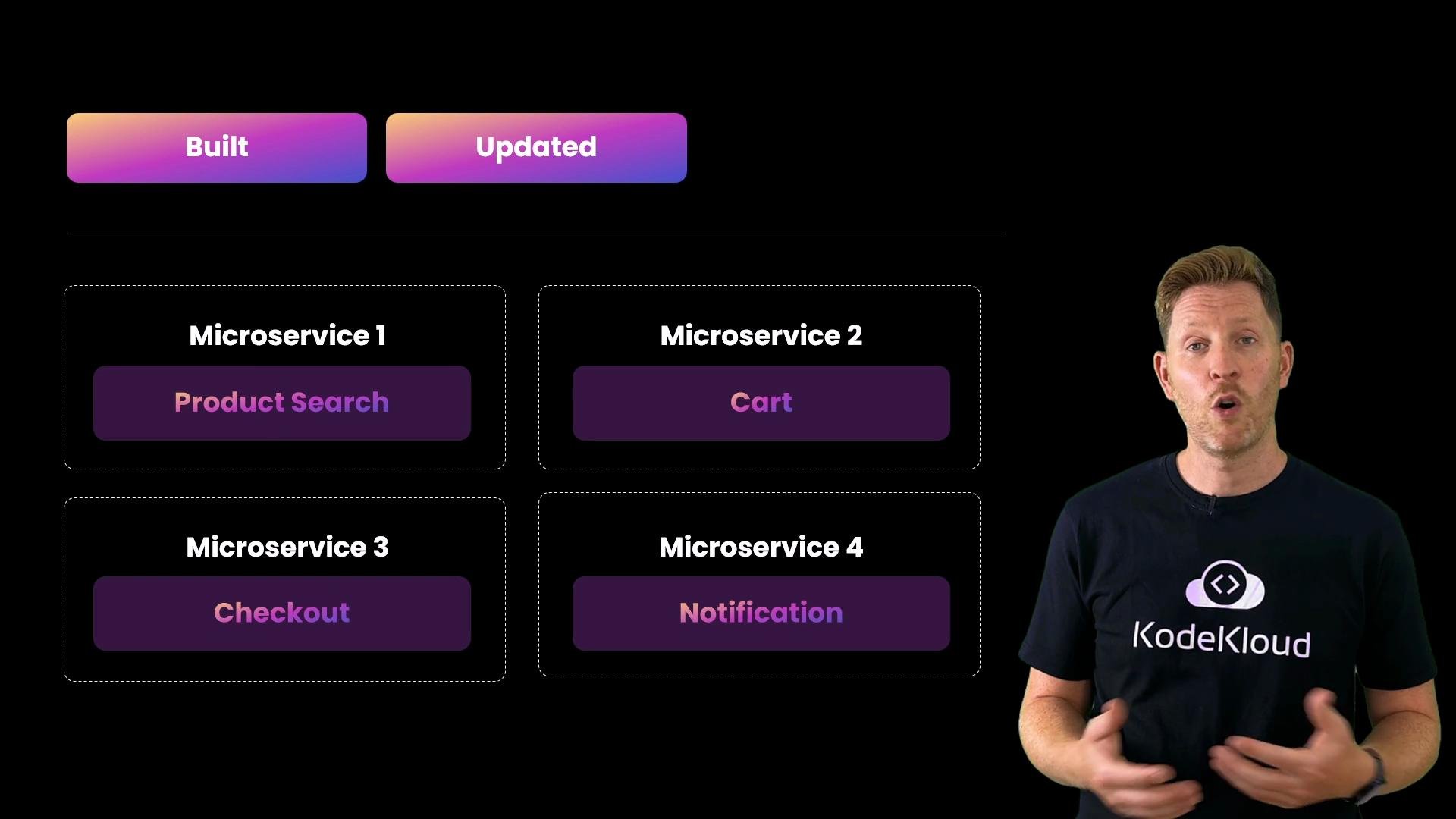

The image shows a person talking next to a diagram of microservices labeled "Product Search," "Cart," "Checkout," and "Notification." The background buttons are labeled "Built" and "Updated."

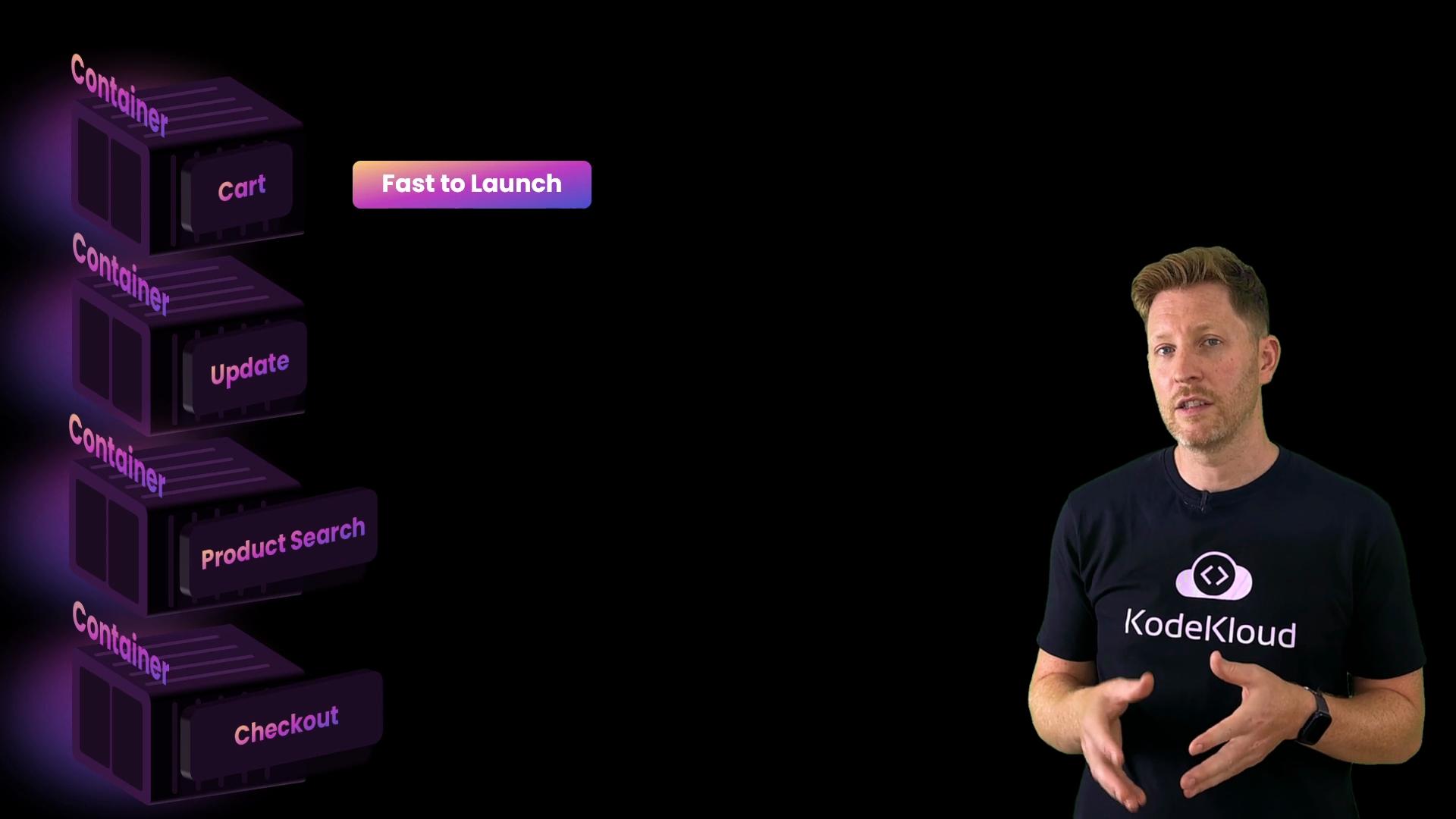

Containerization: consistent, portable runtime
  • Each microservice is packaged as a container image (commonly built with Docker) containing the application and its dependencies.
  • Containers share the host kernel and provide a consistent runtime across developer laptops, CI/CD pipelines, and cloud environments.
  • This portability reduces “it works on my machine” problems and accelerates deployments.
Virtual machines: strong isolation and multi-tenant flexibility
  • While containers are efficient, many teams run containers inside virtual machines rather than directly on bare metal.
  • VMs provide stronger isolation and allow different OS kernels or configurations per VM — useful for multi‑tenant or security-sensitive workloads.
  • A single physical server (or cloud instance) can host many VMs, and each VM can run multiple containers, combining efficiency with isolation.

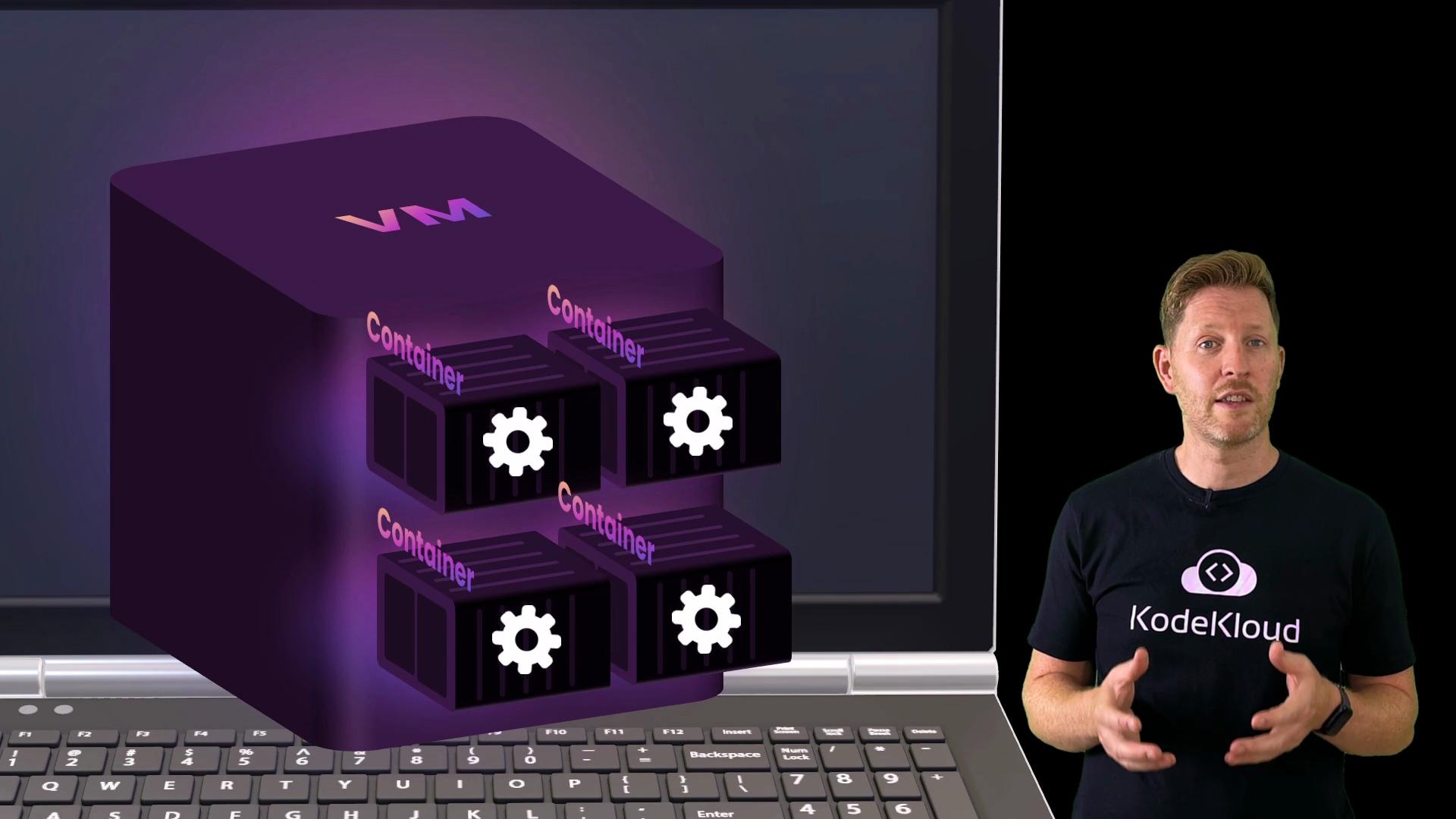

The image shows a man standing next to a virtual machine (VM) diagram containing several containers, with a focus on a laptop screen in the background. The person is wearing a "KodeKloud" t-shirt and appears to be explaining the concept.
Scaling in practice
  • When traffic spikes (eg. a flash sale sends 10,000 shoppers to the site), you can scale the hotspot microservice by starting more container replicas of the same, tested image.
  • Orchestrators like Kubernetes handle scheduling, health checks, and load balancing across the VM fleet.
  • Containers typically start in seconds; provisioning new VMs may take longer (seconds to minutes, depending on the environment), so autoscaling policies often combine rapid container replica scaling with slower VM scaling.
In large-scale events a search microservice could scale from a few dozen replicas to thousands. If a new release contains a bug, you can roll back or replace only the affected microservice with a new container image — no full-site downtime. Quick mental checklist: arrange these components from outermost (physical) to innermost (logical). The correct order is:
  1. Server (physical host or cloud machine)
  2. Virtual Machine (guest OS)
  3. Container (packaged runtime)
  4. Microservice (application logic inside the container)

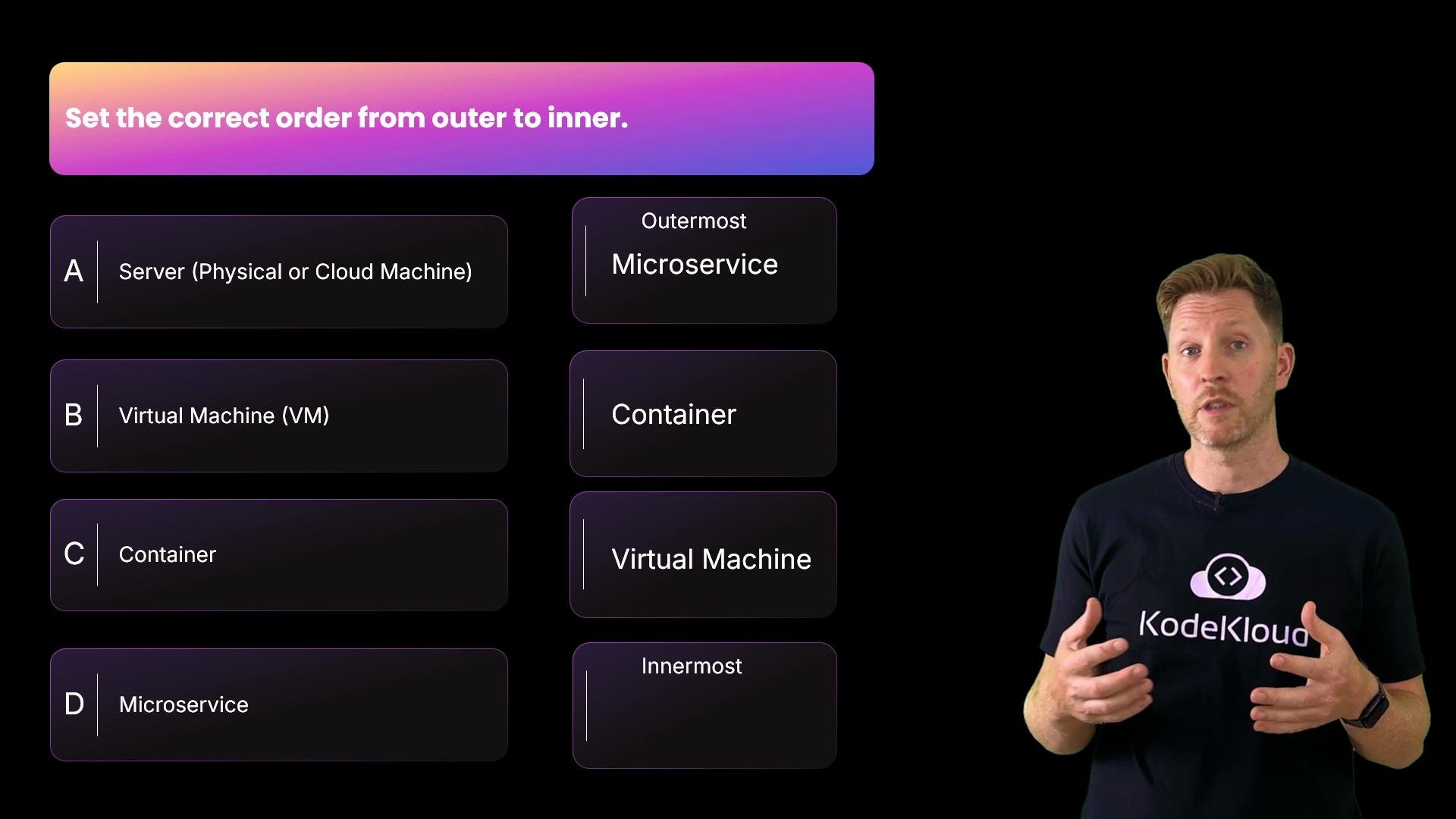

The image is a visual quiz about arranging infrastructure components from outermost to innermost, with options for Server, Virtual Machine, Container, and Microservice. A person stands beside the quiz, apparently explaining or presenting it.
Summary: how the layers fit together
  • Small, focused microservices implement features and business logic.
  • Microservices run inside containers for consistent execution.
  • Containers are scheduled on virtual machines for isolation and management.
  • Virtual machines run on physical or cloud servers.

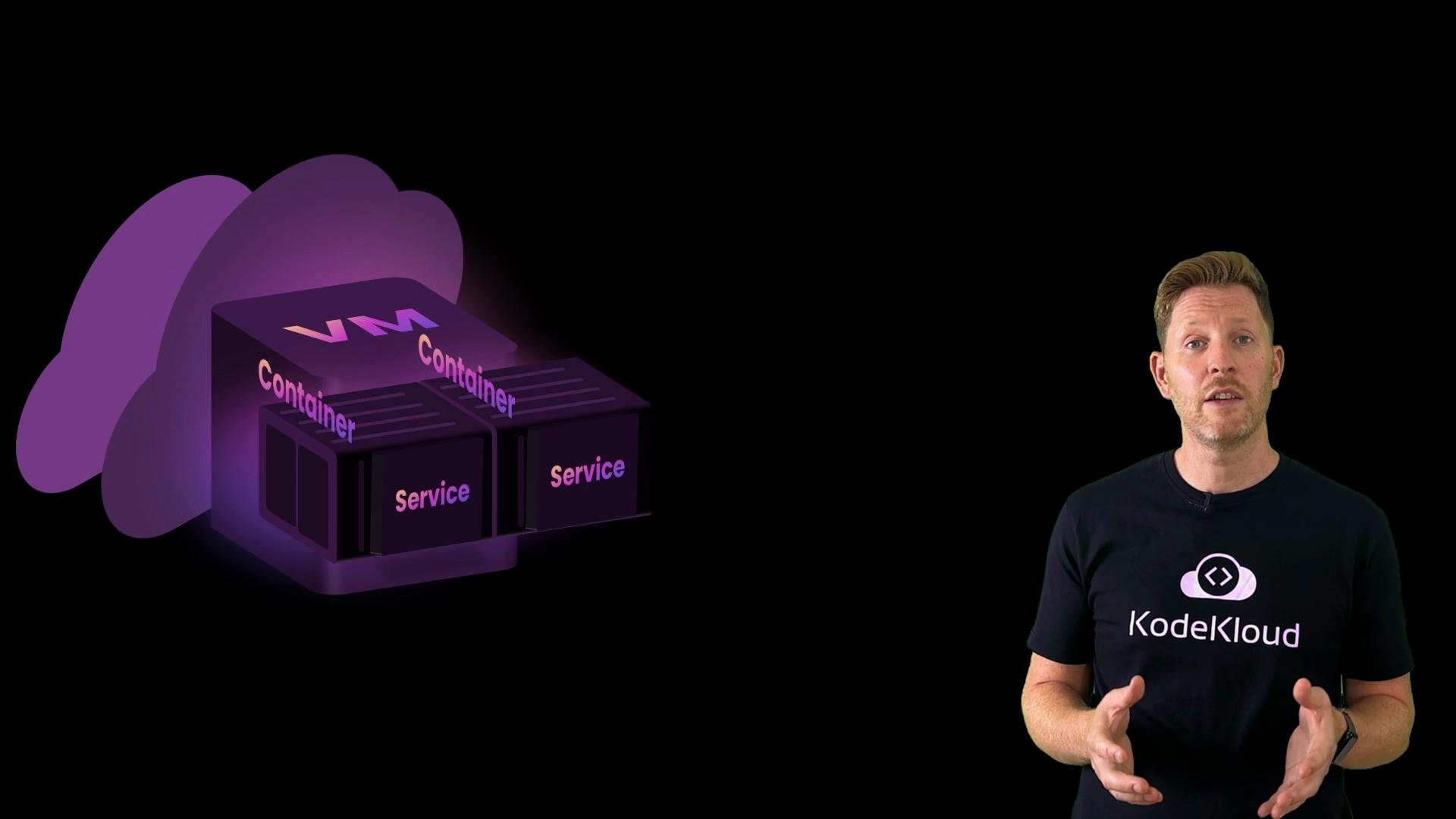

The image shows a person in a KodeKloud t-shirt standing next to a digital illustration of a cloud with labeled components like "VM," "Container," and "Service."
Component comparison at a glance
ComponentPrimary purposeExample / benefit
Server (physical/cloud)Compute and network infrastructureHosts VMs and provide raw capacity
Virtual Machine (VM)Stronger OS-level isolationRun different OS kernels or isolate tenants
ContainerLightweight packaging of app + depsFast, consistent deployment across environments
MicroserviceSmall, focused application logicIndependent deployment, independent scaling
Key takeaways
  • Microservices reduce blast radius and enable independent development and scaling.
  • Containers package applications and dependencies for consistent, portable execution.
  • Virtual machines provide stronger isolation and flexibility for multi‑tenant or sensitive workloads.
  • Container tooling (Docker) and orchestration platforms (Kubernetes) automate scaling, rolling updates, and self‑healing.
Resources and further reading
This lesson showed how microservices, containers, and VMs work together to build fast, reliable, and scalable online services — enabling rapid deployments and minimal downtime even at massive scale.
