Overview of virtual machines, hypervisors, VM types, networking, security, performance tradeoffs, and management for running multiple isolated operating systems on one physical host.

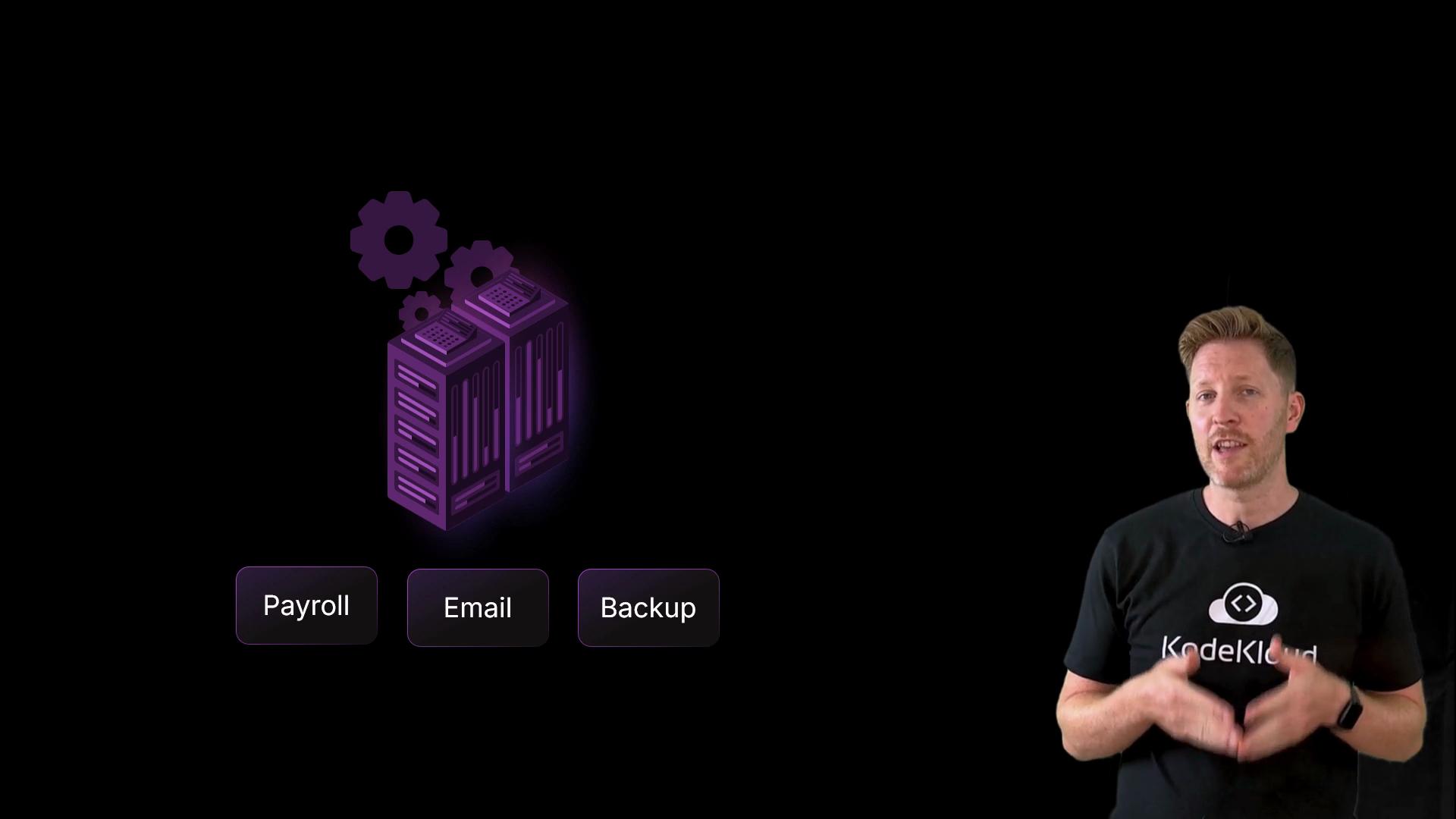

Running separate services on separate machines can waste resources, while packing everything onto a single system increases the risk of outages. Virtualization lets you balance isolation and efficiency by running multiple independent “computers” on one physical host.

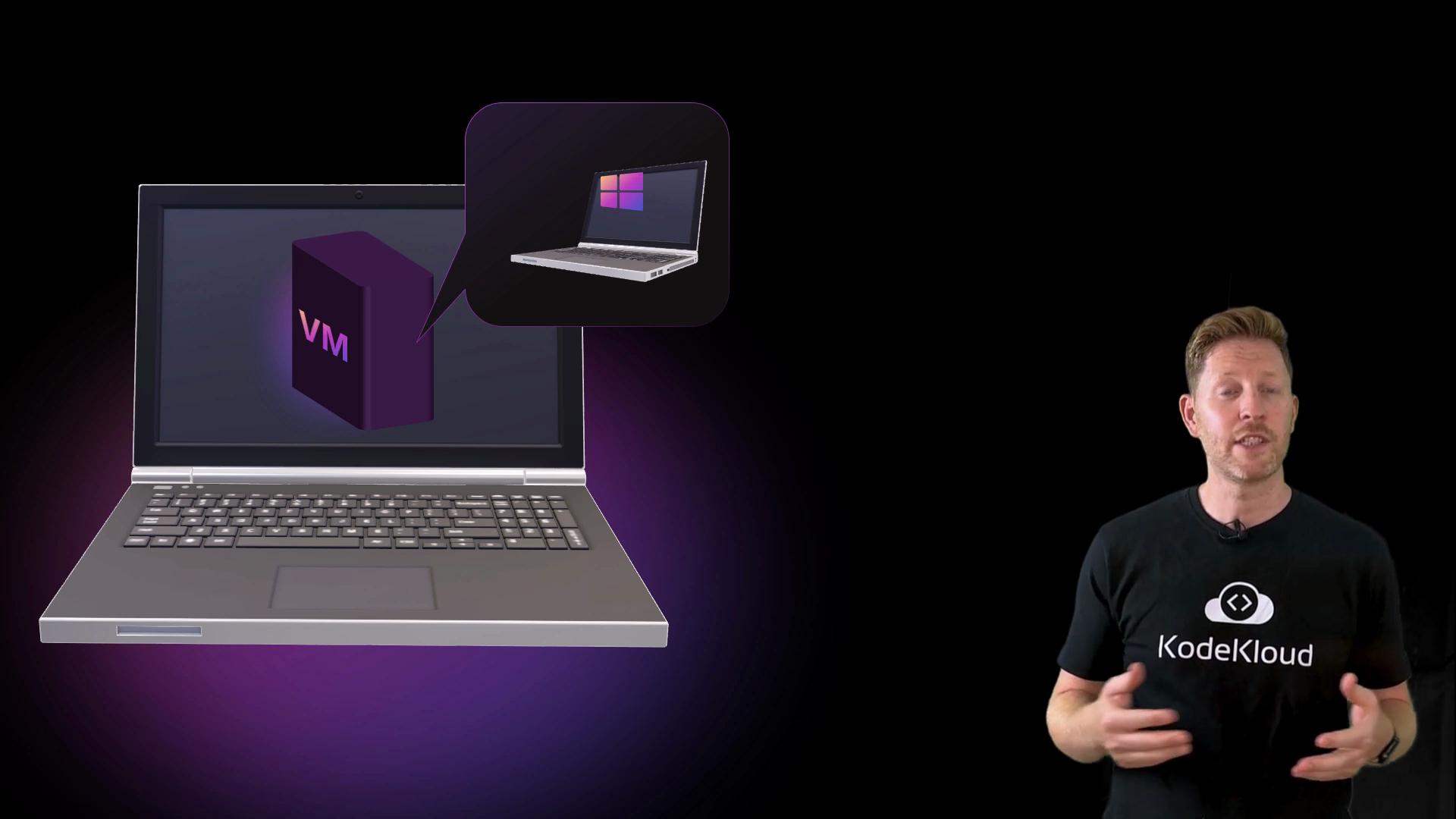

Imagine you only have one physical machine but need software that only runs on a different OS. For example, Cody is on a Mac, but her client sent a legacy Microsoft Access database that runs only on Windows. Instead of buying new hardware or switching operating systems, Cody can create a virtual machine (a full Windows system) that runs safely inside macOS. That process is called virtualization.
This article explains how virtualization works, what hypervisors do, the key benefits and limitations of VMs, and practical considerations such as networking, security, and resource management.A brief history: virtualization dates back to the 1960s when IBM used it on mainframes — the centralized machines still common in finance and government. Later, VMware and Microsoft popularized virtualization on commodity servers, enabling modern data centers and public cloud platforms.
What is a VM?At its core, virtualization lets a single physical computer run multiple separate “pretend” computers simultaneously. Each virtual machine (VM) includes its own operating system, applications, and configuration.

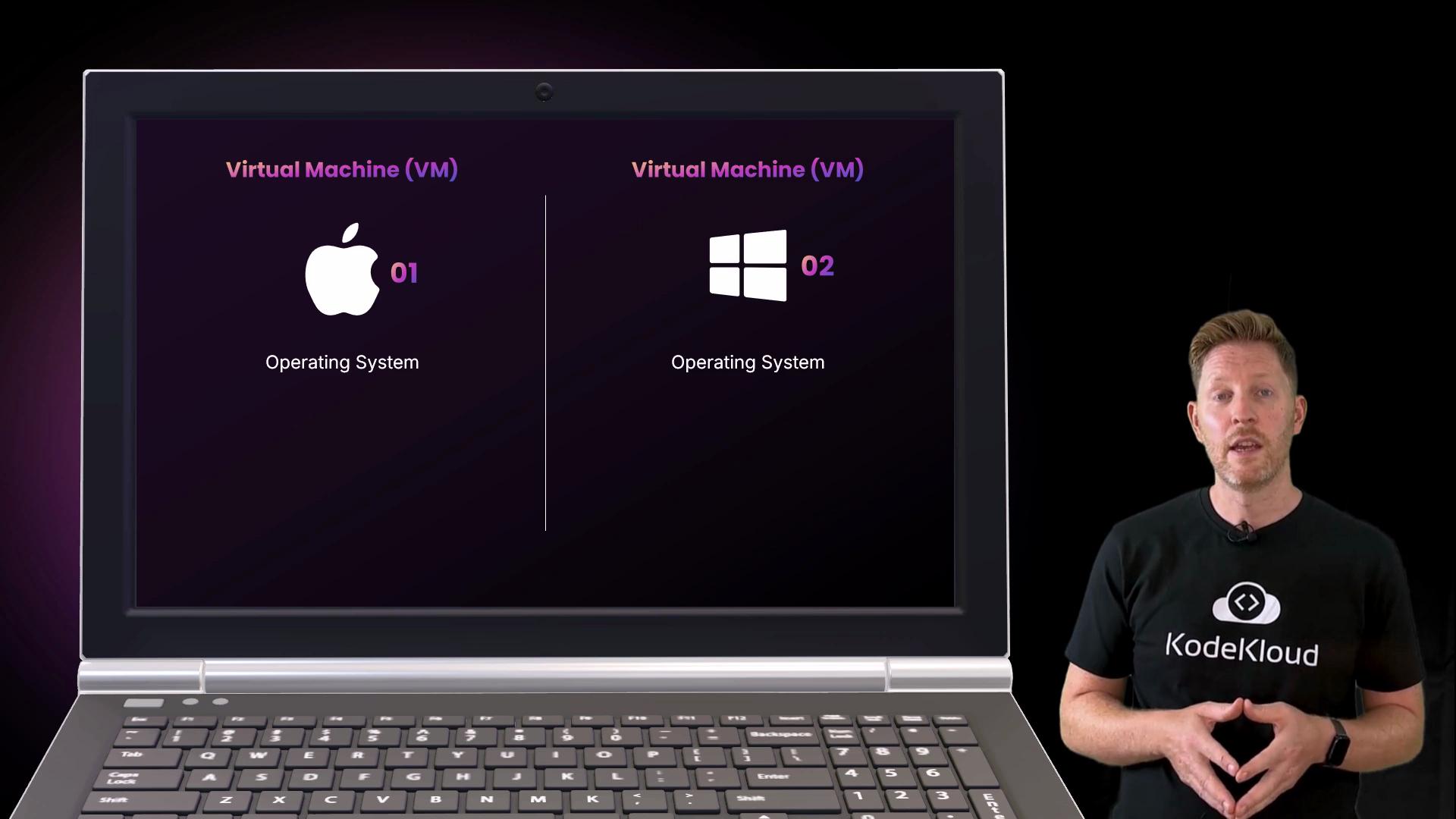

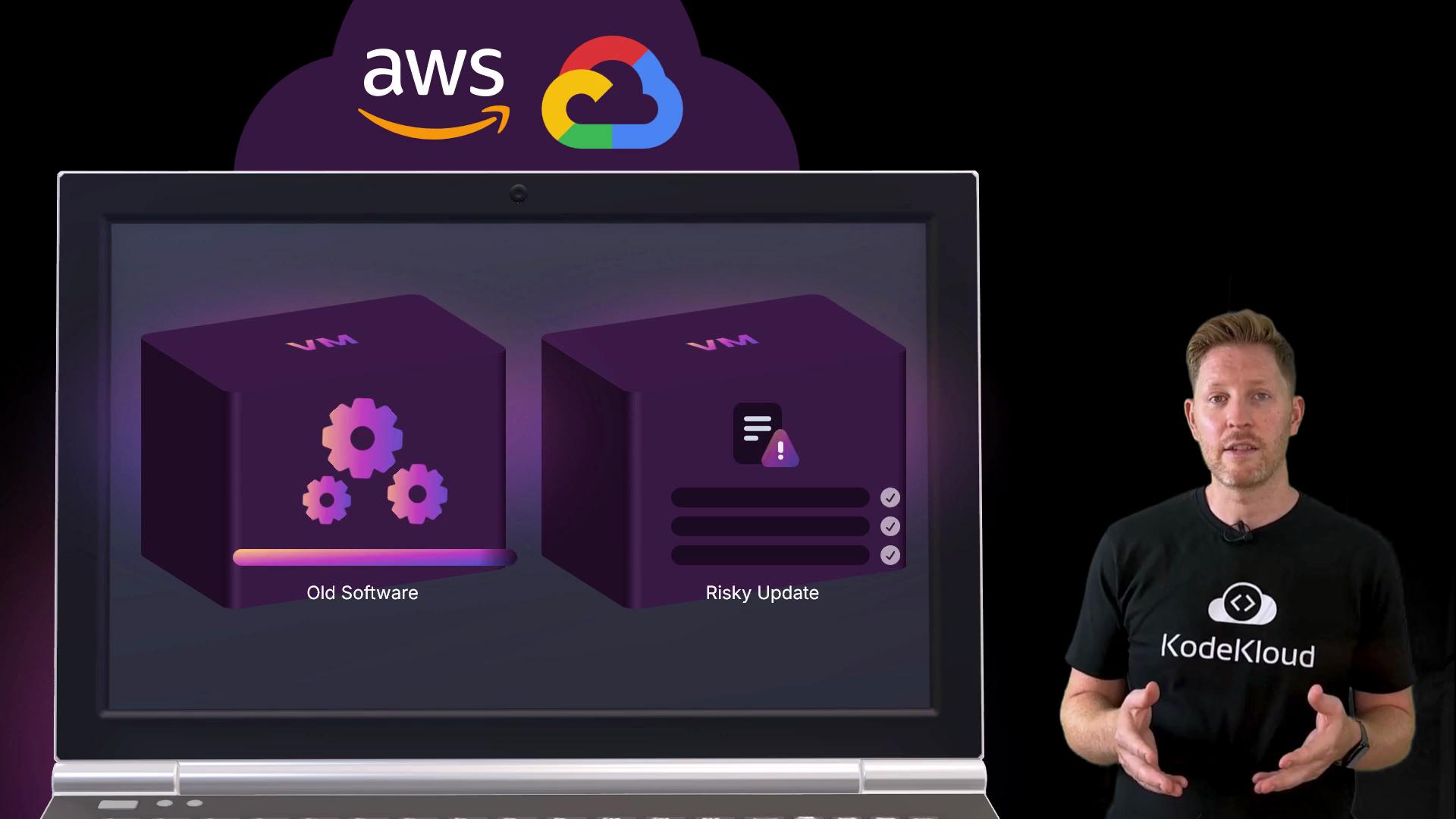

The physical machine is the host; the VMs are guests — isolated and independent. VMs are useful for running legacy applications, testing updates, or hosting multiple customers on shared hardware in cloud environments.

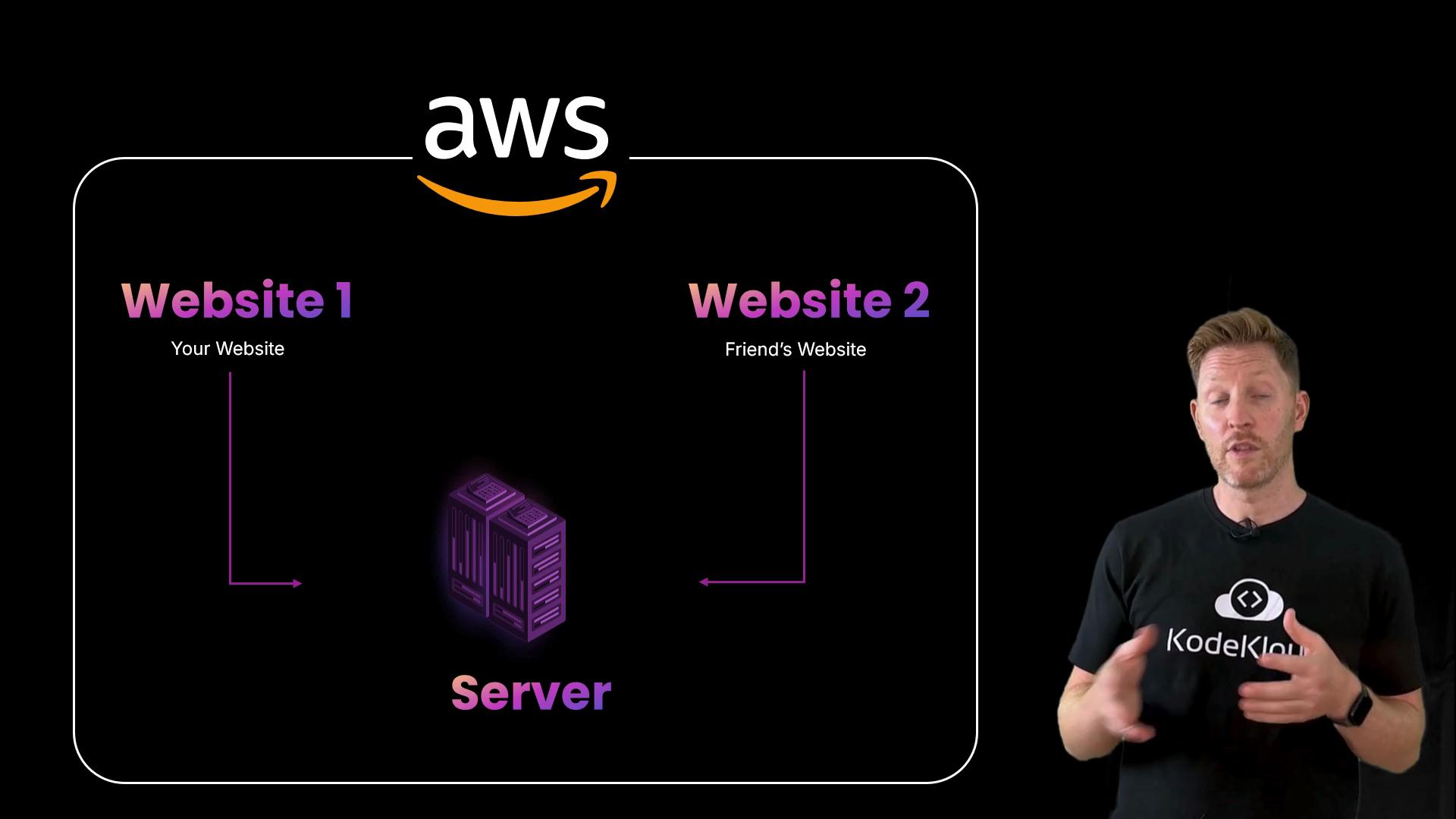

Example: Two people can each host a small website using a single physical AWS server. AWS runs multiple VMs on the same hardware to reduce cost while keeping each customer’s environment isolated.

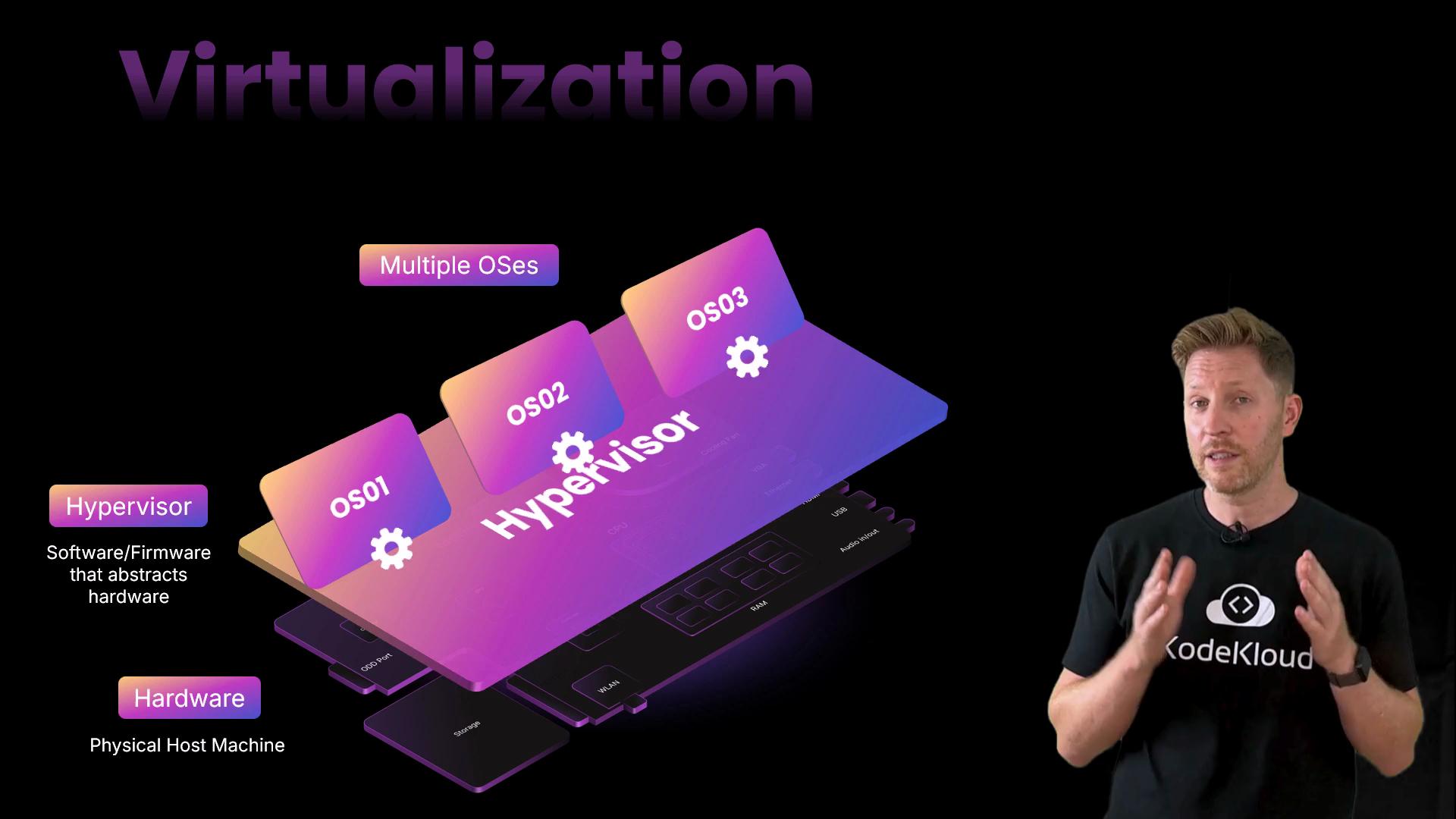

How virtualization worksConsider the familiar stack: hardware at the bottom, then the host OS and kernel, and apps on top. Virtualization adds a layer called the hypervisor between hardware and guest systems. The hypervisor partitions and abstracts physical resources, presenting each VM with virtual hardware.A hypervisor is software or firmware that enables multiple guest operating systems to run concurrently on a single host by mediating access to CPU, memory, storage, and devices.

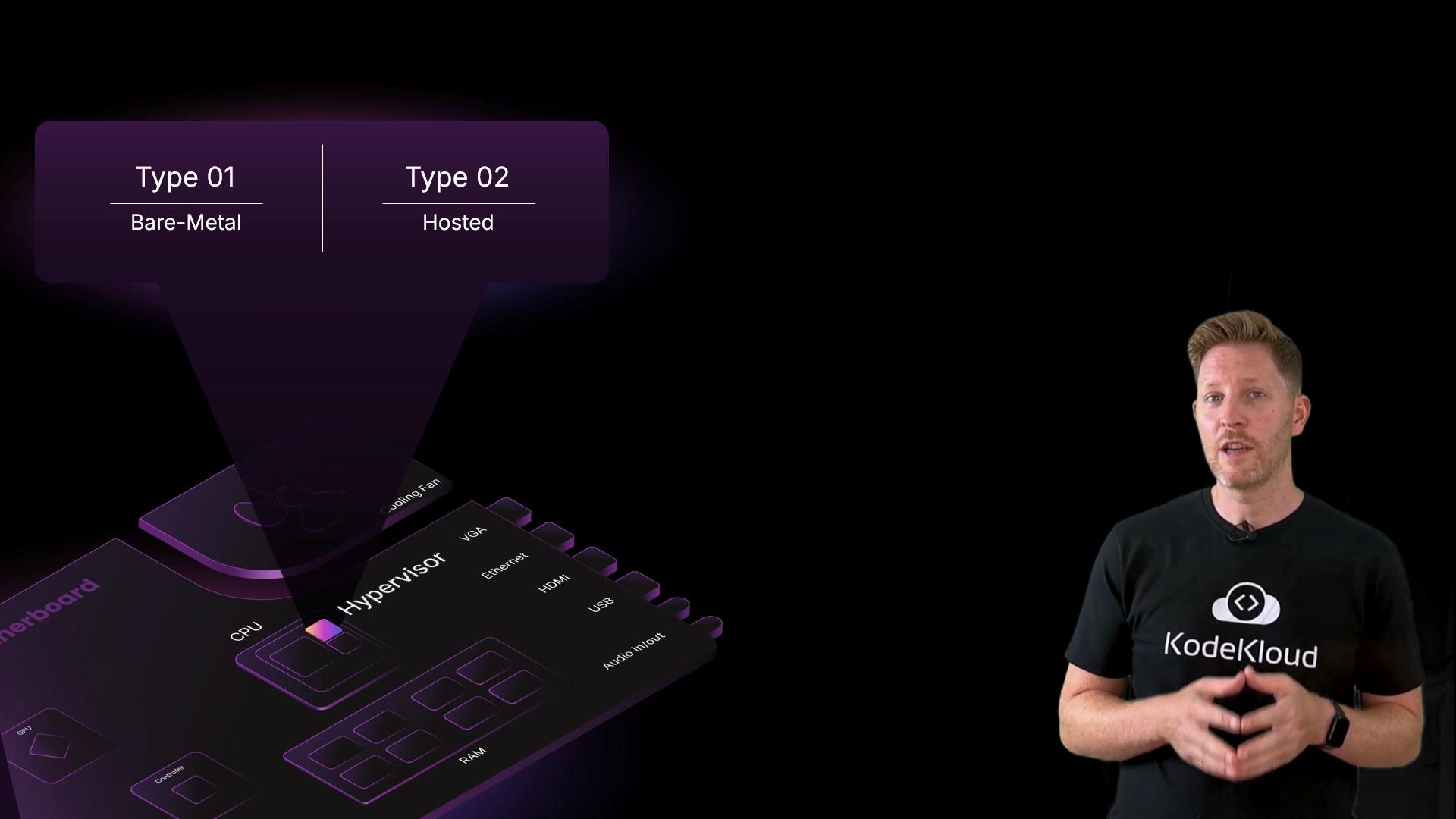

Hypervisor types
There are two primary hypervisor categories:

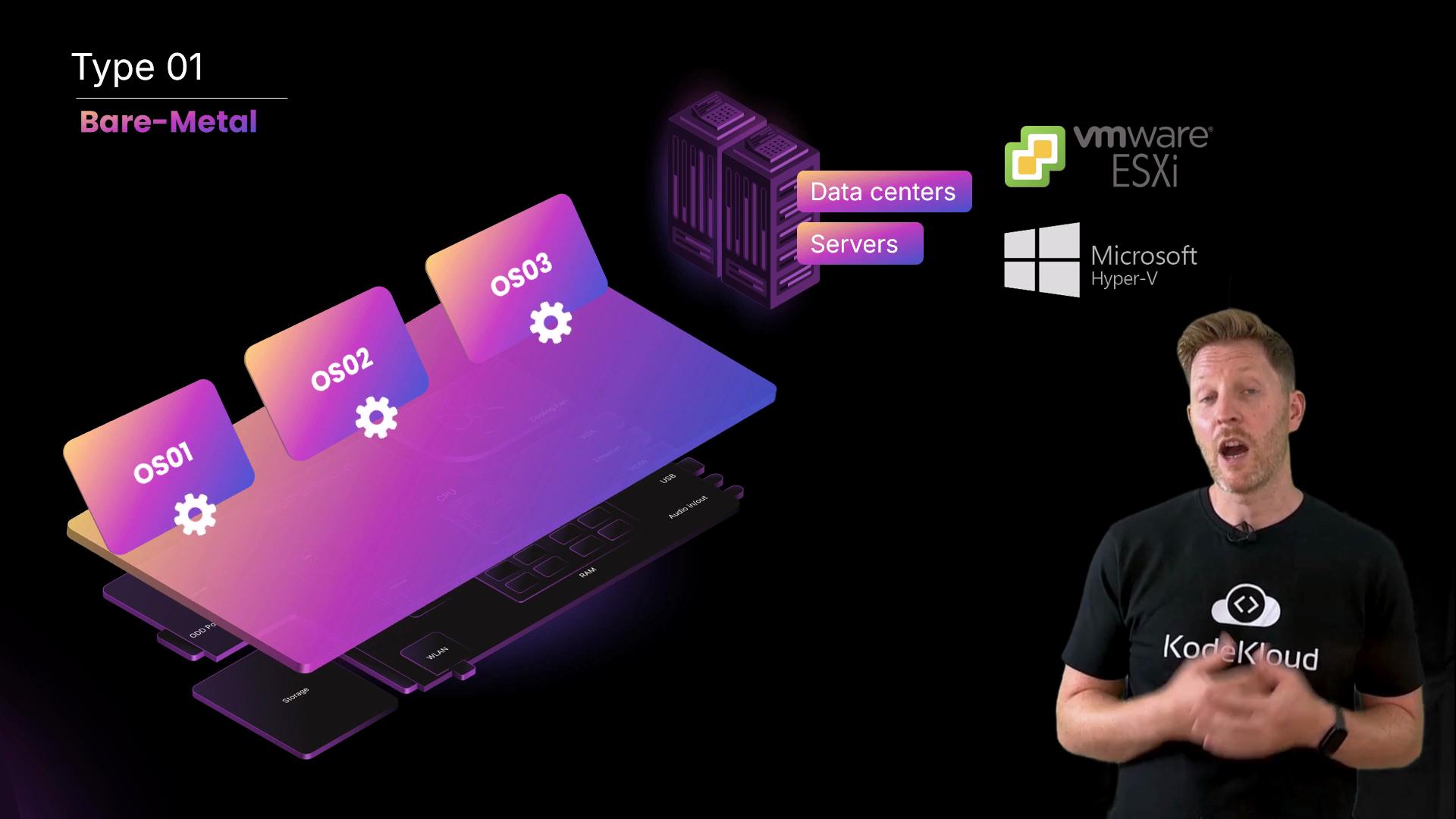

Type 1 (bare-metal): Installed directly on physical hardware, often with only a minimal management layer rather than a full general-purpose host OS. These are common in data centers and server deployments (examples: VMware ESXi, Microsoft Hyper-V).

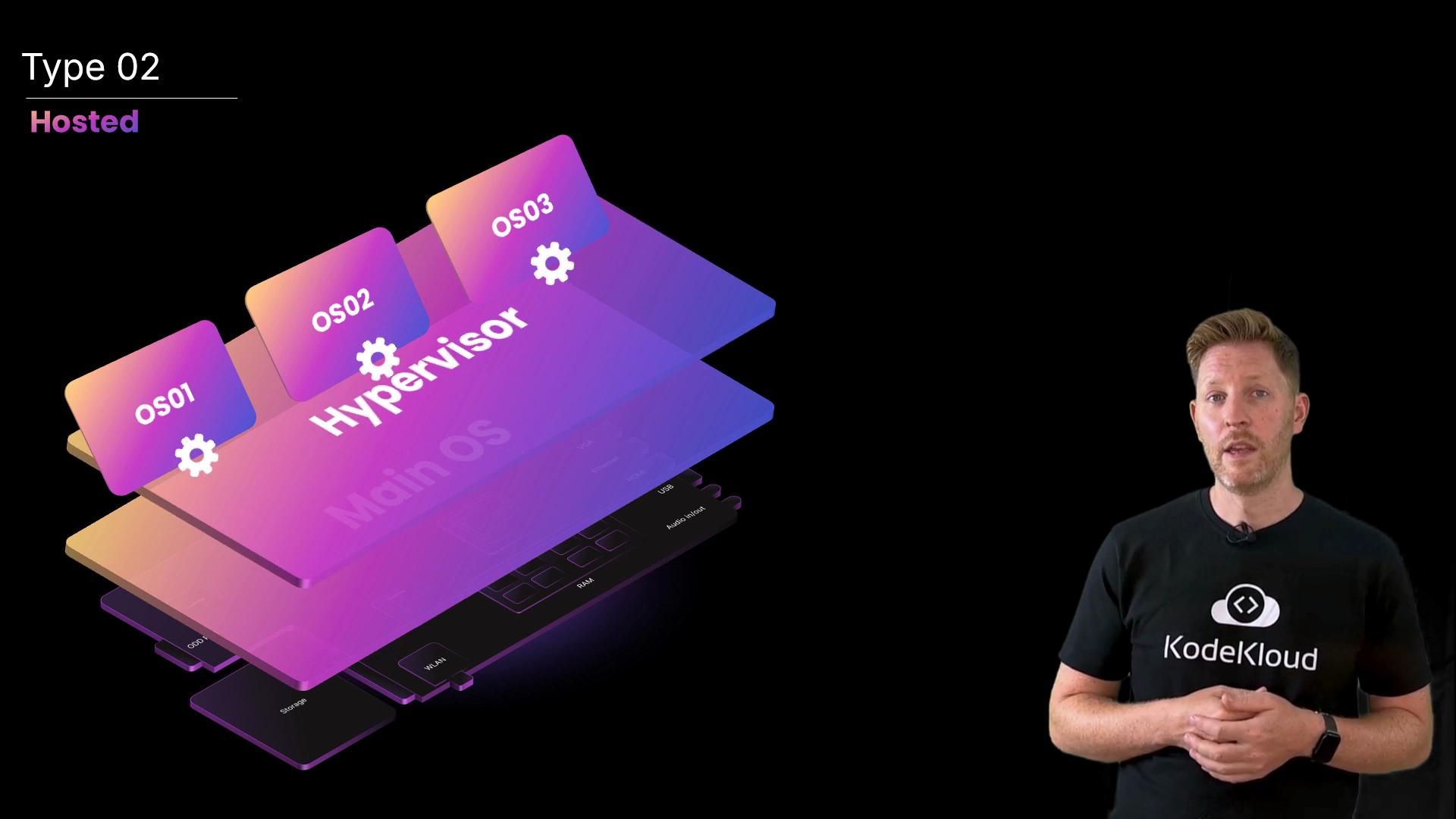

Type 2 (hosted): Runs on top of an existing operating system like any other application. This is what Cody used to run Windows inside macOS (examples: VirtualBox, VMware Workstation).
For both types, the hypervisor gives each VM virtualized CPU, memory, storage, and network interfaces so that each guest OS can run as if on its own physical machine.
Key considerationsNetworkingVMs are isolated by default but can communicate when configured. Common VM network modes and their best uses:
Mode
Use Case
Notes
NAT (Network Address Translation)
Simple internet access for guest without exposing it
VM shares host’s IP externally; good for secure defaults

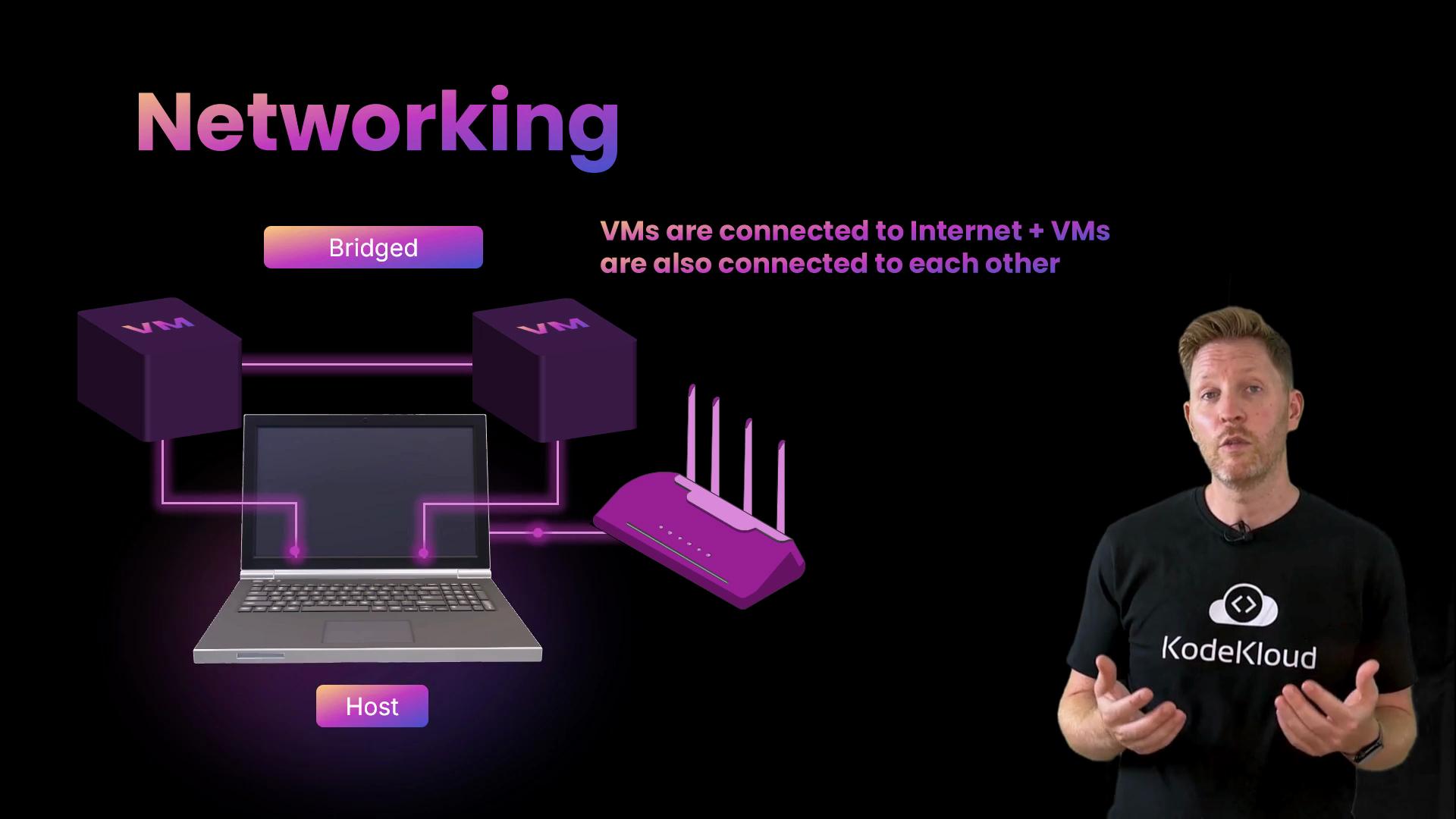

Bridged
Run servers reachable by other devices on the same LAN
VM receives its own IP on the physical network

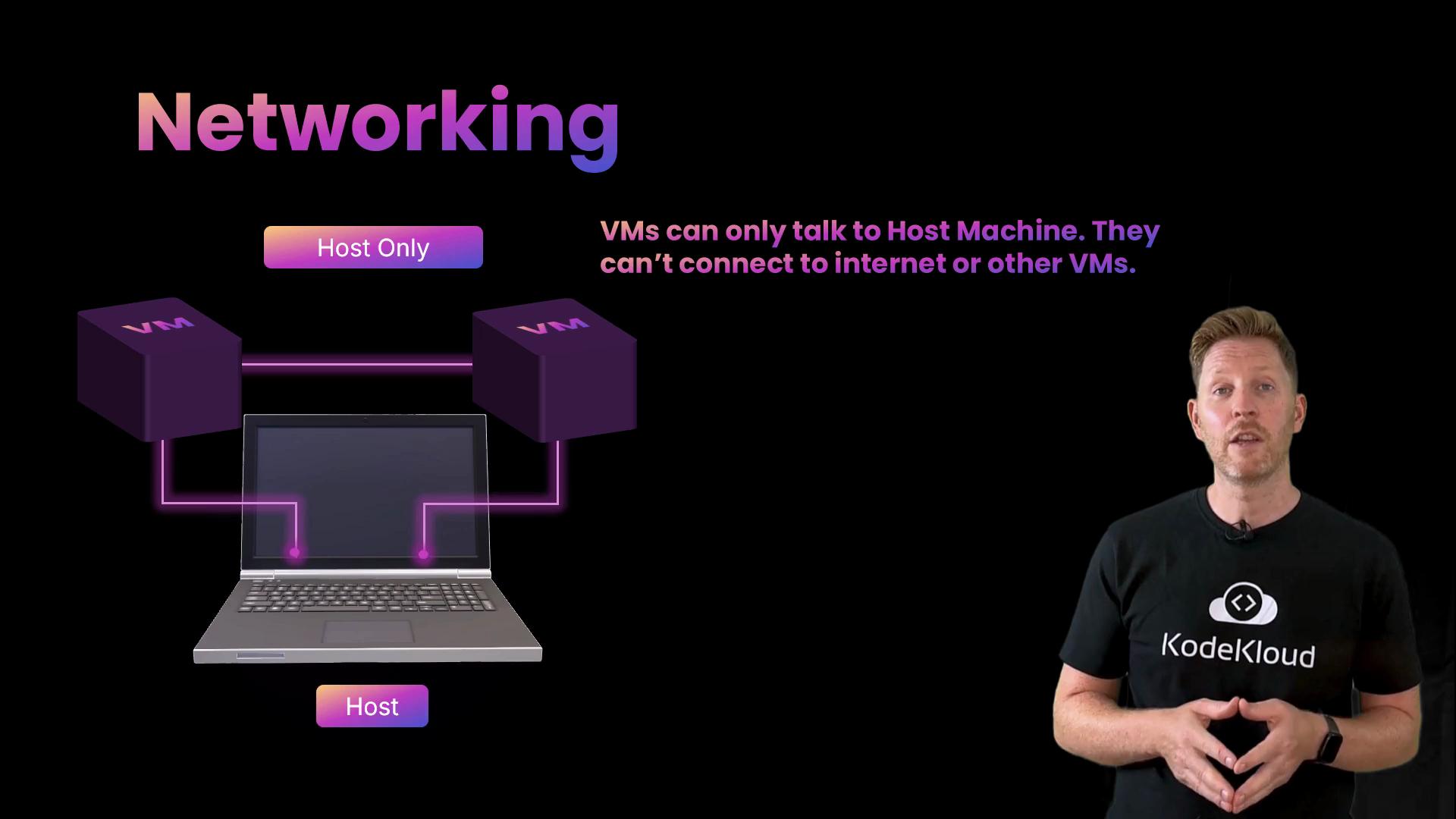

Host-only
Local testing and development between host and VMs
No external internet access; isolates traffic for secure testing

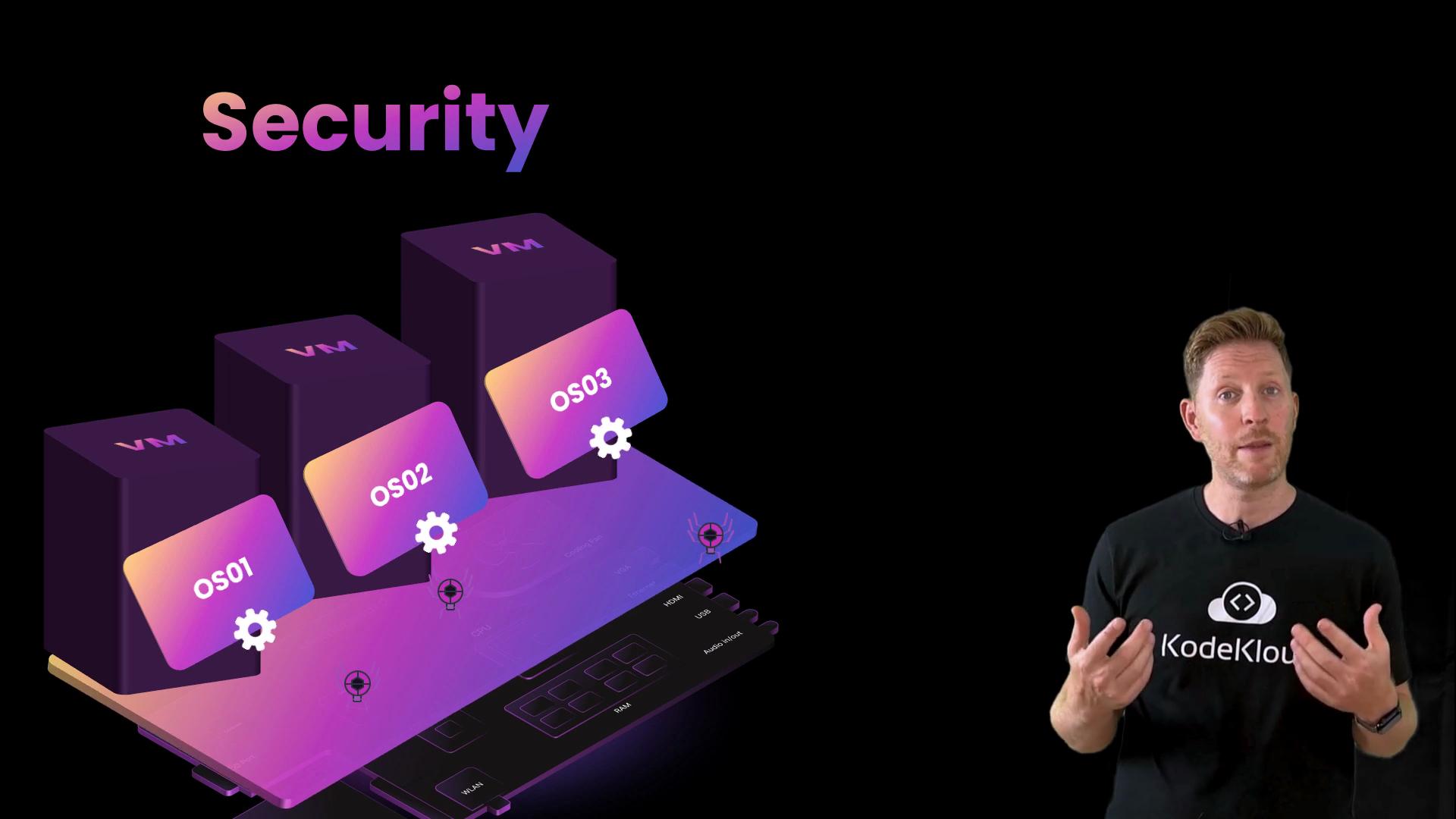

SecurityVMs provide strong isolation: a compromised guest often won’t affect the host if isolation is properly configured. Still, VMs are not invulnerable:
Shared folders, clipboard sharing, and misconfigured virtual networks can enable cross-VM or host compromise.
Hypervisor vulnerabilities, though rare, can allow escape from a VM to the host; vendors release patches to mitigate this risk.
If you run risky software, disconnect the VM from networks and disable file sharing.
Always assume network-exposed VMs can be probed or attacked. Isolate and restrict access for risky workloads and keep hypervisors up to date with security patches.
Performance and resource usageVMs improve hardware utilization by consolidating workloads, but each VM runs a full OS, making them heavier than containers:
Longer boot times and larger RAM/disk requirements compared to containers.
Running many VMs concurrently can overcommit the host if resources aren’t managed.
GPUs are not automatically available to VMs for graphics-heavy or ML workloads; use GPU passthrough, SR-IOV, or vendor vGPU solutions for better performance.

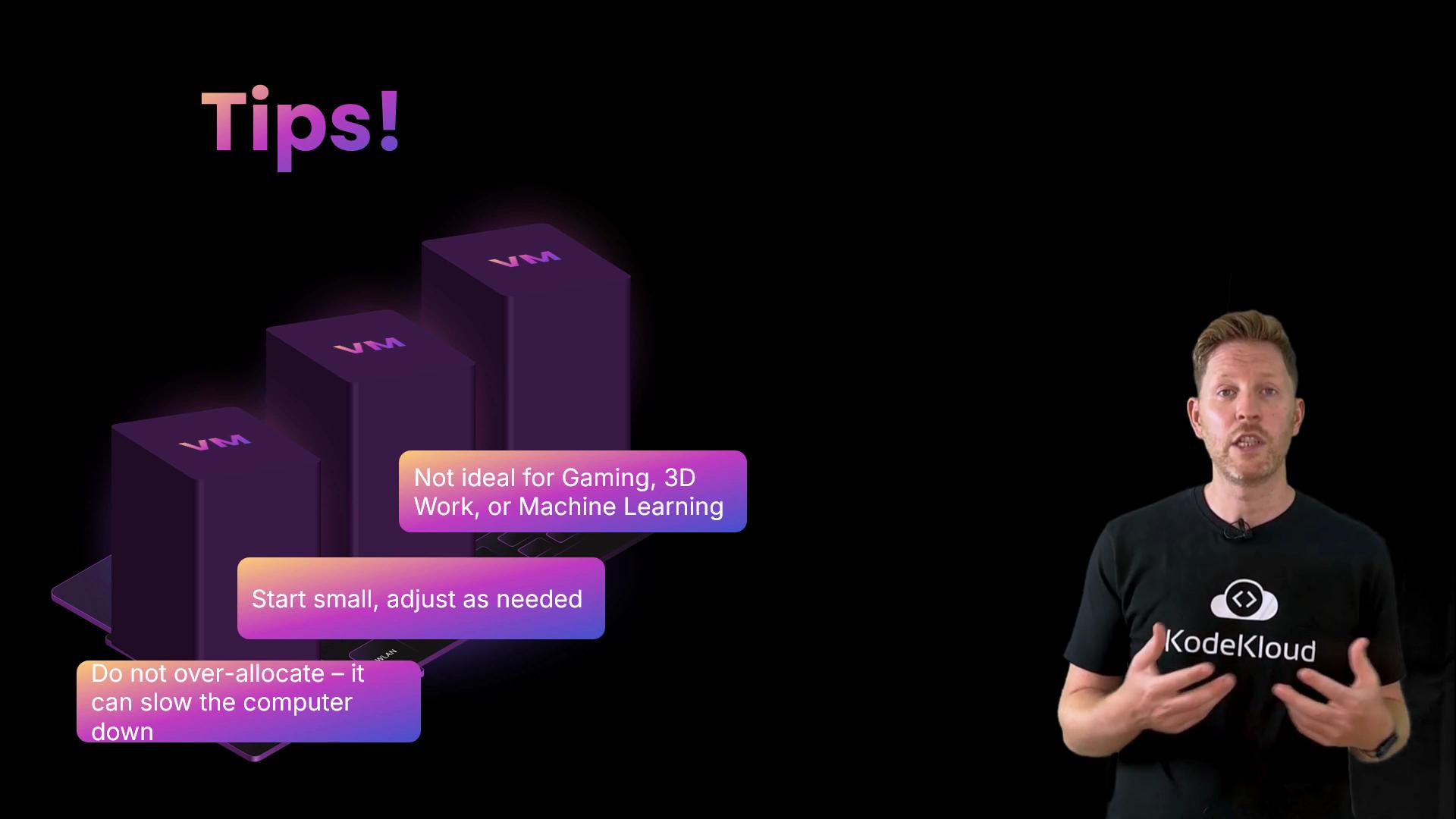

Start with conservative resource allocations, monitor usage, and scale resources as needed.
Flexibility and managementVMs offer flexibility across OS choices and rich management features:
Run Linux on Windows or Windows on macOS without rebooting — ideal for legacy apps and mixed development environments.

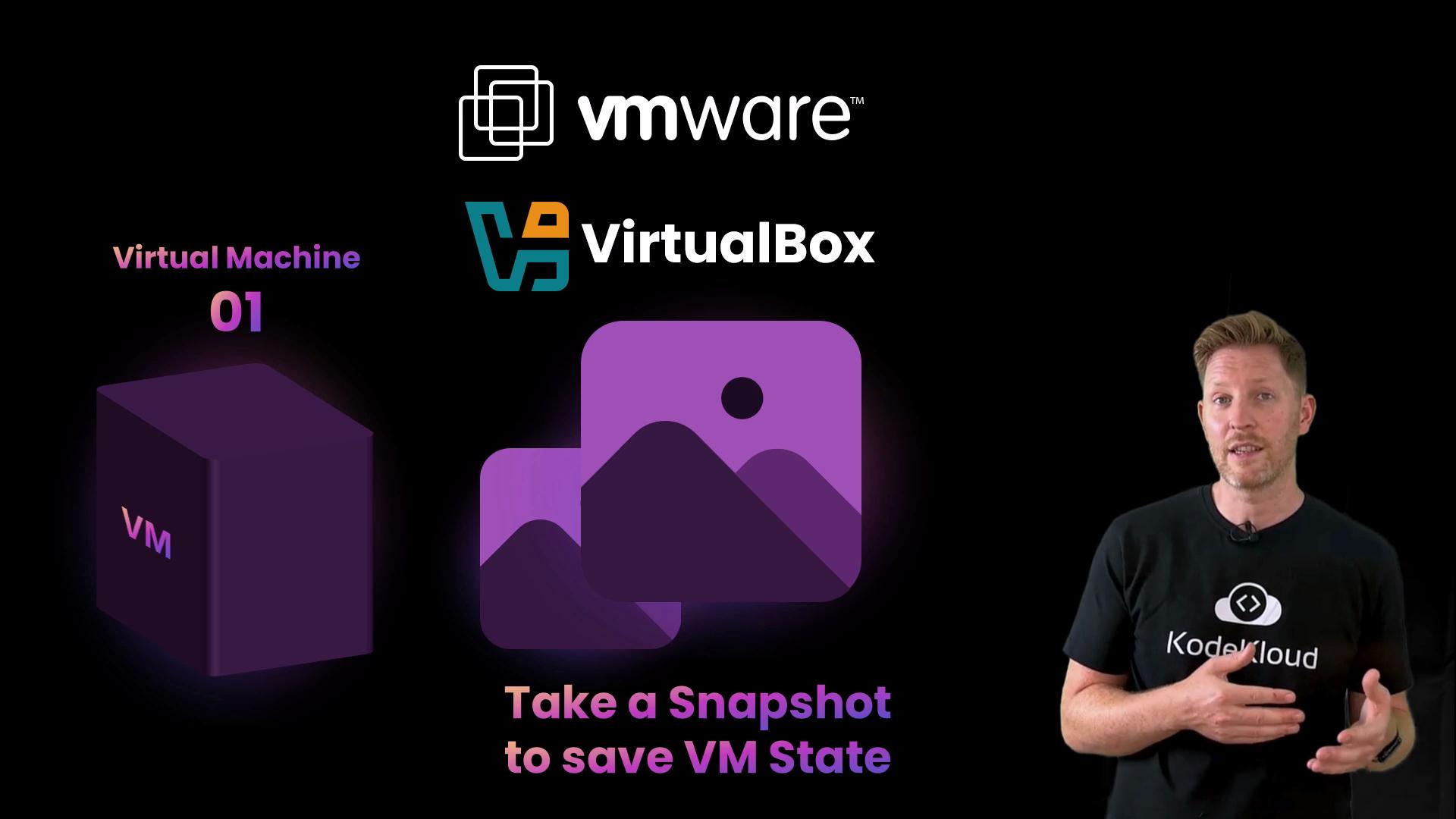

Snapshots capture a VM’s exact state so you can roll back after risky changes.
Cloning creates full copies of a VM for labs, testing, or rapid provisioning.
Snapshots are great for quick rollbacks, but they are not a substitute for backups. Keep separate backups for important data.
Quick quizWhich statement is true?A. A VM runs directly on the hardware with no OS.
B. A hypervisor lets one computer run multiple VMs.
C. VMs are isolated, so they can’t communicate with each other.
Answer: B is correct. A is false because while a Type 1 hypervisor runs on bare metal, each VM still runs a full OS on top of the hypervisor. C is misleading: VMs are isolated by default, but they can communicate over configured virtual networks.SummaryA virtual machine is a full, self-contained “computer” running inside a physical host with its own OS and applications.
One physical machine can host multiple VMs, each acting like a separate system.
The hypervisor is the layer that creates and manages VMs by dividing hardware resources.
Type 1 hypervisors run on bare metal; Type 2 hypervisors run on top of a host OS.

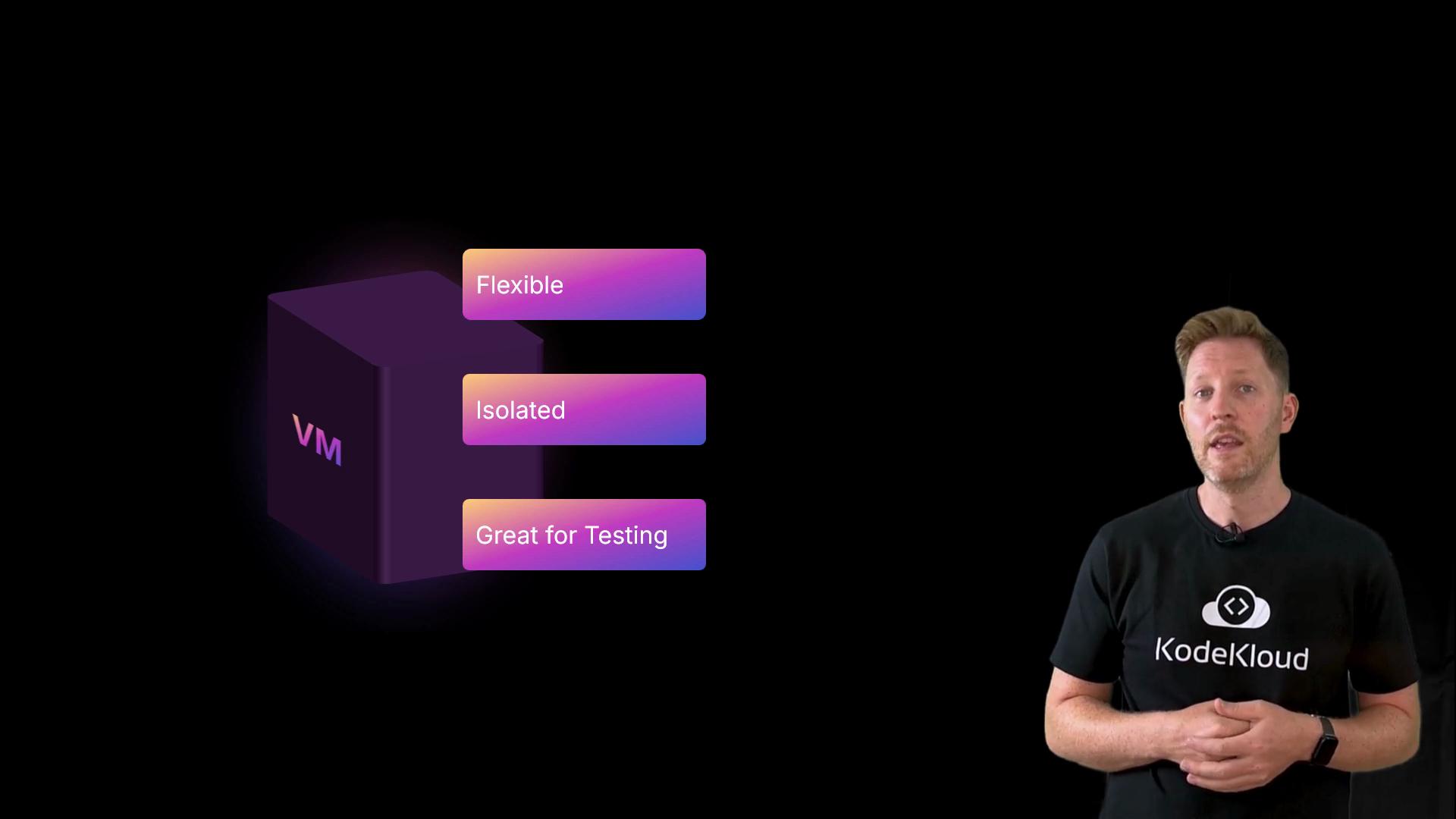

VMs are flexible and isolated, ideal for testing legacy apps or running multiple systems — but they are heavier than containers and consume more resources.

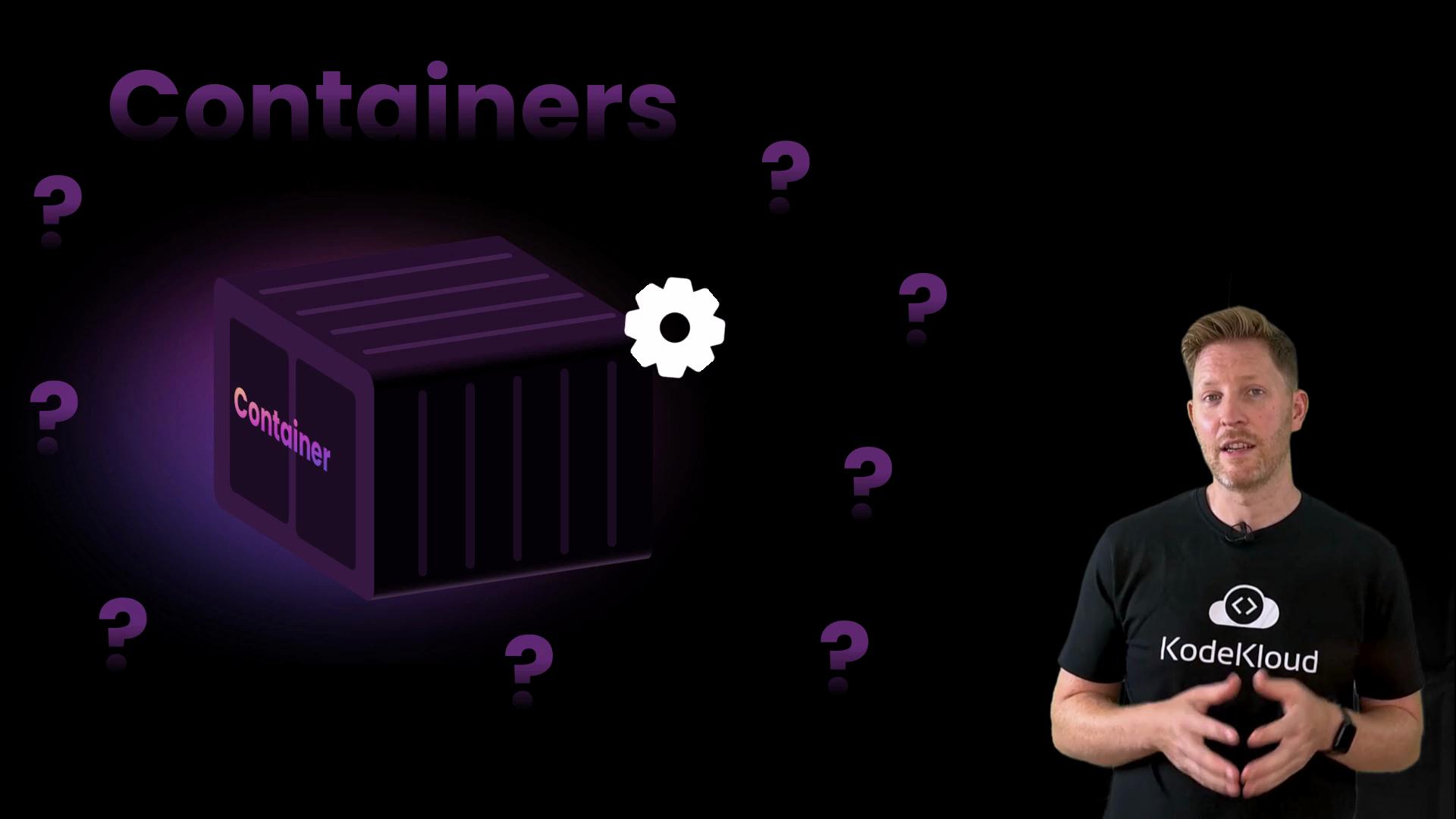

Next stepsThis overview covers traditional virtualization with VMs. To understand how containers solve some VM limitations (lighter weight, faster startup, denser packing), continue to the article on containers.
