This article explores the different options for strategically placing EC2 instances on specific hardware configurations to optimize performance and redundancy.

Cluster Placement Group

A Cluster Placement Group positions all instances in close proximity within the same availability zone—and often on the same rack. This configuration minimizes network latency and maximizes network throughput, making it highly suitable for high-performance computing applications as well as big data and analytics workloads.

Key Benefit

Using a Cluster Placement Group can significantly improve communication speeds between instances when they are tightly coupled.

Partition Placement Group

Partition Placement Groups distribute instances across distinct logical partitions. Each partition has its own set of racks with independent network and power sources. This design minimizes risk because a failure (such as a given hardware malfunction or power outage) in one partition does not impact the others. Partition Placement Groups are an excellent choice for distributed or replicated workloads, including Hadoop-based applications.

Redundancy Advantage

The separation provided by partitions ensures that a failure in one partition does not cascade to affect the entire application.

Spread Placement Group

Spread Placement Groups are designed to mitigate correlated failures by allocating each instance its own dedicated hardware along with isolated racks and power sources. With each instance operating on separate underlying infrastructure, this option is ideal for a small number of critical instances that require maximum isolation.

When to Use

Spread Placement Groups should be used when critical workloads demand strict isolation from potential hardware failures.

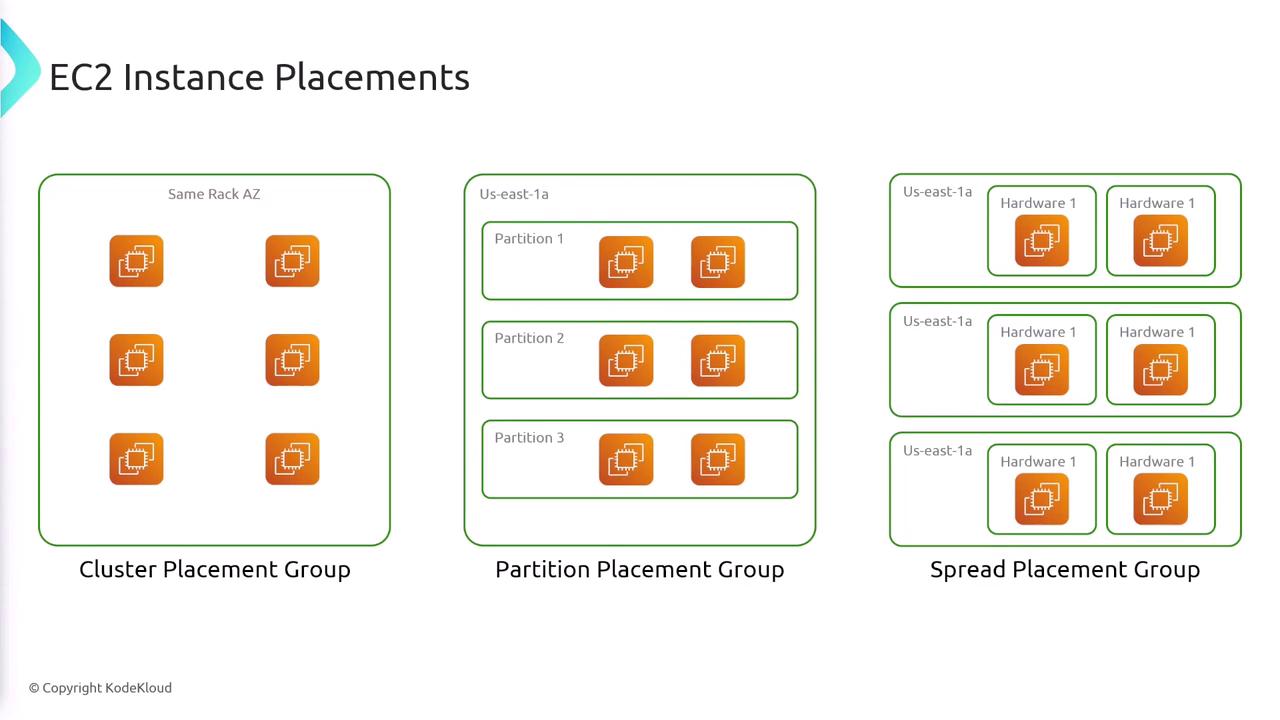

The image illustrates three types of EC2 instance placements: Cluster Placement Group, Partition Placement Group, and Spread Placement Group, each with different configurations for distributing instances.

Key Comparisons

The main difference between partition and spread placement groups is in how instances share hardware resources:

In a Partition Placement Group, multiple instances can coexist within the same logical partition, though they do not share the underlying hardware across different partitions.
In a Spread Placement Group, every instance operates on dedicated hardware, ensuring complete isolation between them.

For more details on EC2 best practices and AWS configurations, check out the AWS Documentation.
