Configuring EventBridge Rules to Trigger Actions

This article, part of the AWS SysOps Associate curriculum, explains how to configure Amazon EventBridge rules to trigger actions in your AWS environment. EventBridge rules enable you to route incoming events from an event bus to specific targets based on matching patterns, streamlining your event-driven architecture.


Understanding EventBridge

When events are sent to an event bus, it's essential to determine the appropriate action for each event. EventBridge rules empower you to analyze these events by matching them against defined patterns and then routing them to designated targets.

Below is an overview of the standard EventBridge architecture:

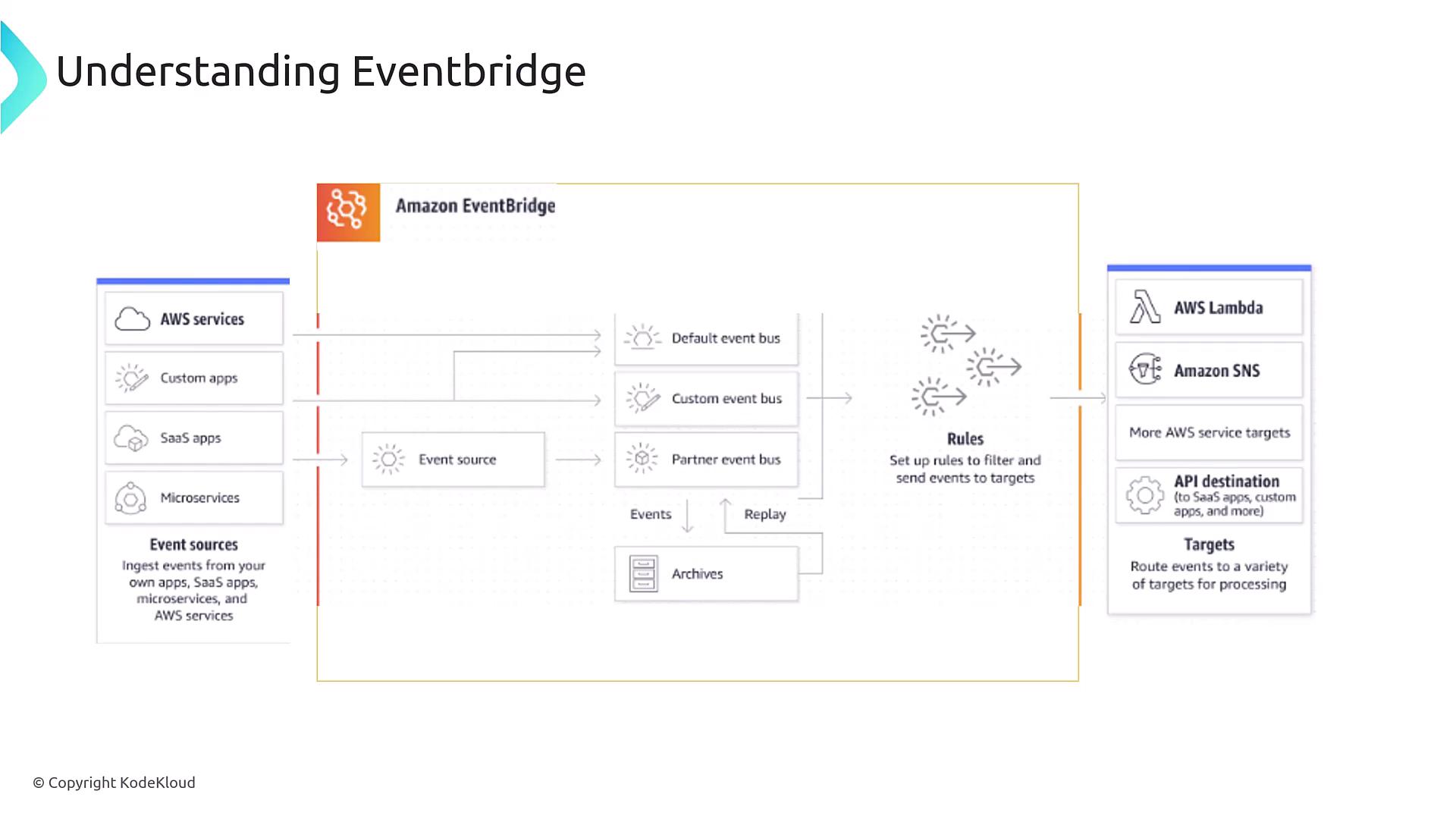

The image is a diagram explaining Amazon EventBridge, showing how events from various sources like AWS services and custom apps are processed through event buses and rules, and then routed to targets such as AWS Lambda and Amazon SNS.

In the diagram, events from different sources land on the event bus. The EventBridge rules then evaluate each event, and if an event meets the specified pattern, it is routed to one or more appropriate targets like AWS Lambda functions, APIs, or other AWS services.


Steps to Configure an EventBridge Rule

Configuring an EventBridge rule involves a clear sequence of steps:

  1. Define the event source: Identify the AWS service or custom application generating events.
  2. Specify the event pattern: Determine the criteria or pattern that an event must match to trigger the rule.
  3. Select the target: Choose the destination where the event will be sent if it matches the pattern (e.g., AWS Lambda, API Gateway).
  4. Create and activate the rule: Save and enable the rule so that it begins monitoring the event bus in real time.

Once activated, the rule continuously listens for incoming events, performs pattern matching, and triggers the necessary actions.

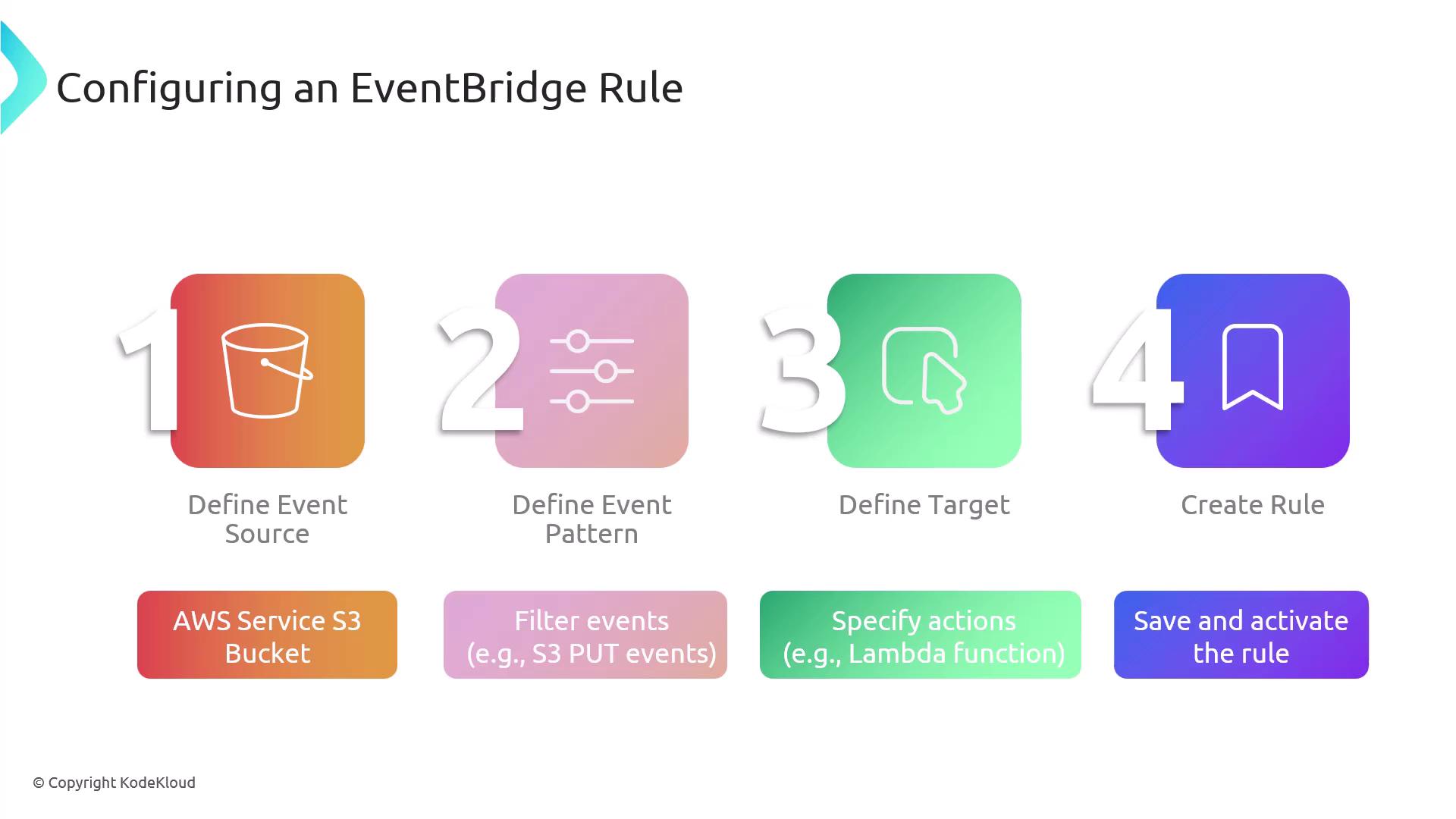

The image outlines the steps to configure an EventBridge rule, including defining the event source, event pattern, target, and creating the rule. It provides examples like using an AWS S3 bucket and specifying actions such as a Lambda function.

Quick Tip

For enhanced security and reliability, ensure that all IAM roles associated with your EventBridge rules have the minimum required permissions.


Practical Example: S3 Bucket Trigger

Consider an example where an object is uploaded to an S3 bucket. Here's how the process unfolds:

  • An event is generated when the S3 bucket detects a PUT operation (i.e., an object upload).
  • The configured EventBridge rule, which is set to monitor this specific event pattern, routes the event to an AWS Lambda function.
  • The Lambda function processes the uploaded object—for instance, generating thumbnails for images.

The image illustrates a process where an S3 bucket event triggers an AWS Lambda function via Amazon EventBridge. It shows the flow from the event source to the event rule and finally to the target Lambda function.

Integration Flexibility

Remember, while this example uses Lambda as the target, EventBridge supports over 200 AWS services and third-party integrations, providing significant flexibility to suit your application's requirements.


Conclusion

Amazon EventBridge rules offer a powerful mechanism to automate workflows within your AWS environment. By defining event sources, patterns, and targets, you can seamlessly route events to trigger specific actions, thereby optimizing your cloud operations.

We hope this guide provides a clear understanding of how to configure EventBridge rules to trigger actions in your AWS infrastructure. Happy automating!
