Implementing Caching With DynamoDB and DAX

Welcome to this comprehensive guide on implementing caching with DynamoDB and DAX. In this lesson, you'll learn how to leverage the DynamoDB Accelerator (DAX) to achieve microsecond read times by introducing a caching layer for your DynamoDB database.

Overview

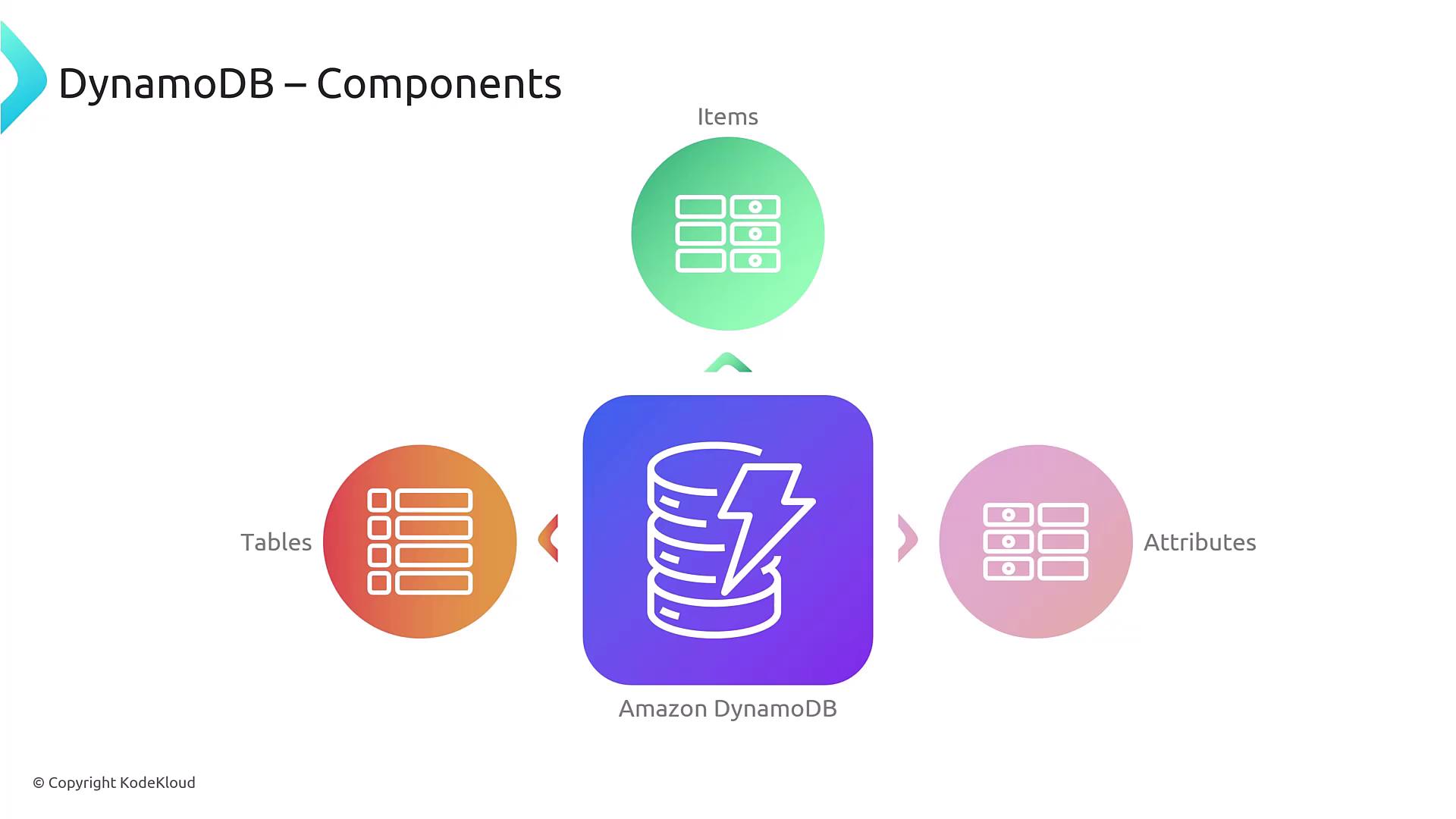

DynamoDB is a fully managed, serverless, and scalable NoSQL database designed to handle massive volumes of data with high performance. It organizes data into tables made up of items (analogous to rows in a relational database) and attributes (similar to fields). Each table uses hash keys, sort keys, or composite keys to manage and access its data efficiently.

DynamoDB Data Structure

In DynamoDB, a table consists of multiple items where each item is a collection of key attributes along with additional attributes. Consider the following JSON representations for items in a "People" table:

{
    "PersonID": 101,
    "LastName": "Smith",
    "FirstName": "Fred",
    "Phone": "555-4321"
}
{
    "PersonID": 102,
    "LastName": "Jones",
    "FirstName": "Mary",
    "Address": {
        "Street": "123 Main",
        "City": "Anytown",
        "State": "OH",
        "ZIPCode": 12345
    }
}

Since DynamoDB uses a NoSQL data model, it supports a dynamic schema. While the primary keys remain constant (e.g., "PersonID" in the examples above), additional attributes can vary among items. A complete representation of a collection in the "People" table might look like this:

{
  "People": [
    {
      "PersonID": 101,
      "LastName": "Smith",
      "FirstName": "Fred",
      "Phone": "555-4321"
    },
    {
      "PersonID": 102,
      "LastName": "Jones",
      "FirstName": "Mary",
      "Address": {
        "Street": "123 Main",
        "City": "Anytown",
        "State": "OH",
        "ZIPCode": 12345
      }
    }
  ]
}

When designing your table, it is crucial to decide which attributes will function as keys to efficiently index and query your data, while others serve as supplementary information.

Table Classes

DynamoDB provides different classes of tables to optimize for varied access patterns and cost requirements:

1. Standard Access Table:
   The default type, optimized for rapid access with user-controlled read and write capacities.

2. Infrequent Access Table:
   Optimized for data that is accessed less frequently, it leverages a colder storage tier to reduce costs. However, if access patterns change and resemble those of a standard table, additional costs might be incurred.

Data Models and Indexes

DynamoDB is versatile, supporting both key-value and document data models. Its flexible schema allows on-the-fly modifications without downtime. Key elements of a DynamoDB data model include:

• Primary Keys:
  Set during table creation and can be either a simple primary key or a composite key.

• Secondary Indexes:

  • Local Secondary Indexes: Must be created when the table is initialized.
  • Global Secondary Indexes: Can be added post table creation and have dedicated read and write capacities.

Additional advanced features of DynamoDB include on-demand backups, point-in-time recovery, and the ability to choose between on-demand and provisioned capacity modes (with auto-scaling support).

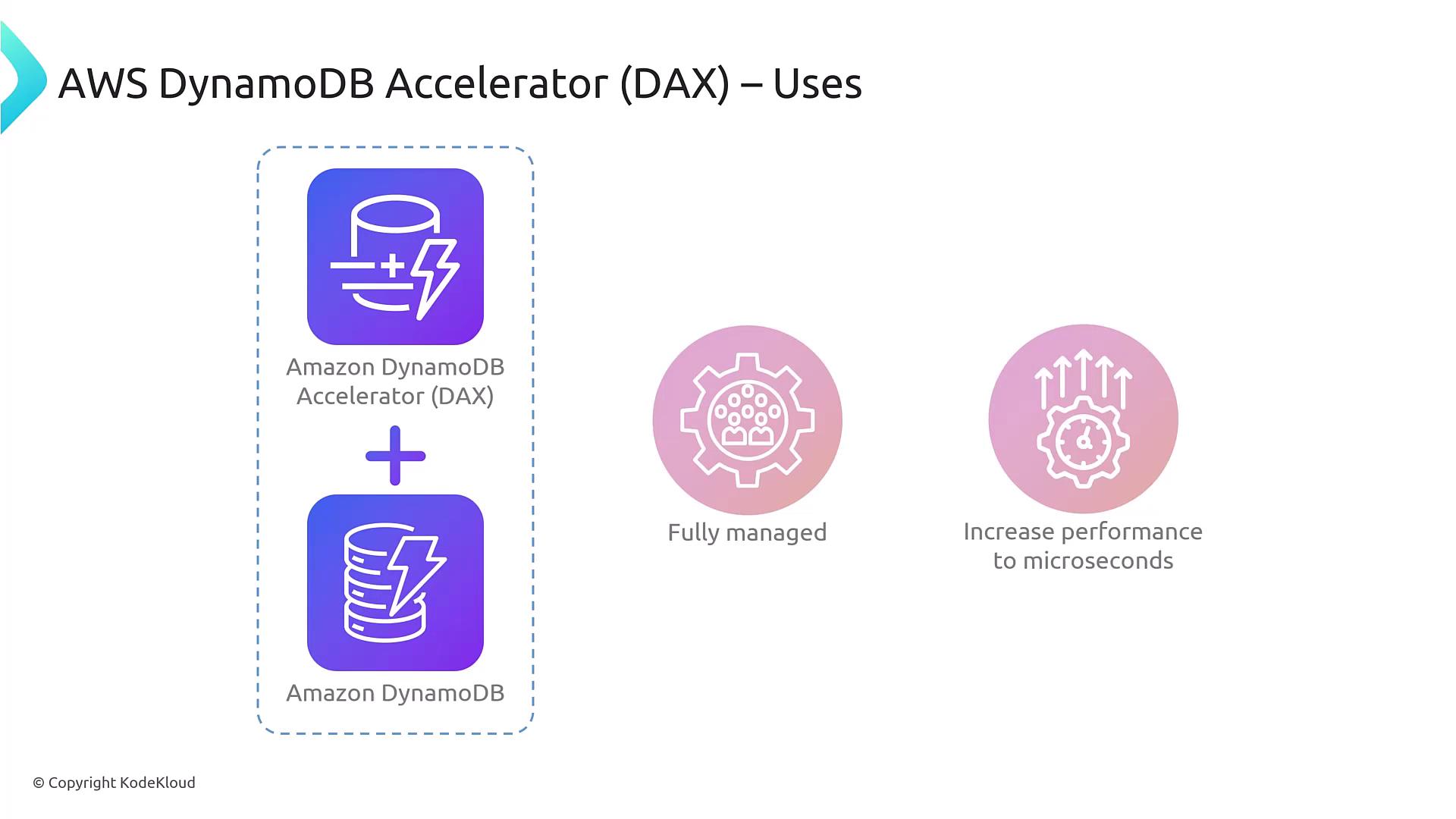

Introduction to DAX

DAX (DynamoDB Accelerator) is a fully managed caching service built specifically for DynamoDB. It is designed to deliver microsecond response times for read-heavy applications. By directing read operations to the DAX cluster, your application can achieve significant performance improvements. On a cache miss, DAX retrieves data from DynamoDB, updates the cache, and then returns the data to the application.

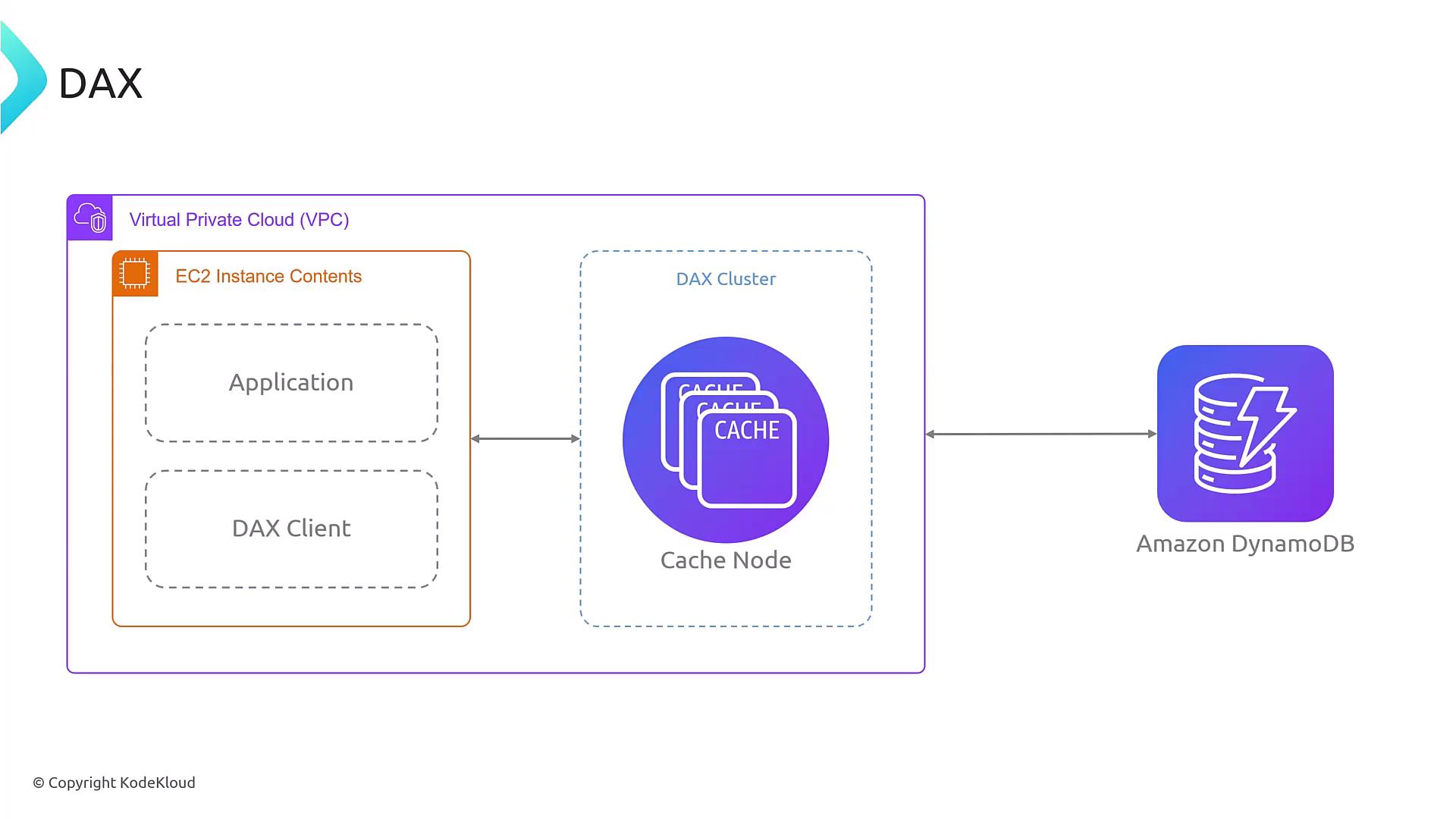

How DAX Works

A DAX cluster comprises one primary node and up to nine additional read replica nodes, supporting a total of 10 nodes per cluster. The client integrated into your application (whether on EC2, Lambda, etc.) is responsible for managing the connection to the DAX cluster endpoint and handles:

• Intelligent load balancing
• Request routing
• Managing write throughput

When a get-item request is made, the DAX client checks the cache first. If the target data is available, it is returned in microseconds; otherwise, the request is forwarded to DynamoDB, and the result is cached for future requests.

DAX Features

DAX offers several key features that make it an attractive solution for scenarios requiring high-speed read operations:

• Microsecond response times for read-intensive workloads
• High scalability to support growing application demands
• Fully managed service to reduce operational overhead
• Seamless integration with existing applications

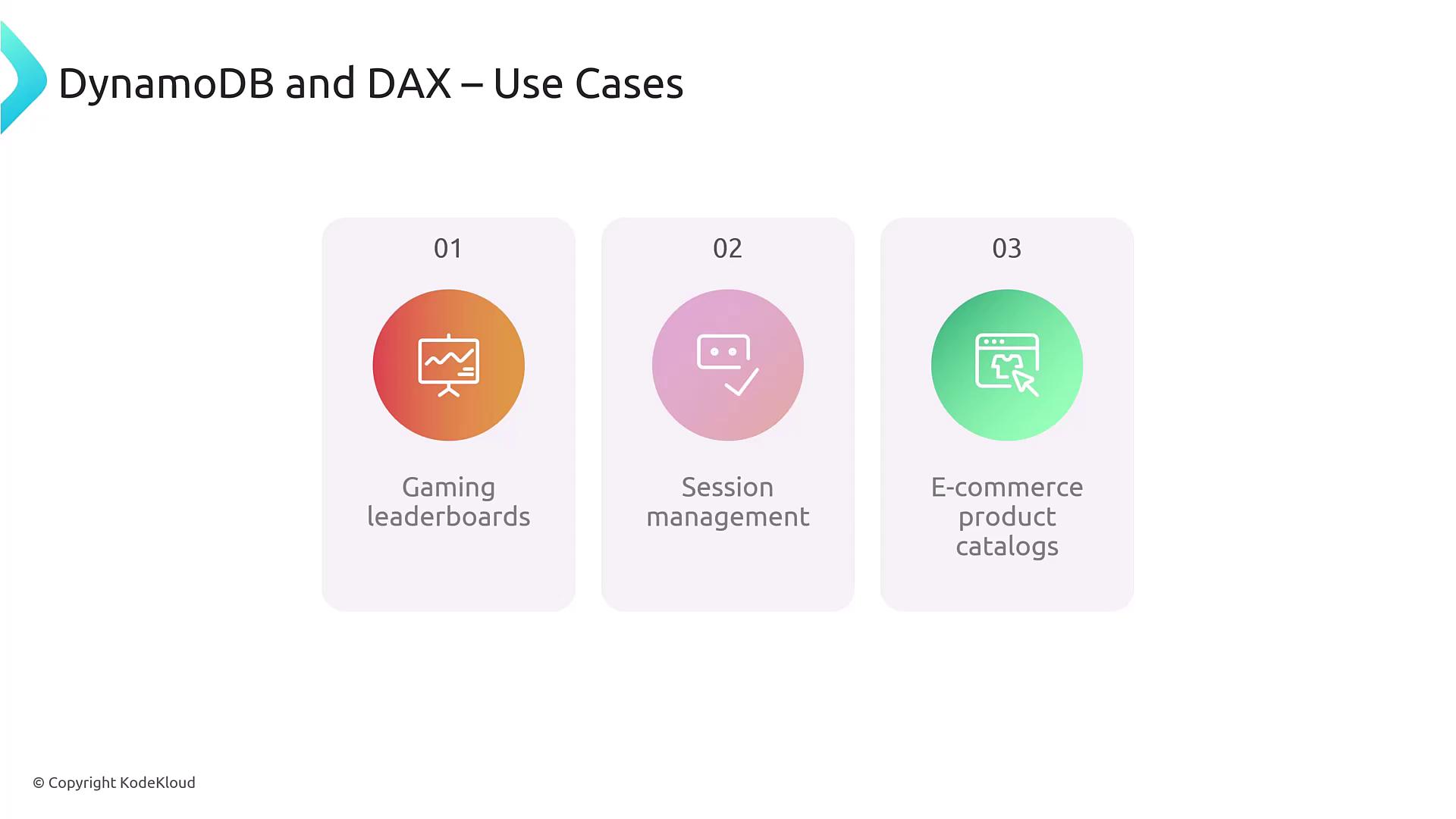

• Versatility to support diverse use cases, such as gaming leaderboards, session management, and comprehensive product catalogs

Conclusion

DAX enhances DynamoDB by providing an efficient in-memory caching mechanism, reducing read latency from milliseconds to microseconds. This automated handling of cache hits and misses allows you to build high-performance applications while reducing operational complexity.

Thank you for reading this guide on implementing caching with DynamoDB and DAX. Happy coding!
