Calculate the following Compute Costs Calculator Exercise

Welcome, Cloud Practitioners!

In this exercise, we will guide you through your first billing practice session using the AWS Pricing Calculator. I'm Michael Forrester, and in this lesson, you will learn how to navigate billing dimensions and explore the various cost factors in AWS. This exercise is not about memorizing pricing structures but rather about understanding how different configurations impact your costs.

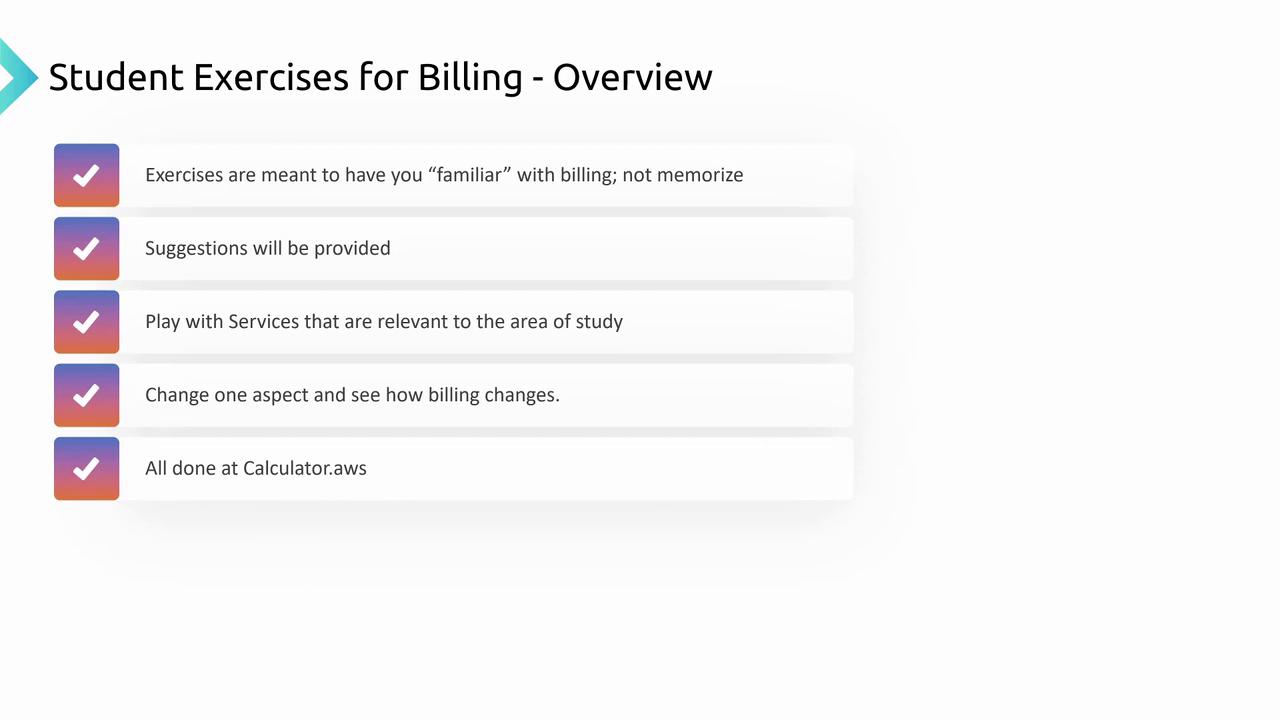

Before we begin, here are some important points to consider:

1. The primary goal is to get acquainted with AWS pricing and billing practices.
2. While suggestions are provided, you are encouraged to explore other services and configurations to enhance your understanding.
3. For compute services, starting with EC2 is recommended, though alternatives like Lambda, ECS, or EKS are worth exploring.
4. Experiment by comparing configurations—for instance, compare an EC2 instance with 2 processors and 8 GB of RAM to one with 4 processors and 16 GB of RAM.
5. Use the online AWS Pricing Calculator at calculator.aws. Logging in is optional unless you wish to save your estimates.

Below is an overview of the exercise details:

Getting Started with the AWS Pricing Calculator

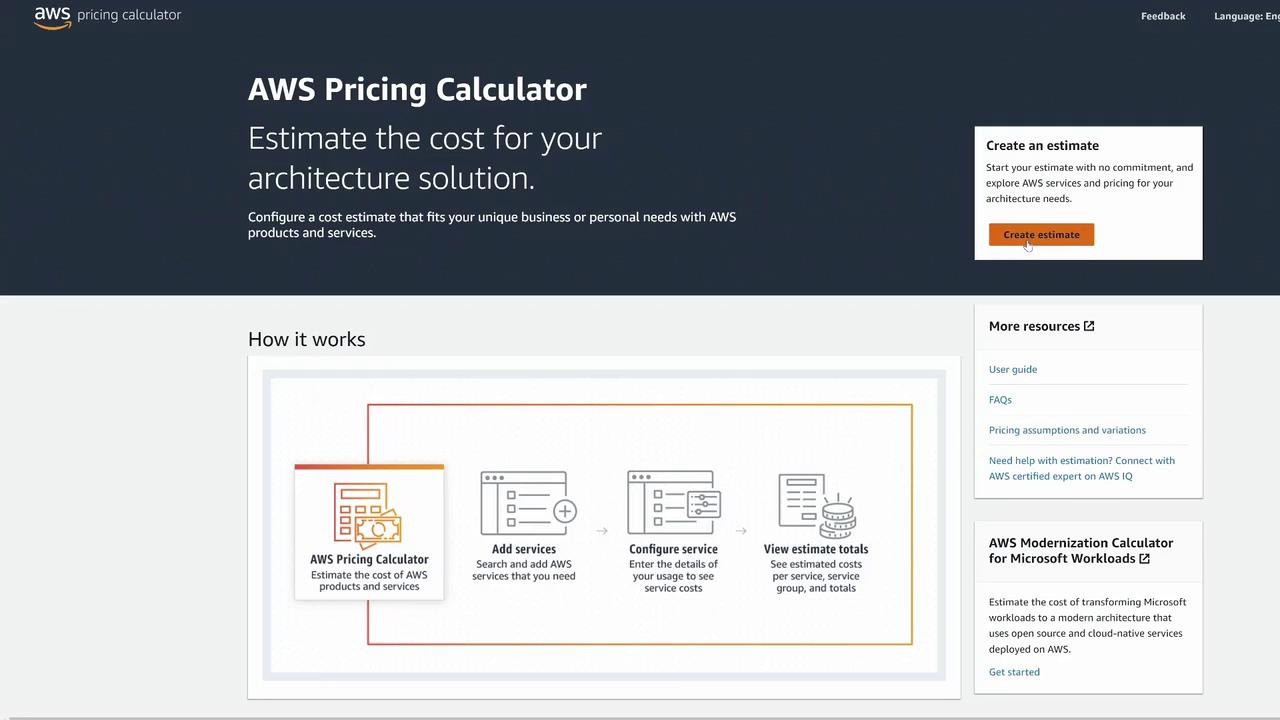

1. Open your browser and navigate to calculator.aws.
2. Click on "Create an estimate." (Logging in is not necessary unless you want to save your work.)

Configuring an EC2 Instance

Step 1: Search and Configure

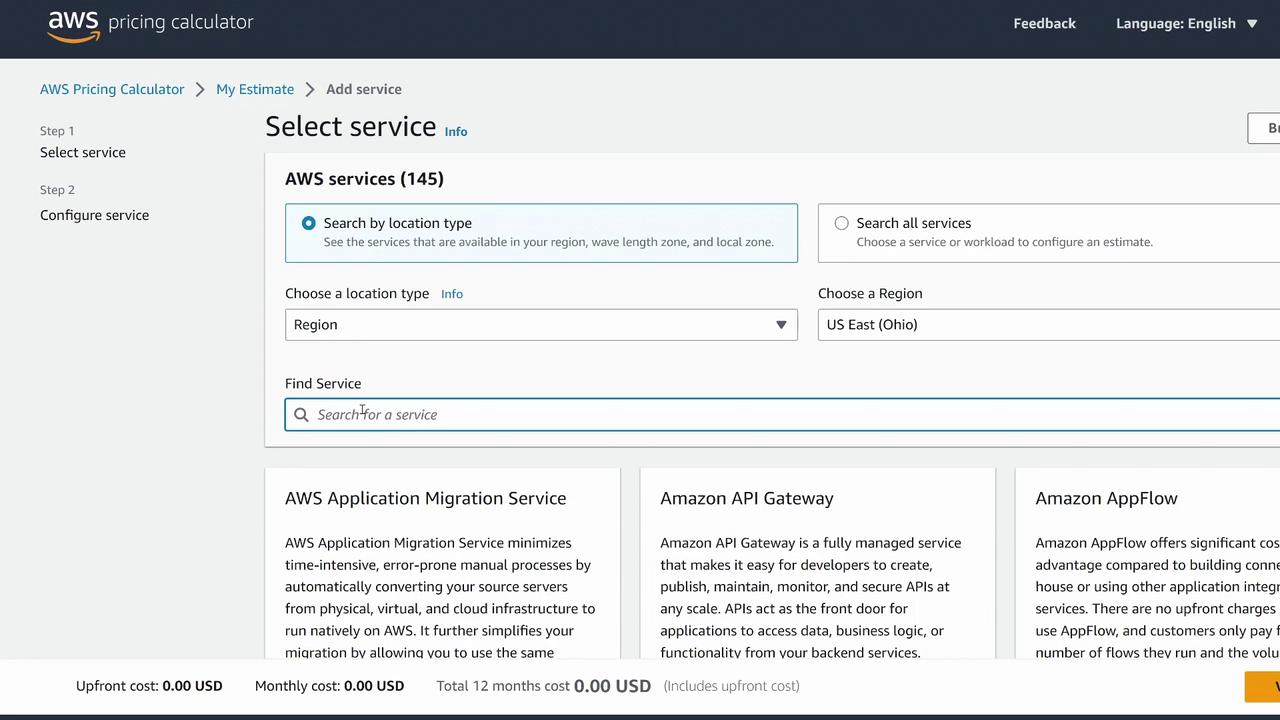

• Begin by typing "EC2" in the search field. When the service appears, click on "Configure" to proceed with creating your cost estimate.

Step 2: Naming and Task Details

For instance, you might name your estimate "Cloud Practitioner Demo for EC2" and follow these instructions:

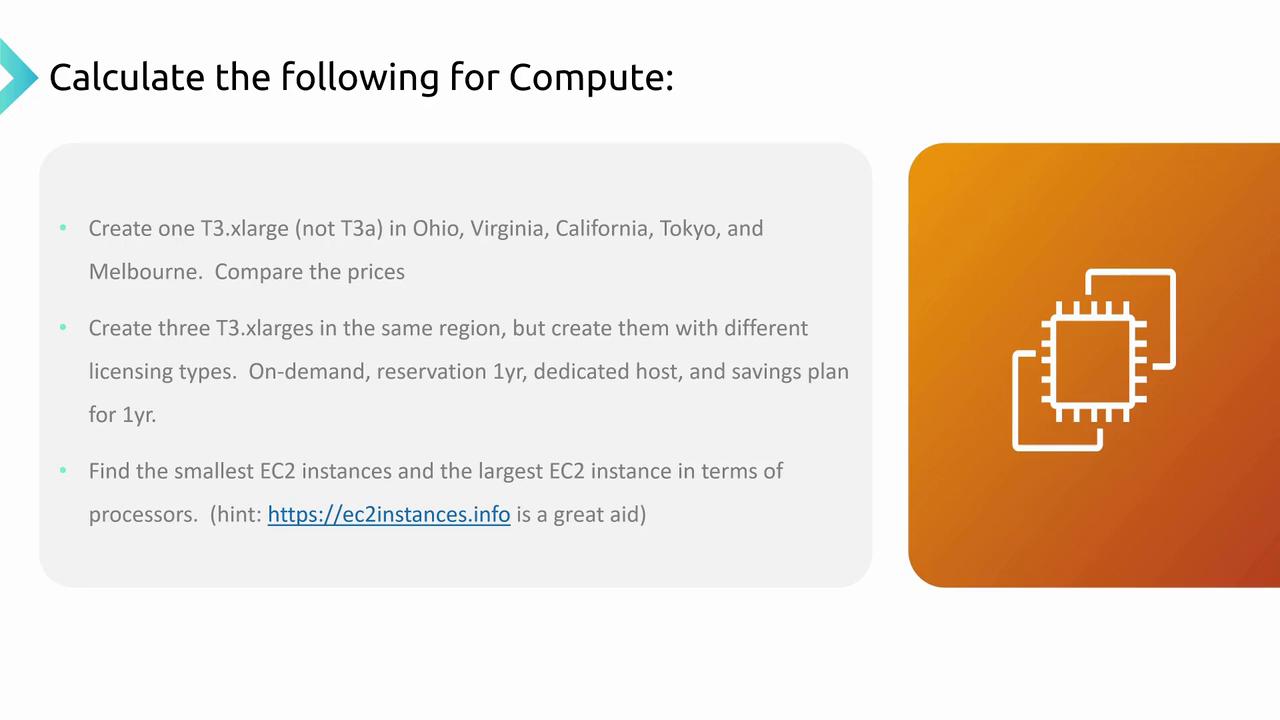

• Create one T3 Xlarge instance (specifically T3 Xlarge, not T3 A) across multiple regions such as Ohio, Virginia, California, Tokyo, and Melbourne, then compare the costs.
• Create three T3 Xlarge instances in the same region, each configured with different licensing types: On-Demand, Reserved, Dedicated Hosts, and a one-year Savings Plan.
• Identify both the smallest and the largest EC2 instances in terms of processor and memory. Tools like ec2instances.info can help you research and compare instance specifications.

Exploring Different Instance Sizes

Finding a Small EC2 Instance

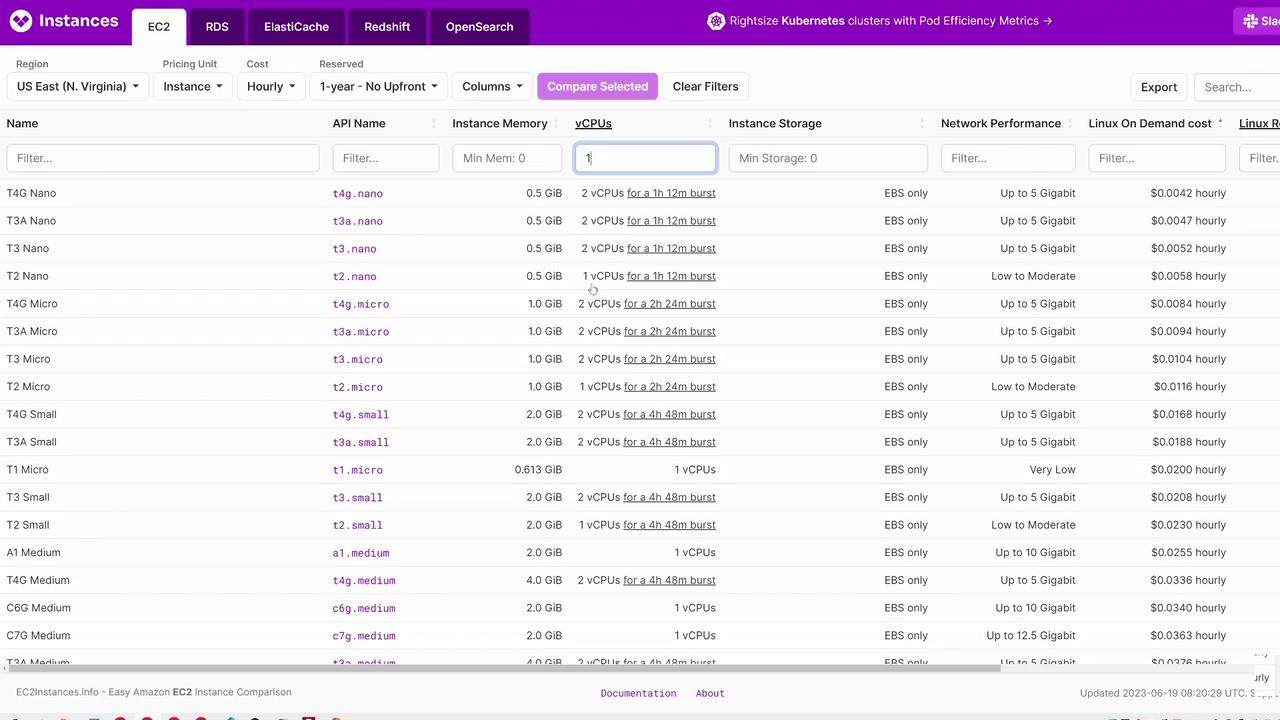

To illustrate, let’s find a small instance configuration. When searching for minimal resources, you might start by looking for an instance with 0.5 CPUs. While a direct match may not be available, you might identify options like the t2.micro (which offers one virtual CPU) or even the smaller t2.nano variant that provides one virtual CPU and 0.5 GB of RAM. The t2.nano is a low-cost, minimal resource option ideal for basic setups.

Exploring High-Performance Instances

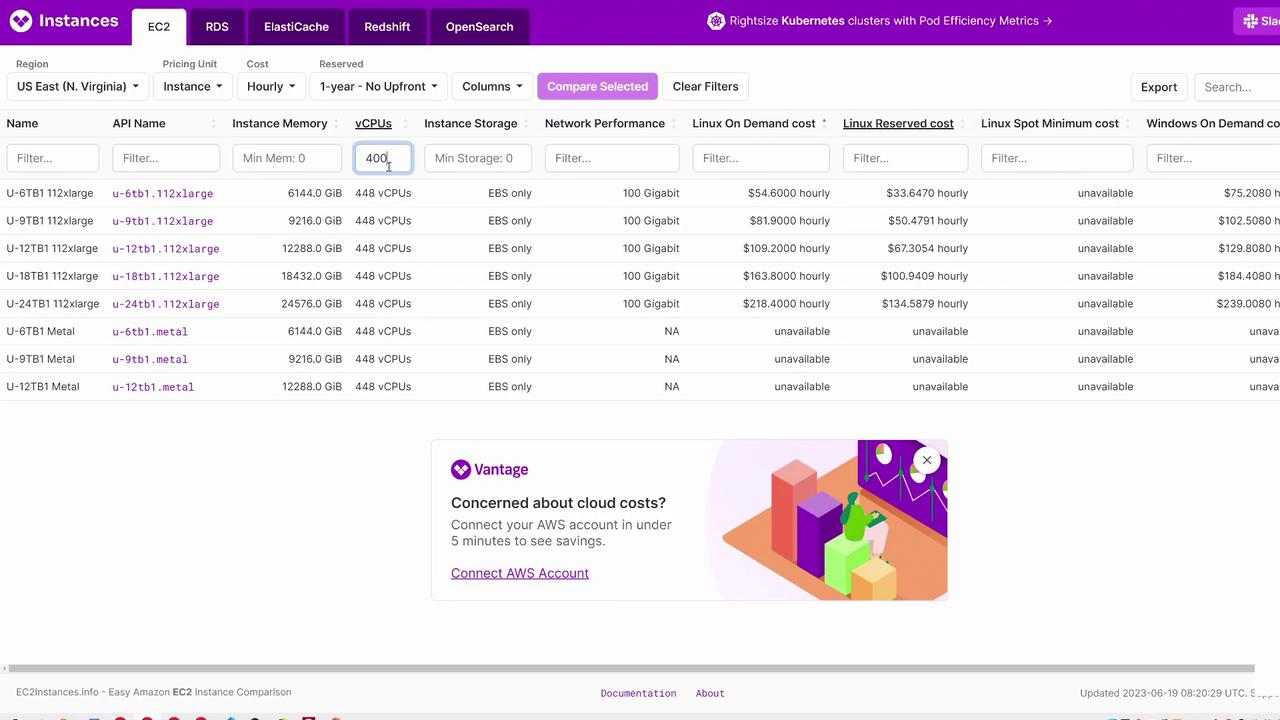

For high-performance needs, inspect instances offering larger configurations—for example, those providing 400 or even 448 CPUs. You might also come across options with 128 CPUs. The objective here is not to determine a "correct" answer but to understand how costs scale with different performance levels.

Back to the AWS Pricing Calculator: Configuring a T2 Nano Instance

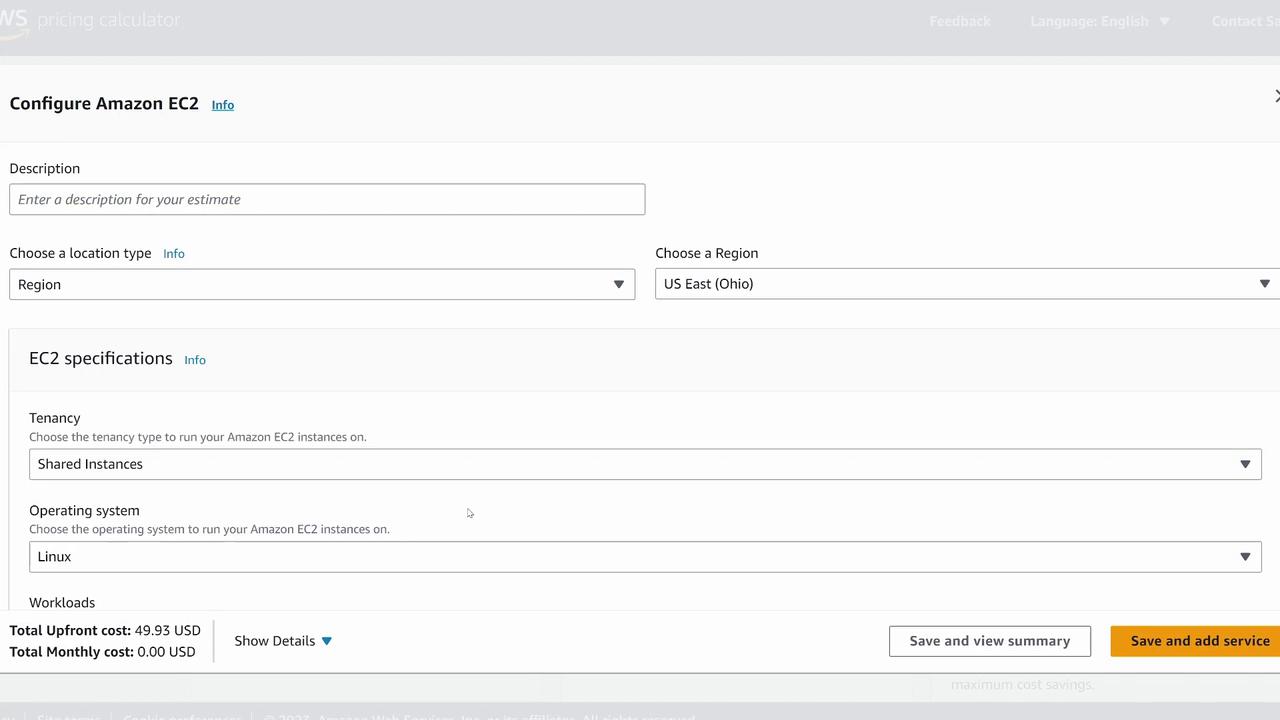

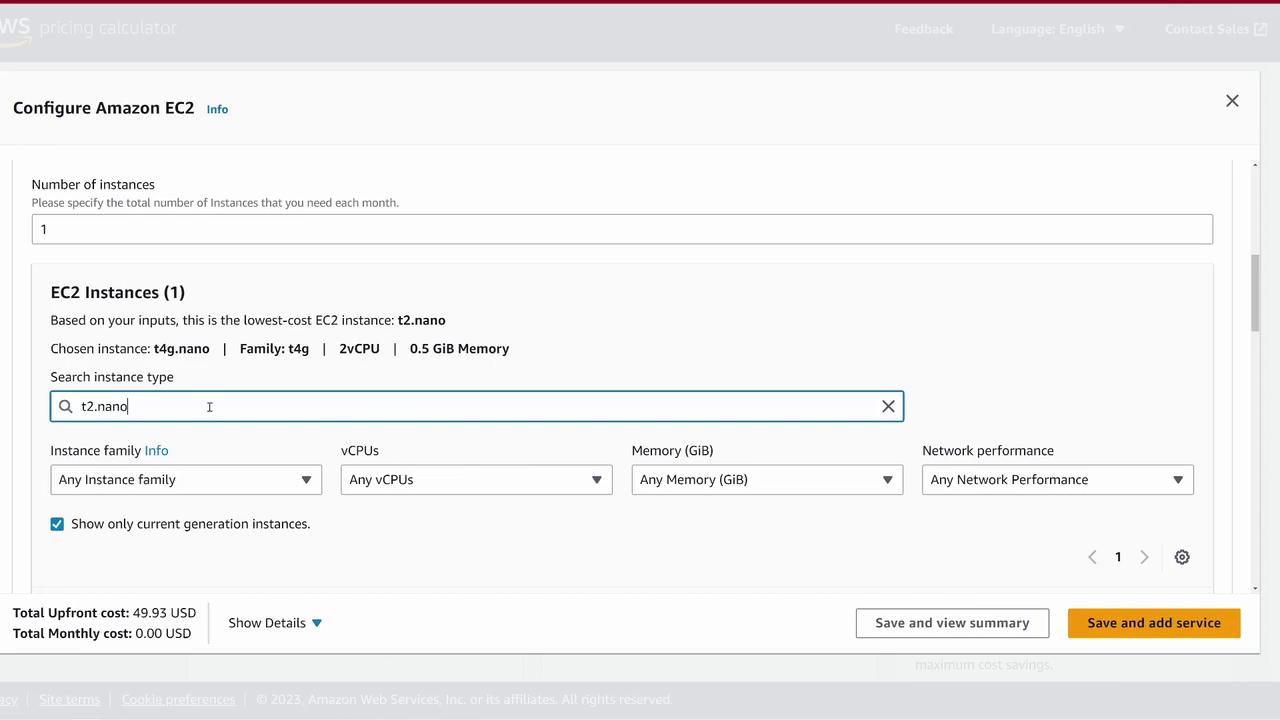

Now, let’s switch back to the AWS Pricing Calculator to work on a practical example with a T2 nano instance. This example uses a shared instance running Linux:

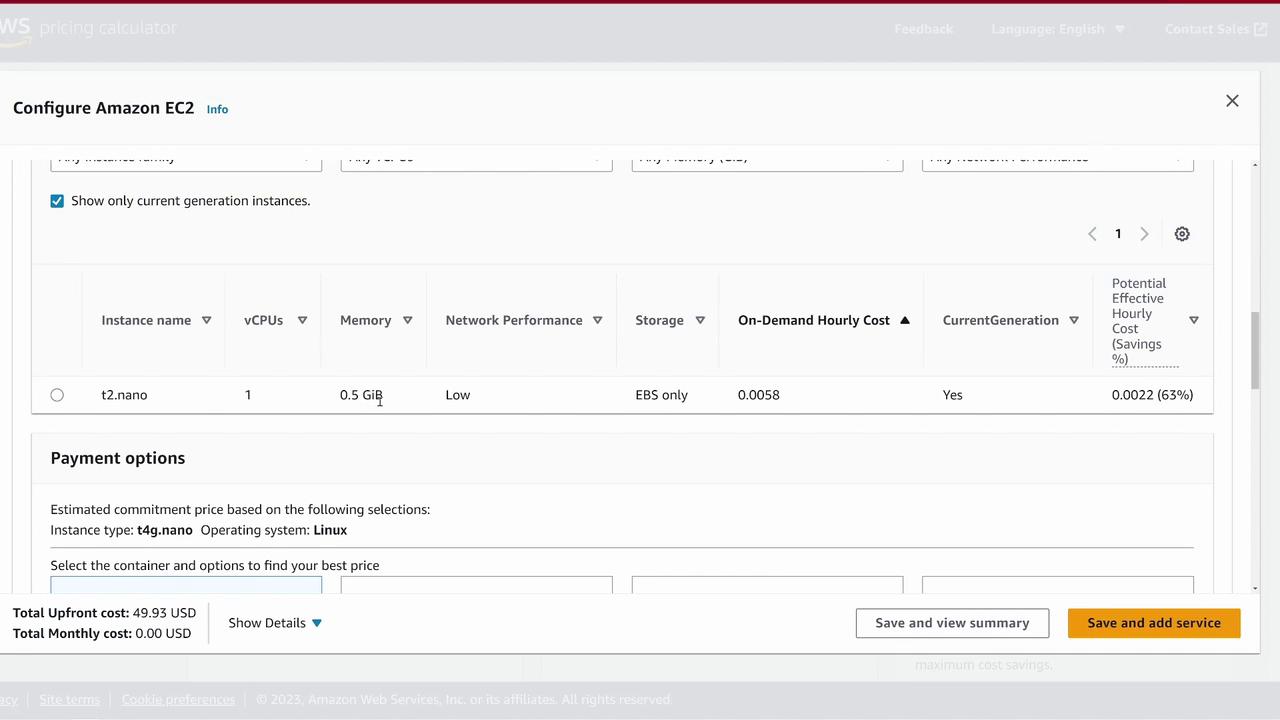

The T2 nano is an economical option, offering one virtual CPU and 0.5 GB of RAM.

At less than half a penny per hour, the T2 nano is an excellent example of cost efficiency. Adjust the available payment options if needed, then click "Save and add service" to see the service added to your estimate.

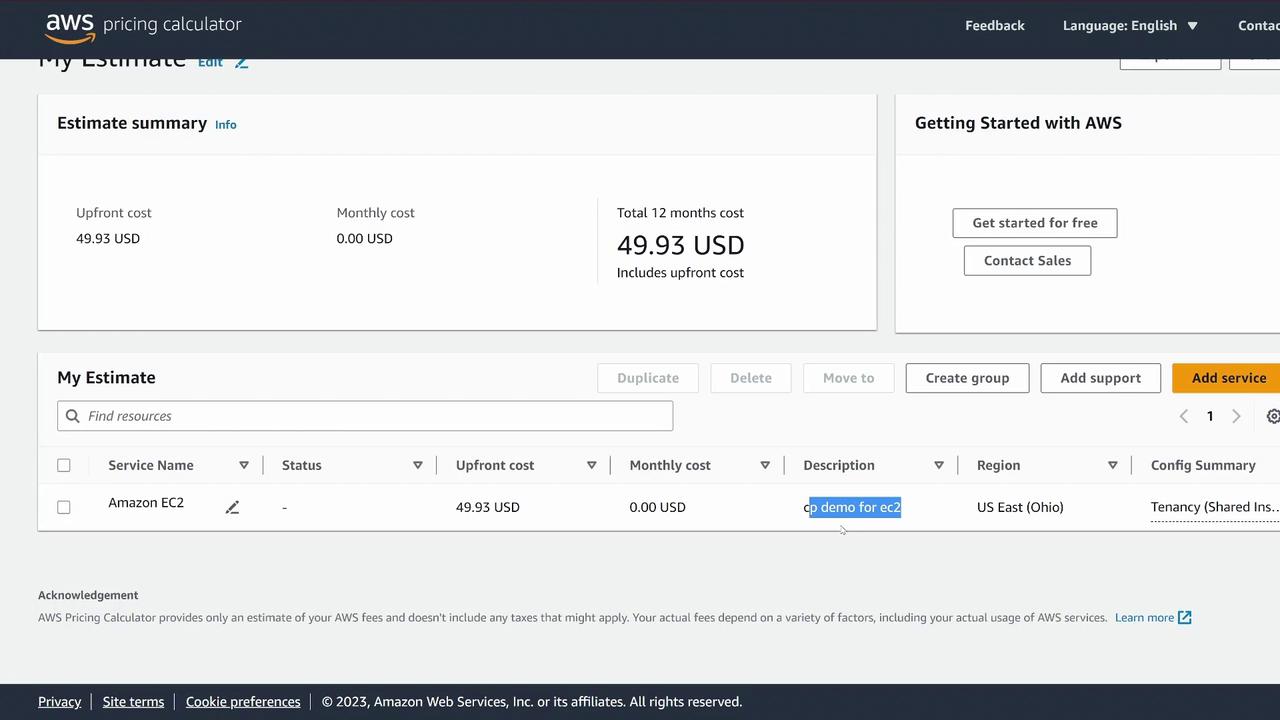

When you review your estimate, the added Amazon EC2 service (identified as T2 nano) should be visible. It is advisable to give this service a clear, descriptive name (e.g., "t2.nano") for easy identification.

Comparing Regional Prices and Licensing Options

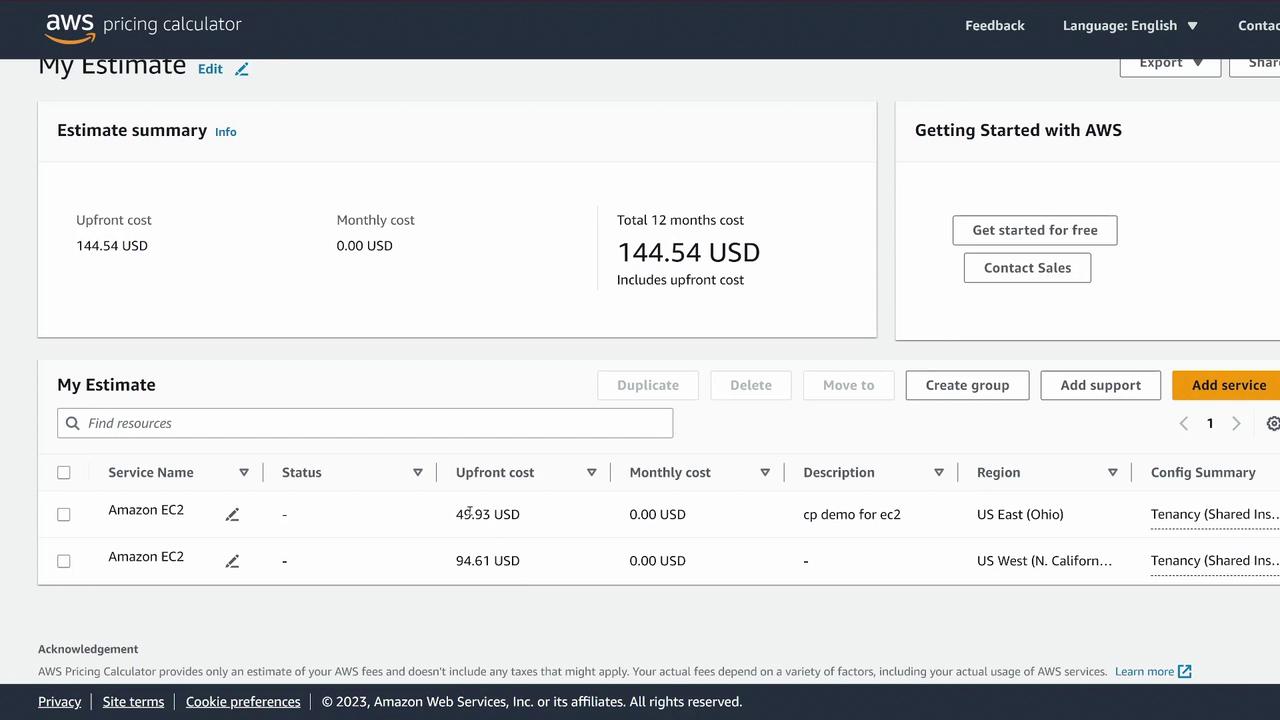

To expand your exploration, add another EC2 service configured for a different region—try Northern California—with the same settings (shared instance, Linux, T2 nano). Save the configuration and compare the price differences between the two estimates. Regional variations can have a significant impact on your overall cost.

When instructed to create a T3 Xlarge instance, the exercise will have you:

• Create three EC2 instances.
• Compare their pricing.
• Apply different licensing types.
• Evaluate cost implications based on various compute configurations.

Thank you for following along with this Compute Costs Calculator exercise. Experiment with different settings to gain a thorough understanding of AWS billing practices, and be sure to try additional configurations to reinforce your learning.

Michael Forrester
