Cloud Design Principals

Welcome back, Cloud Practitioner students!

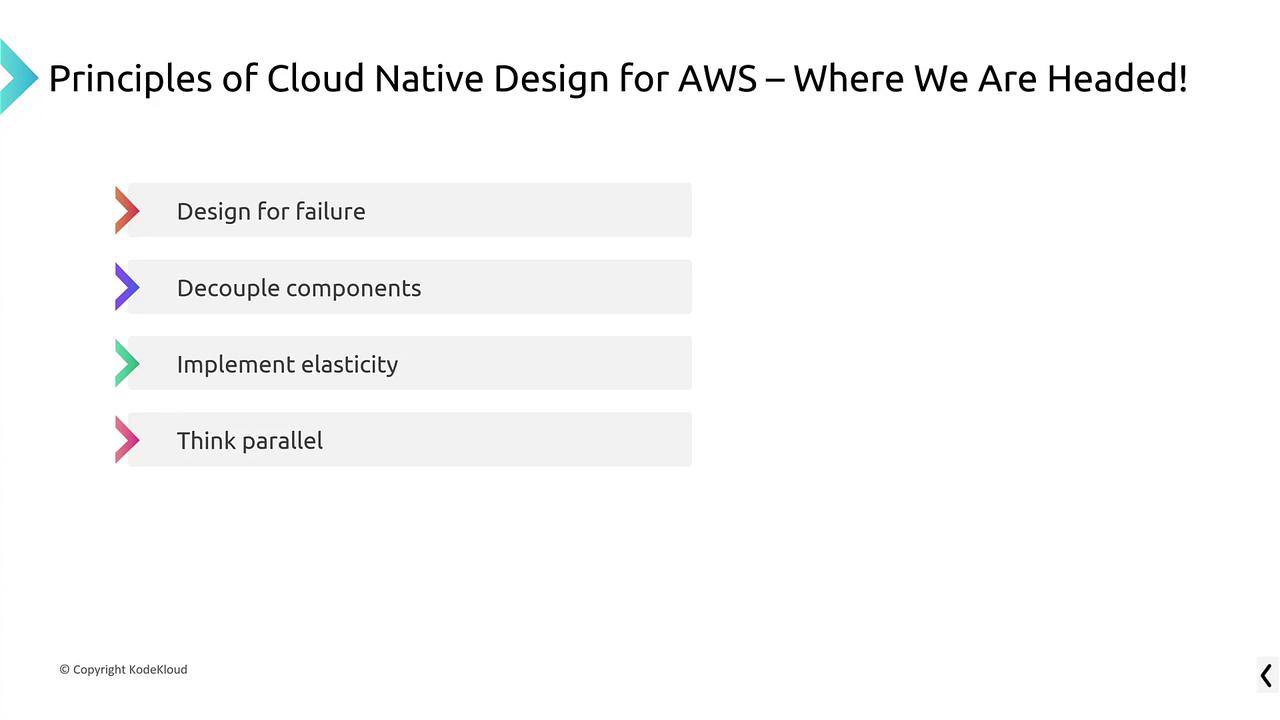

In this article presented by Michael Forrester, we will explore four essential cloud design principles that every Cloud Practitioner should understand. These principles help build systems that are robust, scalable, and cost-efficient. The principles we'll cover are:

1. Designing for Failure
2. Decoupling Components
3. Implementing Elasticity
4. Thinking in Parallel

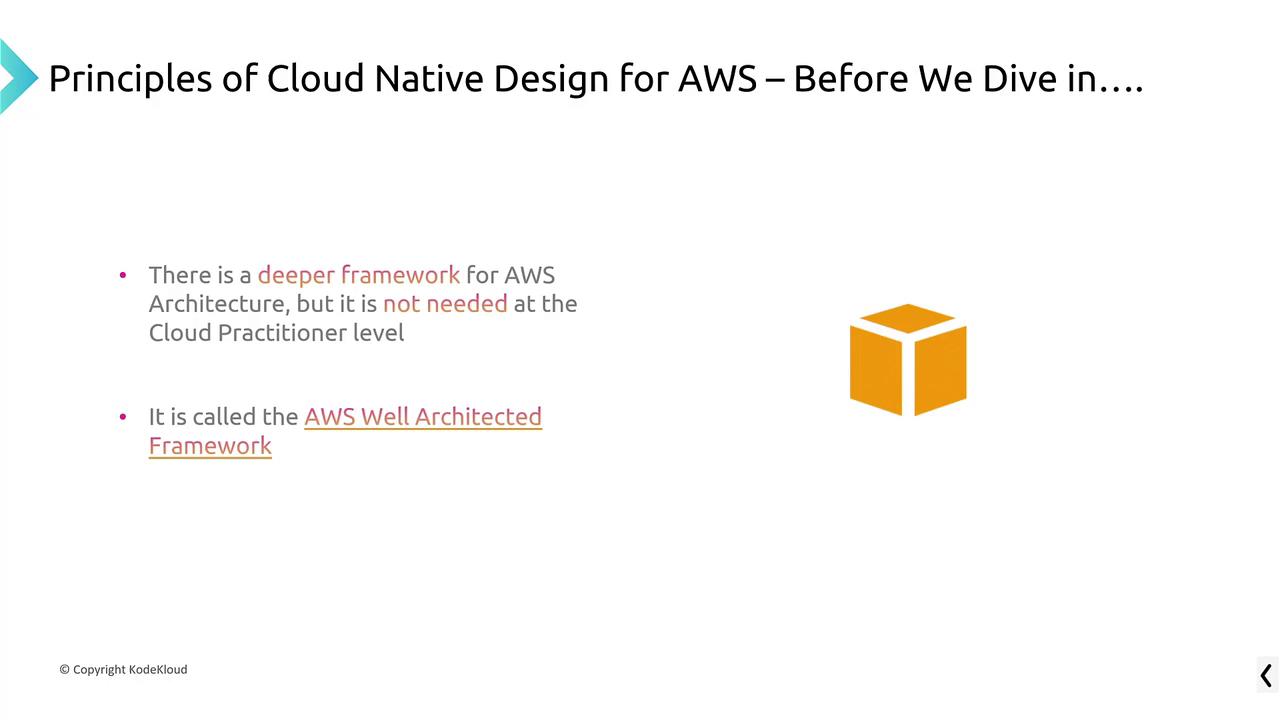

Before diving into the details, please note that while we focus on these four key principles, AWS also offers a deeper architectural framework known as the AWS Well-Architected Framework. Although it is not required at the Cloud Practitioner level, exploring this framework can provide valuable insight for designing complex AWS architectures.

Let's explore each principle in depth.

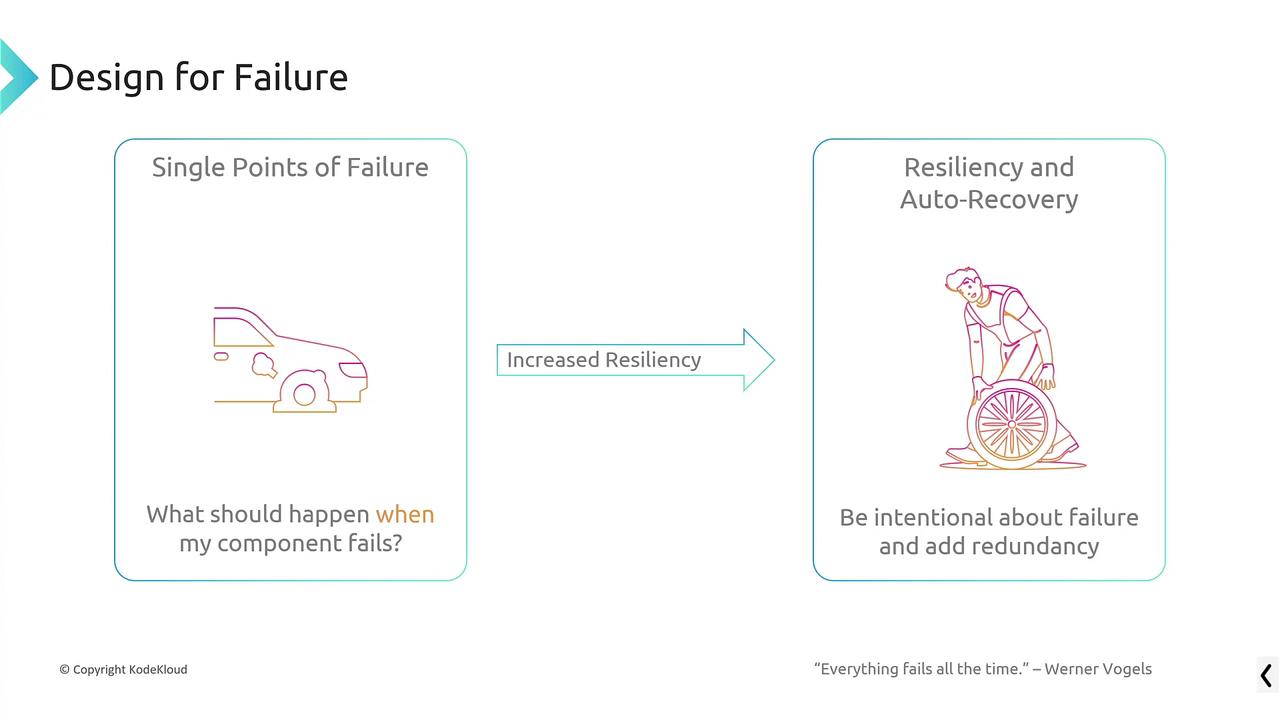

Designing for Failure

When building any system, planning for failure is crucial. Consider a car: if one out of four wheels fails and the car stops functioning, that single point of failure can be catastrophic. Similarly, in cloud systems, the failure of a single component should not compromise the entire system.

To mitigate such risks, we design systems with redundancy and ensure they can automatically recover from failures. Embracing the philosophy that "everything fails all the time" (as noted by Werner Vogels) encourages us to build resilient systems that assume failure and plan robust recovery strategies.

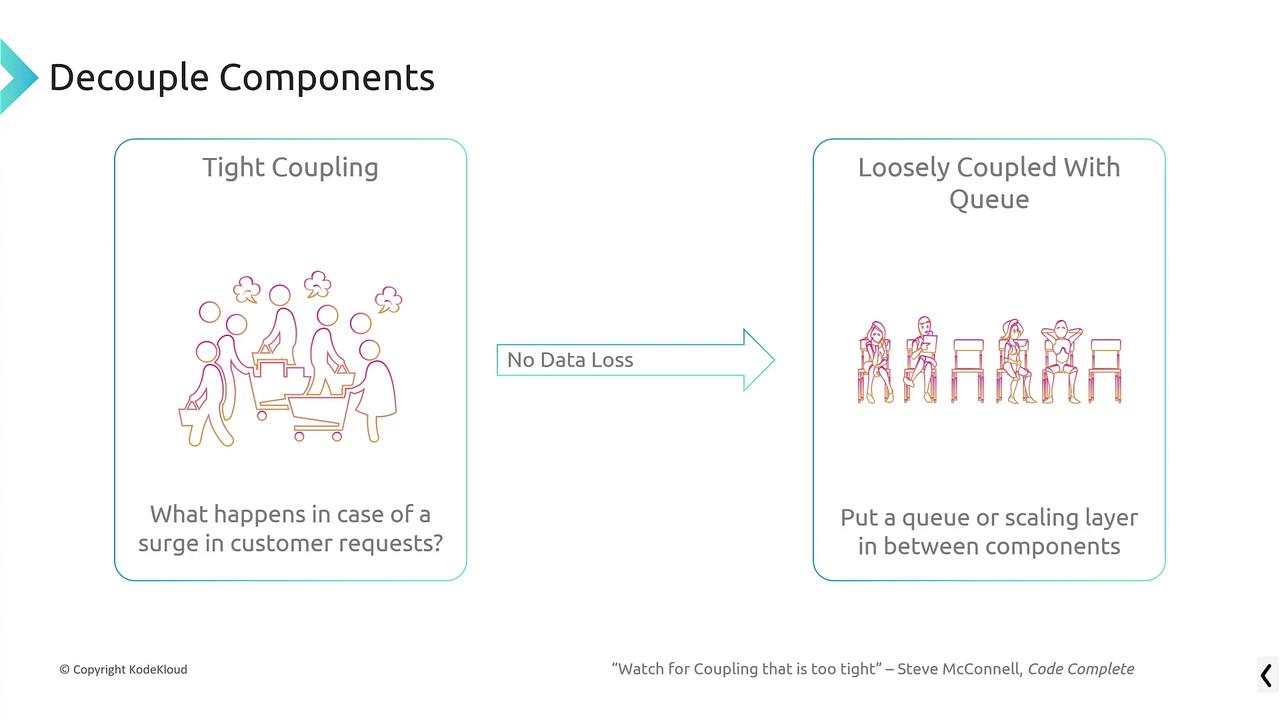

Decoupling Components

The second principle is to decouple system components so that a failure in one part does not affect others. In tightly coupled architectures, a single fault can trigger a cascade of failures. In contrast, a loosely coupled system uses techniques such as queuing mechanisms and independent scaling, ensuring that each component operates in isolation from failures in connected parts.

For instance, if a front-end web server receives a flood of customer requests, decoupling the back end using a queue allows the server to manage the load at its own pace. This approach helps prevent data loss and maintains system integrity, especially under variable loads.

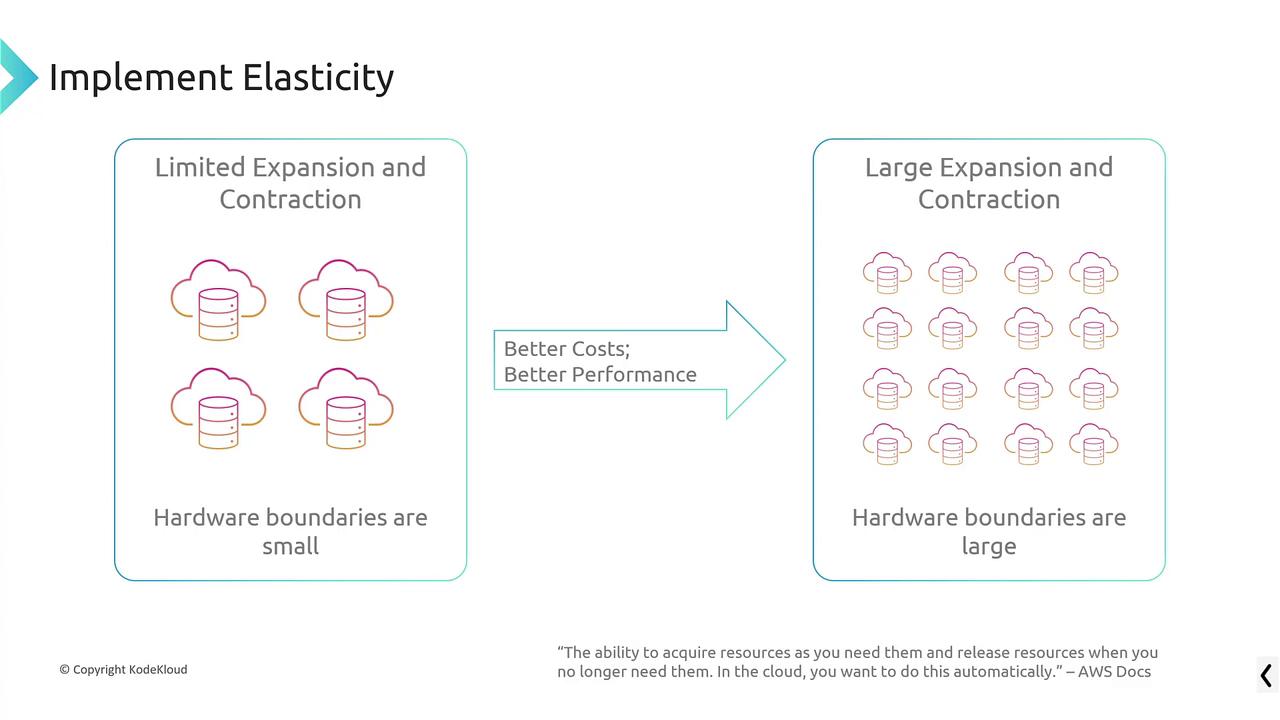

Implementing Elasticity

Elasticity is one of the standout advantages of AWS. Traditional data centers require significant time and resources to scale capacity up or down. AWS, however, enables you to automatically adjust resource allocation based on demand. When additional computing power is needed, AWS can quickly provision more resources and release them once demand decreases.

This elasticity improves performance during traffic surges while also optimizing costs since you only pay for what you use. According to AWS documentation, elasticity involves the automated acquisition and release of resources, ensuring efficiency and cost-effectiveness.

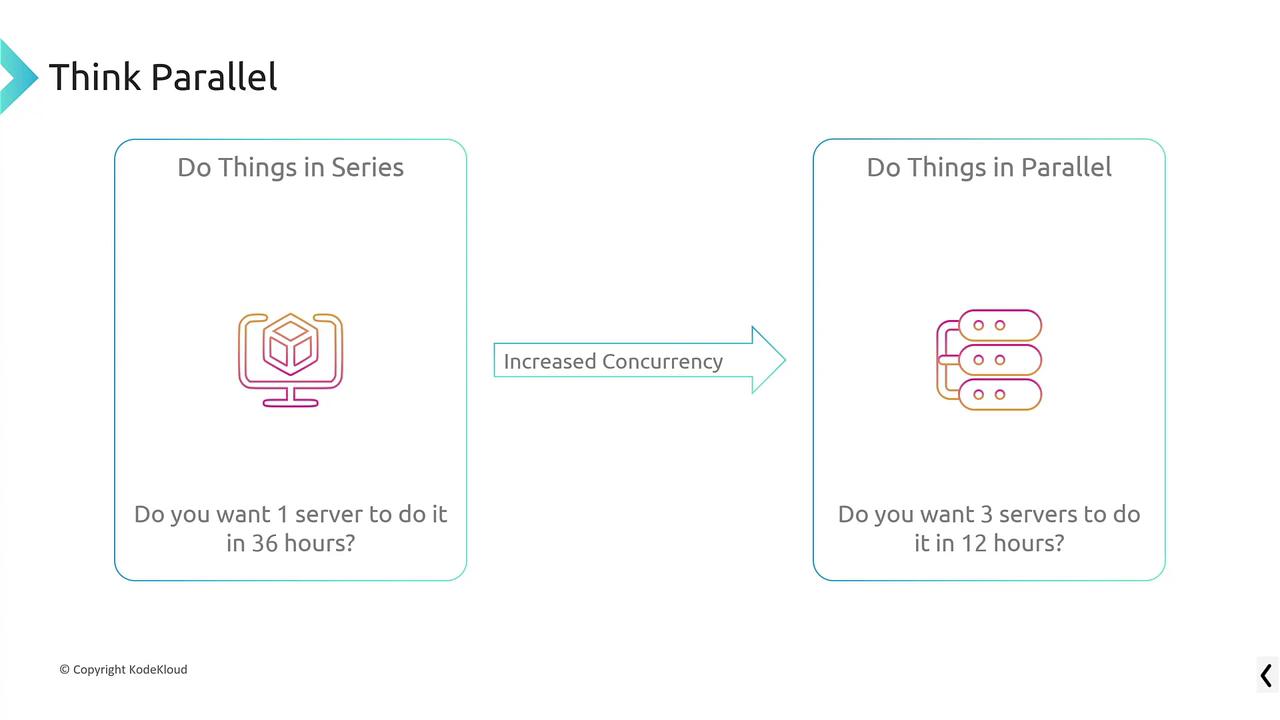

Thinking in Parallel

The final principle is to embrace parallel processing rather than a strictly sequential approach. In a serial processing model, a prolonged task on a single server can become impractical. By contrast, parallel processing distributes tasks across multiple servers, drastically reducing processing time.

For example, a task that would take 36 hours on a single server can be divided among three servers to finish in 12 hours—or even among 36 servers to complete it in about 1 hour. AWS's ability to rapidly scale instances makes parallel processing a highly effective method for managing large tasks efficiently.

Summary

To wrap up, here are the four essential cloud design principles every Cloud Practitioner should incorporate:

• Design for Failure: Prepare for inevitable component failures by building in redundancy and ensuring automatic recovery.
• Decouple Components: Create loosely coupled systems to isolate failures and prevent cascading issues.
• Implement Elasticity: Use AWS’s dynamic scaling to adjust resources as needed, ensuring both performance and cost-efficiency.
• Think in Parallel: Optimize processing time by distributing workloads across multiple servers.

Following these principles will help you design cloud systems that are resilient, scalable, and efficient. As you continue your AWS journey, these foundational strategies will pave the way for mastering more advanced architectural frameworks.

Michael Forrester, signing off. See you in the next lesson.
