What are Metrics and Metric Dimensions

Welcome to our in-depth guide on AWS CloudWatch metrics and metric dimensions. We’ll use an Amazon RDS instance as a practical example to show you how to monitor and troubleshoot database performance.

Consider a scenario where:

You manage an AWS environment spanning a VPC and an Availability Zone.
An RDS instance supports your application.
You receive an alert about unusual performance on the RDS instance.

First, you investigate and resolve the issue. Next, you decide which metrics to track and how to design effective alerts.

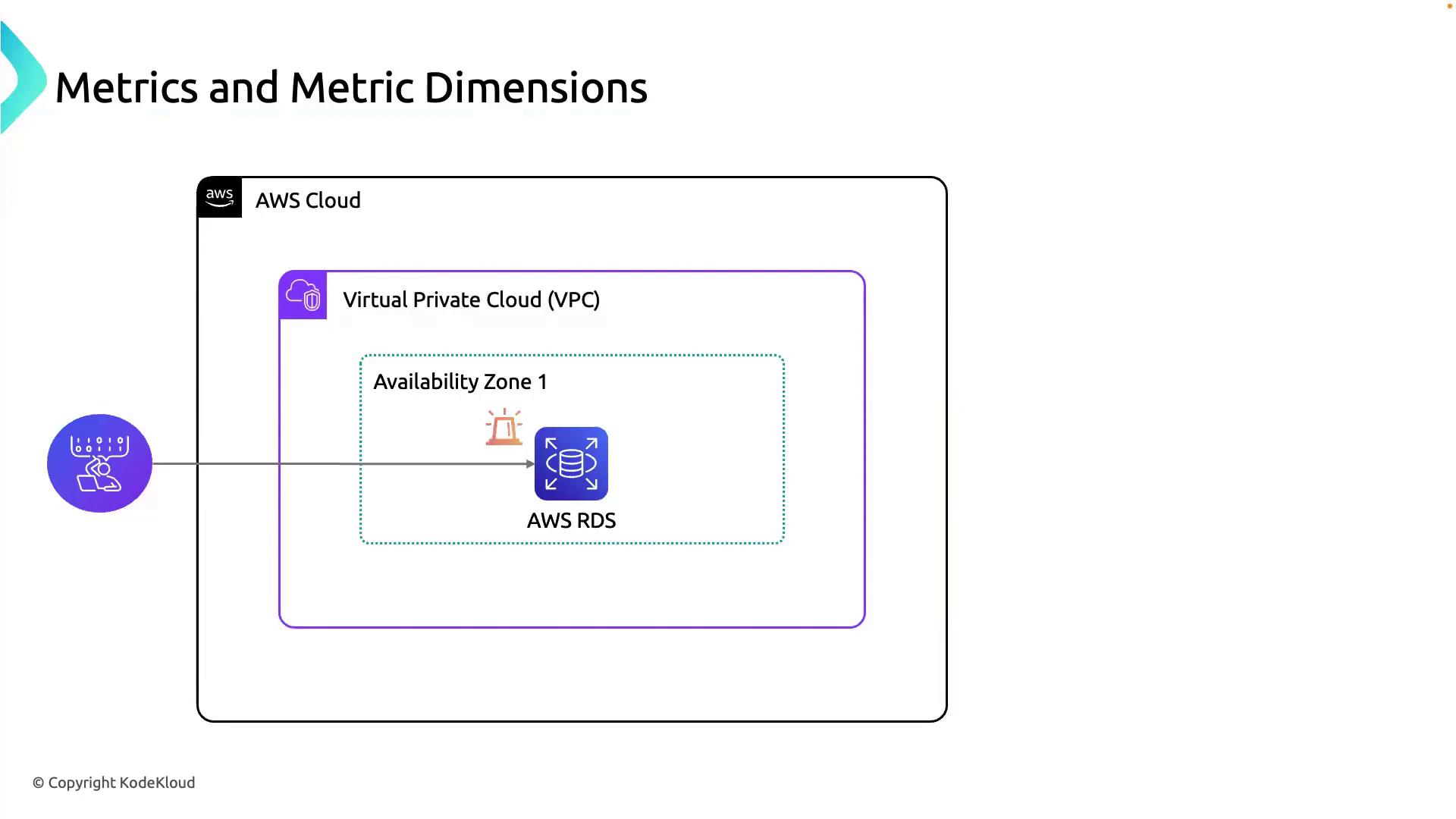

The image is a diagram illustrating an AWS cloud setup, featuring a Virtual Private Cloud (VPC) with an Availability Zone containing AWS RDS. It is titled "Metrics and Metric Dimensions."

What Is a Metric?

A metric is a time-ordered set of data points that quantify resource performance or utilization. In Amazon RDS, key metrics include:

Metric Name	Description
CPUUtilization	Percentage of CPU in use
FreeableMemory	Available memory in bytes
DiskQueueDepth	Number of pending I/O requests
DatabaseConnections	Active connections to the database

These metrics give you raw insights into how your RDS instance behaves over time.

Note

Metrics answer what is happening. To pinpoint where or which resource is affected, use metric dimensions.

What Are Metric Dimensions?

A metric dimension adds context by specifying attributes that identify the source of a metric. Dimensions help you filter, group, and drill down into your monitoring data.

Typical RDS dimensions:

Dimension	Description
DBInstanceIdentifier	Identifier of the RDS instance (e.g., `app-db-01`)
EngineName	Database engine type (e.g., `MySQL`, `PostgreSQL`)

Pairing a metric with dimensions creates a fully qualified data point in CloudWatch.

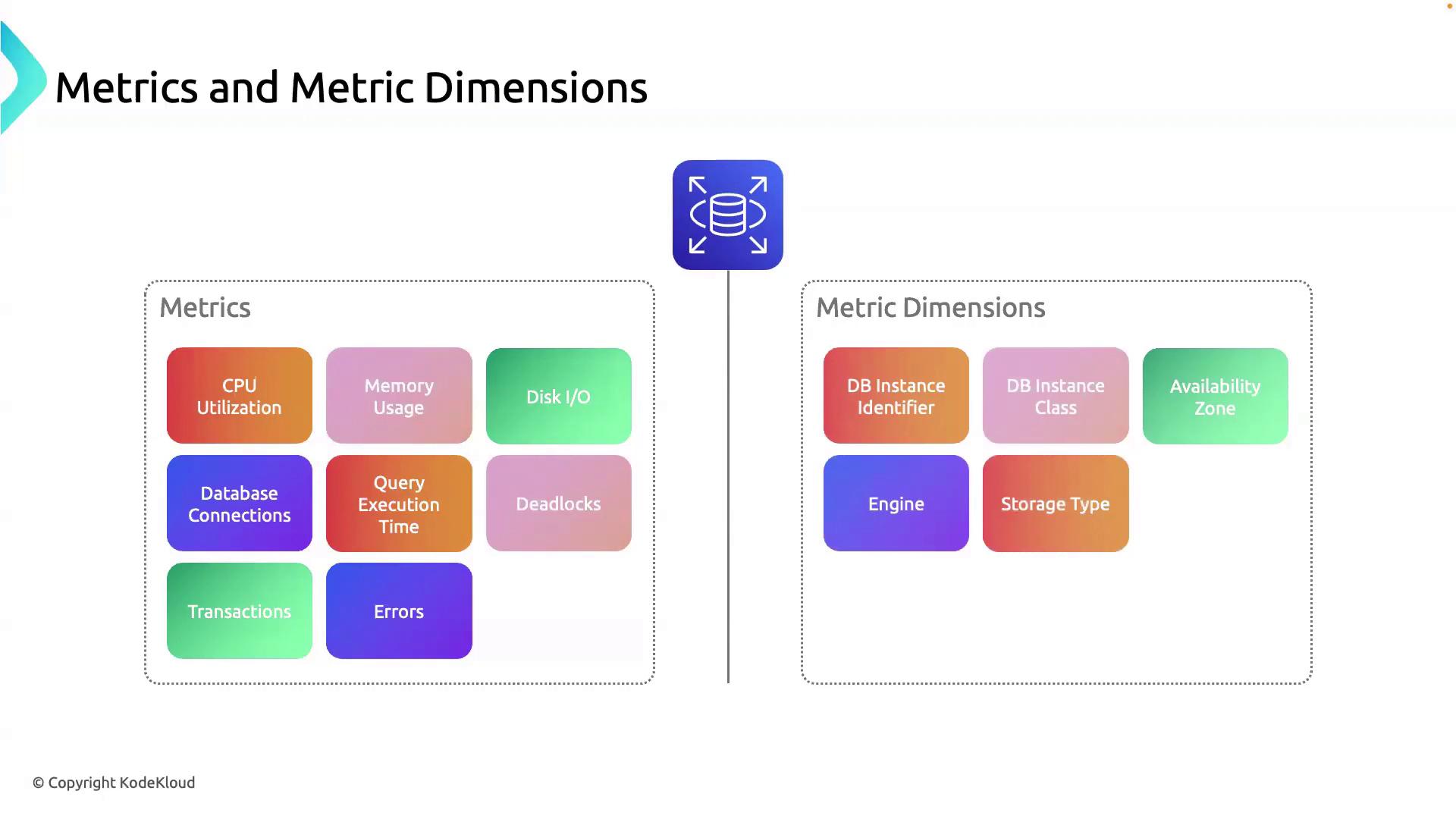

The image is a diagram showing "Metrics" and "Metric Dimensions" related to database performance, including elements like CPU utilization, memory usage, and DB instance identifiers.

Example: Identifying a Stressed Instance

If CPU utilization spikes:

CPUUtilization = 95%

You won’t know which instance is affected until you add:

DBInstanceIdentifier = application-01

This dimension tells you that application-01 requires immediate attention, enabling targeted monitoring and alerts.

Warning

Using too many high-cardinality dimensions (many unique values) can increase CloudWatch costs. Select dimensions judiciously.

That wraps up our overview of metrics and metric dimensions. In the next lesson, we’ll configure alarms and notification channels in AWS CloudWatch to automate your monitoring. Stay tuned!
