Event Patterns Scheduled Events and Pipes

In this guide, we’ll explore three core components of event-driven architectures in AWS EventBridge: Event Patterns, Scheduled Events, and Pipes. Mastering these concepts helps you build reliable, maintainable, and scalable systems that respond to events efficiently.

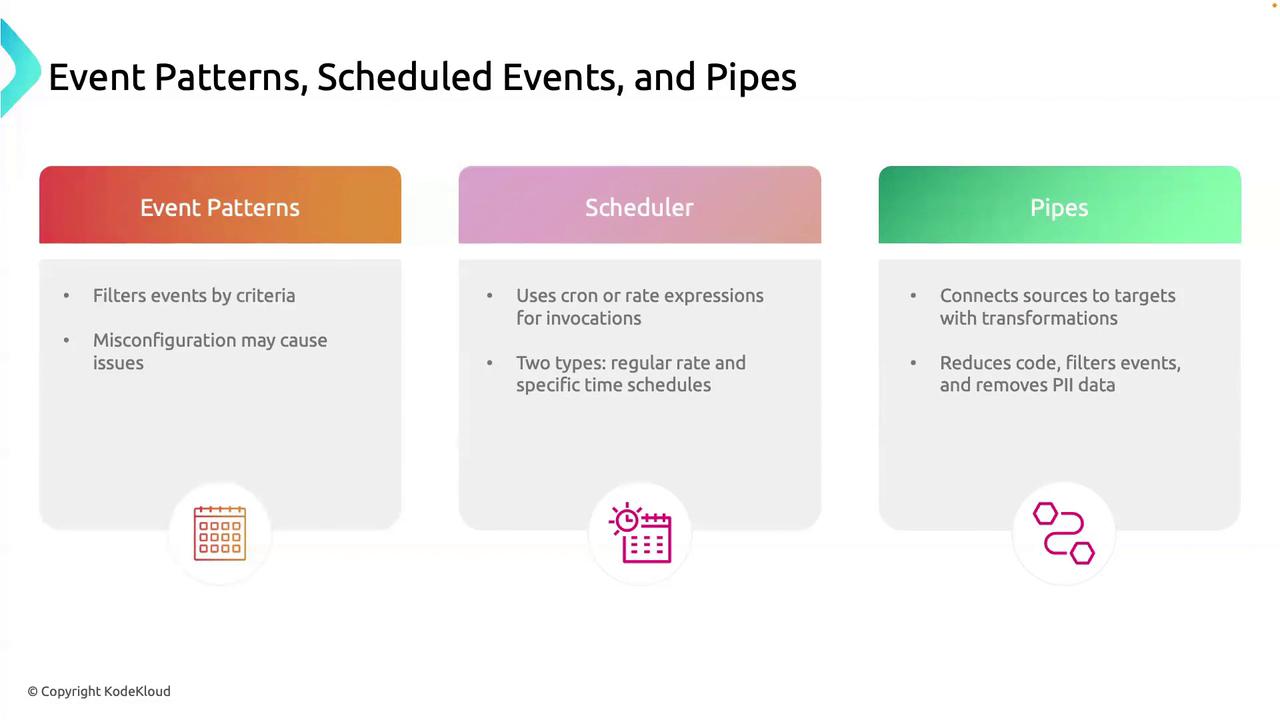

The image is an infographic titled "Event Patterns, Scheduled Events, and Pipes," describing three concepts: Event Patterns, Scheduler, and Pipes, each with brief explanations of their functions.

1. Event Patterns

Event Patterns filter incoming events based on specific criteria so you only process what matters.

Why Use Event Patterns

Focus on critical events (e.g., DatabaseTimeout).
Minimize alert noise and unnecessary processing.
Improve system performance by discarding irrelevant events.

Warning

Overly broad patterns can flood your pipeline with unwanted events. Too narrow patterns risk missing important alerts.

Key Pattern Attributes

Attribute	Description	Example
source	Originating service or application	`["com.myapp.database"]`
detail-type	Event category	`["Error"]`
detail	JSON object with custom filters	`{ "errorCode": ["DatabaseTimeout"] }`

Example: Match a Database Timeout

{
  "source": ["com.myapp.database"],
  "detail-type": ["Error"],
  "detail": {
    "errorCode": ["DatabaseTimeout"]
  }
}

This pattern only matches events where:
• source = com.myapp.database
• detail-type = Error
• detail.errorCode = DatabaseTimeout

2. Scheduled Events (Schedulers)

Scheduled Events let you trigger rules on a fixed schedule, using either rate or cron expressions.

Rate Expressions

Use rate() to fire at regular intervals—perfect for heartbeats and metrics.

{
  "ScheduleExpression": "rate(1 hour)",
  "State": "ENABLED"
}

This rule runs every hour for tasks like health checks or rolling metrics.

Cron Expressions

Use cron() for precise timing—ideal for backups, reports, and maintenance windows.

{
  "ScheduleExpression": "cron(0 2 * * ? *)",
  "State": "ENABLED"
}

This fires daily at 2:00 AM UTC.

Schedule Type	Expression	Use Case
Rate	`rate(1 hour)`	Hourly health checks
Cron	`cron(0 2 * * ? *)`	Nightly backups/reports at 2 AM

3. Pipes

Pipes connect an event source to a target, optionally transforming the data in transit. Think of them as an assembly line:

Source: AWS service or custom producer (e.g., SQS, Kinesis).
Transformation: Filter or enrich payloads using InputTemplate.
Target: AWS service or HTTP endpoint (e.g., Lambda, SNS).

Note

Pipes simplify data flow and reduce the need for custom glue code by handling filtering, mapping, and retry logic automatically.

Example: Redacting Sensitive Fields

Source:
  Arn: arn:aws:sqs:us-east-1:123456789012:my-queue
  Type: SQS
Target:
  Arn: arn:aws:lambda:us-east-1:123456789012:function:process-events
  Type: LAMBDA
InputTemplate: |
  {
    "userId": <$.detail.userId>,
    "action": <$.detail.action>,
    "timestamp": <$.time>
  }

Here, the pipe:

Reads messages from an SQS queue.
Discards sensitive fields (e.g., $.detail.password).
Invokes a Lambda function with sanitized event data.

These three building blocks—Event Patterns, Scheduled Events, and Pipes—form the backbone of event-driven solutions in AWS EventBridge. Use them together to create efficient, scalable, and maintainable event workflows.
