AWS - IAM

Configure AWS IAM at Scale

Demo Cross Account Access

Enable a role in your source account (ID: 672261773768) to read objects from an S3 bucket in your target account (ID: …2021). This walkthrough covers:

  • Configuring the bucket policy
  • Creating and trusting an IAM role
  • Testing access via AWS CloudShell
StepDescription
1Add a bucket policy in the target account
2Create IAM policy & role with trust policy
3Assume role and verify access in CloudShell

1. Configure the Bucket Policy in the Target Account

In the target account, go to S3 > company1-logs > Permissions > Bucket policy and paste:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "AWS": "arn:aws:iam::6294702402021:role/LogAnalystsRole"
      },
      "Action": [
        "s3:Get*",
        "s3:List*"
      ],
      "Resource": [
        "arn:aws:s3:::company1-logs",
        "arn:aws:s3:::company1-logs/*"
      ]
    }
  ]
}

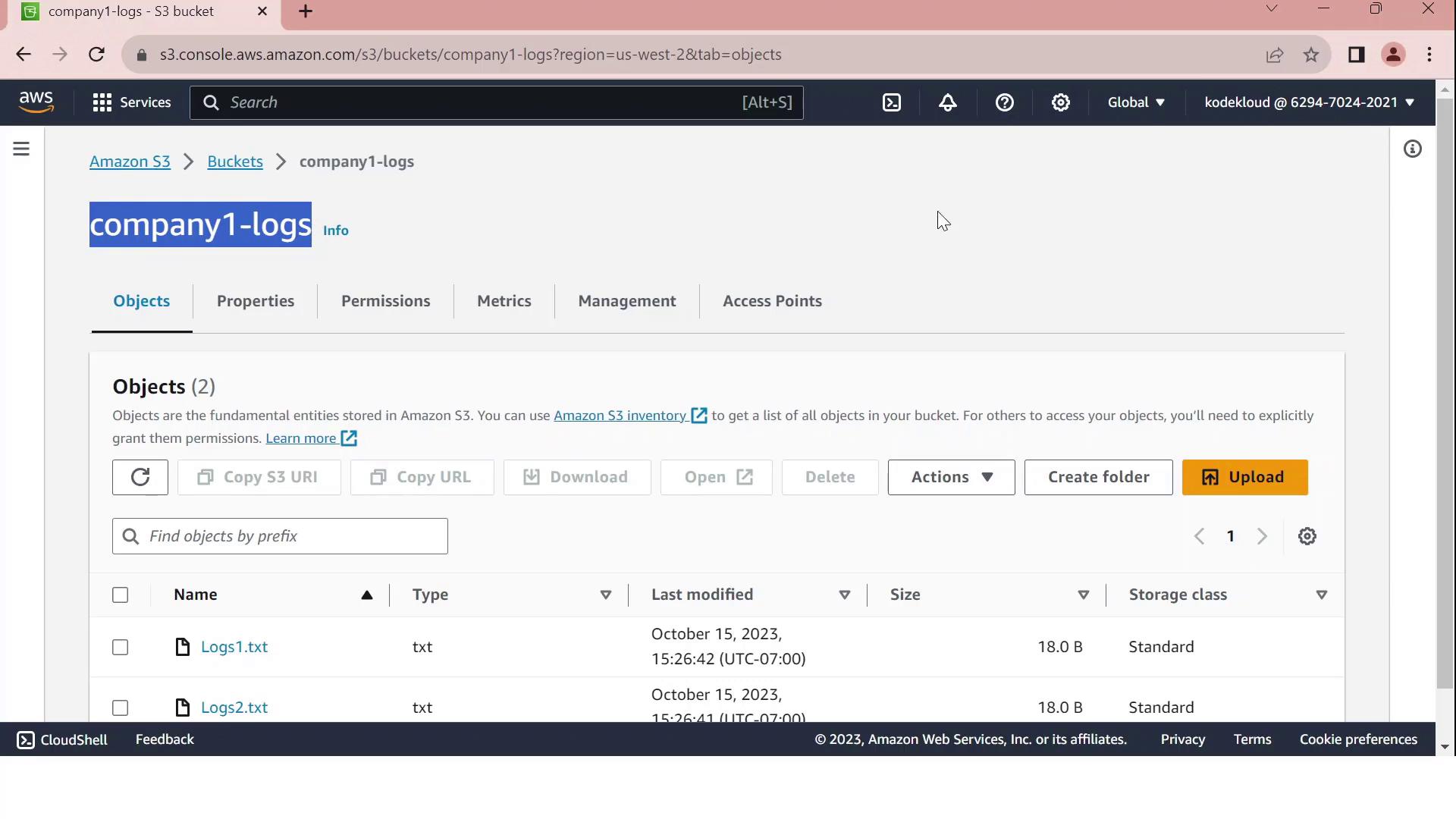

The image shows an Amazon S3 bucket interface named "company1-logs" with two text files, "Logs1.txt" and "Logs2.txt," each 18 bytes in size. The interface displays options for managing the files, such as copying URLs, downloading, and deleting.

Note

Ensure the bucket ARN and role ARN exactly match your resources. Typos in ARNs will prevent access.


2. Create the IAM Role in the Target Account

2.1 Define a Read-Only Policy

Create an IAM policy named company1-logs-read-policy:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "s3:Get*",
        "s3:List*"
      ],
      "Resource": [
        "arn:aws:s3:::company1-logs",
        "arn:aws:s3:::company1-logs/*"
      ]
    }
  ]
}

2.2 Create the Role and Configure Trust

  1. In IAM, create a role called LogAnalystsRole.
  2. Attach company1-logs-read-policy.
  3. Edit Trust relationships to allow the source account user (amin) to assume this role:
{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "AWS": "arn:aws:iam::672261773768:user/amin"
      },
      "Action": "sts:AssumeRole"
    }
  ]
}

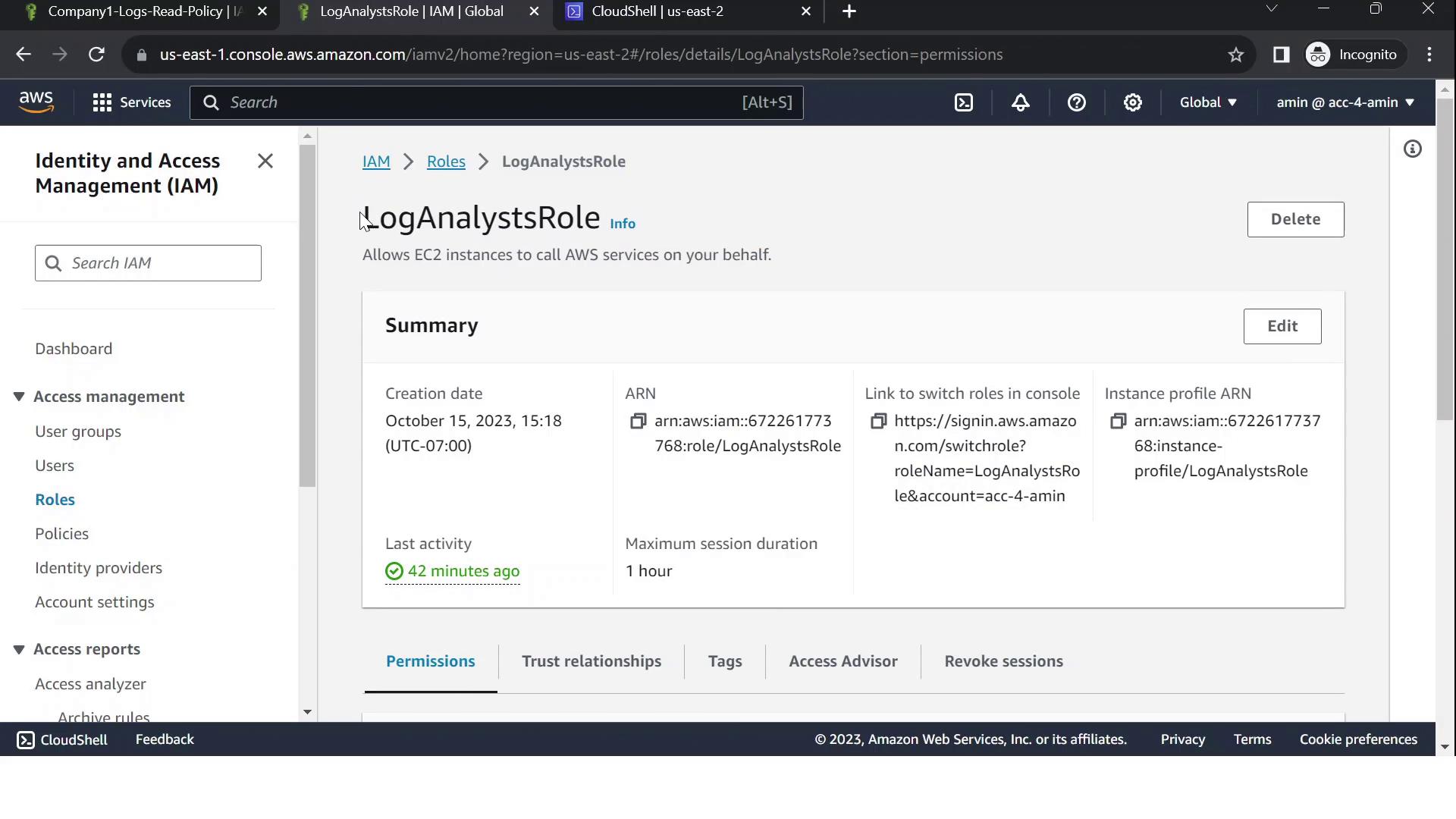

The image shows an AWS Identity and Access Management (IAM) console displaying details of a role named "LogAnalystsRole," including its creation date, ARN, and other related information.

Warning

Grant only the minimum privileges needed. Review your trust policy to prevent unauthorized access.


3. Test Cross-Account Access via CloudShell

  1. Confirm your caller identity in the source account:
    aws sts get-caller-identity

  2. Assume the cross-account role:
    aws sts assume-role \
      --role-arn arn:aws:iam::6294702402021:role/LogAnalystsRole \
      --role-session-name CrossAccountSession

  3. Export the temporary credentials:
    export AWS_DEFAULT_REGION=us-east-2
    export AWS_ACCESS_KEY_ID=<YOUR_ACCESS_KEY_ID>
    export AWS_SECRET_ACCESS_KEY=<YOUR_SECRET_ACCESS_KEY>
    export AWS_SESSION_TOKEN=<YOUR_SESSION_TOKEN>

  4. Verify you’re now the assumed role:
    aws sts get-caller-identity

    You should see an ARN with assumed-role/LogAnalystsRole.
  5. List bucket contents:
    aws s3 ls s3://company1-logs

    Expected output:
    2023-01-01 12:00:00        18 Logs1.txt
    2023-01-01 12:00:00        18 Logs2.txt


If you see the log files listed, your cross-account S3 access is working!
