NAT Gateways VPC Demo

In this walkthrough, you’ll learn how to configure an AWS NAT Gateway to enable internet access for EC2 instances in a private subnet—while preventing unsolicited inbound connections from the internet. By the end, only instances that initiate outbound requests will receive responses.

1. Create a New VPC

  1. Open the VPC console and select Create VPC.
  2. Enter a Name tag (e.g., demo-vpc) and set the IPv4 CIDR block to 10.0.0.0/16.
  3. Leave IPv6 settings disabled and click Create.

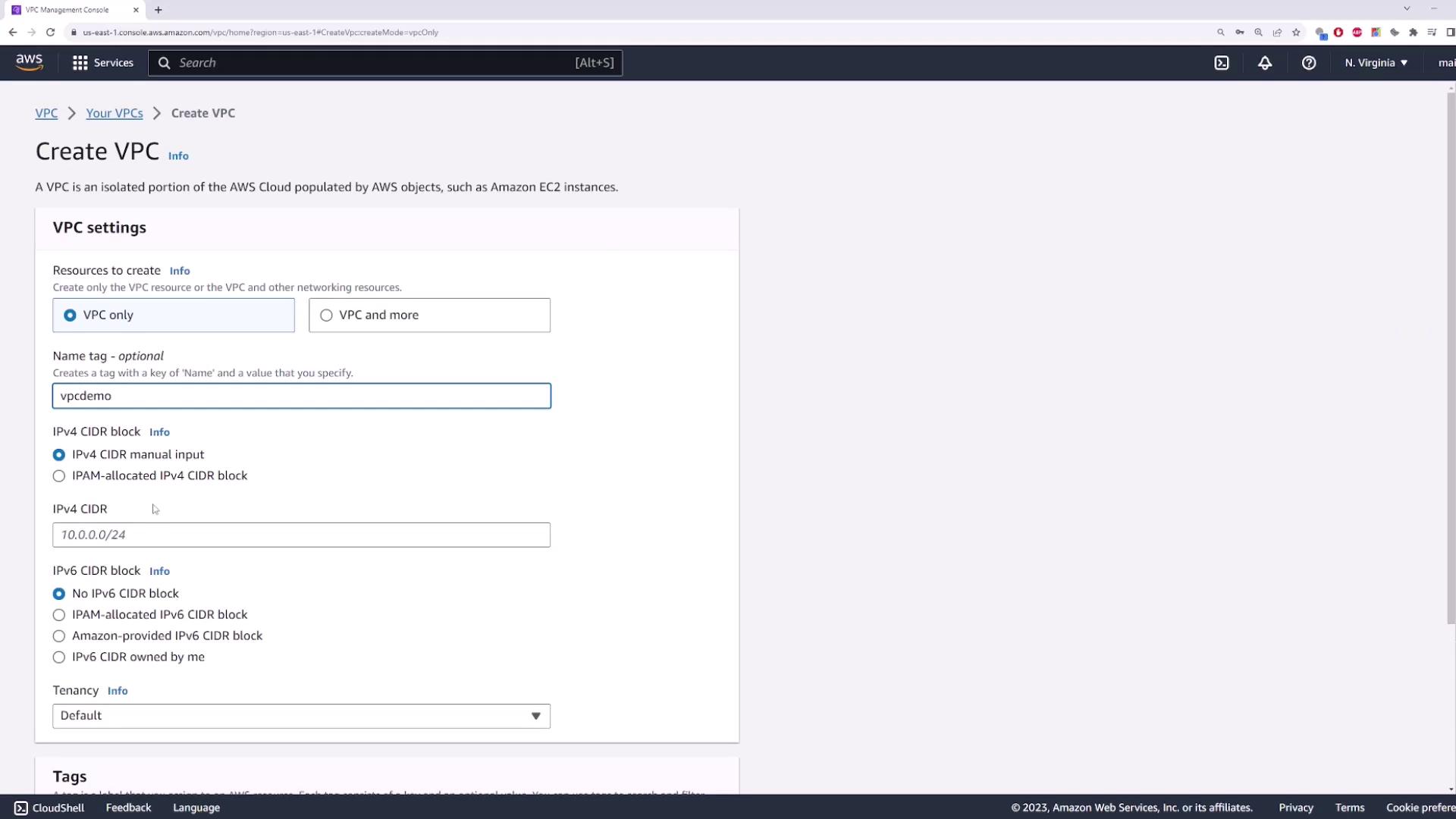

The image shows the AWS Management Console interface for creating a VPC, with options for setting the name tag, IPv4 CIDR block, and other configurations.

2. Create a Private Subnet

This subnet will host your EC2 instance without a public IP.

  • Name: private-subnet
  • Availability Zone: e.g., us-east-1b
  • IPv4 CIDR block: 10.0.1.0/24

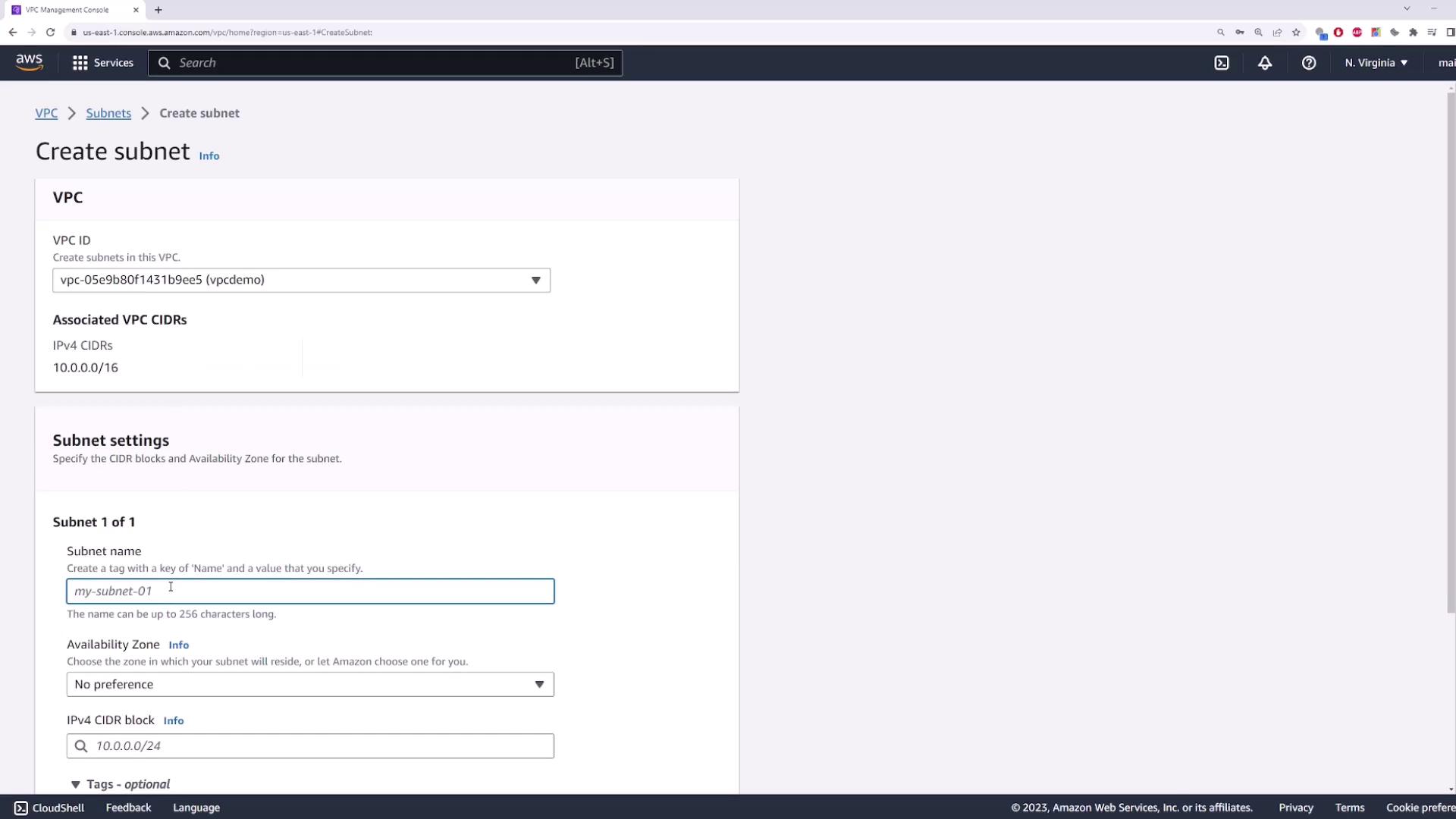

The image shows the AWS Management Console interface for creating a subnet within a VPC. It includes fields for VPC ID, subnet name, availability zone, and IPv4 CIDR block.

3. Launch an EC2 Instance in the Private Subnet

  1. Navigate to the EC2 console → Launch Instance.
  2. Select the Amazon Linux 2 AMI (or your preferred AMI).
  3. Under Network settings:
    • Choose your demo-vpc and the private-subnet.
    • Disable Auto-assign Public IP.
  4. Configure or select a security group (default settings are fine).
  5. Review and Launch. Name it private-server.

Because there’s no public IP, the instance cannot be reached directly from the internet.

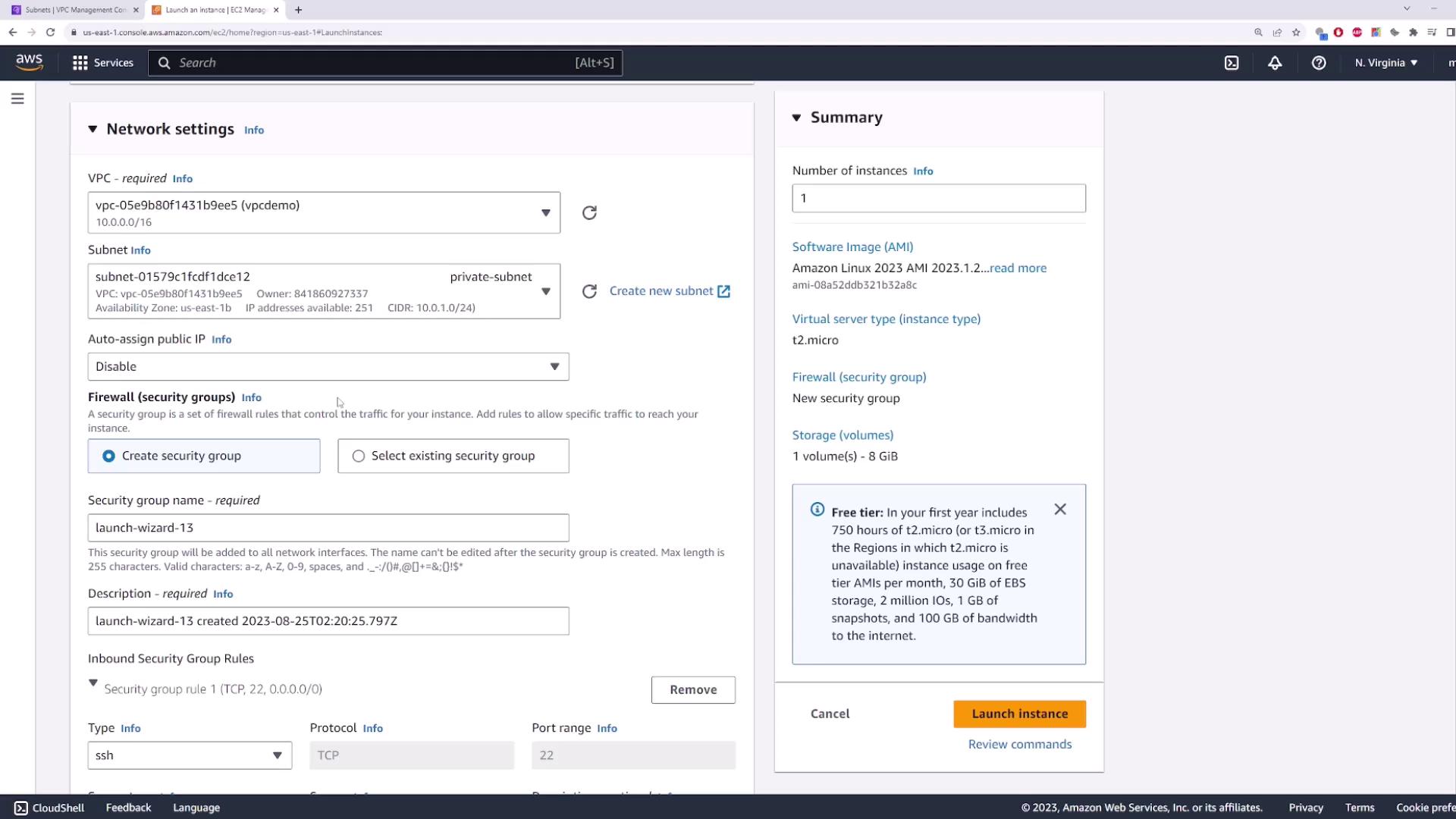

The image shows an AWS EC2 instance launch configuration screen, detailing network settings, security group options, and a summary of the instance specifications.

4. Create and Attach an Internet Gateway

An Internet Gateway (IGW) is required to give public subnets internet access.

  1. In the VPC console, go to Internet GatewaysCreate Internet Gateway.
  2. Name it my-igw and click Create.
  3. Select the new IGW → ActionsAttach to VPC → choose demo-vpc.

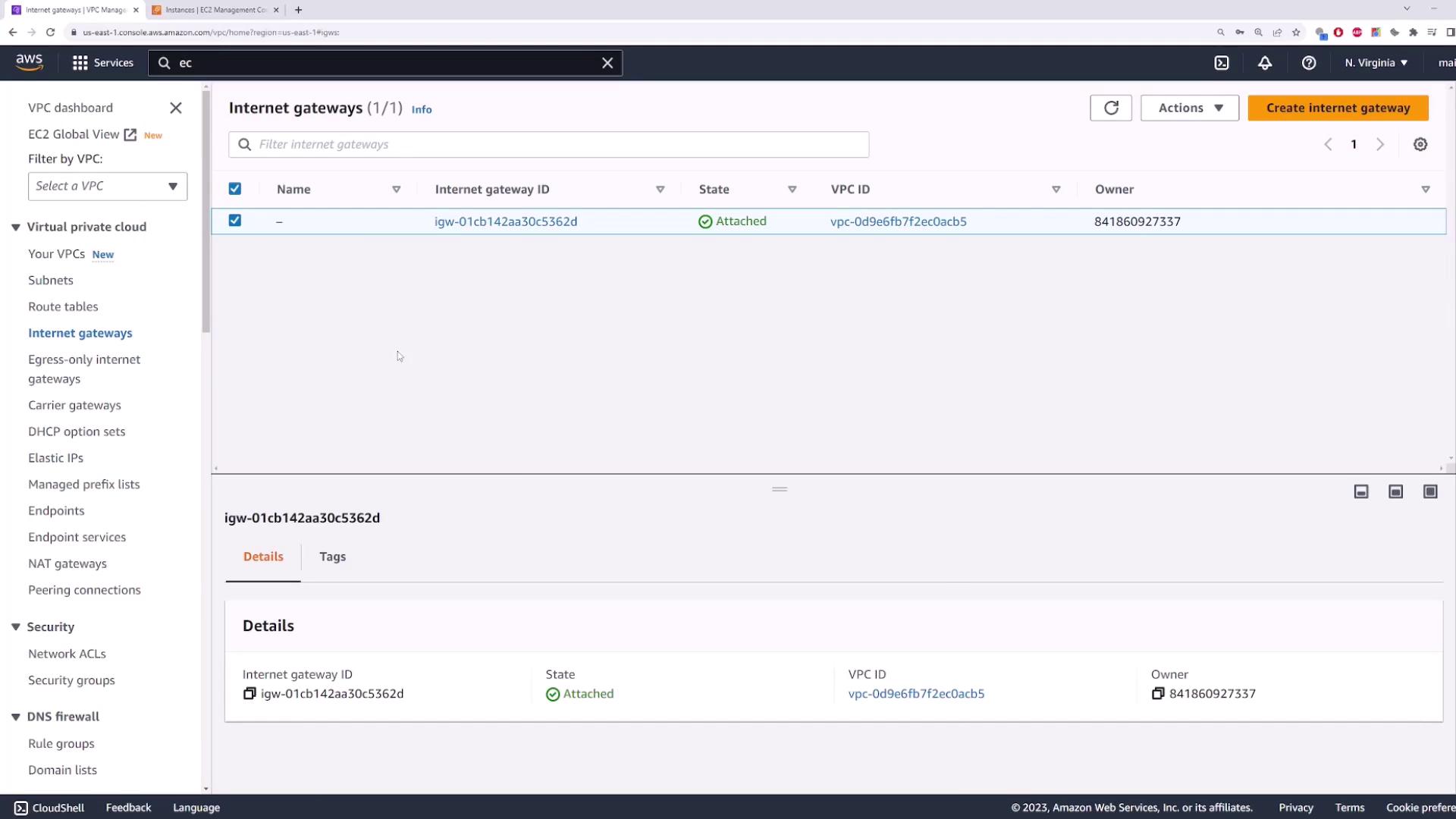

The image shows an AWS Management Console screen displaying the "Internet gateways" section, with one internet gateway listed as attached to a VPC.

5. Create a Public Subnet

This subnet will host the NAT Gateway and must have a route to the IGW.

  • Name: public-subnet
  • Availability Zone: same or different (e.g., us-east-1b)
  • IPv4 CIDR block: 10.0.2.0/24

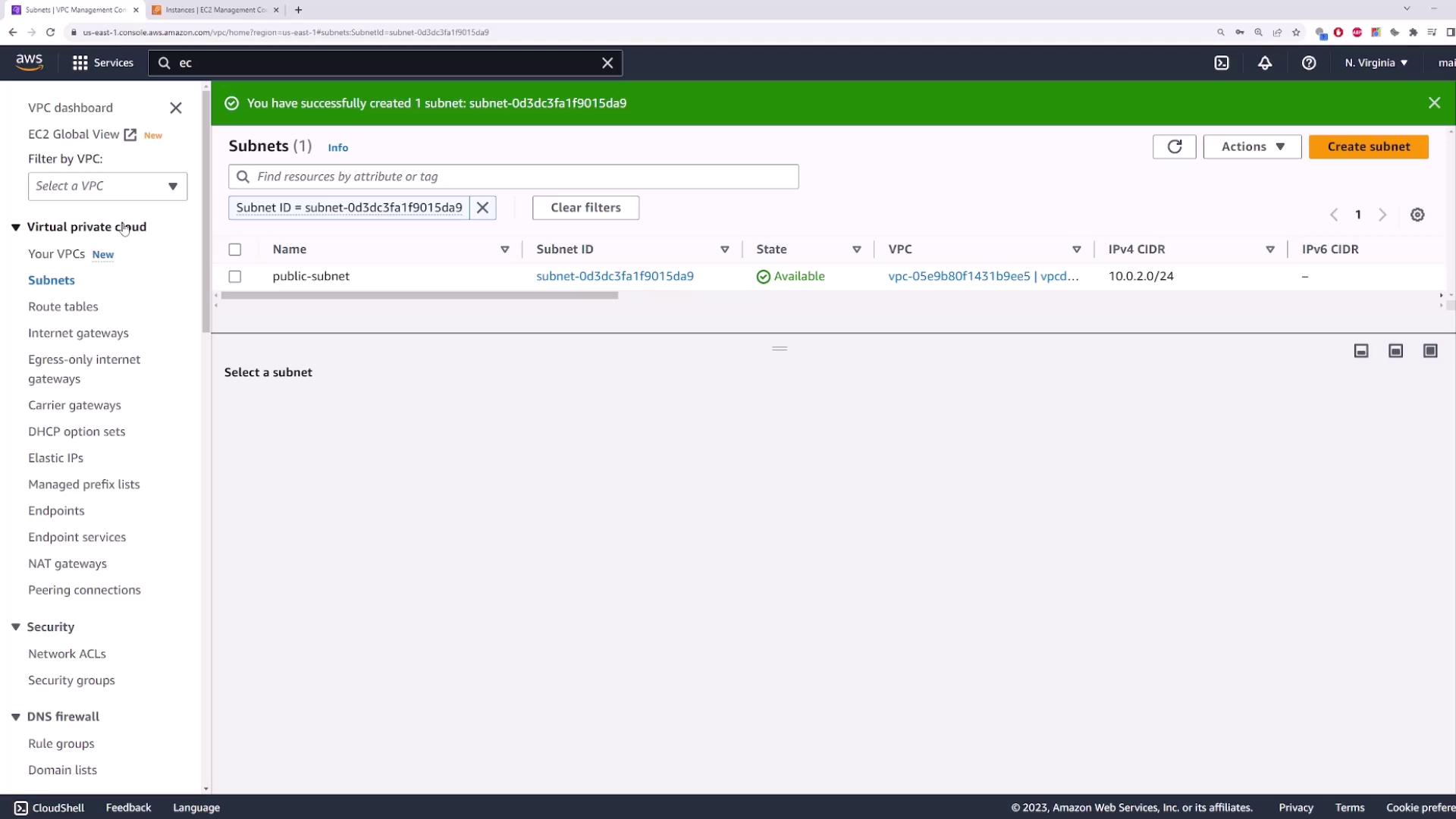

The image shows an AWS VPC dashboard with a notification indicating the successful creation of a subnet. The subnet details, including its ID and availability, are displayed.

6. Configure Route Tables

You need two route tables: one public and one private.

Note

Separate route tables help isolate internet-facing and internal traffic.

Route Table NameAssociated SubnetDefault Route Target
public-route-tablepublic-subnetInternet Gateway (my-igw)
private-route-tableprivate-subnet(added after NAT creation)

Steps

  1. Create public-route-table → select demo-vpcCreate.
  2. Edit routesAdd route 0.0.0.0/0 → Target: Internet Gateway → choose my-igwSave.
  3. Associate with public-subnet.
  4. Create private-route-table → select demo-vpcCreate.
  5. Associate with private-subnet (no default route yet).

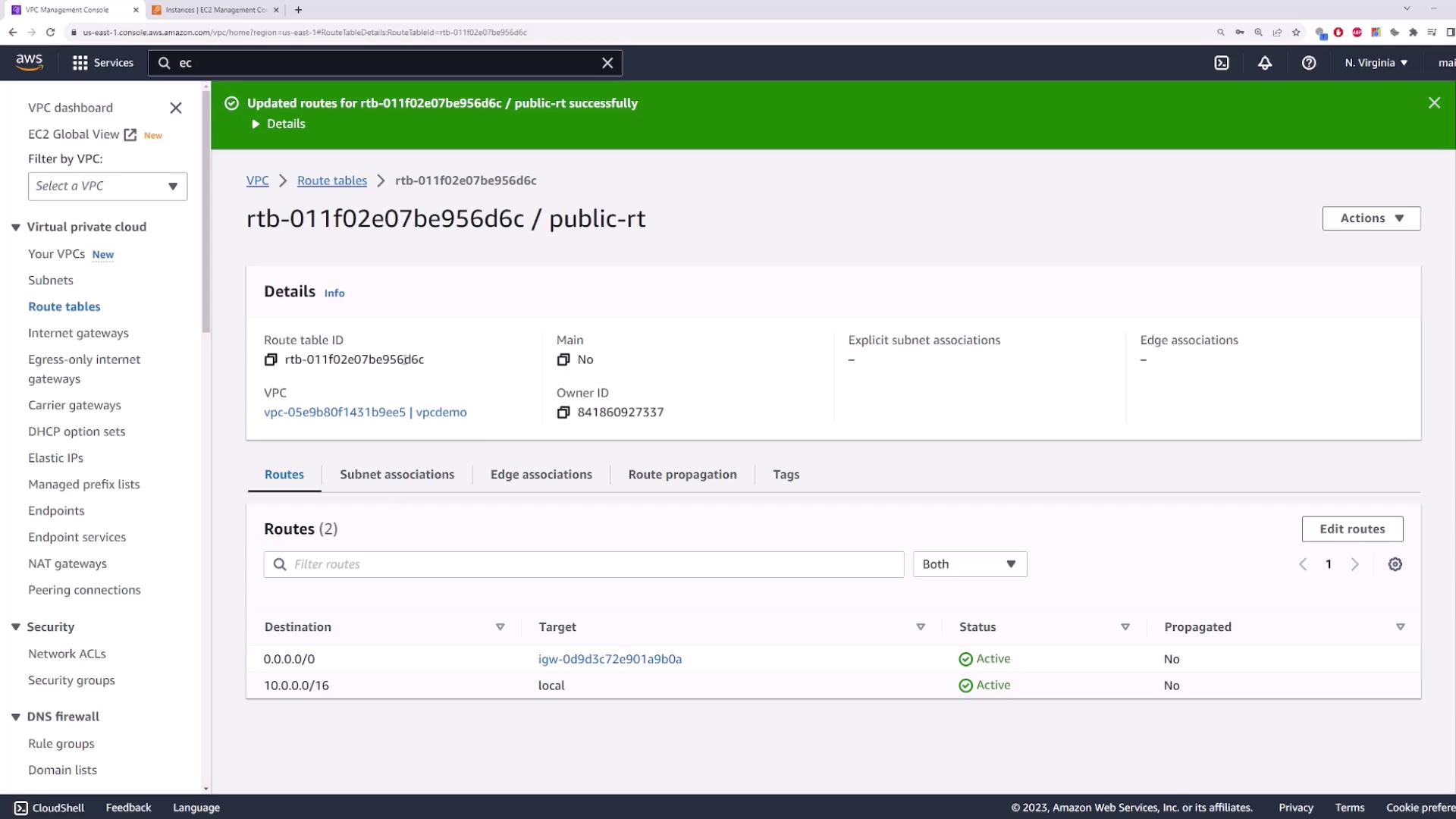

The image shows an AWS Management Console screen displaying details of a VPC route table, including route entries and their statuses. The route table has two routes, one for internet gateway access and another for local network access, both marked as active.

7. Deploy a NAT Gateway

In a public subnet, NAT Gateways allow private instances to access the internet securely.

  1. Go to NAT GatewaysCreate NAT Gateway.
  2. Name it my-nat-gateway.
  3. Subnet: public-subnet.
  4. Allocate a new Elastic IP.
  5. Click Create NAT Gateway.

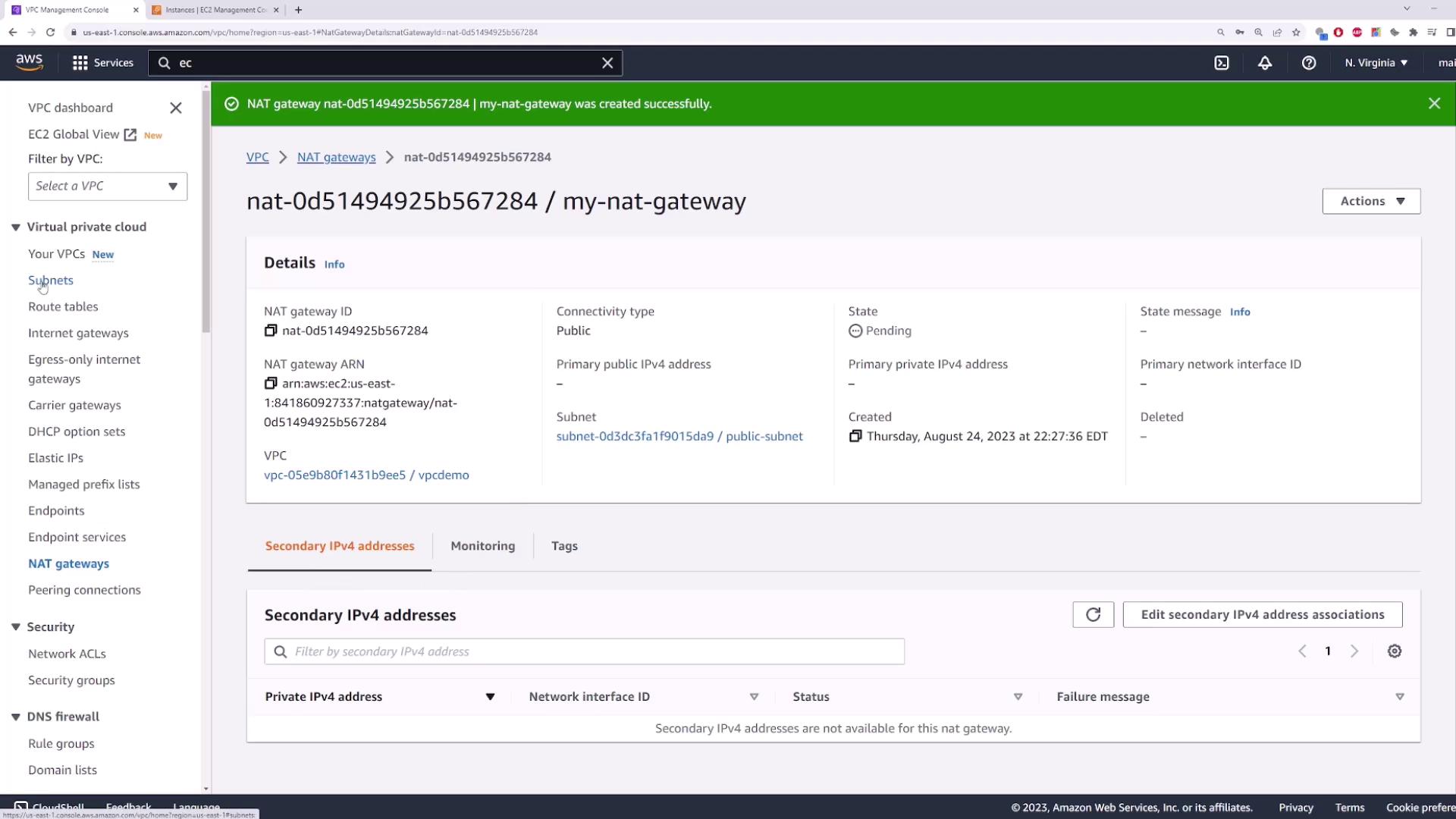

The image shows an AWS Management Console screen displaying details of a newly created NAT gateway, which is currently in a pending state.

You can also use the AWS CLI:

aws ec2 create-nat-gateway \
  --subnet-id <public-subnet-id> \
  --allocation-id <eip-allocation-id>

8. Update the Private Route Table

After the NAT Gateway becomes available:

  1. Open private-route-tableEdit routes.
  2. Add route 0.0.0.0/0 → Target: NAT Gateway → select my-nat-gateway.
  3. Save.

Now, instances in private-subnet will send outbound traffic through the NAT Gateway while remaining inaccessible from the internet.

9. Plan for High Availability

NAT Gateways are zonal resources. To avoid a single point of failure:

  • Deploy one NAT Gateway per Availability Zone.
  • Update each private route table to point to the NAT Gateway in its own AZ.

Warning

If the AZ with your NAT Gateway goes down, all instances using it lose internet access.

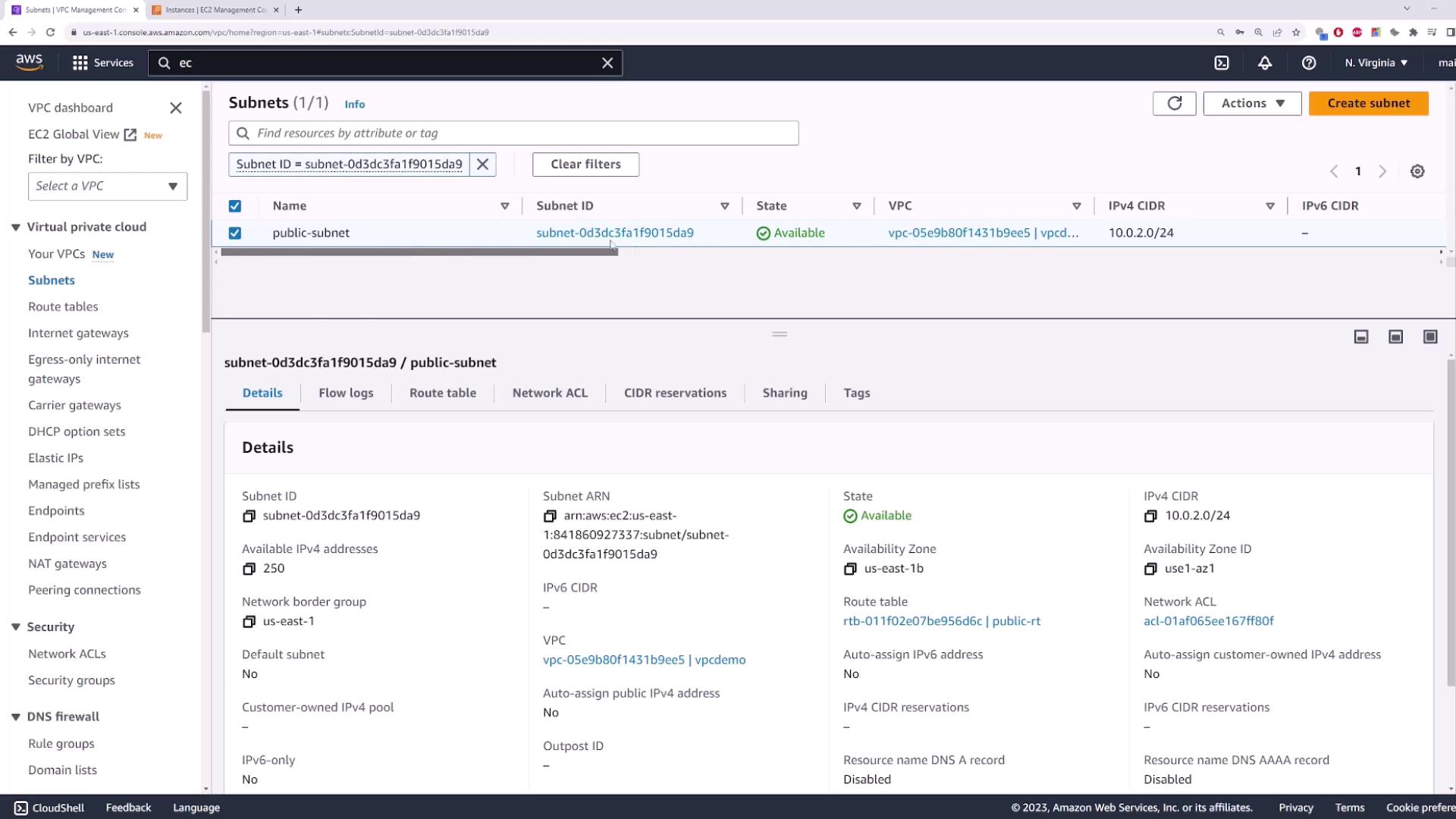

The image shows an AWS Management Console screen displaying details of a public subnet within a Virtual Private Cloud (VPC). It includes information such as the subnet ID, state, IPv4 CIDR, and availability zone.
