Public vs Private Subnets

In this guide, we’ll compare public and private subnets in an Amazon VPC, help you decide which to choose for your application components, and demonstrate common deployment patterns.

How to Choose Between Public and Private Subnets

Ask yourself:

Should resources in this subnet be directly accessible from the internet?

  • Yes → Public subnet
  • No → Private subnet

Public Subnets

Public subnets host resources that must serve or receive traffic from the internet (for example, web servers, load balancers, or bastion hosts). These subnets have a route to an Internet Gateway (IGW) and a public IP assigned to each resource.

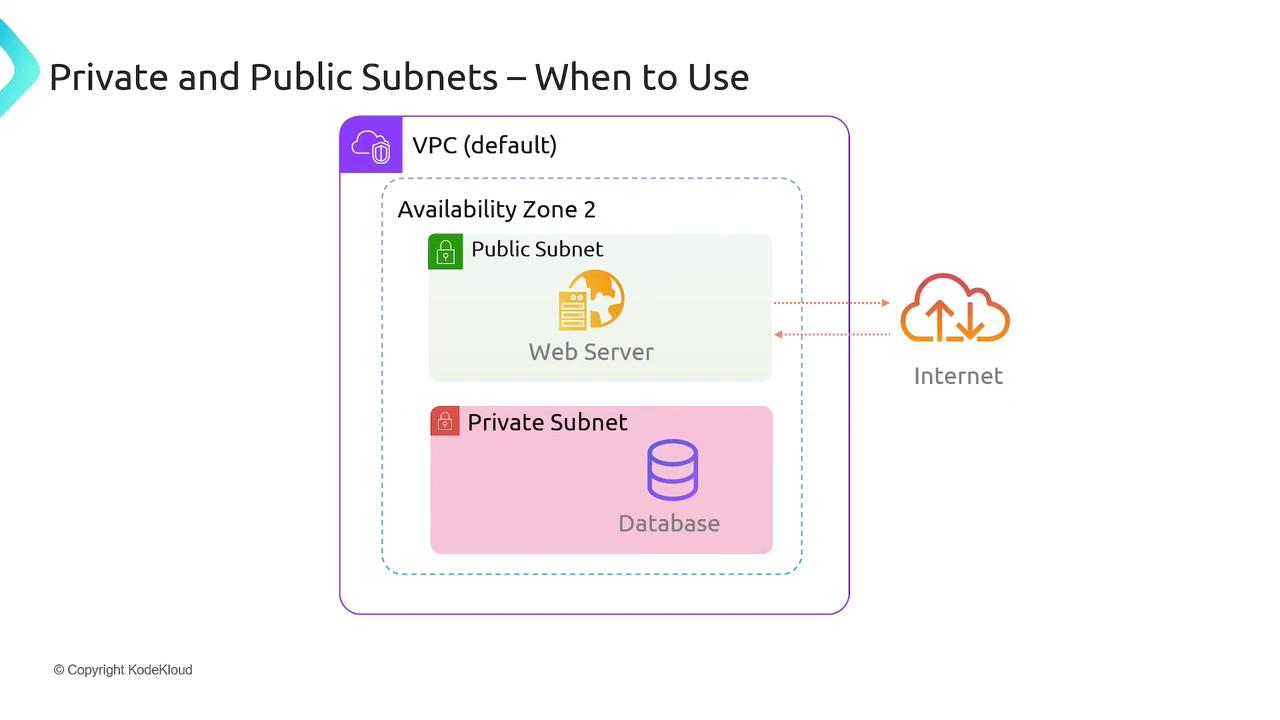

The image illustrates the use of private and public subnets within a VPC, showing a web server in a public subnet connected to the internet and a database in a private subnet.

Key characteristics:

  • Route Table includes a 0.0.0.0/0 route to the Internet Gateway
  • Inbound Traffic allowed on specific ports (e.g., HTTP 80, HTTPS 443)
  • Outbound Traffic to the internet for updates, API calls, etc.

Warning

Exposing resources in a public subnet means they are reachable over the internet. Always restrict inbound traffic with Security Groups and Network ACLs.

Private Subnets

Private subnets host internal resources (databases, application servers, caches) that should not be accessible directly from the internet. They typically use a NAT Gateway or NAT Instance in a public subnet for outbound internet access (software updates, API calls).

Key characteristics:

  • Route Table has no direct route to IGW
  • Outbound Internet enabled via NAT Gateway in a public subnet
  • No Public IPs assigned by default

Typical Web Application Pattern

  1. Clients connect to an Application Load Balancer or web server in a public subnet.
  2. The web server in the public subnet communicates with a database in a private subnet.

This ensures:

  • End users never access the database directly.
  • All data flows through controlled application logic.

Note

To allow your private subnet resources to fetch updates or reach external APIs, deploy a NAT Gateway in a public subnet and add the NAT’s Elastic IP to your private subnet’s route table.

Extending an On-Premises Data Center

Organizations often extend their corporate networks into AWS using VPN or AWS Direct Connect. In this architecture, all AWS resources reside in private subnets, and traffic flows over a secure tunnel to on-premises infrastructure.

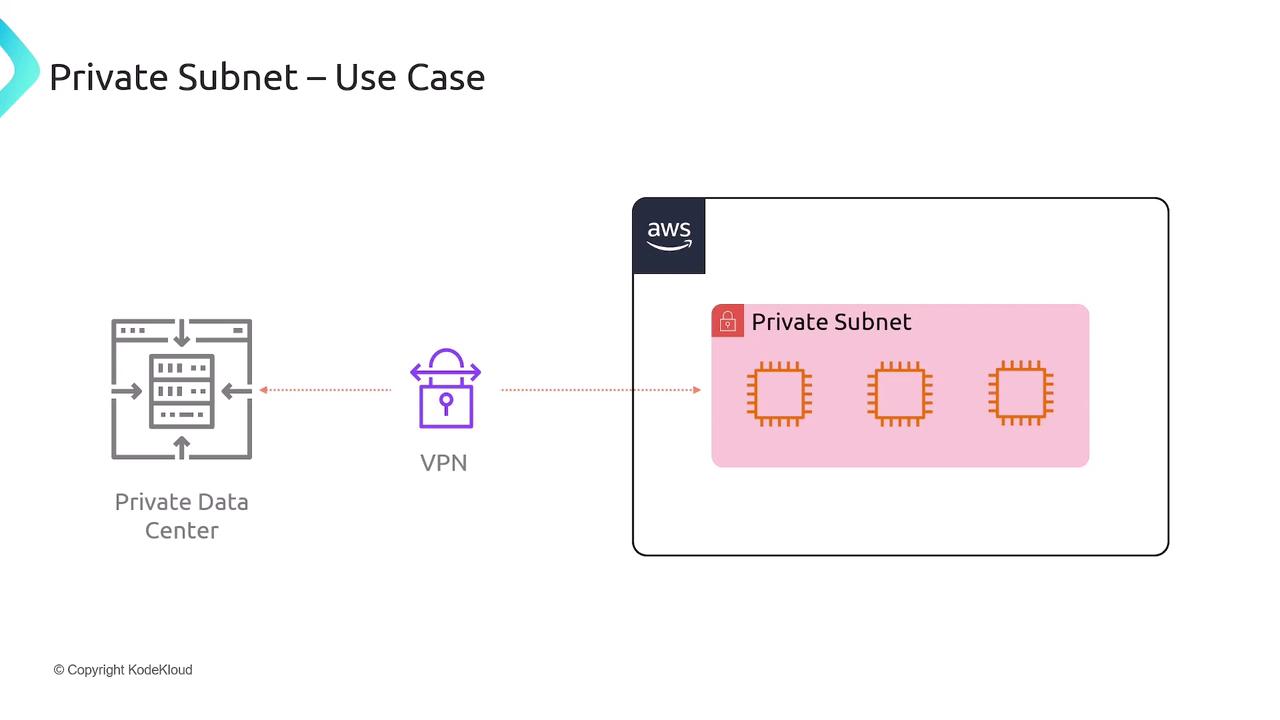

The image illustrates a use case for a private subnet, showing a connection from a private data center to an AWS private subnet via a VPN.

Benefits:

  • No need for Internet Gateway exposure
  • Full integration with existing security controls
  • Centralized network management

Subnet Comparison Table

FeaturePublic SubnetPrivate Subnet
Internet ConnectivityDirect via Internet GatewayIndirect via NAT Gateway/Instance
Public IP AssignmentYesNo
Typical Use CasesWeb servers, Load Balancers, Bastion HostsDatabases, Application Servers, Caches
Ingress TrafficAllowed from the internet (port-based controls)Managed via Security Groups from within VPC
Egress TrafficAllowed freelyRouted through NAT Gateway for outbound internet

Summary

The image is a slide with a blue gradient background on the left labeled "Summary" and a note on the right stating that resources in public subnets are accessible to and from the internet.

  • Public subnets: Resources are reachable by—and can initiate connections with—the internet.
  • Private subnets: Resources are hidden from direct internet access, using NAT Gateways or on-premises VPN for outbound traffic.

Choose your subnet type based on whether a component truly needs public connectivity:
