VPC Overview

A Virtual Private Cloud (VPC) is your isolated network segment within AWS. It lets you launch AWS resources in a logically separated environment, complete with custom IP ranges, subnets, routing rules, and security controls—just like running your own data center without the physical infrastructure.

What Is a VPC?

A VPC is an isolated virtual network in AWS where you can launch resources such as EC2 instances. Within each VPC, you configure:

  • IP address ranges using CIDR blocks
  • Subnets for grouping resources across Availability Zones
  • Route tables to control traffic flow
  • Security Groups (instance-level, stateful firewalls)
  • Network ACLs (subnet-level, stateless firewalls)
  • Gateways for Internet, VPC-to-VPC, or on-premises connectivity

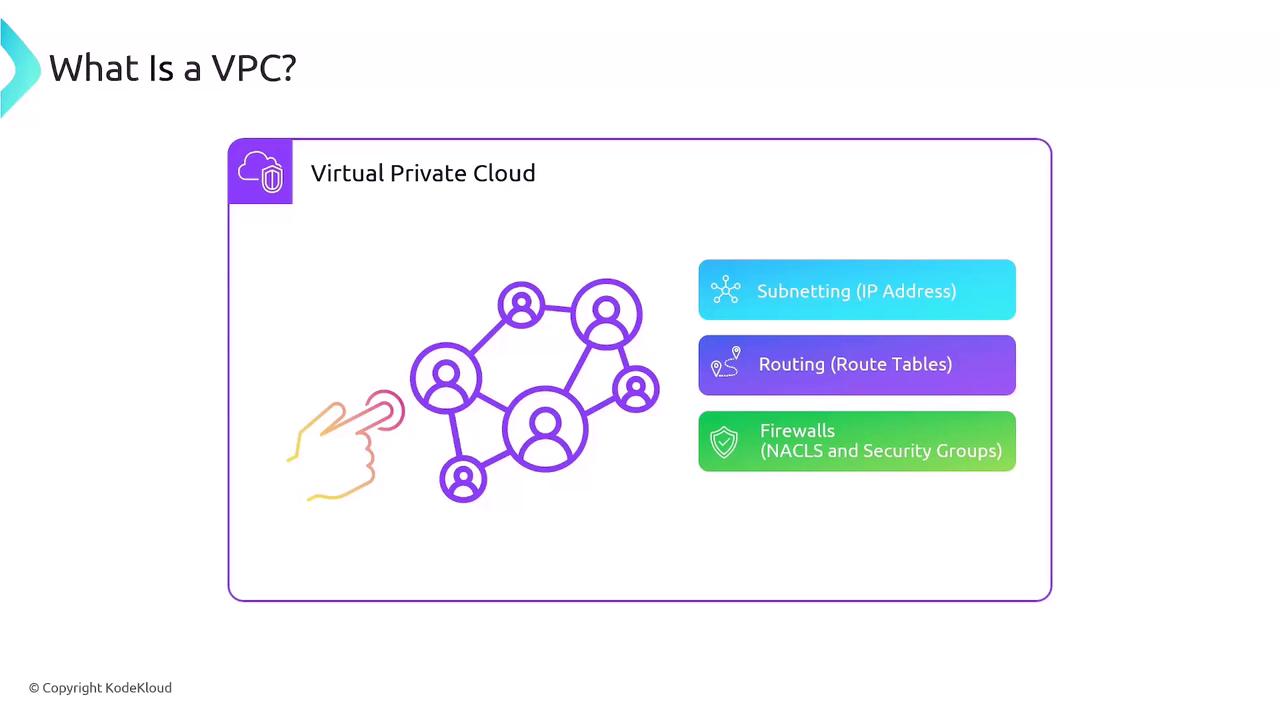

The image explains what a Virtual Private Cloud (VPC) is, highlighting components like subnetting, routing, and firewalls. It includes a network diagram and a list of features related to VPCs.

Regional Isolation

Each VPC exists entirely within a single AWS Region and cannot span multiple regions. By default, resources in VPC A (us-east-1) are isolated from resources in VPC B (us-east-2) unless you establish explicit connectivity.

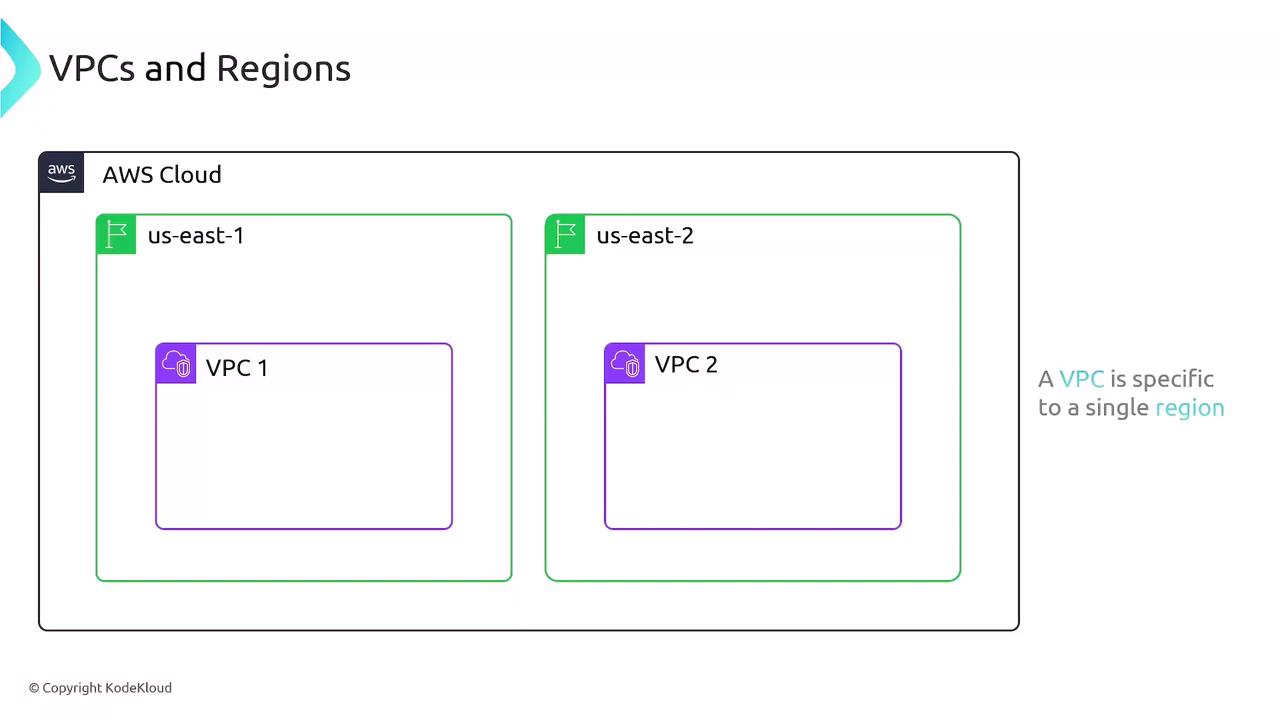

The image illustrates AWS Cloud regions "us-east-1" and "us-east-2," each containing a separate VPC (Virtual Private Cloud). It highlights that a VPC is specific to a single region.

VPC as a Network Boundary

Out of the box, VPCs are completely isolated:

  • No Internet access until you attach an Internet Gateway
  • No communication between VPCs until you configure VPC Peering or a Transit Gateway
  • No on-premises connectivity until you set up VPN or AWS Direct Connect

Note

You can attach an Internet Gateway to multiple public subnets, but each VPC supports only one Internet Gateway.

IP Addressing: CIDR Blocks

When creating a VPC, assign a primary IPv4 CIDR block between /16 and /28:

  • Example: 192.168.0.0/16 (65,536 addresses)
  • Add secondary IPv4 CIDR blocks as needed
  • Enable IPv6 using a /56 block (up to five per VPC, adjustable on request)

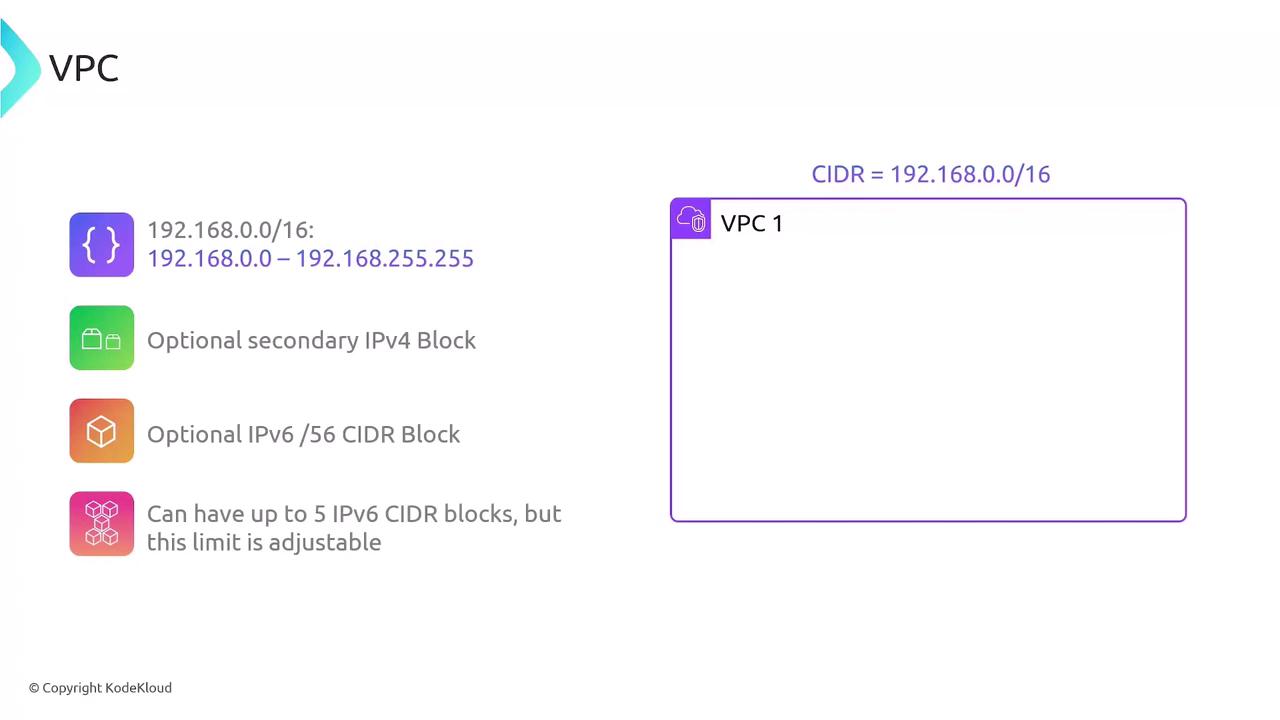

The image is a diagram explaining a Virtual Private Cloud (VPC) with a CIDR block of 192.168.0.0/16, including options for secondary IPv4 and IPv6 CIDR blocks.

Warning

Plan your CIDR ranges carefully to avoid overlap with other VPCs or on-premises networks.

Default vs. Custom VPCs

AWS offers two VPC types:

FeatureDefault VPCCustom VPC
CreationAutomatically created in every regionManually created by you
CIDR block172.31.0.0/16You choose (/16/28 for IPv4)
SubnetsOne public /20 subnet per AZPublic/private subnets per your design
Internet GatewayAttached with a 0.0.0.0/0 route by defaultRequires manual attachment & routing
Security ControlsDefault SG and NACL allow all traffic by defaultConfigure SGs & NACLs from scratch

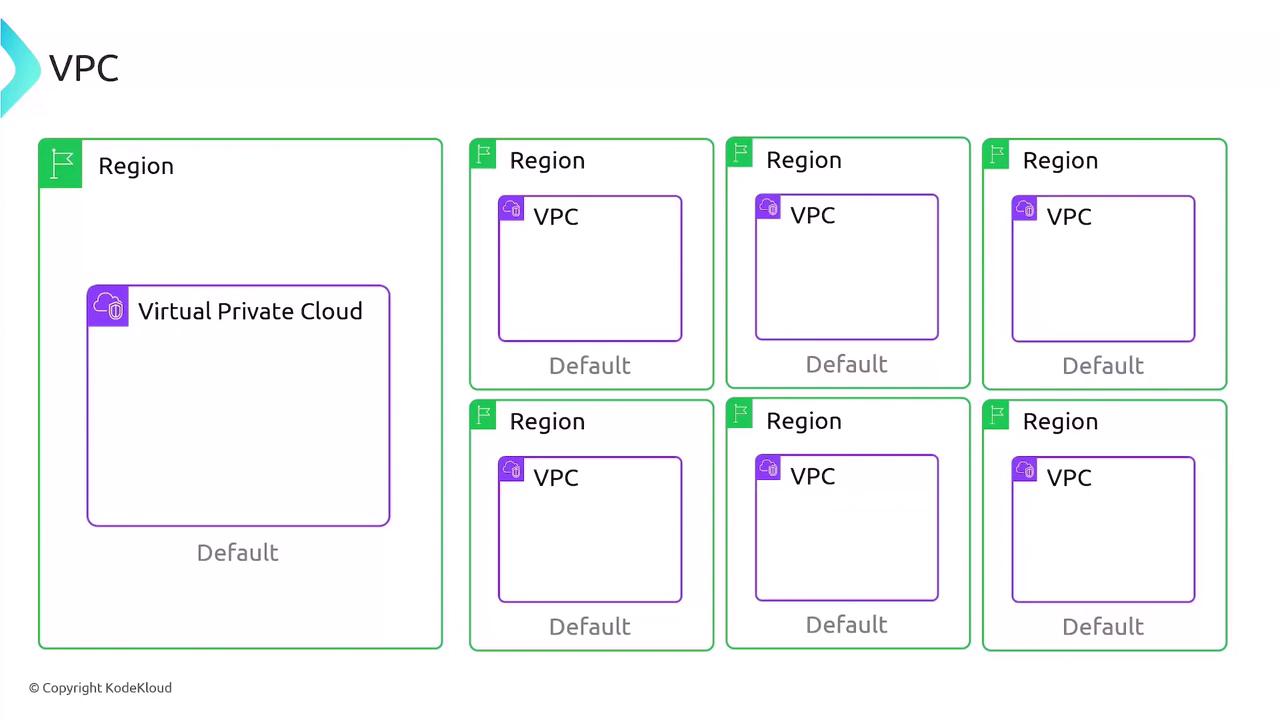

The image is a diagram illustrating multiple regions, each containing a Virtual Private Cloud (VPC) labeled as "Default."

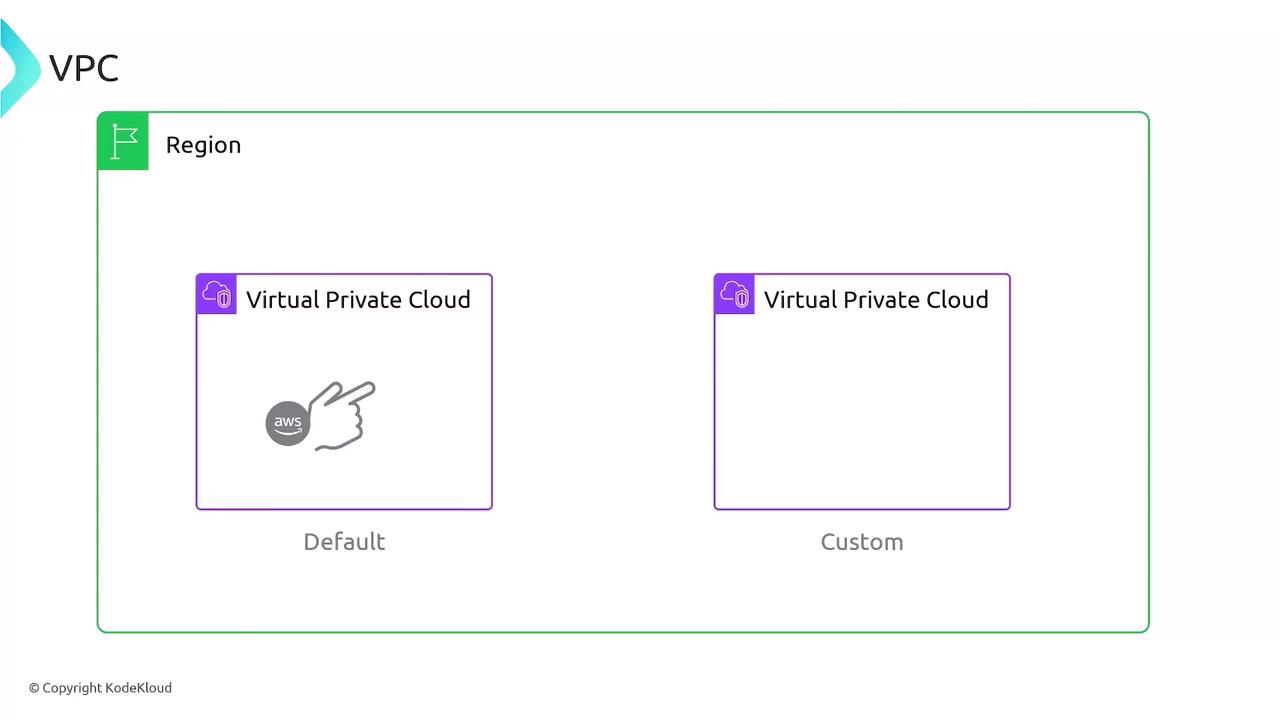

The image is a diagram showing two types of Virtual Private Clouds (VPCs) within a region: a default VPC and a custom VPC, both represented in separate boxes.

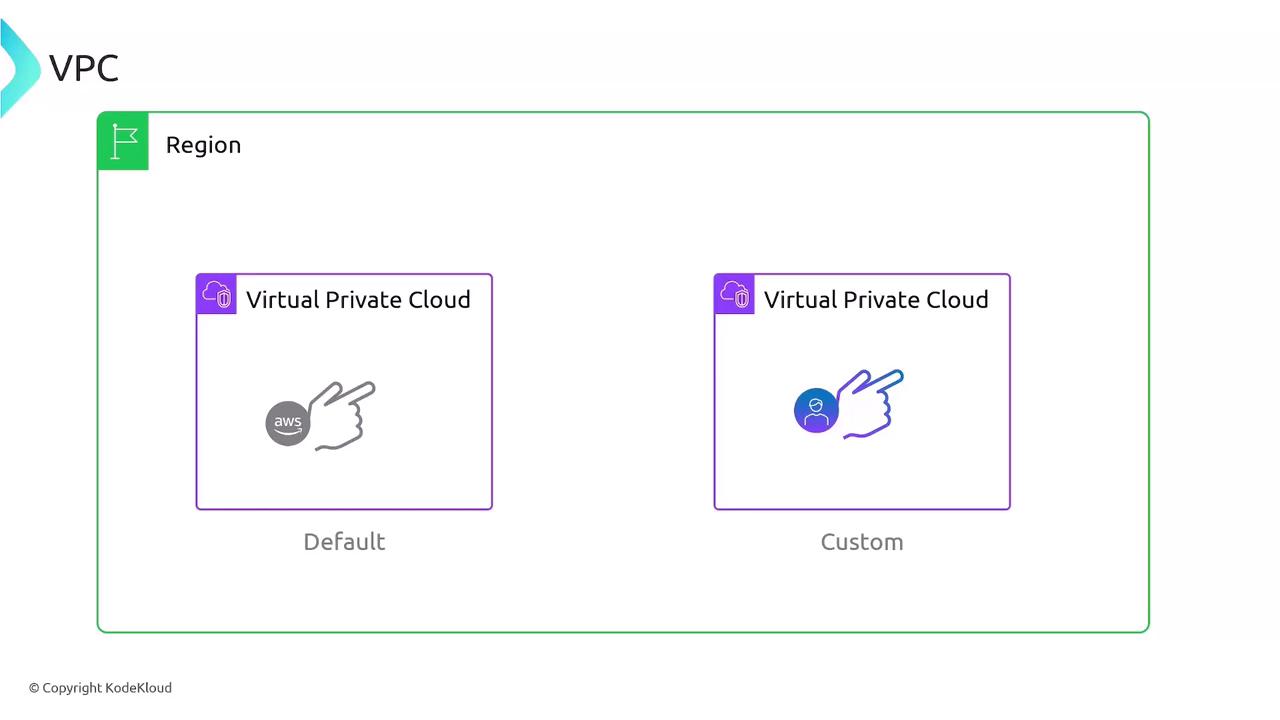

The image illustrates a comparison between a default and a custom Virtual Private Cloud (VPC) within a region, featuring icons and labels for each type.

Default VPC Configuration

Every AWS Region includes one Default VPC with these built-in settings:

  • CIDR block: 172.31.0.0/16 (65,536 IPs)
  • Subnets: One default /20 subnet per AZ
    • e.g., 172.31.16.0/20, 172.31.32.0/20, etc.
  • Internet Gateway: Attached by default with a 0.0.0.0/0 route
  • Security Group: Default SG allowing all outbound traffic
  • Network ACL: Default NACL allowing all inbound and outbound traffic

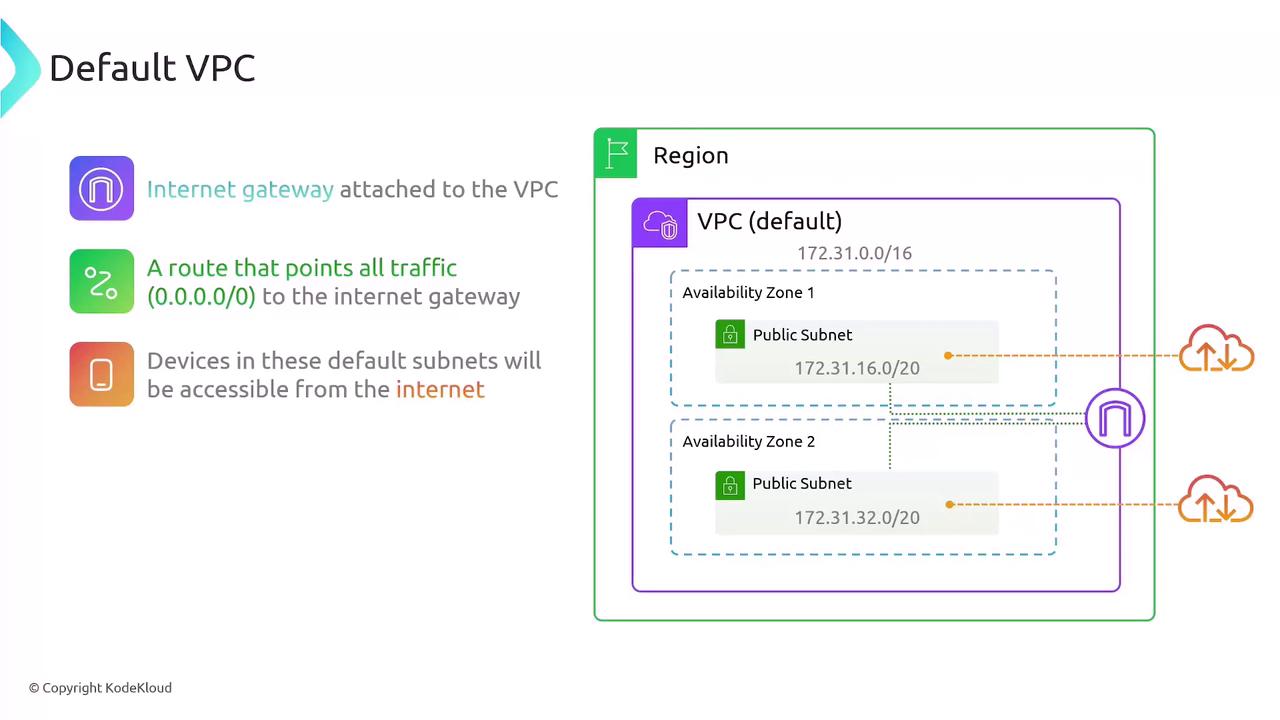

The image illustrates a default VPC setup, showing an internet gateway attached to the VPC, routes directing all traffic to the gateway, and public subnets in two availability zones accessible from the internet.

Summary

  • VPCs isolate your AWS resources within a single Region.
  • Define IP ranges with CIDR blocks (IPv4 /16/28, optional IPv6 /56).
  • Default VPCs are pre-configured for fast deployment; Custom VPCs give you full control.
  • Default VPCs use 172.31.0.0/16, provide one /20 subnet per AZ, and include Internet access by default.
  • Security Groups and NACLs enforce instance- and subnet-level traffic rules, respectively.
