Virtual Private Networks (VPNs) create an encrypted tunnel over the public Internet, allowing secure communication between on-premises networks and resources within an Amazon Virtual Private Cloud (VPC). In AWS, you can use Site-to-Site VPN to bridge your data center with your VPC, extending your network securely.

VPN Architecture

In this setup, your VPC uses the CIDR block 10.0.0.0/16 and contains private subnets without public IPs. To connect on-premises devices:

AWS deploys a Virtual Private Gateway (VGW), which terminates the IPsec tunnel on the VPC side.
Your on-premises network uses a Customer Gateway (CGW) appliance with a public IP (e.g., 1.1.1.1).
AWS assigns a public IP (e.g., 2.2.2.2) to the VGW.
An IPsec tunnel encrypts traffic between the CGW and VGW over the Internet.

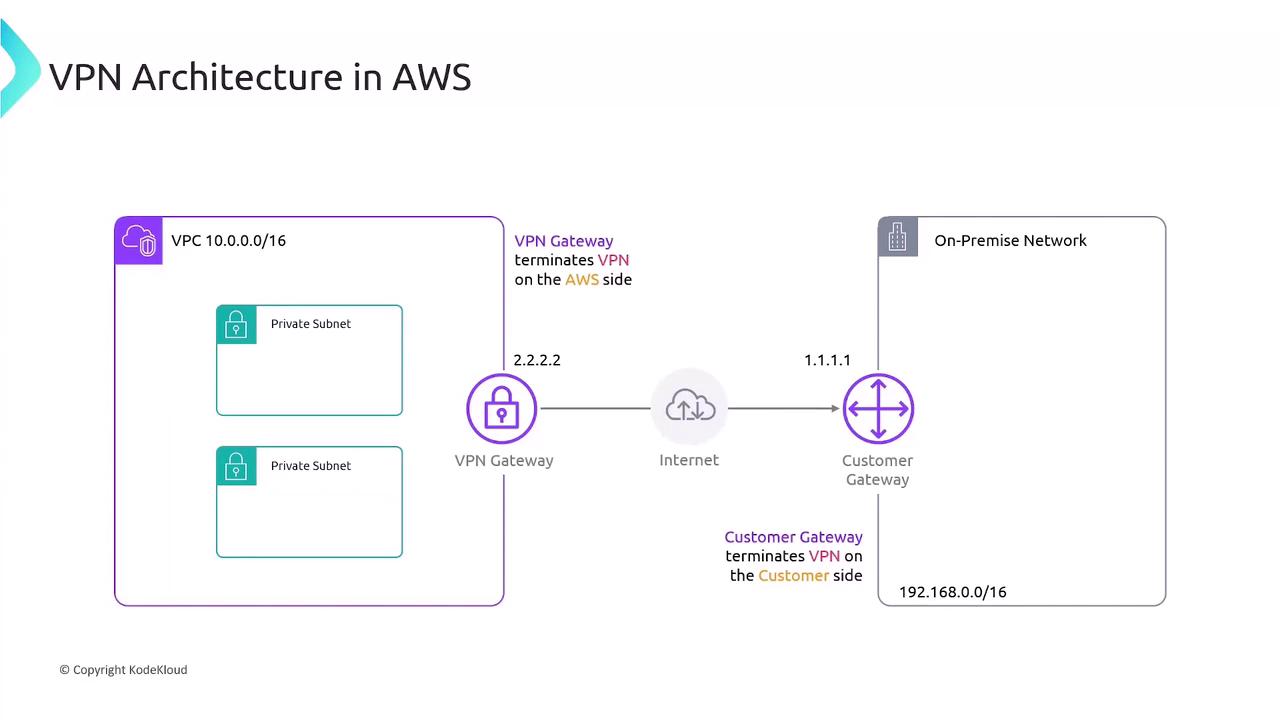

The image illustrates a VPN architecture in AWS, showing the connection between a Virtual Private Cloud (VPC) with private subnets and an on-premise network via a VPN gateway and customer gateway over the internet.

Key Components

Component	Role
Virtual Private Gateway	AWS-side VPN endpoint attached to your VPC
Customer Gateway	On-premises VPN endpoint with a public IP
IPsec Tunnel	Encrypts data between CGW (`1.1.1.1`) and VGW (`2.2.2.2`)

Routing Options

You can route traffic between 10.0.0.0/16 (VPC) and 192.168.0.0/16 (on-premises) in two ways:

1. Static Routing

Manually add routes to your VPC route table.

Destination: 192.168.0.0/16
Target: vgwy-xxxxxxxx

2. Dynamic Routing (BGP)

Use the Border Gateway Protocol (BGP) to exchange and propagate routes automatically between the Customer Gateway and the VPN Gateway.

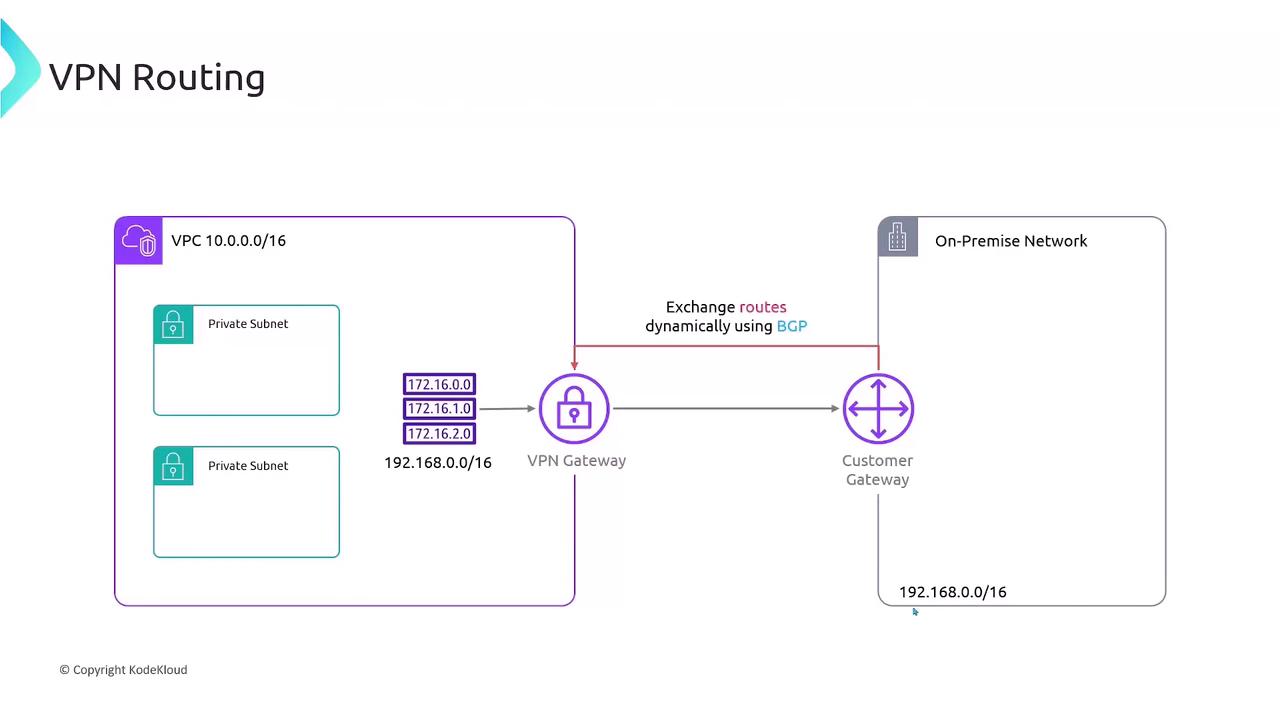

The image is a diagram illustrating VPN routing between a VPC and an on-premise network, showing private subnets, a VPN gateway, and a customer gateway with dynamic route exchange using BGP.

Warning

Dynamic routing via BGP adds complexity. Ensure your on-premises router supports BGP and proper autonomous system (AS) configuration.

Pricing

AWS Site-to-Site VPN pricing includes two main components:

Billing Dimension	Description
Connection Hours	Charged per hour while each VPN connection is available
Data Transfer Out	Standard Amazon EC2 data transfer rates for outbound traffic to the Internet

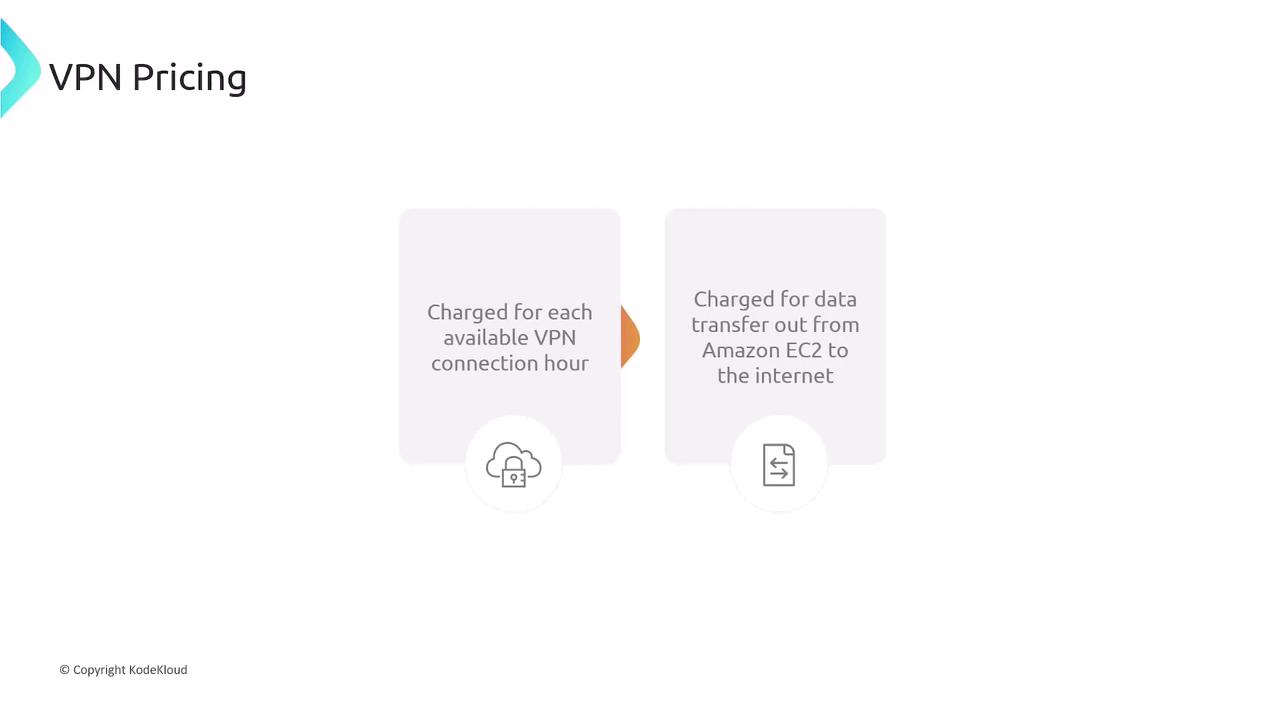

The image outlines VPN pricing, indicating charges for each available VPN connection hour and for data transfer from Amazon EC2 to the internet.

Note

Data transferred into AWS over the VPN is free; only outbound data is charged.

VPN Gateway Limits

Each AWS-managed VPN tunnel supports:

Limit	Value
Maximum Bandwidth	1.25 Gbps
Maximum Packets per Sec	140,000 pps
Path MTU	1466 bytes

To increase throughput, you can deploy multiple tunnels and use Equal-Cost Multi-Path (ECMP) routing.

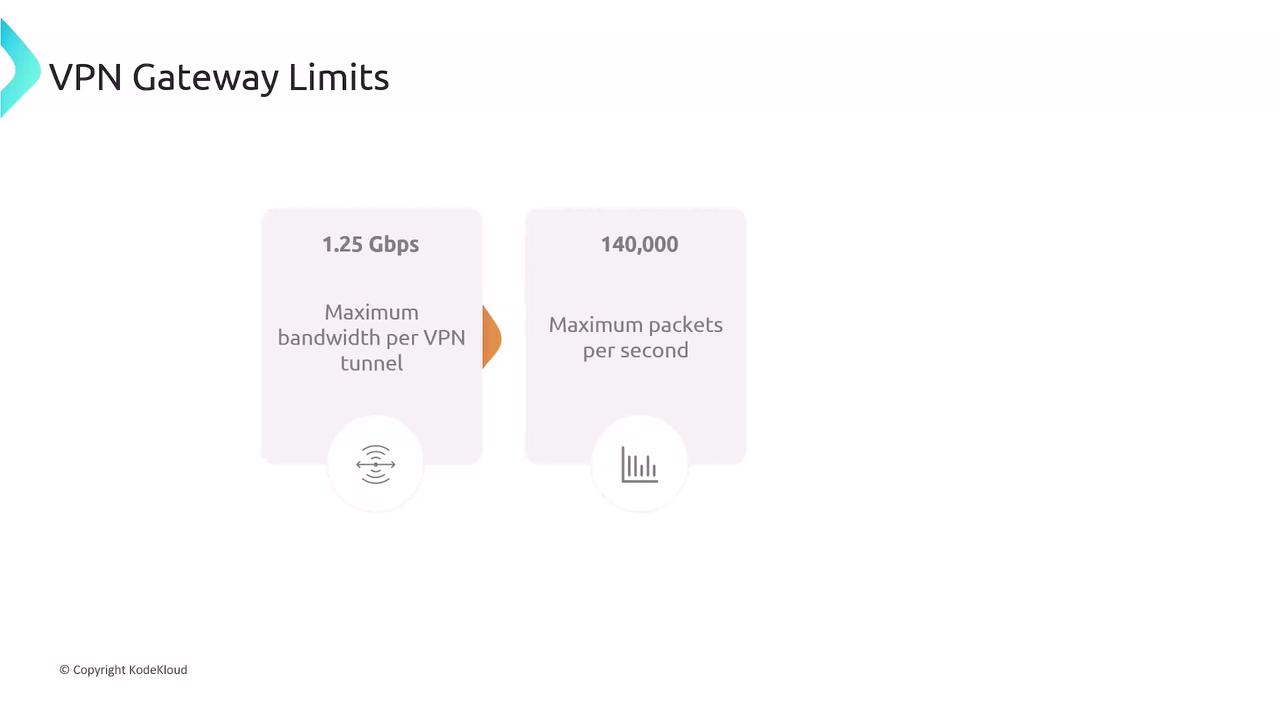

The image shows VPN gateway limits, indicating a maximum bandwidth of 1.25 Gbps per VPN tunnel and a maximum of 140,000 packets per second.

Summary

Connecting your on-premises network to an AWS VPC using VPN delivers secure, encrypted traffic flow:

Virtual Private Gateway (VGW): AWS-side endpoint attached to your VPC.
Customer Gateway (CGW): On-premises endpoint with a public IP.
IPsec Tunnel: Secures data in transit over the public Internet.
Routing: Static routes for simplicity or BGP for automation.
Pricing: Charged by VPN connection hours and outbound data.
Limits: 1.25 Gbps per tunnel, 140,000 pps, 1466 byte MTU.

The image is a summary slide outlining key points about connecting VPCs to on-premise data centers, virtual private gateways, customer gateways, and VPN connections over the public internet.

The image is a slide with a blue gradient background on the left labeled "Summary" and a note on the right stating that an on-premise network can be set statically in a route table or dynamically exchanged via BGP.
