Design for Azure Data Lake Storage

Azure Data Lake Storage (ADLS) is a purpose-built repository that stores data in its native format as blobs or files. Unlike standard Blob Storage, ADLS is optimized for analytics, allowing you to store structured, semi-structured, and unstructured data without requiring transformation into a new format.

When working on data analytics projects, ADLS is the preferred solution. Although its cost is equivalent to that of Azure Blob Storage, ADLS is specifically tuned for analytic workloads.

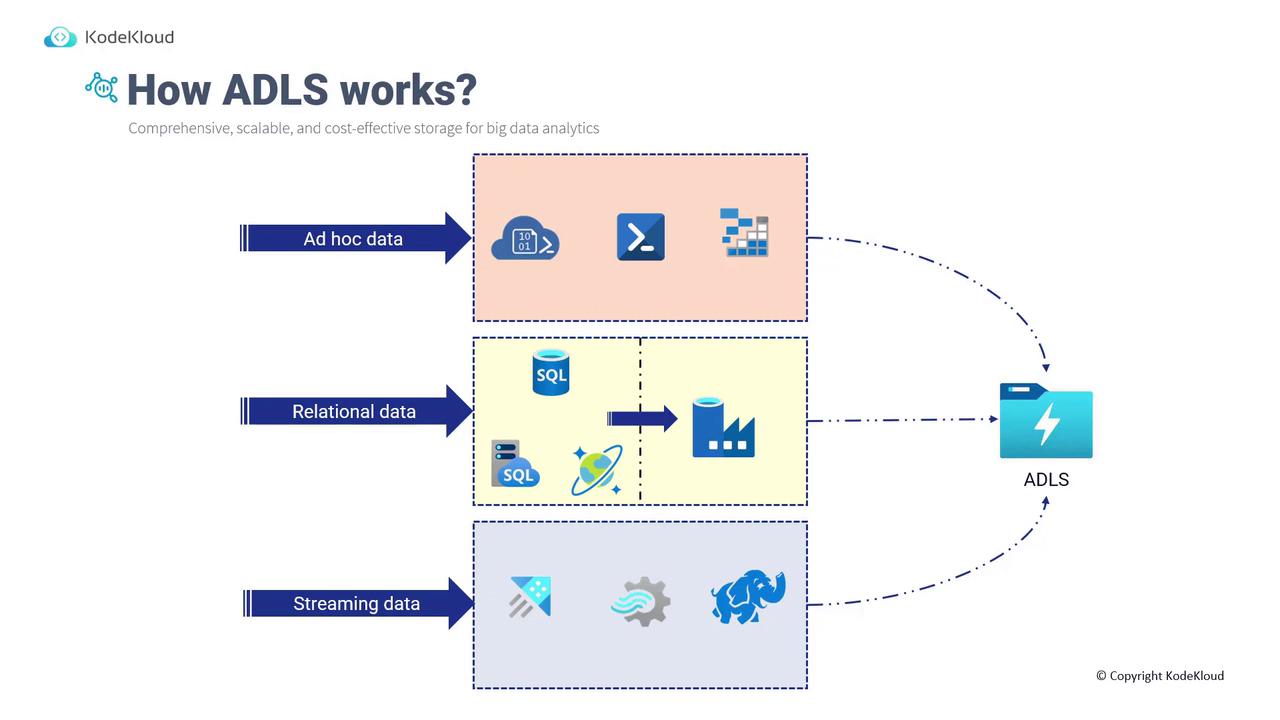

How ADLS Works

Data can be ingested into ADLS from various sources, ensuring your data remains available in its native state. The main ingestion methods include:

• Ad-hoc Data:
  Data can be uploaded using tools such as PowerShell, Azure CLI, or Storage Explorer.

• Relational Data:
  Data originating from SQL databases, SQL Managed Instances, PostgreSQL, or Cosmos DB can be ingested via Azure Data Factory, which includes connectors for these sources.

• Streaming Data:
  Real-time data from Azure Data Explorer, Stream Analytics, Hadoop, and similar sources can be streamed directly into ADLS.

All these varied types of data—ad-hoc, relational, and streaming—are preserved in their original formats. To access this stored data, you can use Storage Explorer, which offers a user interface similar to that of table storage. Alternatively, you can interact with ADLS using PowerShell, Azure CLI, HDFS CLI, and several programming SDKs. Access is controlled using Azure RBAC and granular access control lists (ACLs).

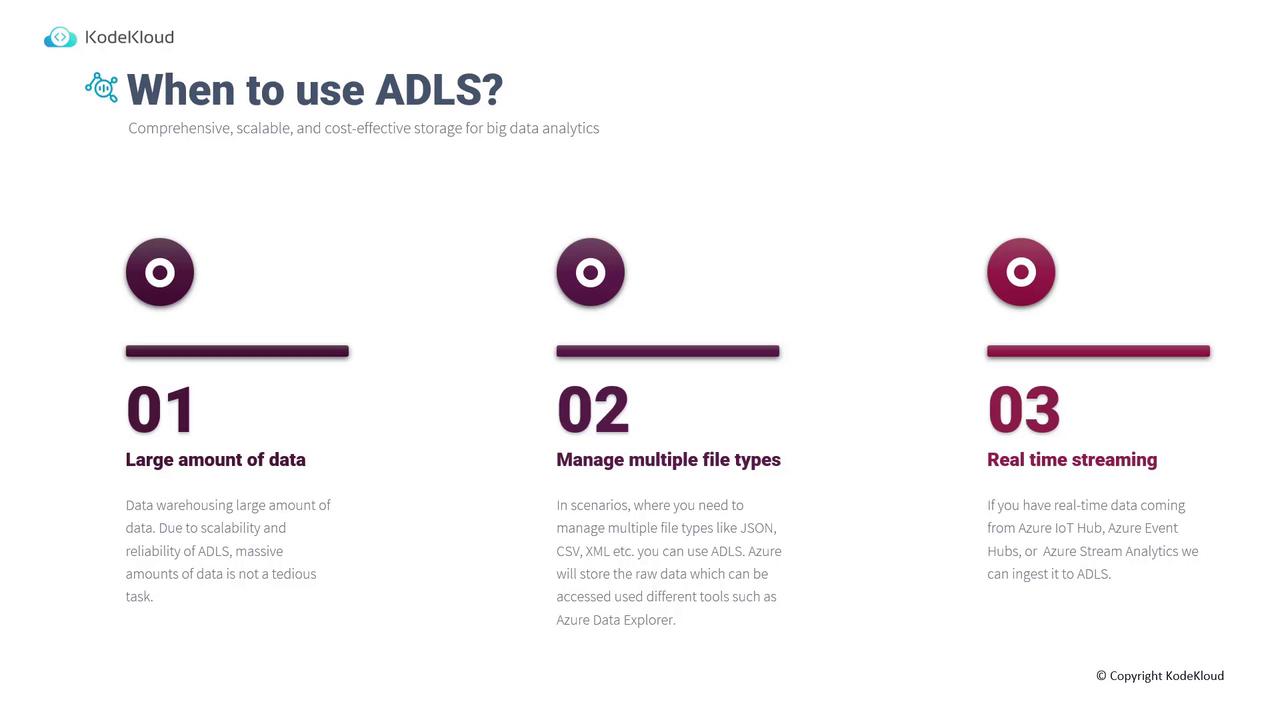

When to Use ADLS

ADLS is ideal for three primary scenarios:

1. Large Amounts of Data:
   ADLS serves as a cloud-based data warehouse capable of managing massive volumes of data. Its scalability and reliability allow for automatic billing adjustments as storage needs increase.



2. Multiple File Types:
   By supporting a wide range of file types (such as JSON, CSV, XML, etc.), ADLS offers flexible ingestion of ad-hoc, relational, or streaming data. This diversity enables robust processing using tools like Data Explorer and Data Factory.

3. Real-Time Streaming:
   ADLS can ingest real-time data from sources such as IoT Hub, Azure Event Hub, or Stream Analytics, making it a perfect choice for immediate analytical applications.

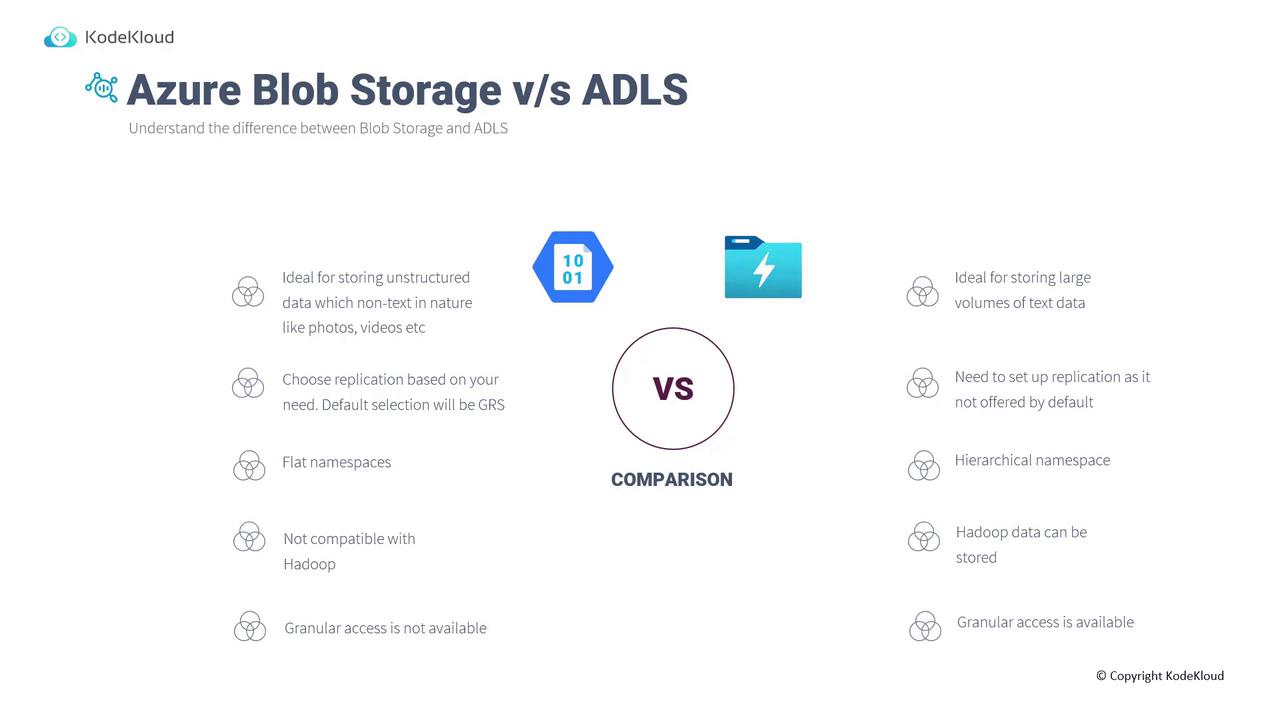

ADLS vs. Blob Storage

Although ADLS and Blob Storage share the same pricing model, there are significant differences in functionality and use cases:

For analytics solutions like Databricks, HDInsight, and others, ADLS provides an optimal storage back-end.

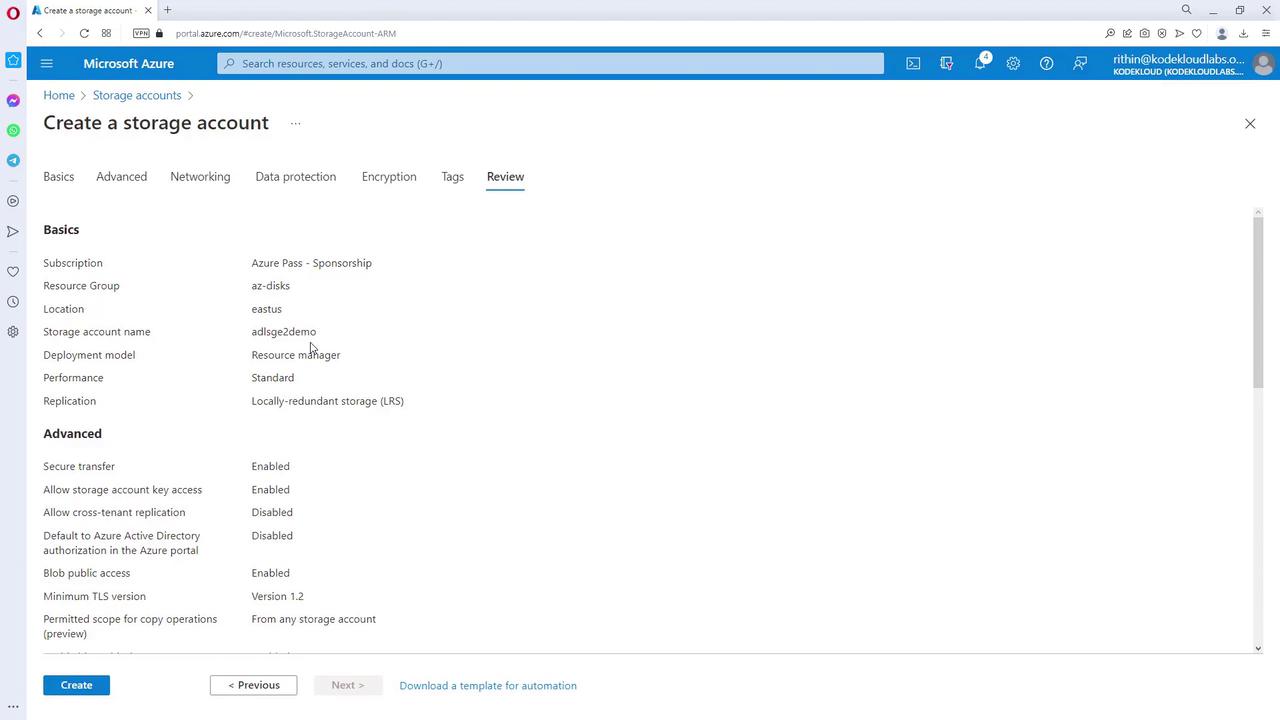

Creating an ADLS Storage Account

Setting up an ADLS-enabled storage account in the Azure portal is straightforward. Follow these steps:

1. Navigate to Storage Accounts in the Azure portal and create a new storage account.
2. Choose a resource group and select an account type. You can use either a General Purpose v2 (standard account) or a Premium Block Blobs account.
3. For this example, select Standard and LRS as your options.

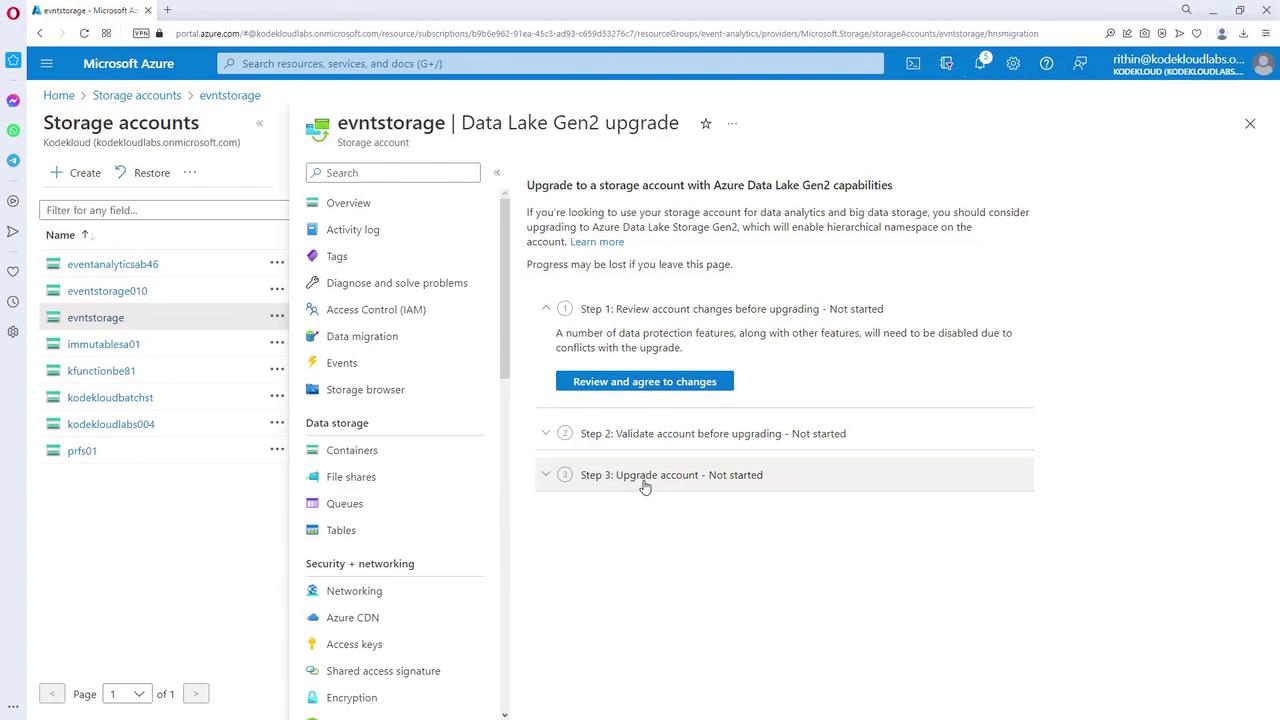

4. In the Advanced settings, enable Data Lake Storage Gen2 to activate the hierarchical namespace and unlock ADLS capabilities.

With your storage account configured for ADLS, you are ready to integrate with Azure Databricks or other analytics solutions to process your data efficiently.
