Advanced Jenkins
Shared Libraries in Jenkins
Configure Shared Library in Jenkins
Centralize reusable Groovy scripts by registering a Jenkins Shared Library. This guide covers:
- Defining library functions (e.g., Slack notifications)
- Adding a Shared Library in Jenkins
- Referencing and importing library code in pipelines
- Fetching third-party dependencies with
@Grab - Bundling and retrieving resource files
1. Example: Slack Notification Script
Place this Groovy function under vars/notify.groovy in your Shared Library to send build status updates to Slack:
def call(String buildStatus = 'STARTED') {
buildStatus = buildStatus ?: 'SUCCESS'
def color = (buildStatus == 'SUCCESS') ? '#47ec05' :
(buildStatus == 'UNSTABLE') ? '#d5ee0d' : '#ec2805'
def msg = "${buildStatus}: ${env.JOB_NAME} #${env.BUILD_NUMBER}\n${env.BUILD_URL}"
slackSend(color: color, message: msg)
}
| Build Status | Color Code |
|---|---|
| SUCCESS | #47ec05 |
| UNSTABLE | #d5ee0d |
| FAILED/OTHER | #ec2805 |

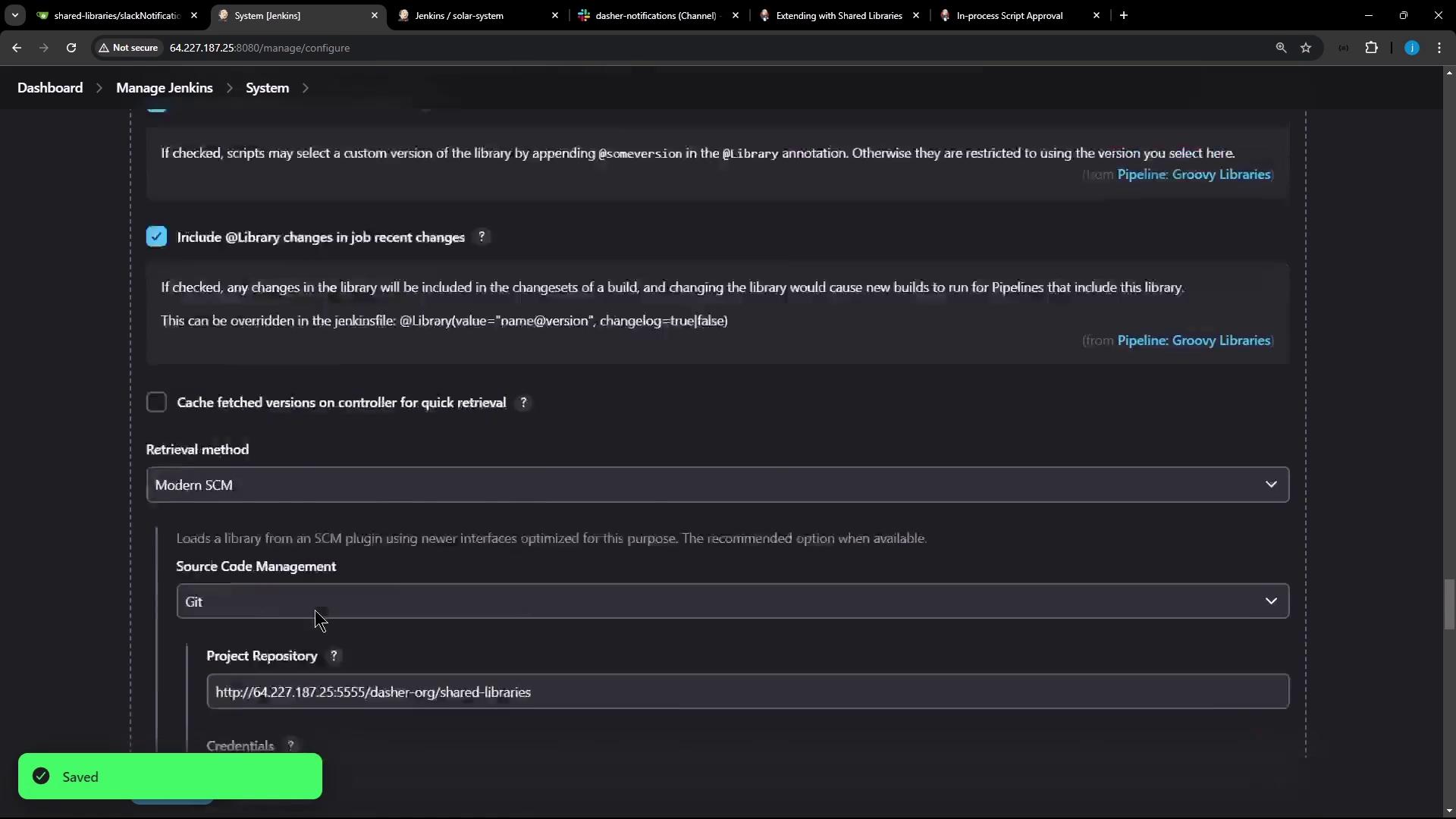

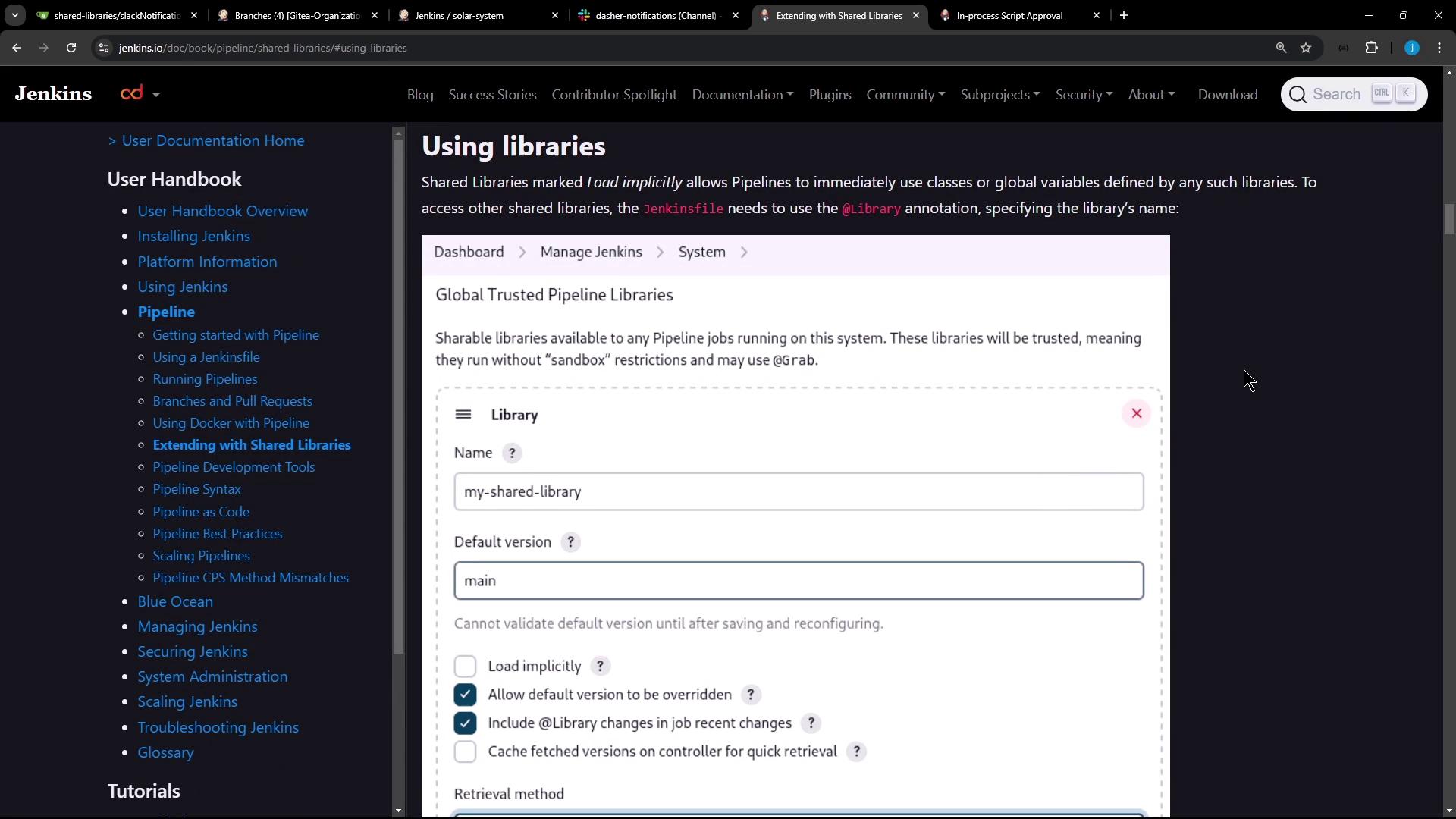

2. Register the Shared Library
- Go to Manage Jenkins → Configure System.
- Scroll to Global Pipeline Libraries.
Note
By default, libraries run in Jenkins’ Groovy sandbox.
Disabling the sandbox allows static calls, @Grab, and advanced APIs but bypasses script-security checks.

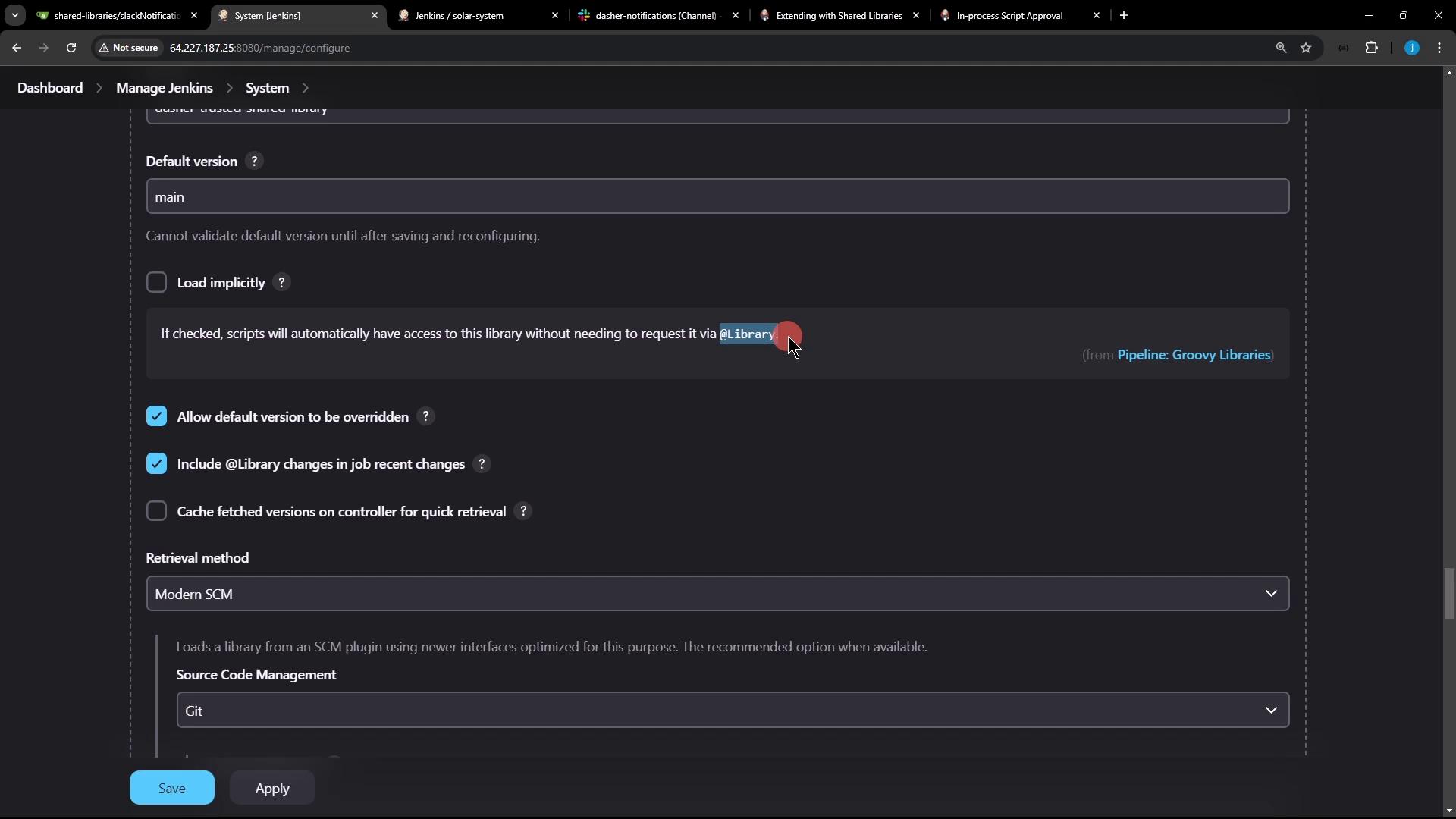

| Field | Description | Example |
|---|---|---|
| Name | Unique identifier for the library | DasherSharedLib |
| Default version | Git branch or tag used when unqualified | main |
| Load implicitly | Auto-load library without @Library | Off |
| Allow version override | Permit @Library('name@branch') to select alternate branches | Enabled |
| Include in job recent changes | Trigger pipelines when the library code changes | Opt-in |
| Retrieval method | SCM plugin to fetch the library (Git, SVN, etc.) | Git |
| Project repository | Repository URL | https://github.com/... |
- Click Add under Global Pipeline Libraries.
- Fill out the form using the table above.
- Click Apply and Save.
3. Reference the Library in Your Pipeline
Add the library at the top of your Jenkinsfile:
@Library('DasherSharedLib@main') _
import com.mycorp.pipeline.slack.notify
pipeline {
agent any
stages {
stage('Notify Start') {
steps {
notify('STARTED')
}
}
}
}
3.1 Fetching Third-Party Dependencies
Trusted Shared Libraries can include @Grab annotations to pull Maven artifacts:
@Grab('org.apache.commons:commons-math3:3.4.1')
import org.apache.commons.math3.primes.Primes
void checkPrime(int count) {
if (!Primes.isPrime(count)) {
error "${count} is not prime"
}
}
Retrieve packed resources (e.g., JSON templates) with libraryResource:
def template = libraryResource 'com/mycorp/pipeline/somelib/request.json'
Warning
@Grab and libraryResource require the library to run outside the sandbox.
Sandboxed mode will block these calls with security exceptions.
4. Next Steps
- Create a pipeline to invoke your Shared Library methods.
- Explore Pipeline Syntax for advanced usage.
