Modern container networking demands more than subnet-level filtering. While Azure Network Security Groups (NSGs) can secure inbound and outbound traffic—including Azure CNI–provisioned pods—their reliance on static IPs makes them ill-suited for dynamic Kubernetes pods. NSG rules tied to pod IPs break when pods restart, and NSGs can’t filter by Kubernetes labels (for example, blocking traffic from secure pods to unsecure pods). Kubernetes Network Policies fill this gap by enabling label-based, pod-to-pod traffic controls.

Limitations of Azure NSGs in AKS

Pod IPs are ephemeral; NSG rules must be constantly updated.
NSGs cannot reference Kubernetes constructs like namespaces or labels.
Fine-grained policy (e.g., “allow traffic only from pods with label app=frontend”) requires a native Kubernetes mechanism.

Kubernetes Network Policies

A NetworkPolicy is a native Kubernetes API object for controlling pod traffic. You define policies in YAML, selecting pods by labels and specifying allowed ingress and egress flows.

apiVersion: networking.k8s.io/v1
kind: NetworkPolicy
metadata:
  name: demo-policy
  namespace: demo
spec:
  podSelector:
    matchLabels:
      role: server
  policyTypes:
  - Ingress
  - Egress
  ingress:
  - from:
    - podSelector:
        matchLabels:
          app: frontend
  egress:
  - to:
    - ipBlock:
        cidr: 10.2.0.0/22
      ports:
      - port: 80

Policy Type	Description
Ingress	Controls incoming traffic to selected pods
Egress	Controls outgoing traffic from selected pods

Note

When at least one NetworkPolicy selects a pod, all other traffic is denied by default. Be sure to explicitly allow the flows your application requires.

For more details, see NetworkPolicy | Kubernetes Concepts.

Azure Network Policy Engine

Azure’s built-in network policy engine runs as a DaemonSet on every node. It watches NetworkPolicy objects and enforces rules using:

Linux nodes: iptables + Linux bridge
Windows nodes (preview): Host Networking Service (HNS) ACLs

This engine integrates with Azure CNI and the Azure Policy Manager.

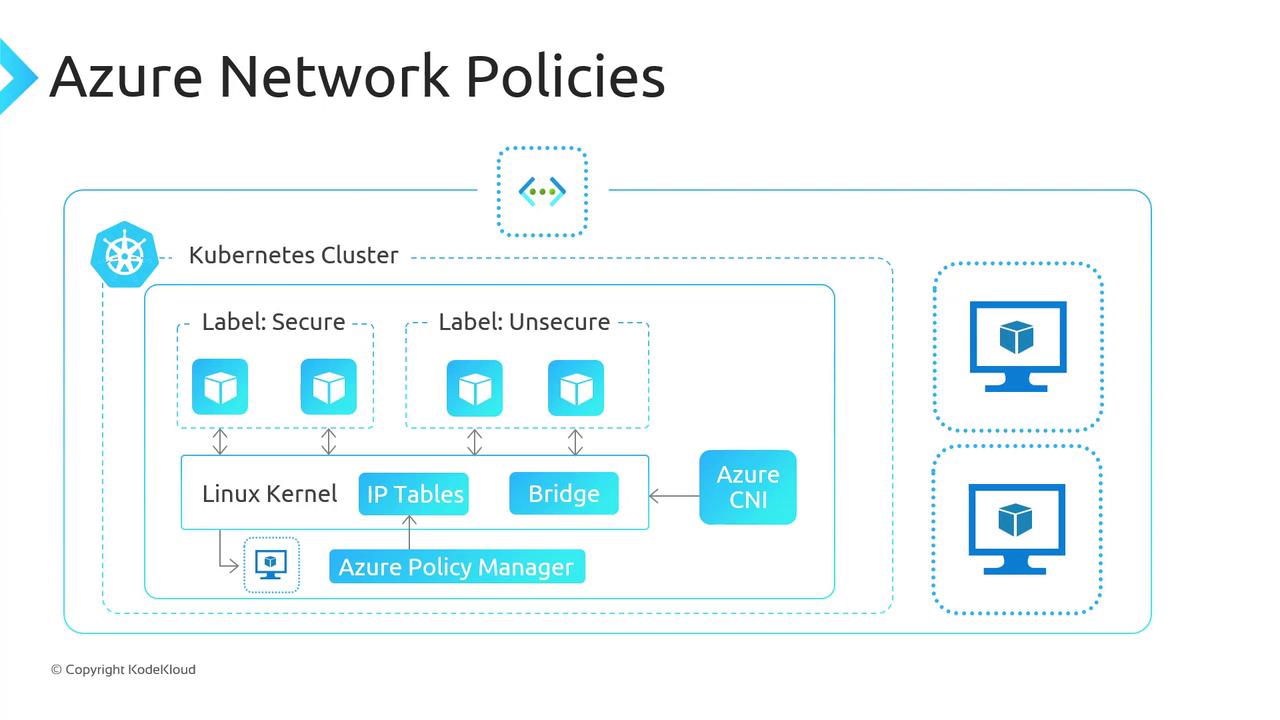

The image illustrates Azure Network Policies within a Kubernetes cluster, showing components like secure and unsecure labels, Linux Kernel, IP Tables, Bridge, Azure CNI, and Azure Policy Manager.

Azure Network Policies are the default in AKS for both Linux and Windows (Windows support is preview). You can also install the Azure policy engine on self-managed AKS clusters running on Azure VMs.

Calico Network Policies

Calico by Tigera is an open-source networking and network security solution. It implements the Kubernetes NetworkPolicy API and extends it with additional features:

GlobalNetworkPolicy for cross-namespace rules
NetworkSets and ServiceSets for object grouping
Integrated logging and compliance profiles

You can deploy Calico on AKS as a first-party add-on. Key differences between Azure and Calico network policies include supported platforms, networking modes, compliance features, and observability.

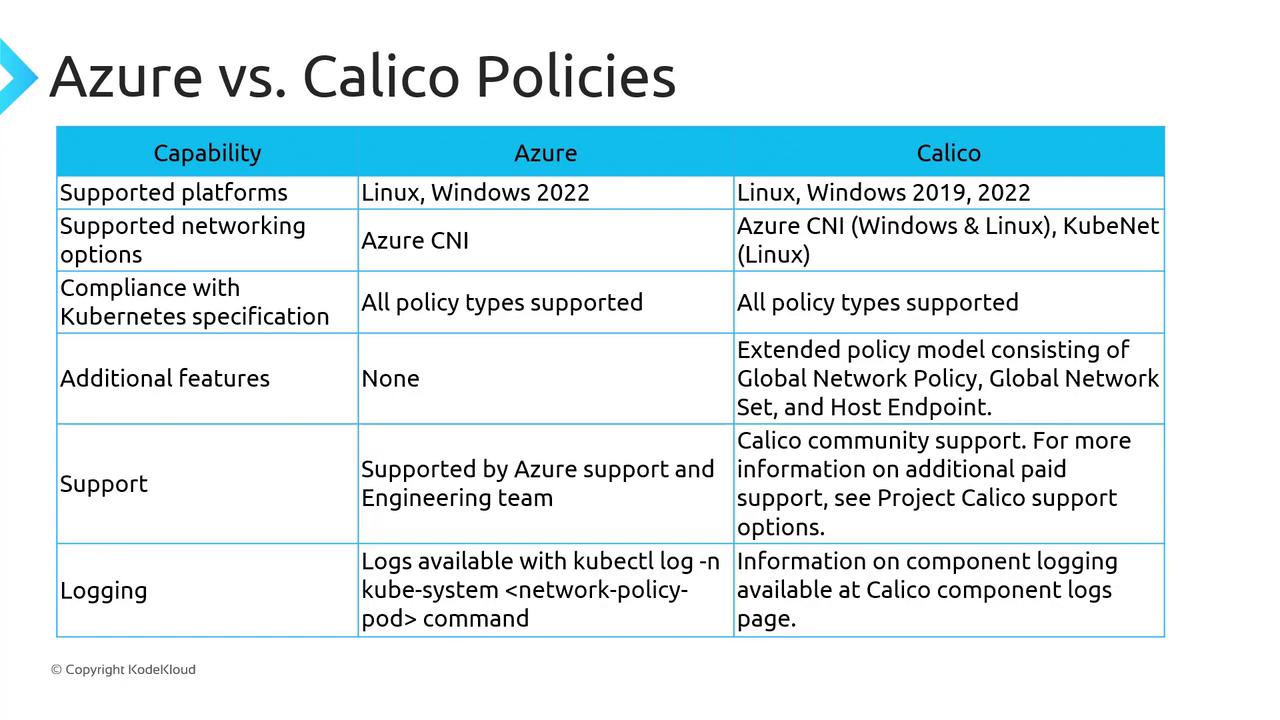

The image is a comparison table of Azure and Calico policies, detailing capabilities such as supported platforms, networking options, compliance, features, support, and logging.

Warning

If you choose Calico, Microsoft support engineers may not diagnose issues stemming from Calico components. For troubleshooting, refer to the Calico documentation.

Troubleshooting Network Policies

To view policy enforcement logs for either engine:

kubectl logs -n kube-system <network-policy-pod>

Replace <network-policy-pod> with the DaemonSet pod name (e.g., azure-npm-daemonset or calico-node-xxxxx).
