Scaling the Nodes using Azure CLI

Our Azure Kubernetes Service (AKS) cluster is configured to support up to 30 pods, but only 16 are currently running. Before we scale the nodes manually, let’s review how AKS autoscaling works and when you might need to intervene.

AKS Autoscaling Components

AKS provides two core autoscaler types to ensure your workloads have the right resources:

Autoscaler	Purpose	Scope
Cluster Autoscaler	Adds or removes nodes based on unschedulable pods and node utilization	Node pool level
Horizontal Pod Autoscaler (HPA)	Adjusts pod replica count based on real-time CPU/memory metrics	Deployment/ReplicaSet level

Cluster Autoscaler

The Cluster Autoscaler watches for pending pods that cannot be scheduled due to insufficient node capacity. When required, it scales out the node pool by adding new VMs. Conversely, when nodes are underutilized, it can remove nodes after cordoning and draining them.

Warning

If you set both the minimum and maximum node count to the same value, the Cluster Autoscaler cannot expand or shrink your node pool.

Horizontal Pod Autoscaler (HPA)

The HPA relies on the Kubernetes Metrics Server to monitor pod resource usage (CPU, memory, custom metrics, etc.). When usage crosses user-defined thresholds, HPA automatically increases or decreases the number of pod replicas.

How HPA Works

Polls metrics every 60 seconds by default.
Retrieves current resource usage from the Metrics Server.
Compares usage against your target thresholds.
Adjusts the replica count via the deployment controller.

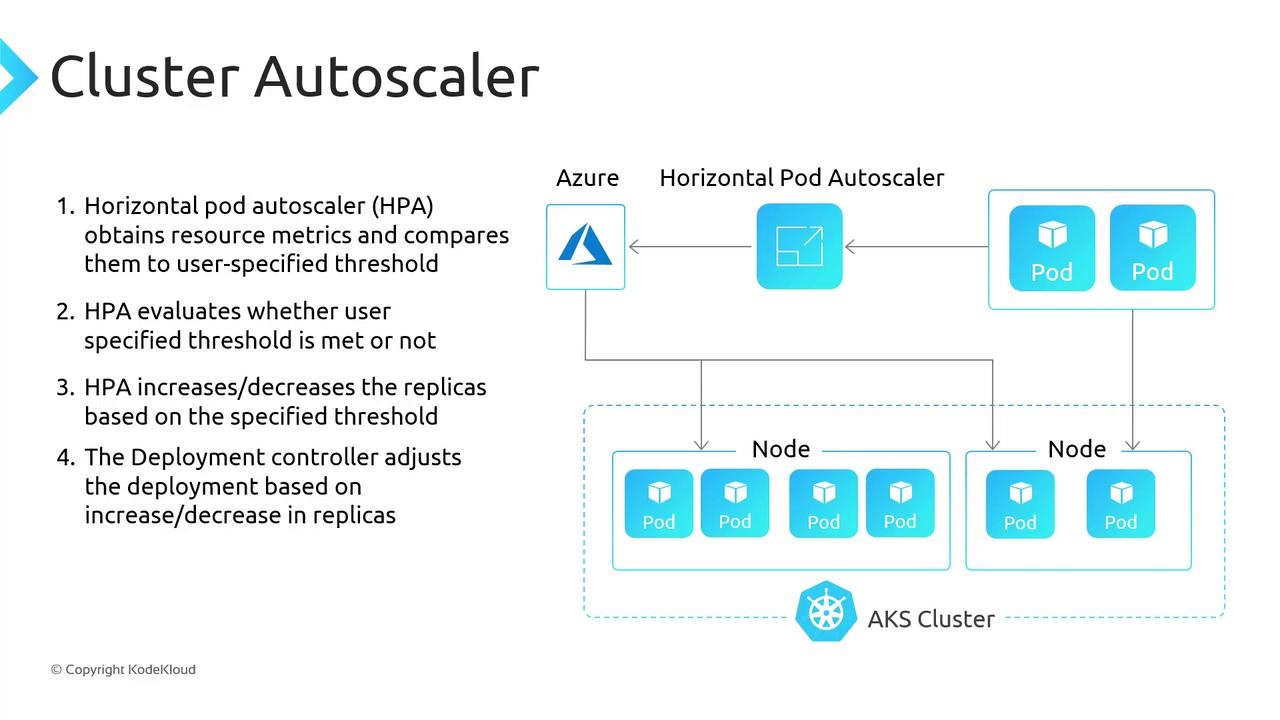

The image illustrates the process of a Cluster Autoscaler using a Horizontal Pod Autoscaler (HPA) in an Azure Kubernetes Service (AKS) cluster, detailing how it adjusts pod replicas based on resource metrics and user-specified thresholds.

Note

You can customize the HPA polling interval and thresholds in your HorizontalPodAutoscaler manifest.

Manually Scaling the AKS Node Pool

Since our Cluster Autoscaler is locked to a fixed node count (1–1), we’ll use Azure CLI to increase the pool to two nodes.

1. Verify System Pods

Run the following commands to confirm that system components are healthy:

kubectl get pods --namespace kube-node-lease
kubectl get pods --namespace kube-public
kubectl get pods --namespace kube-system

Example output:

NAME                                      READY   STATUS    RESTARTS   AGE
coredns-596bbf8b84-lwt4c                  1/1     Running   0          131m
metrics-server-7d7ad478s-wfdd             2/2     Running   0          130m
kube-proxy-dx4s4                          1/1     Running   0          131m
...

2. Scale the Node Pool

Use az aks scale to adjust the node count:

az aks scale \
  --resource-group RG1-KodeKloud-AKS \
  --name AKS1-KodeKloudApp \
  --node-count 2

This command will provision a second VM in your AKS node pool. Provisioning may take a few minutes.

3. Confirm Two Ready Nodes

After scaling, verify the node count:

kubectl get nodes

You should see two nodes, both in the Ready state.

4. Verify Pod Scheduling

Finally, ensure all pods are scheduled across the nodes:

kubectl get pods --all-namespaces

Pending pods should now be distributed on the new node.

Scaling Down

When you reduce your workload (for example, scaling your deployment replicas down to two), you may want to shrink the node pool back to one. Since our Cluster Autoscaler remains disabled, we need to scale down manually:

az aks scale \
  --resource-group RG1-KodeKloud-AKS \
  --name AKS1-KodeKloudApp \
  --node-count 1

This command will cordon and drain the extra node, then remove it from the pool.
