API Groups

Before diving into authorization, it's essential to understand the concept of API groups in Kubernetes and how they integrate with overall cluster operations. This article provides an in-depth look into Kubernetes API groups, their structure, and the methods for querying the API server.

Understanding the Kubernetes API

The Kubernetes API is the primary interface for interacting with your cluster. Whether using the command-line tool kubectl or directly sending HTTP requests via REST, every interaction communicates with the API server. For example, to check your cluster's version, run:

curl https://kube-master:6443/version

The response may look like:

{
  "major": "1",
  "minor": "13",
  "gitVersion": "v1.13.0",
  "gitCommit": "ddf47ac13c1a9483ea035a79cd7c1005ff21a6d",
  "gitTreeState": "clean",
  "buildDate": "2018-12-03T20:56:12Z",
  "goVersion": "go1.11.2",
  "compiler": "gc",
  "platform": "linux/amd64"
}

Likewise, listing pods in the cluster involves accessing the /api/v1/pods endpoint.

API Groups and Their Purpose

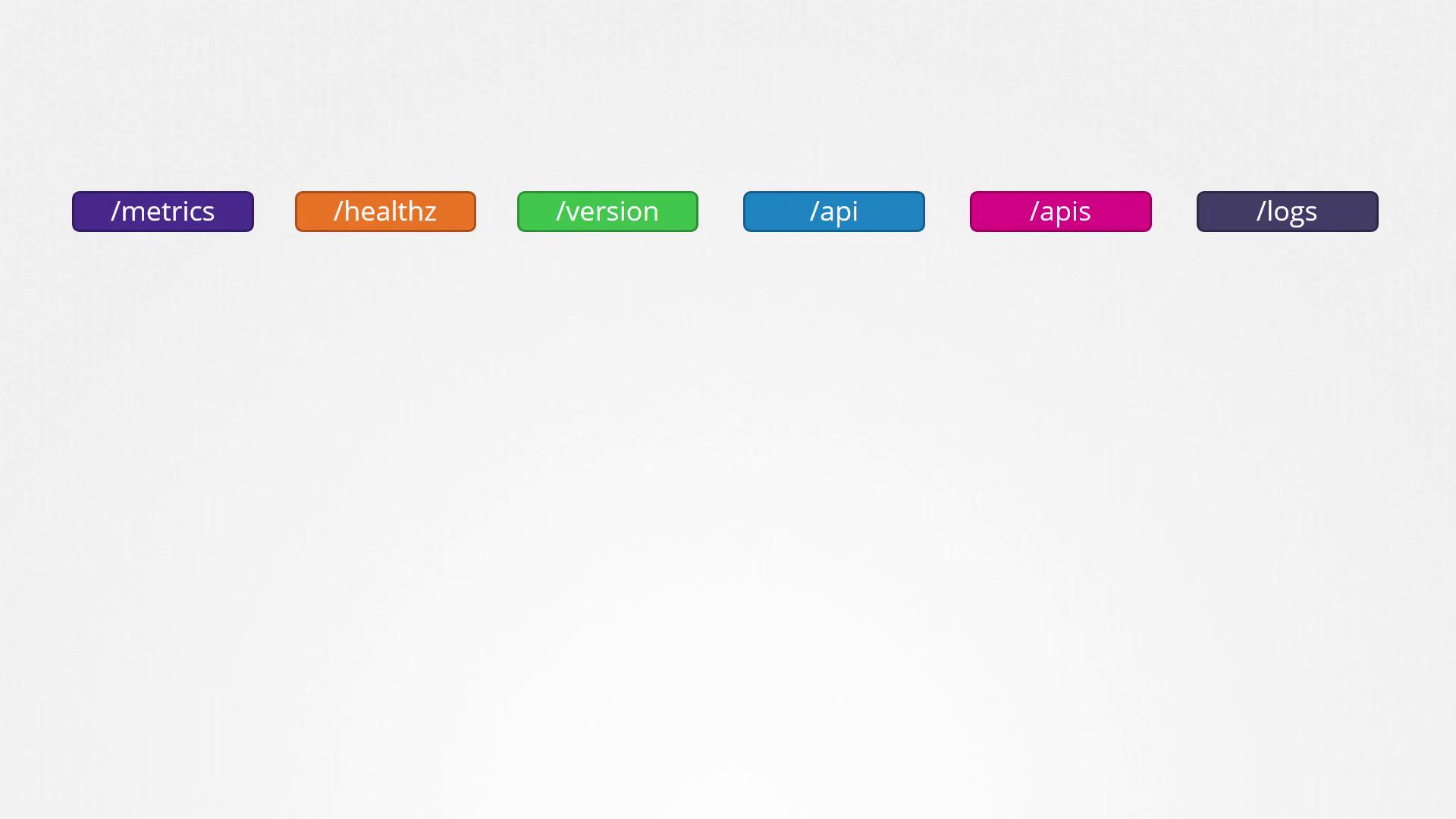

Kubernetes organizes its API into multiple groups based on specific functionality. These groups help in managing versioning, health metrics, logging, and more. For instance, the /version endpoint provides cluster version data, while endpoints like /metrics and /healthz offer insights into the cluster’s performance and health.

This article focuses on two main API group categories:

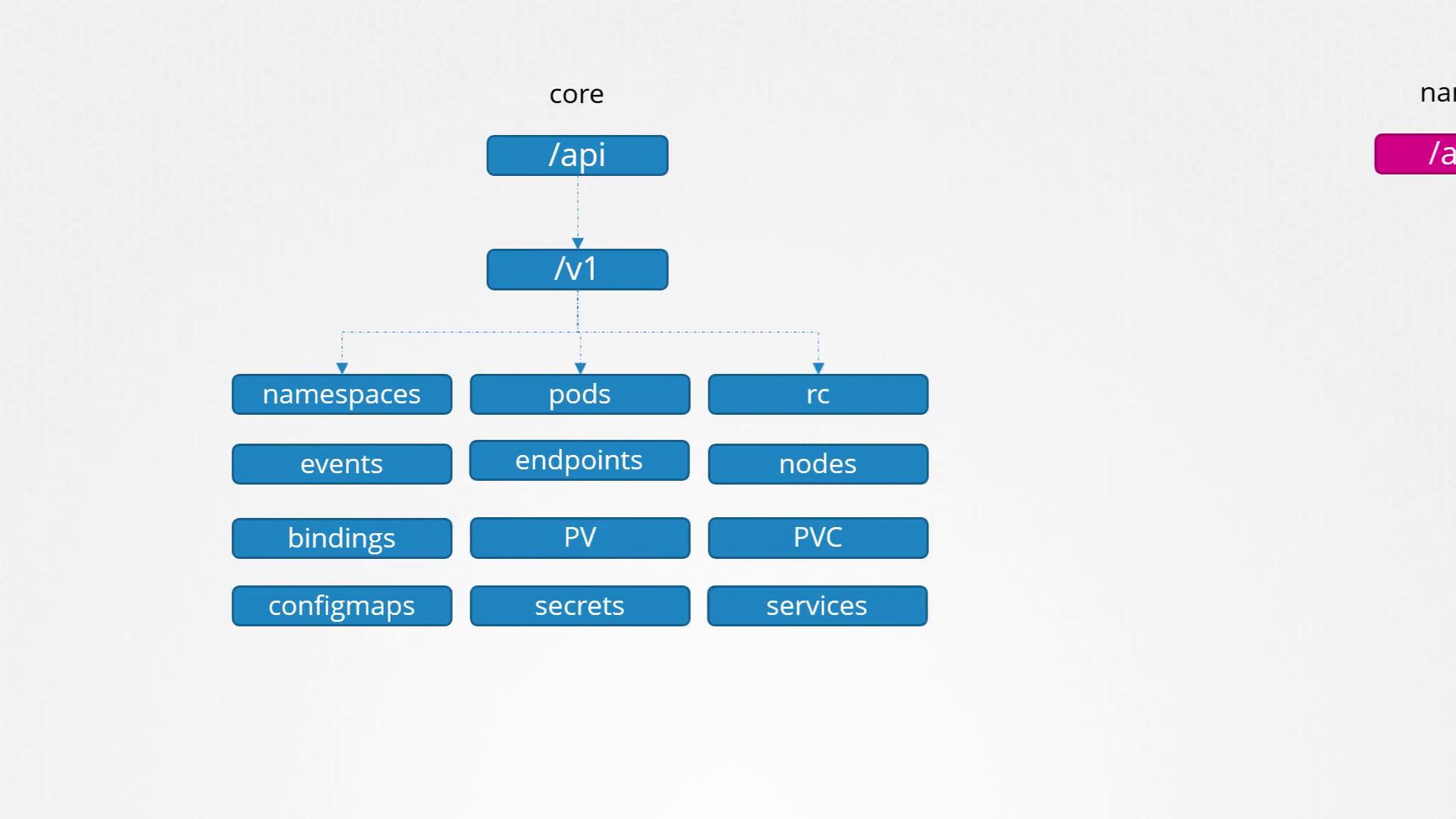

1. Core API Group:
   Contains the essential features of Kubernetes such as namespaces, pods, replication controllers, events, endpoints, nodes, bindings, persistent volumes, persistent volume claims, config maps, secrets, and services.

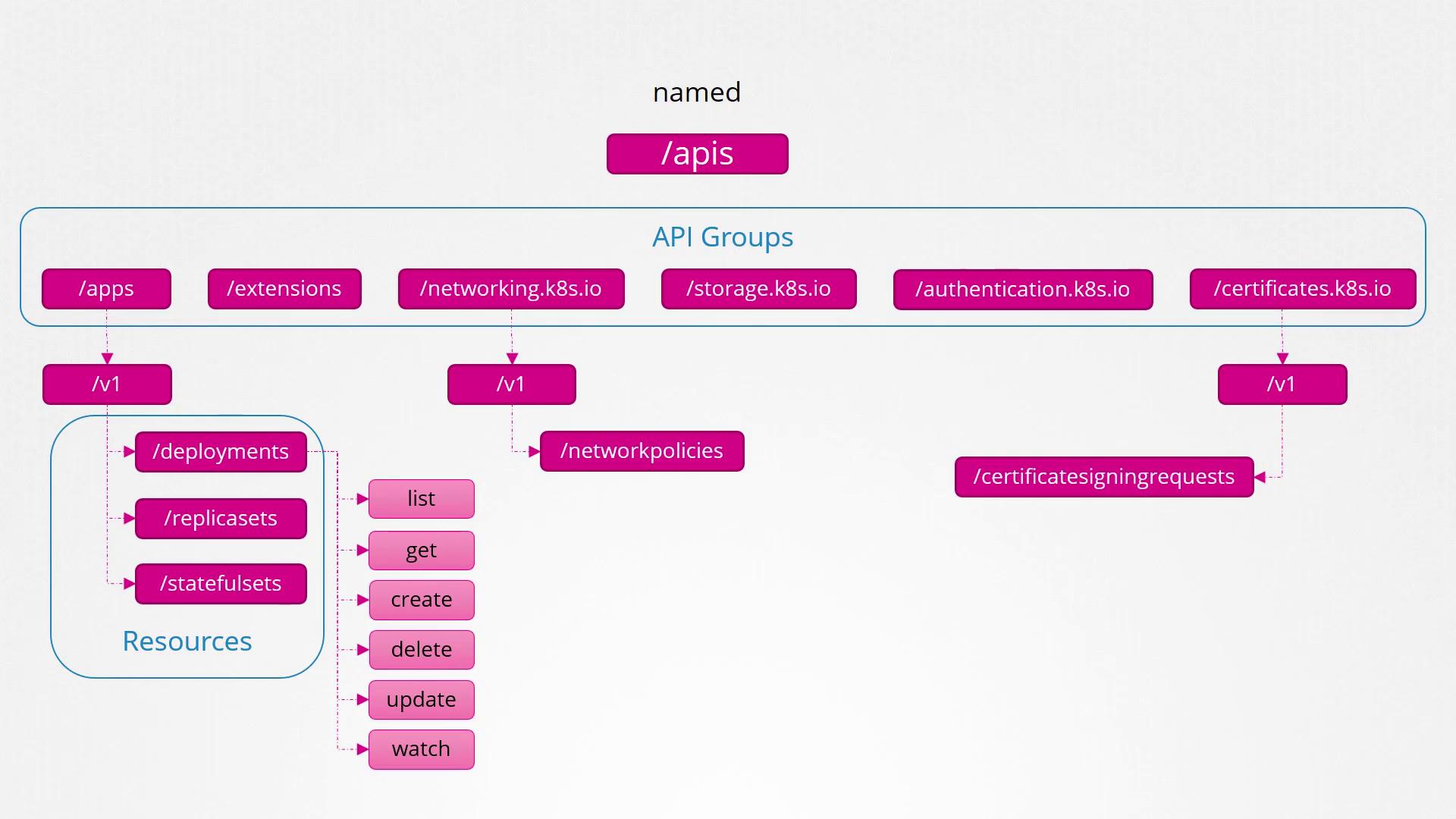

2. Named API Groups:
   Provides an organized structure for newer features. These groups include apps, extensions, networking, storage, authentication, and authorization. For example, under the apps group, you’ll find Deployments, ReplicaSets, and StatefulSets, whereas the networking group hosts resources such as Network Policies. Certificate-related resources like Certificate Signing Requests are also grouped under their relevant named groups.

Every API group includes various resources along with associated actions (verbs) such as list, get, create, delete, update, and watch.

For detailed information on the objects in each API group, consult the official Kubernetes API reference documentation.

Querying the API Server

To retrieve the list of available API groups, access the API server's root endpoint on port 6443:

curl http://localhost:6443 -k

The command returns a JSON response similar to:

{
  "paths": [
    "/api",
    "/api/v1",
    "/apis",
    "/apis/",
    "/healthz",
    "/logs",
    "/metrics",
    "/openapi/v2",
    "/swagger-2.0.0.json"
  ]
}

For example, an unauthenticated request may yield:

curl http://localhost:6443 -k

{
  "kind": "Status",
  "apiVersion": "v1",
  "metadata": {},
  "status": "Failure",
  "message": "forbidden: User \"system:anonymous\" cannot get path \"/\"",
  "reason": "Forbidden",
  "details": {},
  "code": 403
}

To fully access the API server, use your certificate files with curl:

curl http://localhost:6443 -k \
  --key admin.key \
  --cert admin.crt \
  --cacert <your-ca-cert-file>

Alternatively, you can use the kubectl proxy command, which starts a local HTTP proxy server on port 8001 using the credentials in your kubeconfig file. This eliminates the need to manually specify certificate files. Start the proxy by running:

kubectl proxy

The output confirms the proxy is running:

kubectl proxy
Starting to serve on 127.0.0.1:8001

Now, you can access the API server through the proxy:

curl http://localhost:8001 -k

The typical response should be:

{
  "paths": [
    "/api/",
    "/api/v1",
    "/apis",
    "/apis/",
    "/healthz",
    "/logs",
    "/metrics",
    "/openapi/v2",
    "/swagger-2.0.0.json"
  ]
}

Summary

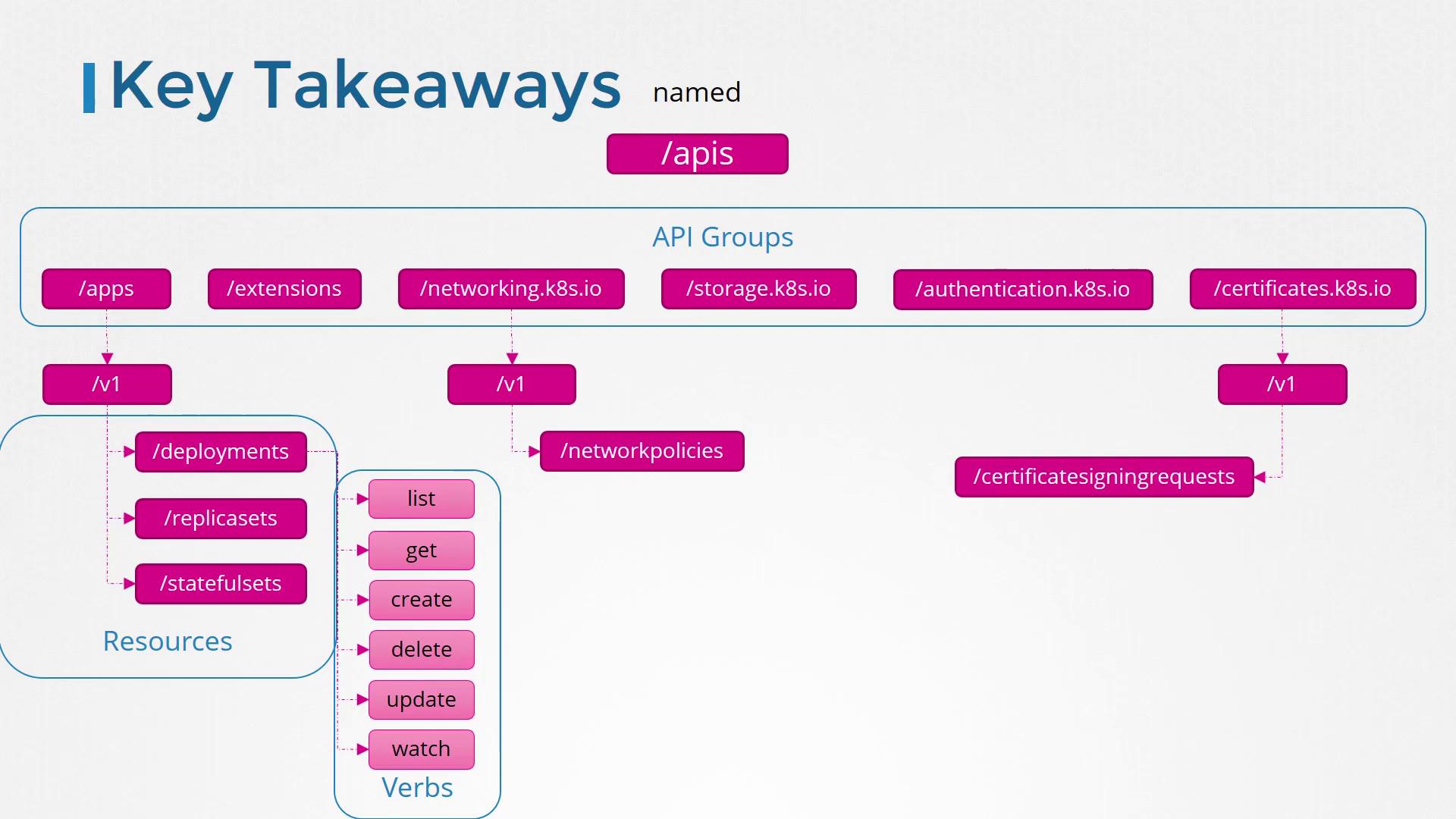

Kubernetes organizes its resources into various API groups. At the highest level, there is the core API group coupled with multiple named API groups, each containing specific resources and actions. The diagram below outlines the hierarchical structure and relationships between API groups, resources, and associated verbs:

In the next section on authorization, we'll explore how these API groups and their associated actions control access to cluster resources.

That’s it for this lesson. See you in the next article!
