Application Failure

Welcome to this comprehensive guide on troubleshooting application failures. In this article, we review systematic troubleshooting techniques and provide practical scenarios to help you diagnose and resolve issues in a two-tier application architecture.

Overview

Consider a two-tier application consisting of a web server and a database server. The database pod hosts a database application and serves data to the web servers via a database service. Meanwhile, the web server, running on a separate pod, delivers content to the users through a web service.

Troubleshooting the Web Application

When users report issues accessing your application, start by testing the application’s front end. For example, if your application is web-based, verify the accessibility of the web server using a tool like curl on the service's IP address and node port:

curl http://web-service-ip:node-port
curl: (7) Failed to connect to web-service-ip port node-port: Connection timed out

Validate Service Endpoints

Ensure that the web service has correctly discovered endpoints for the web pod. A common issue is a mismatch between the selectors defined on the service and those on the pod.

View the service details with:

bash
kubectl describe service web-service

You should see output similar to the following:

Name:              web-service
Namespace:         default
Labels:            <none>
Annotations:       <none>
Selector:          name=webapp-mysql
Type:              NodePort
IP:                10.96.0.156
Port:              <unset> 8080/TCP
TargetPort:       8080/TCP
NodePort:         <unset> 31672/TCP
Endpoints:        10.32.0.6:8080
Session Affinity:  None
External Traffic Policy: Cluster
Events:           <none>

Verify Pod Configuration

Review the web application's pod definition to ensure it is correctly configured and running:

apiVersion: v1
kind: Pod
metadata:
  name: webapp-mysql
  labels:
    app: example-app
    name: webapp-mysql
spec:
  containers:
    - name: webapp-mysql
      image: simple-webapp-mysql
      ports:
        - containerPort: 8080

Next, check the pod status. A stable pod typically shows a running status with minimal restarts:

bash
kubectl get pod

Example output:

NAME   READY   STATUS    RESTARTS   AGE
Web    1/1     Running   5          50m

For a more detailed inspection, including event logs, use:

bash
kubectl describe pod web

This command may display events like:

...
Events:
Type     Reason     Age   From                Message
----     ------     ----  ----                -------
Normal   Scheduled  52m   default-scheduler   Successfully assigned webapp-mysql to worker-1
Normal   Pulling    52m   kubelet, worker-1   pulling image "simple-webapp-mysql"
Normal   Pulled     52m   kubelet, worker-1   Successfully pulled image "simple-webapp-mysql"
Normal   Created    52m   kubelet, worker-1   Created container
Normal   Started    52m   kubelet, worker-1   Started container

Review Application Logs

Examine the application logs with:

bash
kubectl logs web

Expected output might look like this:

10.32.0.1 - - [01/Apr/2019 12:51:55] "GET / HTTP/1.1" 200 -
10.32.0.1 - - [01/Apr/2019 12:51:55] "GET /static/img/success.jpg HTTP/1.1" 200 -
10.32.0.1 - - [01/Apr/2019 12:51:55] "GET /favicon.ico HTTP/1.1" 404 -
10.32.0.1 - - [01/Apr/2019 12:51:57] "GET / HTTP/1.1" 200 -
10.32.0.1 - - [01/Apr/2019 12:51:58] "GET / HTTP/1.1" 200 -
10.32.0.1 - - [01/Apr/2019 12:51:58] "GET / HTTP/1.1" 200 -

If these logs do not shed light on a recent failure, continuously stream the logs to capture real-time activity:

bash
kubectl logs web -f

Troubleshooting the Database Service

Apply a similar approach to verify the status of the database (DB) service. Examine the following:

• Inspect the DB service details.
• Confirm that endpoints are configured correctly.
• Check the DB pod's status.
• Review the database logs for errors that might signal issues within the database.

Visualizing the Dependency Chain

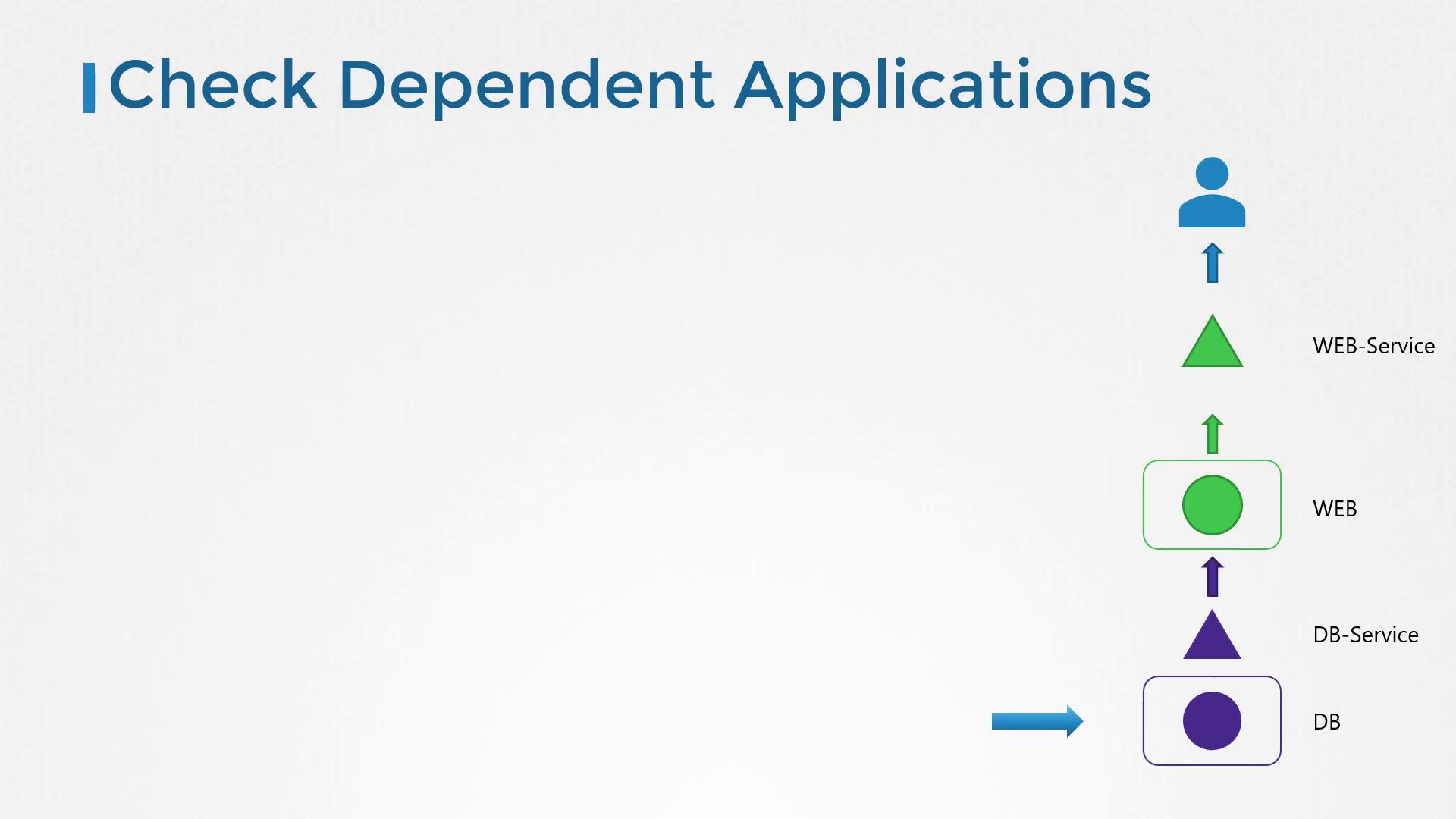

The diagram below illustrates the troubleshooting flow for dependent applications. It outlines the sequence from the database (DB) to the web service (WEB-Service), including both the DB-Service and WEB components:

Additional Resources

For further troubleshooting guidance and best practices, refer to the following resources:

• Kubernetes Documentation
• Kubernetes Basics

Final Tip

kubectl describe pods ${POD_NAME}

By following these steps, you can effectively troubleshoot and resolve application failures in your Kubernetes environment while ensuring a systematic approach that covers both the service and pod components.
