Relationships

Backstage lets you define and visualize how your components, APIs, resources, systems, domains, groups, and users connect. By modeling these relationships, you can immediately trace the impact of changes across downstream entities. In this guide, we’ll cover:

• User ↔ Group membership
• Group hierarchy
• Ownership by users or groups
• Component & API relationships
• Generic dependencies
• Organizing with systems and domains

User and Group Membership

You can link users and groups using either memberOf on the user or members on the group. Backstage automatically resolves the relationship in both directions, so defining it on one side is sufficient.

apiVersion: backstage.io/v1alpha1
kind: User
metadata:
  name: jdoe
spec:
  profile:
    displayName: Jenny Doe
    email: [email protected]
    picture: https://example.com/staff/jenny-with-party-hat.jpeg
  memberOf:
    - infrastructure
    - auth
---
apiVersion: backstage.io/v1alpha1
kind: Group
metadata:
  name: infrastructure
  description: The infra business unit
spec:
  type: business-unit
  children: []
  members:
    - jdoe
  profile:
    displayName: Infrastructure
    email: [email protected]
    picture: https://example.com/groups/bu-infrastructure.jpeg

Group Hierarchy (Parent & Child)

Groups can form a hierarchy by specifying parent and listing children. This creates a tree structure for organizational units.

apiVersion: backstage.io/v1alpha1
kind: Group
metadata:
  name: infrastructure
  description: The infra business unit
spec:
  type: business-unit
  parent: ops
  children:
    - cloud
    - onPrem
  members:
    - jdoe
  profile:
    displayName: Infrastructure
    email: [email protected]
    picture: https://example.com/groups/bu-infrastructure.jpeg

• parent: single group name
• children: array of child-group names

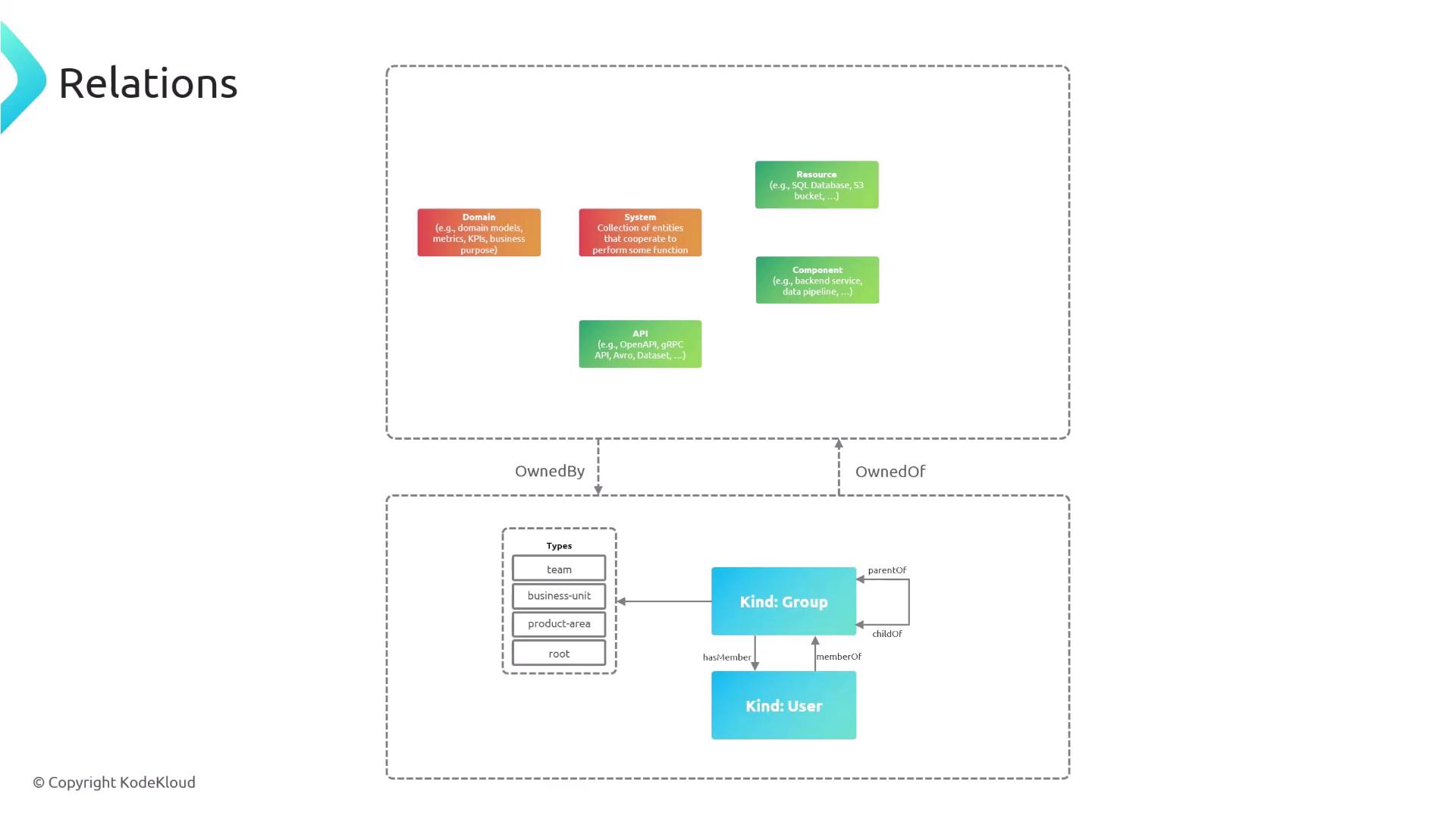

Ownership (Users & Groups)

Entities in Backstage—components, APIs, resources, systems, domains—can be owned by a group (default) or a user.

Group Ownership (Default)

apiVersion: backstage.io/v1beta1
kind: Component
metadata:
  name: auth-service
  description: Authentication service
spec:
  type: service
  lifecycle: production
  owner: group:auth-team
  system: authentication-authorization

User Ownership

Prefix with user: to assign a user as the owner.

spec:
  owner: user:idoe

Component & API Relationships

Components often provide or consume APIs. On the component side, use providesApis and consumesApis. On the API entity, use apiProvidedBy.

Provider Component

apiVersion: backstage.io/v1beta1
kind: Component
metadata:
  name: auth-service
  description: Authentication service
  tags:
    - javascript
spec:
  type: service
  lifecycle: production
  owner: guests
  system: authentication-authorization
  providesApis:
    - auth-api
---
apiVersion: backstage.io/v1alpha1
kind: API
metadata:
  name: auth-api
  description: Verify user authentication status
spec:
  type: openapi
  lifecycle: production
  owner: guests
  apiProvidedBy: auth-service
  definition:
    $text: https://raw.githubusercontent.com/Sanjeev-Thiyagarajan/backstage-auth/main/openapi/auth-api-spec.yaml

Consumer Component

apiVersion: backstage.io/v1beta1
kind: Component
metadata:
  name: shopping-cart
  description: Shopping cart service
  tags:
    - javascript
  annotations:
    backstage.io/techdocs-ref: dir:.
spec:
  type: service
  lifecycle: production
  owner: shopping-team
  consumesApis:
    - auth-api

Generic Dependencies (dependsOn)

Beyond APIs, components and resources can depend on one another. Use dependsOn with typed references.

Component depending on another component

apiVersion: backstage.io/v1beta1
kind: Component
metadata:
  name: shopping-cart
spec:
  type: service
  lifecycle: production
  owner: shopping-team
  dependsOn:
    - component: auth-service
  consumesApis:
    - auth-api

Component depending on a resource

apiVersion: backstage.io/v1beta1
kind: Component
metadata:
  name: auth-service
spec:
  type: service
  lifecycle: production
  owner: guests
  dependsOn:
    - resource: auth-db
  providesApis:
    - auth-api
---
apiVersion: backstage.io/v1alpha1
kind: Resource
metadata:
  name: auth-db
  description: Stores user details
spec:
  type: database
  owner: user:jdoe
  system: authentication-authorization

Systems and Domains

Backstage lets you group components, APIs, and resources into systems, and further organize systems into domains.

Linking Entities to a System

apiVersion: backstage.io/v1beta1
kind: Component
metadata:
  name: auth-service
spec:
  type: service
  lifecycle: production
  owner: auth-team
  system: authentication-authorization

Defining Systems and Domains

apiVersion: backstage.io/v1alpha1
kind: Domain
metadata:
  name: user-management
  description: Everything about user management
spec:
  owner: guests
---
apiVersion: backstage.io/v1alpha1
kind: System
metadata:
  name: authentication-authorization
  description: Handles user authentication and profiles
spec:
  owner: guests
  domain: user-management

Domain Hierarchy

Domains can form a hierarchy with subdomainOf:

apiVersion: backstage.io/v1alpha1
kind: Domain
metadata:
  name: ecommerce
  description: Everything encompassing the ecommerce app
spec:
  owner: guests
---
apiVersion: backstage.io/v1alpha1
kind: Domain
metadata:
  name: user-management
  description: Everything about users
spec:
  owner: guests
  subdomainOf: ecommerce

Further Reading & Resources

• Backstage Entity Relationships
• Backstage Software Catalog
• Backstage Schema Reference
