Demo Templates with Infrastructure

In this guide, you’ll learn how to build a Backstage scaffolder template that generates a Node.js/Express boilerplate and provisions an AWS EC2 instance via Terraform. We’ll cover:

• Team workflows and repository breakdown
• Terraform configurations for shared infrastructure and EC2 module
• The nodejs-ec2-template.yaml scaffolder definition
• Live demo: creating a new service from the Backstage UI

Architecture and Team Workflow

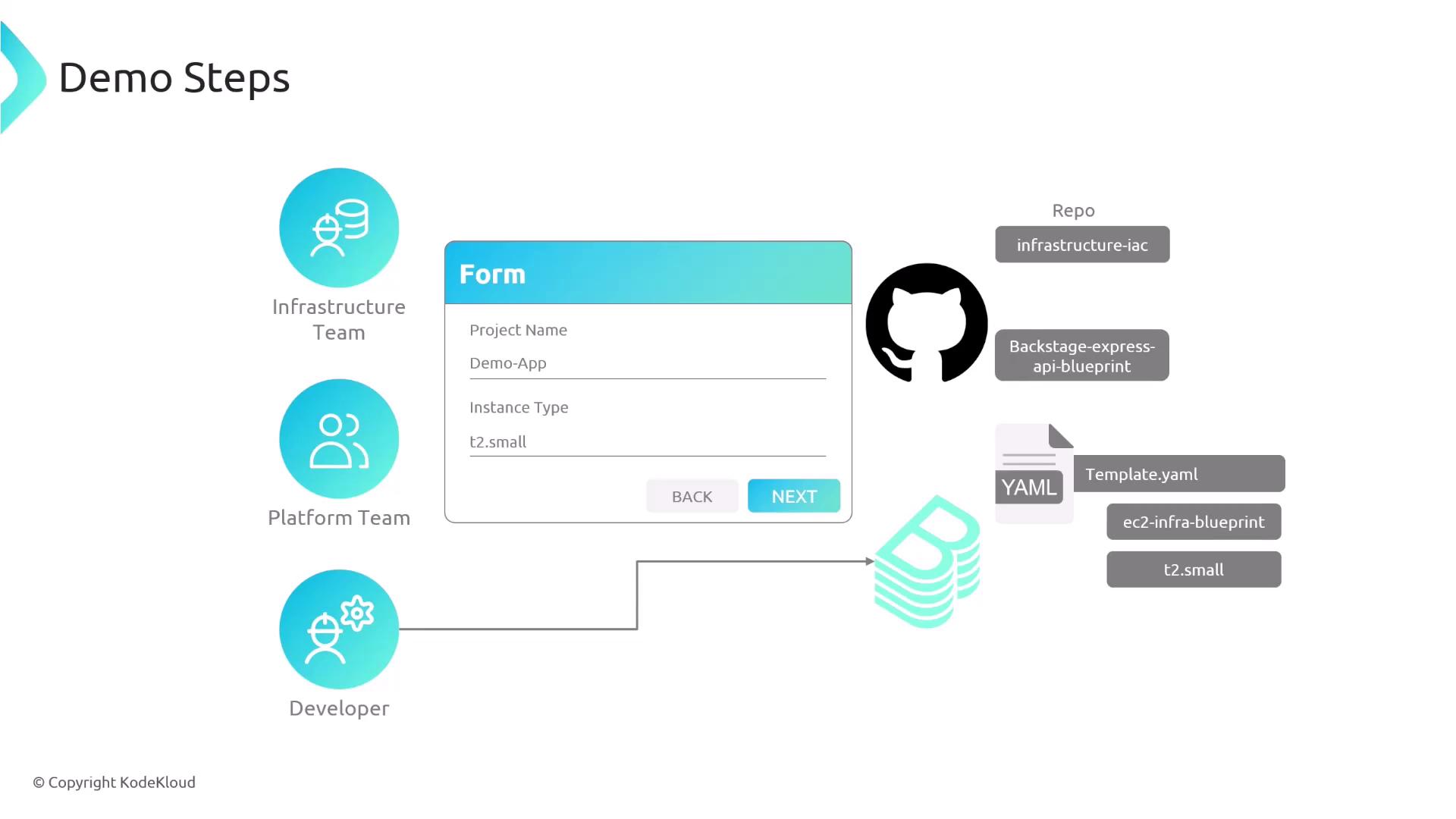

Below are the three repositories involved in this workflow:

Developers invoke the template in Backstage, enter project details and EC2 size, and Backstage will:

1. Fetch and customize the EC2 module, publish to GitHub, and register it as a Resource
2. Fetch the Express API blueprint, publish to GitHub, and register it as a Component

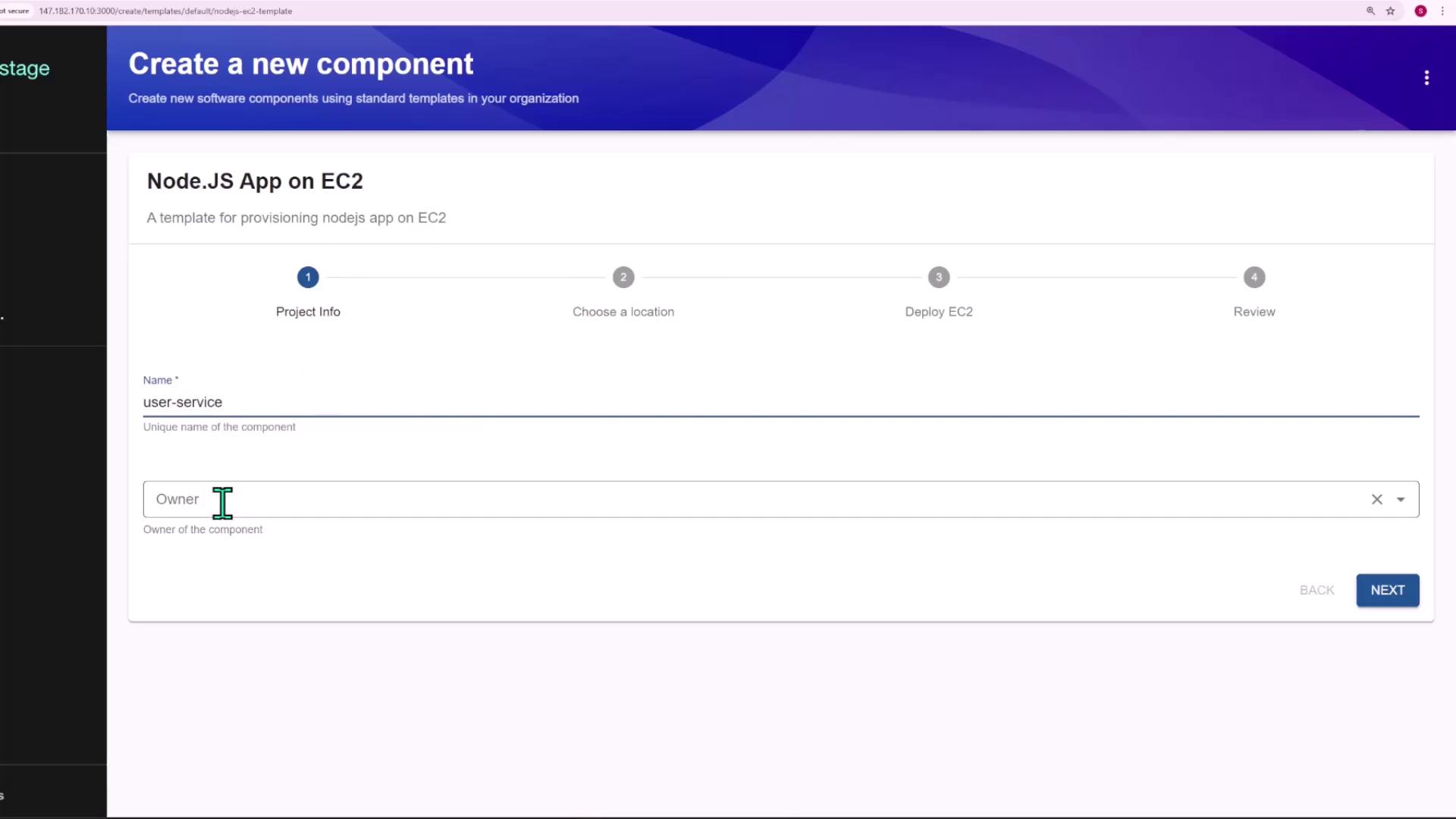

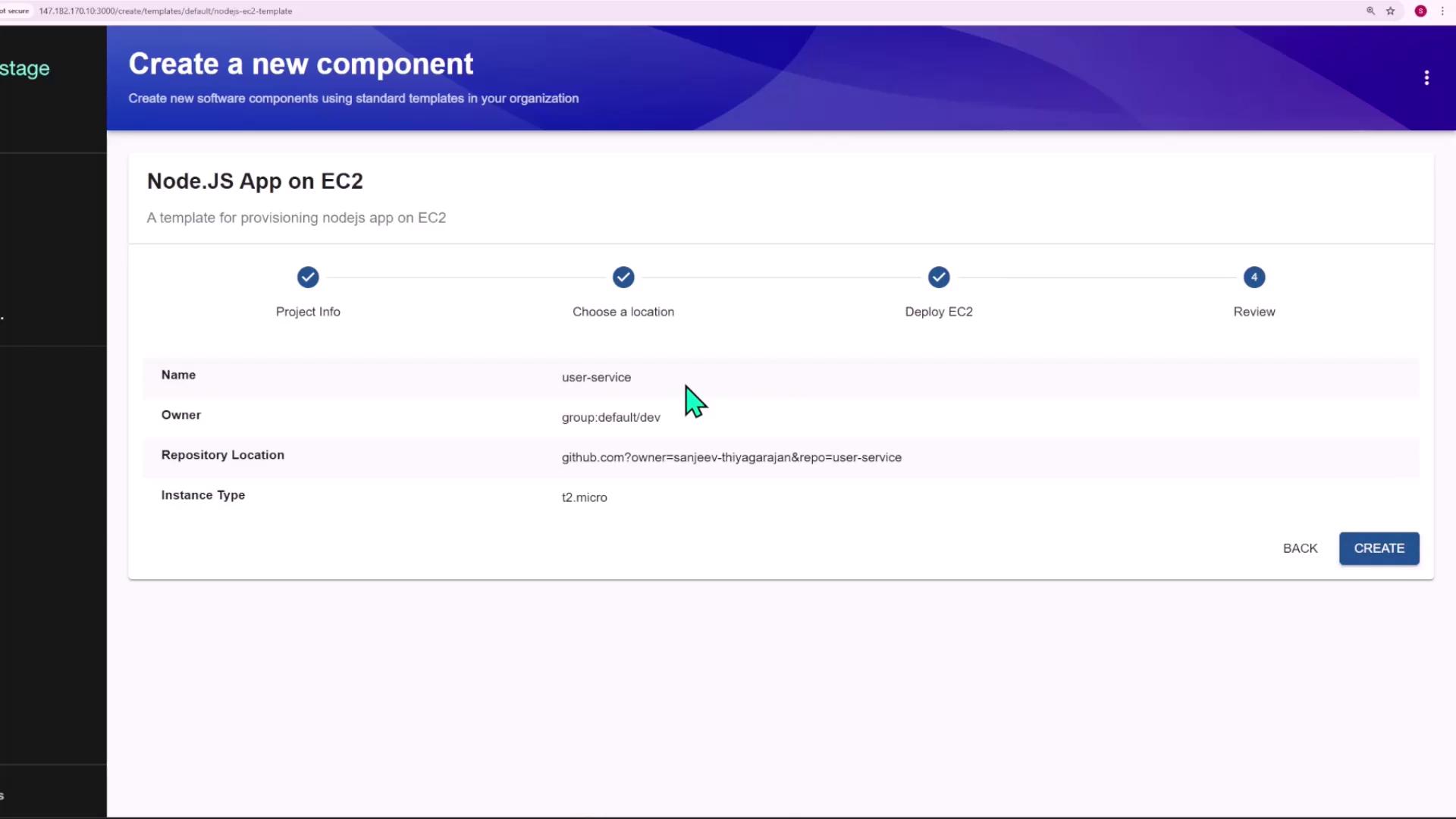

Backstage UI: Creating “Node.JS App on EC2”

1. Open your Backstage catalog and select Node.JS App on EC2

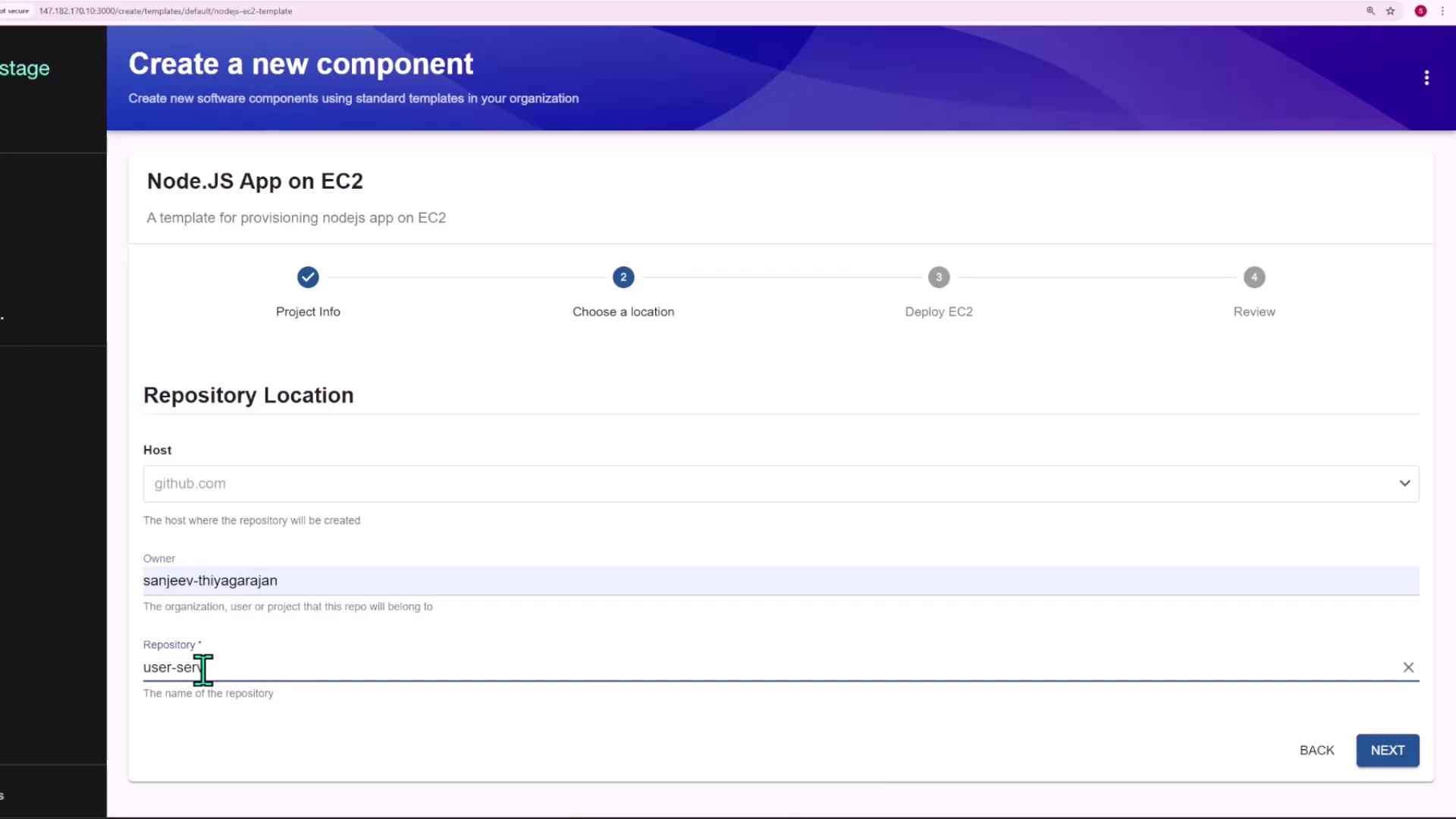

2. Fill in Project Name, Owner, and GitHub Repo Location
3. Choose an EC2 Instance Type (t2.micro, t2.small, or t2.medium)
4. Click Create to trigger scaffolding

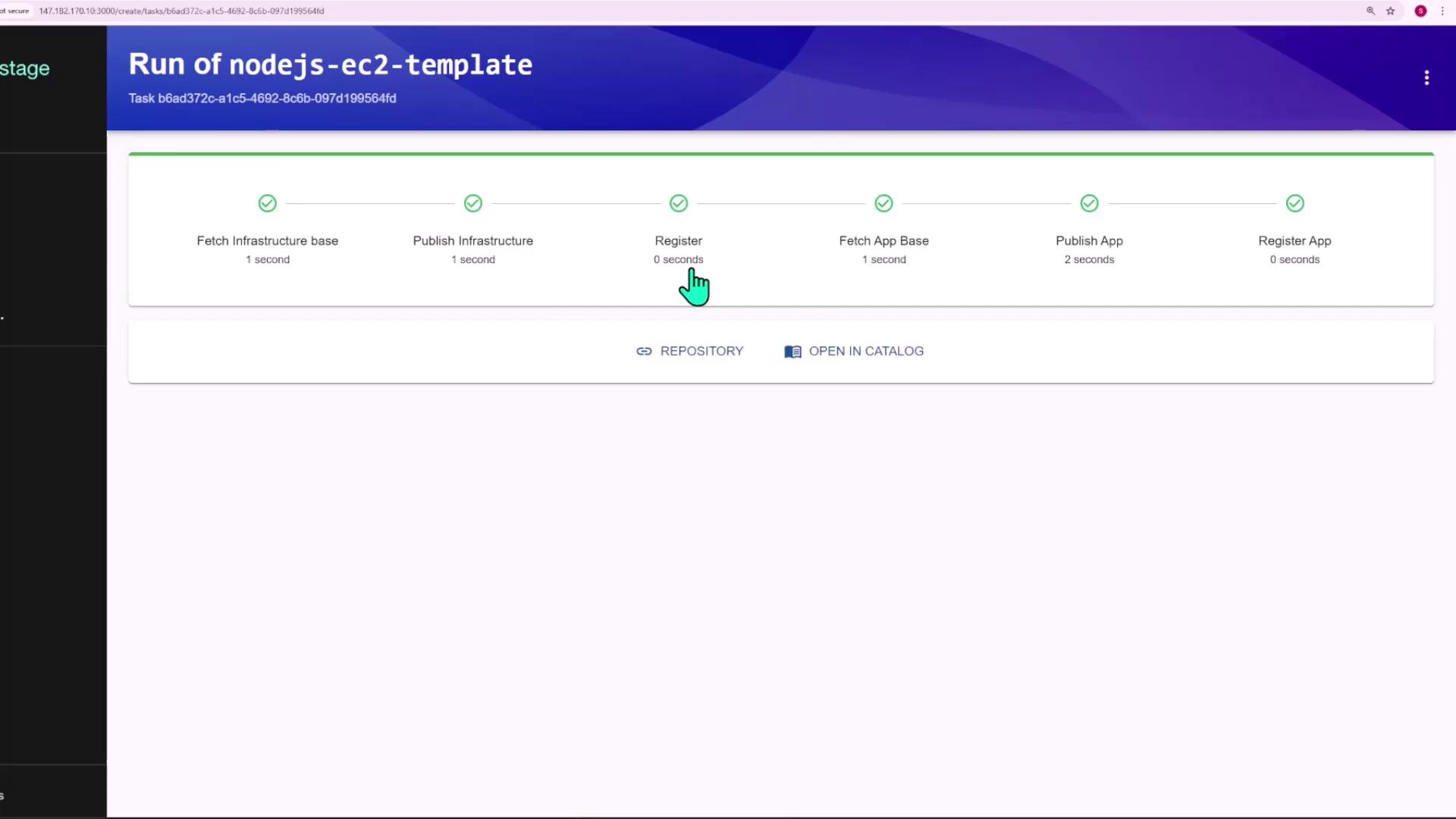

After clicking Create, you’ll see progress for both infrastructure and application scaffolding:

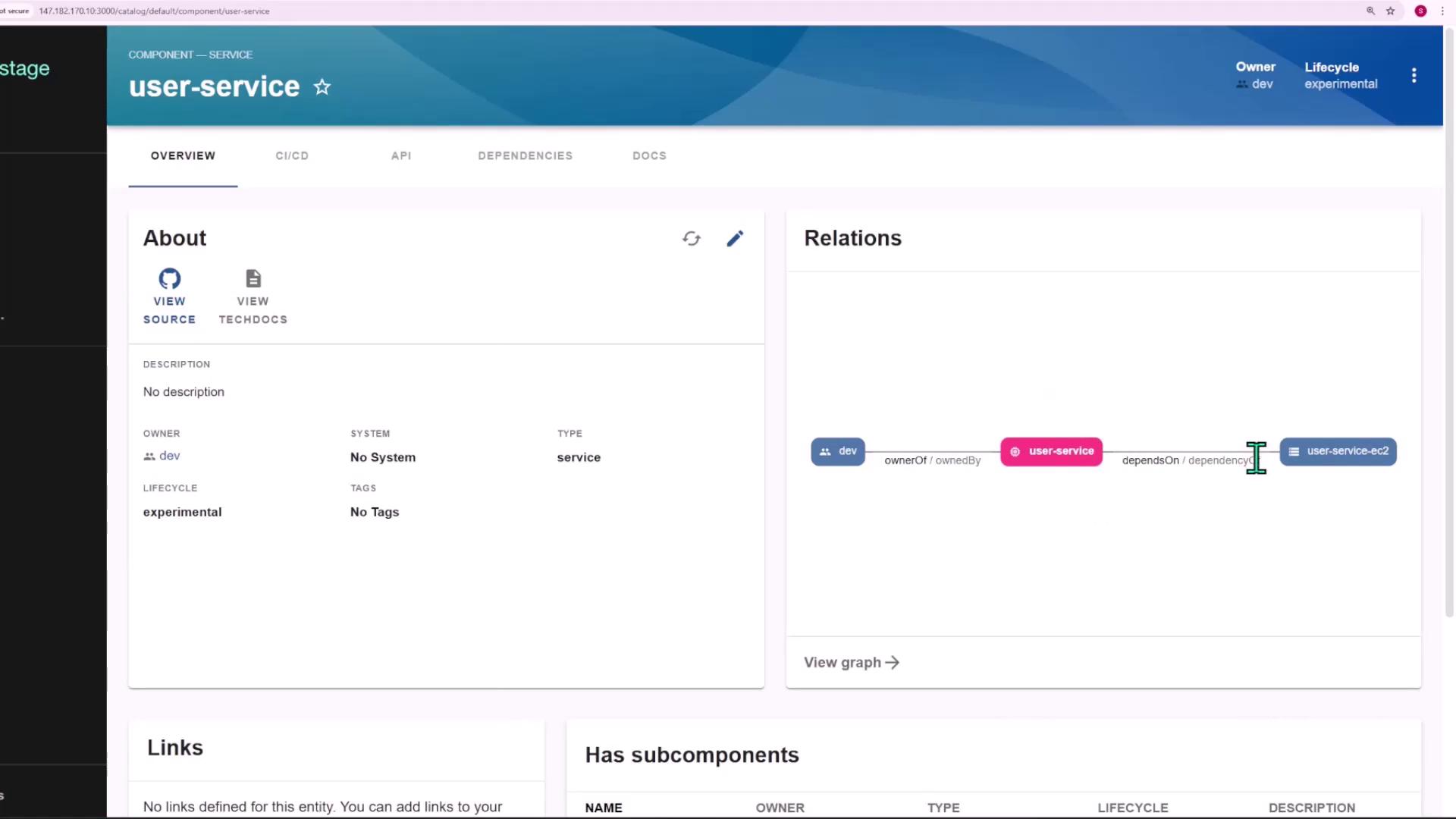

Resulting Entities in Backstage

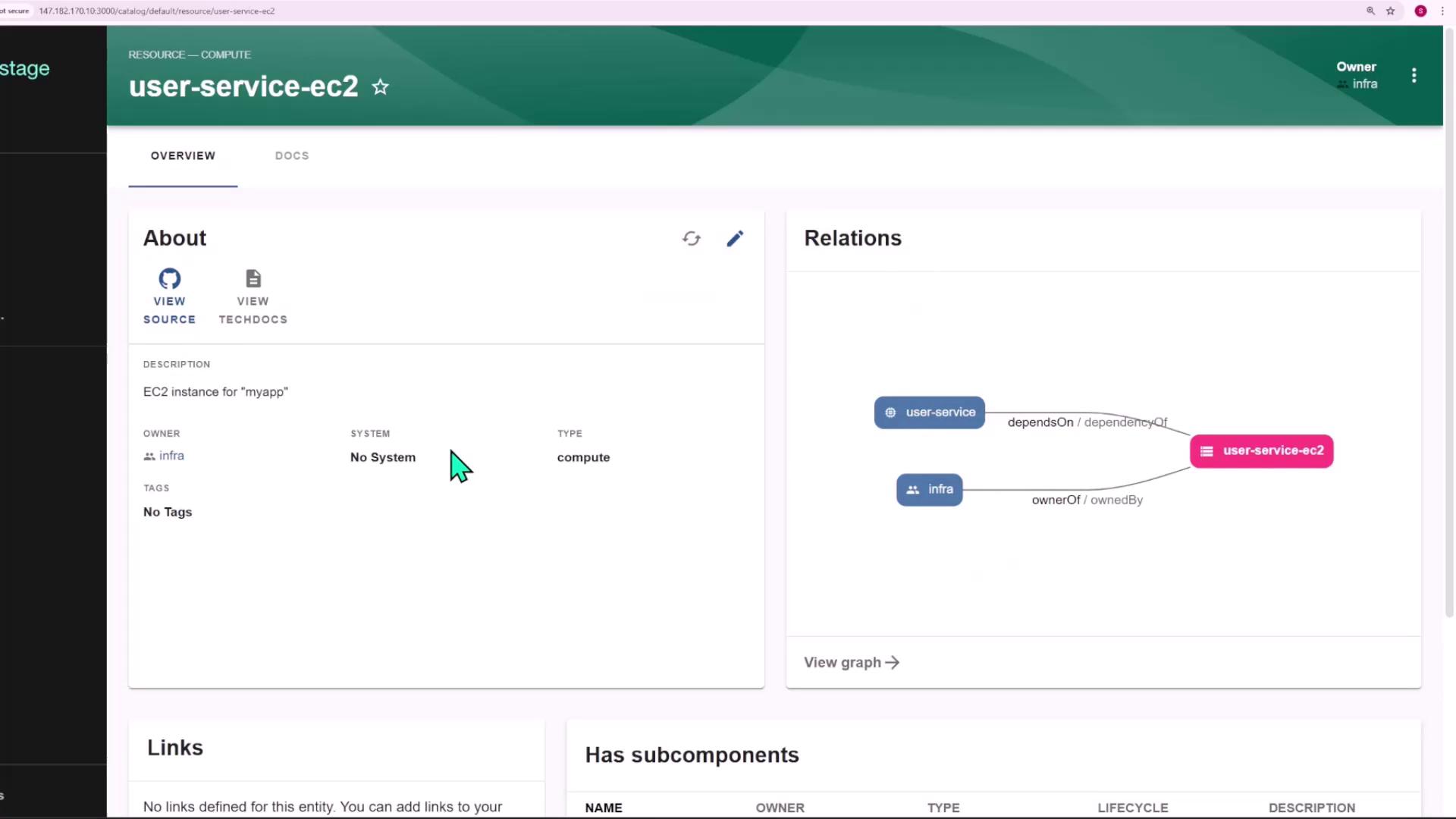

Once scaffolding completes, Backstage will display:

• A Component (e.g., user-service)
• A Resource (e.g., user-service-ec2)
• A dependency relationship linking the Component to its EC2 Resource

Repository Overviews

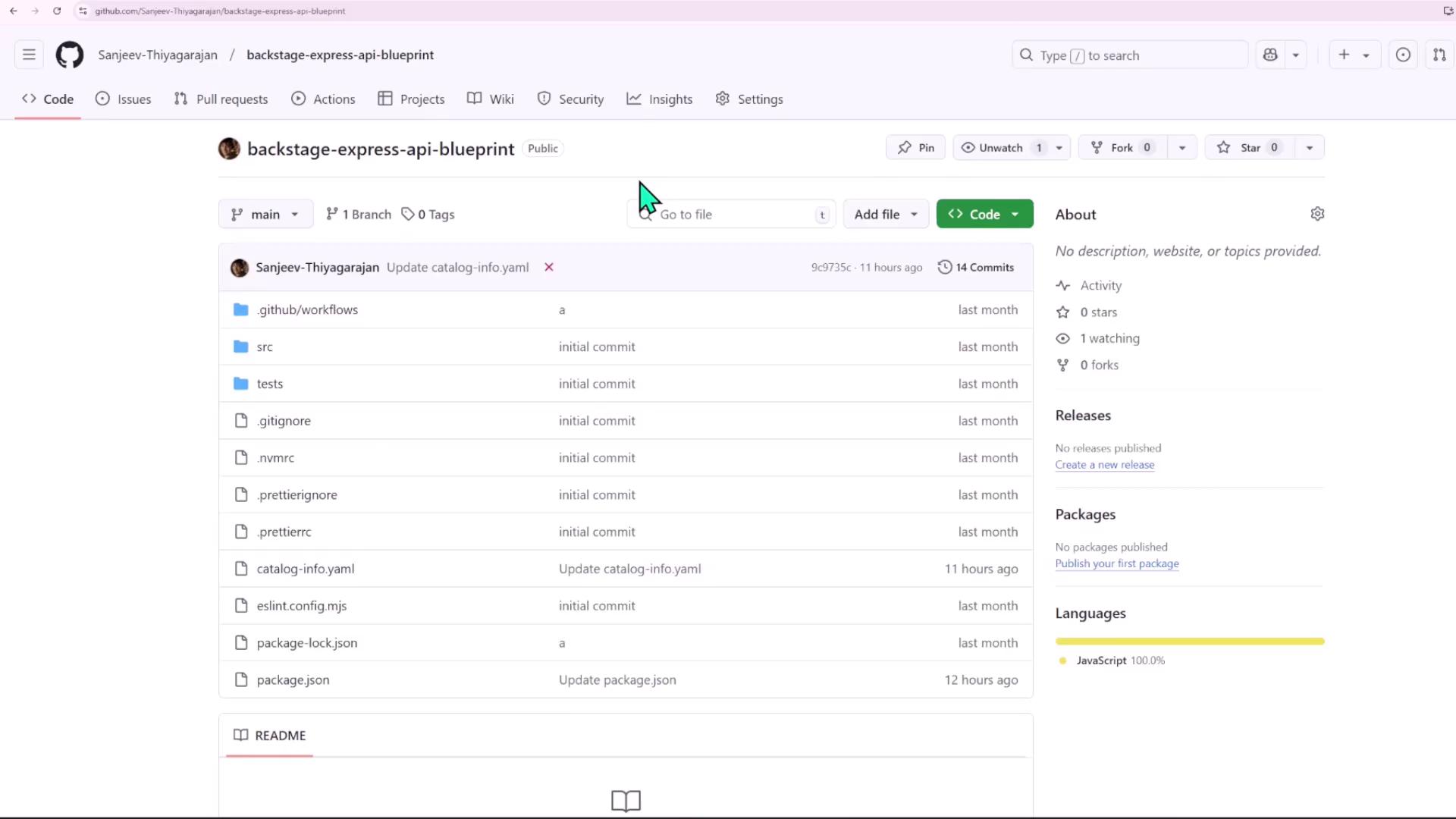

backstage-express-api-blueprint

A Node.js/Express API skeleton with catalog-info.yaml and starter code.

infrastructure-iac (Core Terraform)

Defines shared VPC, subnets, and other organization-wide resources.

terraform {
  required_version = ">= 1.2.0"
}

required_providers {
  aws = {
    source  = "hashicorp/aws"
    version = "~> 4.16"
  }
}

provider "aws" {
  region = "us-east-1"
}

data "terraform_remote_state" "core" {
  backend = "remote"
  config = {
    organization = "sanjeevkt720"
    workspaces   = { name = "infrastructure-iac" }
  }
}

resource "aws_vpc" "main" {
  cidr_block = "10.0.0.0/16"
  # ...
}

ec2-infra-blueprint (Terraform Module Skeleton)

Provisions a single EC2 instance using shared infra outputs.

terraform {
  required_version = ">= 1.2.0"
}

required_providers {
  aws = {
    source  = "hashicorp/aws"
    version = "~> 4.16"
  }
}

provider "aws" {
  region = "us-east-1"
}

data "terraform_remote_state" "core" {
  backend = "remote"
  config = {
    organization = "sanjeevkt720"
    workspaces   = { name = "infrastructure-iac" }
  }
}

module "my_ec2" {
  source        = "app.terraform.io/sanjeevkt720/ec2-infra/aws"
  version       = "1.0.0"
  name          = var.name
  instance_type = var.instance_type
  subnet        = data.terraform_remote_state.core.outputs.subnet3_id
}

variables.tf:

variable "name" {
  type        = string
  description = "Name of the EC2 instance"
}

variable "instance_type" {
  type        = string
  description = "EC2 instance type (e.g., t2.micro)"
}

resource.yaml:

apiVersion: backstage.io/v1alpha1
kind: Resource
metadata:
  name: "${{ values.name }}-ec2"
  description: EC2 instance for "${{ values.name }}"
spec:
  type: compute
  owner: infra

The nodejs-ec2-template.yaml Definition

This scaffolder template fetches both blueprints, applies your inputs, publishes to GitHub, and registers entities in Backstage.

apiVersion: scaffolder.backstage.io/v1beta3
kind: Template
metadata:
  name: nodejs-ec2-template
  title: Node.JS App on EC2
  description: Generate a Node.js API and provision an EC2 instance via Terraform
spec:
  owner: user:guest
  type: service

  parameters:
    - title: Project Info
      required: [name, owner]
      properties:
        name:
          title: Name
          type: string
          description: Unique component name
          ui:
            autofocus: true
        owner:
          title: Owner
          type: string
          description: Owning team or user
          ui:
            field: OwnerPicker
            options:
              catalogFilter: [{ kind: [User, Group] }]

    - title: Repository Location
      required: [repoUrl]
      properties:
        repoUrl:
          title: Repo URL
          type: string
          ui:
            field: RepoUrlPicker
            options:
              allowedHosts: ["github.com"]

    - title: EC2 Deployment
      properties:
        instanceType:
          title: Instance Type
          type: string
          description: EC2 size for the service
          default: "t2.micro"
          enum: ["t2.micro", "t2.small", "t2.medium"]

  steps:
    - id: fetch-infra
      name: Fetch EC2 Infra Blueprint
      action: fetch:template
      input:
        url: https://github.com/Sanjeev-Thiyagarajan/ec2-infra-blueprint
      targetPath: ./infra
      values:
        name: ${{ parameters.name }}
        instance_type: ${{ parameters.instanceType }}

    - id: publish-infra
      name: Publish Infra to GitHub
      action: publish:github
      input:
        sourcePath: ./infra
        allowedHosts: ["github.com"]
        repoUrl: ${{ parameters.repoUrl }}-infra
        description: Infra for ${{ parameters.name }}

    - id: register-infra
      name: Register EC2 Resource
      action: catalog:register
      input:
        repoContentsUrl: ${{ steps.publish-infra.output.repoContentsUrl }}
        catalogInfoPath: /resource.yaml

    - id: fetch-app
      name: Fetch Express API Blueprint
      action: fetch:template
      input:
        url: https://github.com/Sanjeev-Thiyagarajan/backstage-express-api-blueprint
      targetPath: ./code
      values:
        name: ${{ parameters.name }}
        owner: ${{ parameters.owner }}

    - id: publish-app
      name: Publish App to GitHub
      action: publish:github
      input:
        sourcePath: ./code
        allowedHosts: ["github.com"]
        repoUrl: ${{ parameters.repoUrl }}
        description: App code for ${{ parameters.name }}

    - id: register-app
      name: Register App Component
      action: catalog:register
      input:
        repoContentsUrl: ${{ steps.publish-app.output.repoContentsUrl }}
        catalogInfoPath: /catalog-info.yaml

  output:
    links:
      - title: Infra Repository
        url: ${{ steps.publish-infra.output.remoteUrl }}
      - title: App Repository
        url: ${{ steps.publish-app.output.remoteUrl }}
      - title: Open App in Catalog
        icon: catalog
        entityRef: ${{ steps.register-app.output.entityRef }}
      - title: Open Infra in Catalog
        icon: catalog
        entityRef: ${{ steps.register-infra.output.entityRef }}

End-to-End Demo

Use the template in Backstage to create a service:

• Name: file-manager-service
• Owner: group:default/dev
• Repo URL: github.com/you/file-manager-service
• Instance Type: t2.micro

All steps complete successfully:

Two GitHub repositories are created:

• file-manager-service (application code)
• file-manager-service-infra (Terraform code)

# file-manager-service-infra/main.tf
module "my_ec2" {
  source        = "app.terraform.io/sanjeevkt720/ec2-infra/aws"
  version       = "1.0.0"
  name          = "file-manager-service"
  instance_type = "t2.micro"
  subnet        = data.terraform_remote_state.core.outputs.subnet3_id
}

# file-manager-service-infra/resource.yaml
apiVersion: backstage.io/v1alpha1
kind: Resource
metadata:
  name: "file-manager-service-ec2"
  description: EC2 instance for "file-manager-service"
spec:
  type: compute
  owner: infra

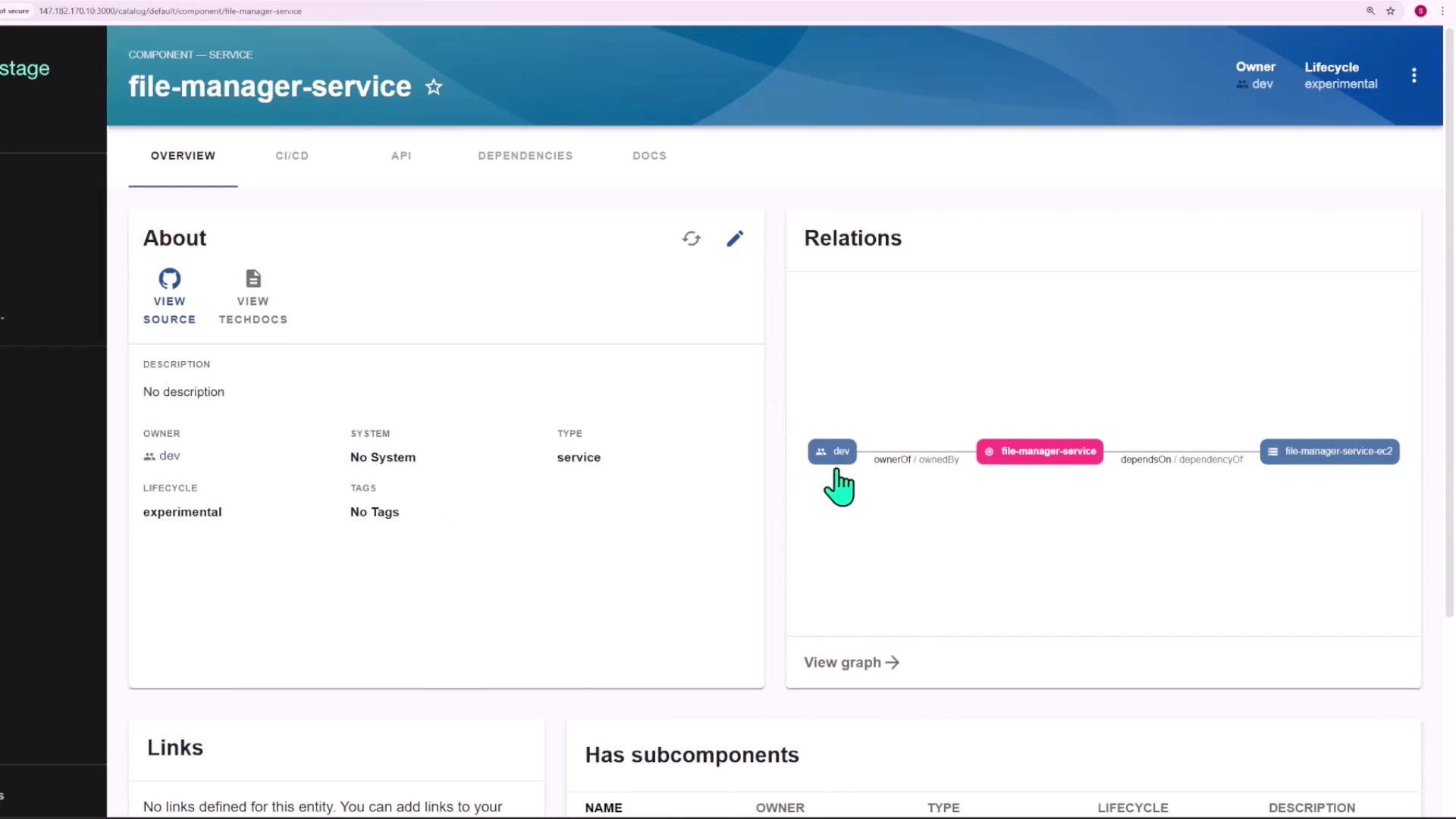

In Backstage, you’ll see the new component linked to its EC2 resource:

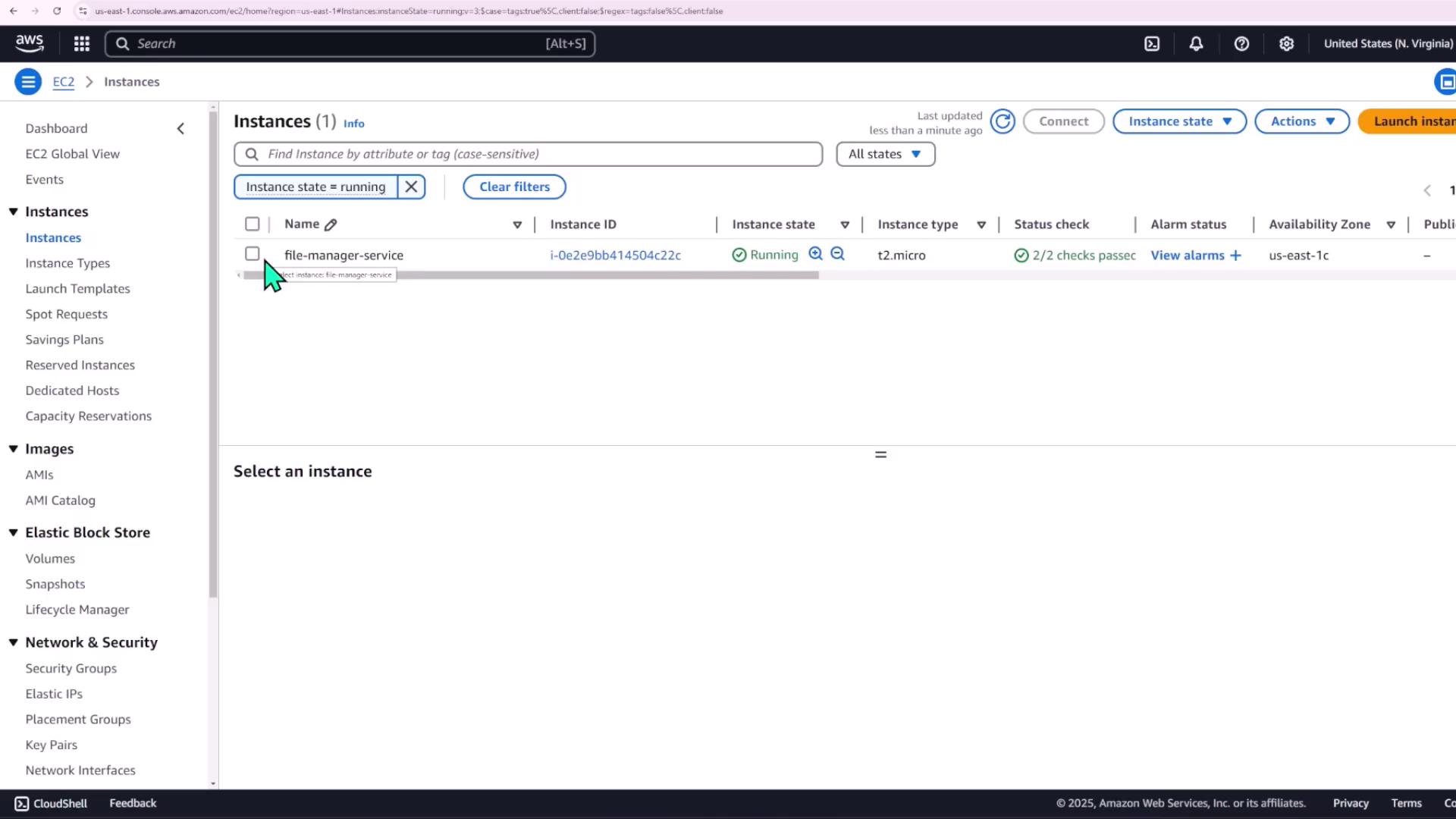

Finally, verify your EC2 instance in AWS:

With this scaffolder template, teams can rapidly spin up Node.js services alongside their AWS infrastructure, all managed via standard Terraform modules.

Links and References

• Backstage Documentation
• Terraform Registry
• AWS Provider for Terraform
• GitHub Scaffolder Action
