Demo Importing Templates with Entity Providers

In this guide, we’ll show you how to eliminate manual template registration in Backstage by leveraging Entity Providers. Instead of running a register existing command for each template, Entity Providers will scan your GitHub repositories and automatically import all template descriptors.

Manual Template Registration in Backstage

Traditionally, you’d register a new template by copying its Git URL and running:

backstage-cli scaffolder register existing \
  --path https://github.com/your-org/your-repo/blob/main/api-express-template.yaml

The template descriptor might look like this:

apiVersion: scaffolder.backstage.io/v1beta3
# https://backstage.io/docs/features/software-catalog/descriptor-format#kind-template
kind: Template
metadata:
  name: api-express-template
  title: Node.js API w/ express.js
  description: A template for provisioning APIs with Express.js
spec:
  owner: user:guest
  type: service

parameters:
  - title: Project Info
    required:
      - name
    properties:
      name:
        type: string
        title: Name
        description: Unique name of the component
        ui:autofocus: true
        minLength: 2
        ui:options:
          rows: 5
      owner:
        title: Owner
        description: Owner of the component

Your app-config.yaml needs scaffolder settings and authentication:

scaffolder:
  builder: local        # Alternatives: external
  generator: docker     # Alternatives: local
  publisher:
    type: local         # Alternatives: googleGcs, awsS3

auth:
  providers:
    guest: {}           # https://backstage.io/docs/auth/guest/provider

Why Automate Template Imports?

• Reduce manual steps and human error
• Keep templates in sync automatically
• Scale effortlessly as your template library grows

Setting Up GitHub Entity Providers

Backstage can continuously poll GitHub (or other SCMs) for catalog-info.yaml or any YAML entity descriptors. Here’s an example of existing GitHub providers in app-config.yaml:

catalog:
  providers:
    github:
      shoppingHub:
        organization: 'shopping-hub'
        catalogPath: '/catalog-info.yaml'
        filters:
          branch: 'main'
          repository: '.*'
        schedule:
          frequency: { minutes: 20 }
          timeout:   { minutes: 2 }

      sanjeevAccount:
        organization: 'Sanjeev-Thiyagarajan'
        catalogPath: '/catalog-info.yaml'
        filters:
          branch: 'main'
          repository: '.*'
        schedule:
          frequency: { minutes: 20 }
          timeout:   { minutes: 2 }

Organizing Your Repository for Template Imports

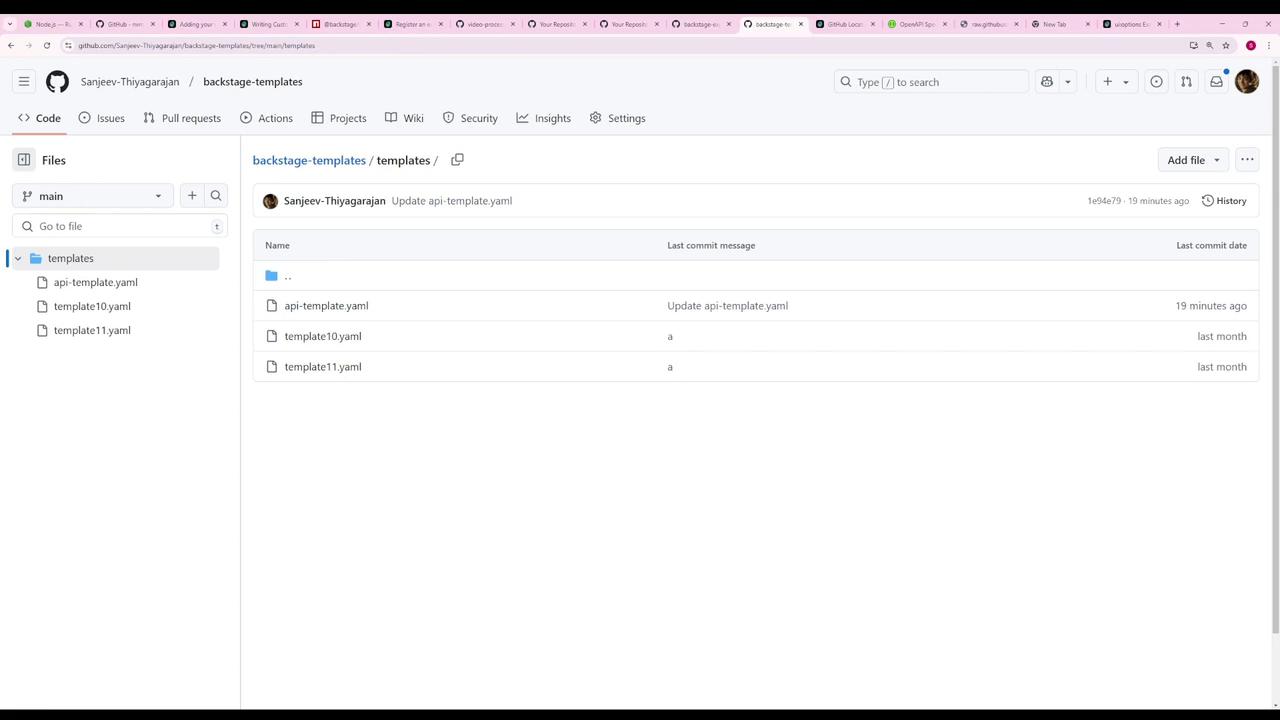

In our GitHub repo, all templates live under a dedicated templates folder:

Since each file ends with -template.yaml and resides under templates/, they won’t match the default /catalog-info.yaml. The solution is to add a new GitHub provider that points to templates/**/*.yaml.

Adding a GitHub Provider for Templates

Update the catalog.providers.github section in app-config.yaml by appending a github-templates provider:

catalog:
  providers:
    github:
      shoppingHub:
        organization: 'shopping-hub'
        catalogPath: '/catalog-info.yaml'
        filters:
          branch: 'main'
          repository: '.*'
        schedule:
          frequency: { minutes: 20 }
          timeout:   { minutes: 2 }

      sanjeevAccount:
        organization: 'Sanjeev-Thiyagarajan'
        catalogPath: '/catalog-info.yaml'
        filters:
          branch: 'main'
          repository: '.*'
        schedule:
          frequency: { minutes: 20 }
          timeout:   { minutes: 2 }

      github-templates:
        organization: 'Sanjeev-Thiyagarajan'
        catalogPath: 'templates/**/*.yaml'
        filters:
          branch:     'main'
          repository: 'backstage-templates'
        schedule:
          frequency: { minutes: 20 }
          timeout:   { minutes: 2 }

1. catalogPath: 'templates/**/*.yaml' instructs Backstage to crawl all subdirectories under templates.
2. repository: 'backstage-templates' limits the scan to that single repo.
3. schedule controls how often the import runs.

Verifying Imported Templates

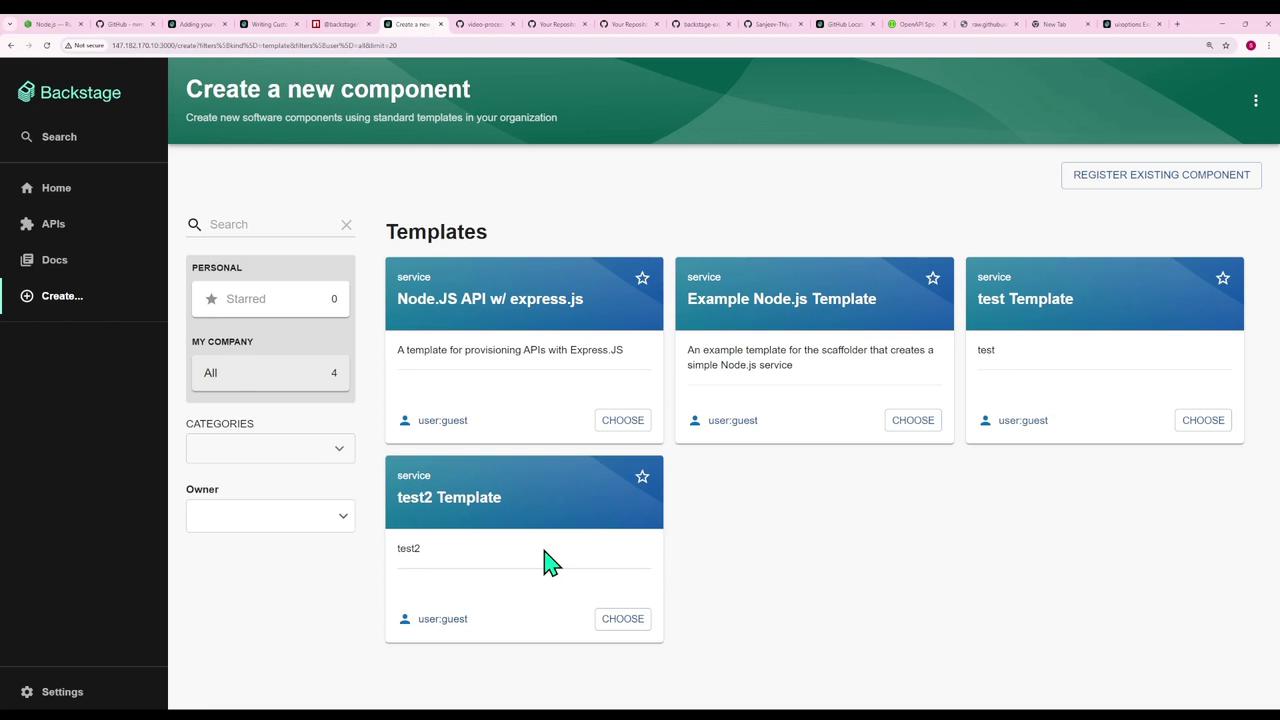

Once the backend is back online, open the Backstage UI and navigate to Create ▶︎. You should see your Express API and other templates automatically appear:

Congratulations! Your templates are now managed by Entity Providers and will stay in sync without any manual registration.

References

• Backstage Software Catalog
• Entity Providers Documentation
• Scaffolder API Reference
