Pre requisite Security in Docker

Welcome to this comprehensive guide on Docker security. In this article, we explore key Docker security concepts that form the basis for understanding security contexts in Kubernetes. If you are already comfortable with Docker security, feel free to move on to the next sections.

Overview of Docker Process Isolation

Imagine a host machine running Docker with multiple processes such as OS services, the Docker daemon, and an SSH server. When you launch an Ubuntu container that executes a sleep command for one hour, you run:

docker run ubuntu sleep 3600

Containers are lightweight because, unlike virtual machines, they share the host’s kernel. They achieve isolation through Linux namespaces. Each container gets its own isolated namespace, so checking processes within the container might show the sleep process with a PID of 1. However, on the host, the process appears with a different PID. For example, running:

ps aux

might yield:

USER       PID %CPU %MEM    VSZ   RSS TTY      STAT START   TIME COMMAND
root         1  0.0  0.0   4528   828 ?        Ss   03:06   0:00 sleep 3600

Here, even though the sleep process is isolated within the container, it is visible on the host but with a different PID.

A more detailed host process listing could look like:

ps aux
USER       PID %CPU %MEM    VSZ   RSS TTY      STAT START   TIME COMMAND
project   3720  0.1  0.1  95500  4916 ?        R     06:06   0:00 sshd: project@pts/0
project   3725  0.0  0.1  95196  4132 ?        S     06:06   0:00 sshd: project@notty
project   3727  0.2  0.1  21352  5340 pts/0    Ss    06:06   0:00 -bash
root      3802  0.0  0.0  8924  3616 ?        Sl    06:06   0:00 docker-containerd-shim --namespace m
root      3816  1.0  0.0  4528  828 ?        Ss    06:06   0:00 sleep 3600

Note

The difference in PID values between the container and the host is due to the isolation provided by Linux namespaces.

User Context and Privilege Management

By default, Docker runs container processes as the root user. On the host, both container and host processes might appear to run as root. For example:

ps aux
USER       PID %CPU %MEM    VSZ   RSS TTY      STAT START   TIME COMMAND
root          1  0.0  0.0   4528   828 ?        Ss    03:06   0:00 sleep 3600

If you prefer a non-root execution within a container, specify a user ID using the --user flag. To run as user ID 1000, execute:

docker run --user=1000 ubuntu sleep 3600

After running this command, checking the process list on the host will show the container process running as user 1000:

ps aux
USER       PID %CPU %MEM    VSZ   RSS TTY      STAT START   TIME COMMAND
1000          1  0.0  0.0  4528   828 ?        Ss    03:06   0:00 sleep 3600

Alternatively, you can set a default non-root user within your Docker image. For instance, create a Dockerfile for a custom Ubuntu image:

FROM ubuntu
USER 1000

Build and run your custom image:

docker build -t my-ubuntu-image .
docker run my-ubuntu-image sleep 3600

Verifying the process confirms that it runs under user 1000:

ps aux
USER         PID %CPU %MEM     VSZ   RSS TTY      STAT START   TIME COMMAND
1000          1  0.0  0.0   4528    828 ?        Ss   03:06   0:00 sleep 3600

Tip

Defining the default user in the Dockerfile removes the need to specify the user each time the container runs.

Docker Root User and Linux Capabilities

A common question concerns whether the root user inside a container has the same privileges as the host's root user. By design, Docker restricts the container's root privileges using Linux capabilities.

On a standard Linux system, the root user can modify file permissions, control network ports, manage processes, reboot the system, and perform various critical tasks. In contrast, Docker limits these actions within containers. This means that a container's root user cannot, for example, reboot the host or impact other containers.

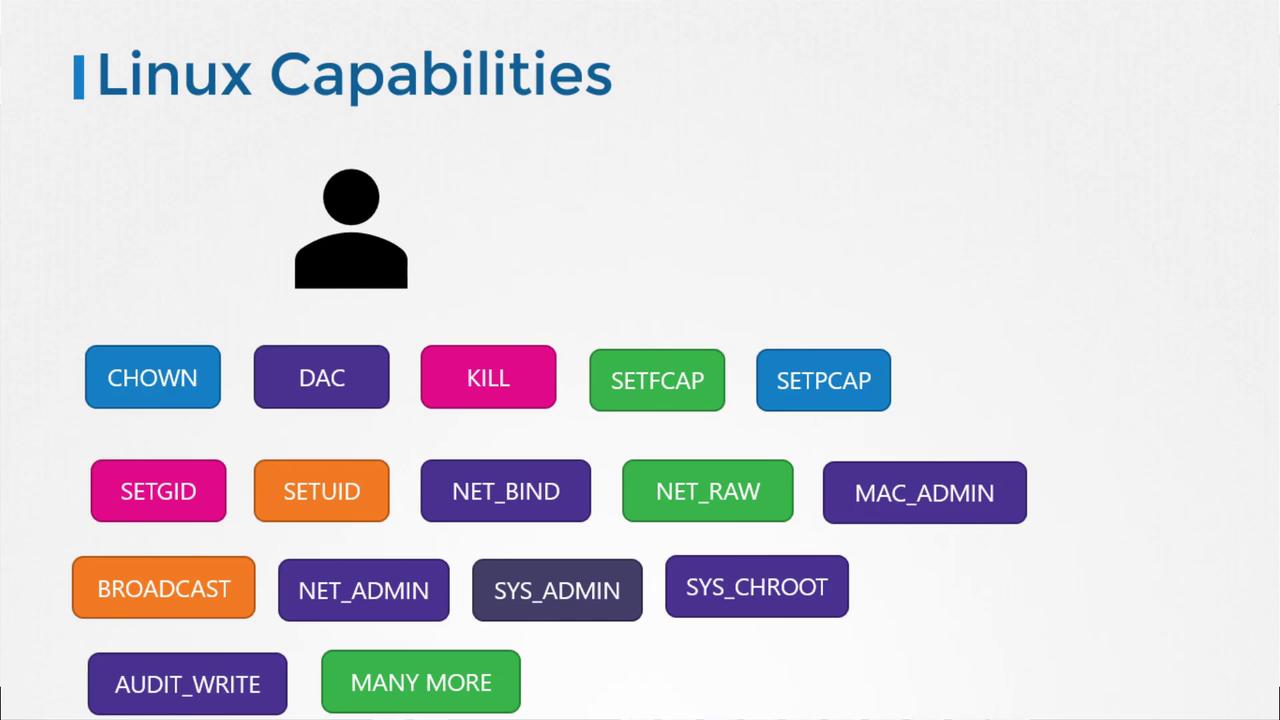

The diagram below illustrates some of the key Linux capabilities (like CHOWN, KILL, and NET_ADMIN) available to a process:

The image lists various Linux capabilities, such as CHOWN, KILL, and NET_ADMIN, represented in colorful boxes beneath a user icon.

Docker provides runtime flags to customize these capabilities. You can add a capability with the --cap-add option:

docker run --cap-add MAC_ADMIN ubuntu

To remove specific capabilities, use --cap-drop. If you need to run a container with full privileges, the --privileged flag is available, though it should be used with caution.

Warning

Avoid using the --privileged flag in production environments unless absolutely necessary, as it elevates container privileges significantly.

Conclusion

This article reviewed essential Docker security concepts, including:

  • Process isolation using Linux namespaces
  • User context and privilege management
  • Limiting root user actions through Linux capabilities

These principles are crucial for understanding similar security mechanisms in Kubernetes. For further reading, explore Kubernetes Basics.

Thank you for reading this guide on Docker security.
