Secrets

Welcome to this comprehensive guide on managing Secrets in Kubernetes. In this article, we explain how to securely handle sensitive data for your applications. We begin by reviewing a Python web application that connects to a MySQL database. Upon a successful connection, the application displays a success message. However, the application currently contains hardcoded values for the hostname, username, and password. While moving configuration data to a ConfigMap is suitable for non-sensitive information, it is not recommended for handling passwords and other sensitive data.

Below is an excerpt from the Python application:

import os
from flask import Flask, render_template
import mysql.connector

app = Flask(__name__)

@app.route("/")
def main():
    mysql.connector.connect(host="mysql", database="mysql",
                              user="root", password="paswrd")
    return render_template('hello.html', color=fetchcolor())

if __name__ == "__main__":
    app.run(host="0.0.0.0", port="8080")

Storing Sensitive Data: ConfigMaps vs Secrets

While ConfigMaps are a great option for storing configuration data in plain text, they are not designed to keep passwords or keys secure. This is where Secrets come in. Kubernetes Secrets store sensitive information in an encoded format, making them more secure than using ConfigMaps for these purposes.

Here is an example of a ConfigMap definition:

apiVersion: v1
kind: ConfigMap
metadata:
  name: app-config
data:

Why Use Secrets?

Storing passwords in plain text—even in a ConfigMap—exposes them to potential security risks. Using Secrets ensures that sensitive data is handled more securely.

Working with Secrets

Similar to ConfigMaps, handling Secrets typically involves two steps:

  1. Creating the Secret.
  2. Injecting the Secret into a Pod.

Below are some sample encoded values corresponding to your application's configuration:

DB_Host: bXlzcWw=
DB_User: cm9vdA==
DB_Password: cGFzd3Jk

And here is the plain text corresponding to those encoded values:

DB Host: mysql
DB User: root
DB Password: paswrd

There are two primary methods for creating a Secret: the imperative approach and the declarative approach.

Imperative Method

The imperative method allows you to create a Secret directly from the command line without a definition file. For example:

kubectl create secret generic <secret-name> --from-literal=<key>=<value>

A practical example would be:

kubectl create secret generic \
  app-secret --from-literal=DB_Host=mysql \
  --from-literal=DB_User=root \
  --from-literal=DB_Password=paswrd

Alternatively, you can create a Secret from a file:

kubectl create secret generic <secret-name> --from-file=<path-to-file>

For instance:

kubectl create secret generic \
  app-secret --from-file=app_secret.properties

If you need to include multiple key-value pairs, use additional --from-literal options. For larger datasets, creating the Secret from a file might be more efficient.

Declarative Method

The declarative approach leverages a definition file to create a Secret, similar to how ConfigMaps are defined. A typical Secret definition includes the API version, kind, metadata, and data fields. Note that sensitive values should always be encoded in base64. Below is an example of a Secret definition file. Although the values appear in plain text here for demonstration, they must be encoded for production use:

apiVersion: v1
kind: Secret
metadata:
  name: app-secret
data:
  DB_Host: mysql
  DB_User: root
  DB_Password: paswrd

You can then create the Secret using:

kubectl create -f secret-data.yaml

To encode data on a Linux host, you can use the base64 command. For example:

echo -n 'mysql' | base64
# Output: bXlzcWw=
echo -n 'root' | base64
# Output: cm9vdA==
echo -n 'paswrd' | base64
# Output: cGFzd3Jk

Viewing and Decoding Secrets

To list all Secrets in your cluster, run:

kubectl get secrets

Example output:

NAME          TYPE     DATA   AGE
app-secret    Opaque   3      10m

For detailed information about a specific Secret, use:

kubectl describe secrets

This command displays the Secret's attributes without revealing the actual sensitive data. To inspect the encoded values, execute:

kubectl get secret app-secret -o yaml

To decode an encoded value, for example:

echo -n 'bXlzcWw=' | base64 --decode
echo -n 'cm9vdA==' | base64 --decode
# Output: root

Injecting Secrets into Pods

Once you have created your Secret, you can inject its data into a Pod. There are two common methods for this: as environment variables or by mounting them as files in a volume.

As Environment Variables

Below is an example of a pod definition that imports the Secret as environment variables:

apiVersion: v1
kind: Pod
metadata:
  name: simple-webapp-color
  labels:
    name: simple-webapp-color
spec:
  containers:
    - name: simple-webapp-color
      image: simple-webapp-color
      ports:
        - containerPort: 8080
      envFrom:
        - secretRef:
            name: app-secret

And here is the corresponding Secret definition with properly encoded data:

apiVersion: v1
kind: Secret
metadata:
  name: app-secret
data:
  DB_Host: bXlzcWw=
  DB_User: cm9vdA==
  DB_Password: cGFzd3Jk

When the pod is created, the Secret's data will be available to the container as environment variables.

As Mounted Volumes

Another approach involves mounting Secrets as files within a Pod. When mounted, each key in the Secret becomes a file, and its content is the corresponding decoded value. For example:

volumes:
  - name: app-secret-volume
    secret:
      secretName: app-secret

Listing the mounted volume may reveal files like:

ls /opt/app-secret-volumes
# Output: DB_Host  DB_Password  DB_User

And to view the database password:

cat /opt/app-secret-volumes/DB_Password
# Output: paswrd

Important Considerations When Working with Secrets

  1. Secrets are encoded in base64, not encrypted. Anyone with access to the Secret object can decode the sensitive data.
  2. Avoid version controlling your secret definition files to prevent accidental exposure.
  3. By default, Secrets stored in etcd are not encrypted. Consider enabling encryption at rest in your Kubernetes cluster.

Security Reminder

Ensure that secrets in etcd are properly encrypted and that access is restricted using Role-Based Access Control (RBAC). Do not expose your secret files in public repositories.

For example, here is an encryption configuration file that secures Secrets along with other resources:

apiVersion: apiserver.config.k8s.io/v1
kind: EncryptionConfiguration
resources:
  - resources:
      - secrets
    providers:
      - identity: {}
      - aesgcm:
          keys:
            - name: key1
              secret: C2VjcmVjT0glZzIHNLY3VyZQ==
            - name: key2
              secret: dGhpcpyBcyBwYXNzd29yZA==
      - aescbc:
          keys:
            - name: key1
              secret: C2VjcmVjT0glZzIHNLY3VyZQ==
            - name: key2
              secret: dGhpcpyBcyBwYXNzd29yZA==
      - secretbox:
          keys:
            - name: key1
              secret: YWjjZGVnZ2hpamtsbW5vcHyc3R1nd4eXoXMjM0NTY=

You must pass this file to the Kubernetes API server. Here is an example of modifying the kube-apiserver pod configuration to make use of the encryption configuration:

apiVersion: v1
kind: Pod
metadata:
  annotations:
    kubeddm.kubernetes.io/kube-apiserver.advertise-address.endpoint: 10.10.30.4:6443
  creationTimestamp: null
  labels:
    component: kube-apiserver
    tier: control-plane
  name: kube-apiserver
  namespace: kube-system
spec:
  containers:
    - command:
        - kube-apiserver
        # ...
        - --encryption-provider-config=/etc/kubernetes/enc/enc.yaml # <--- add this line
  volumeMounts:
    # ...
    - name: enc
      mountPath: /etc/kubernetes/enc
      readOnly: true # <--- add this line
  volumes:
    # ...
    - name: enc
      hostPath:
        path: /etc/kubernetes/enc
        type: DirectoryOrCreate # <--- add this line

This setup ensures that Secrets stored in etcd are encrypted. Note that only users with the correct permissions can create pods or deployments that have access to these Secrets. It is important to enforce proper RBAC policies.

Additionally, consider leveraging third-party secret management providers such as AWS, Azure, GCP, or HashiCorp Vault. These external providers help in storing secrets securely outside of etcd and enforce robust security measures.

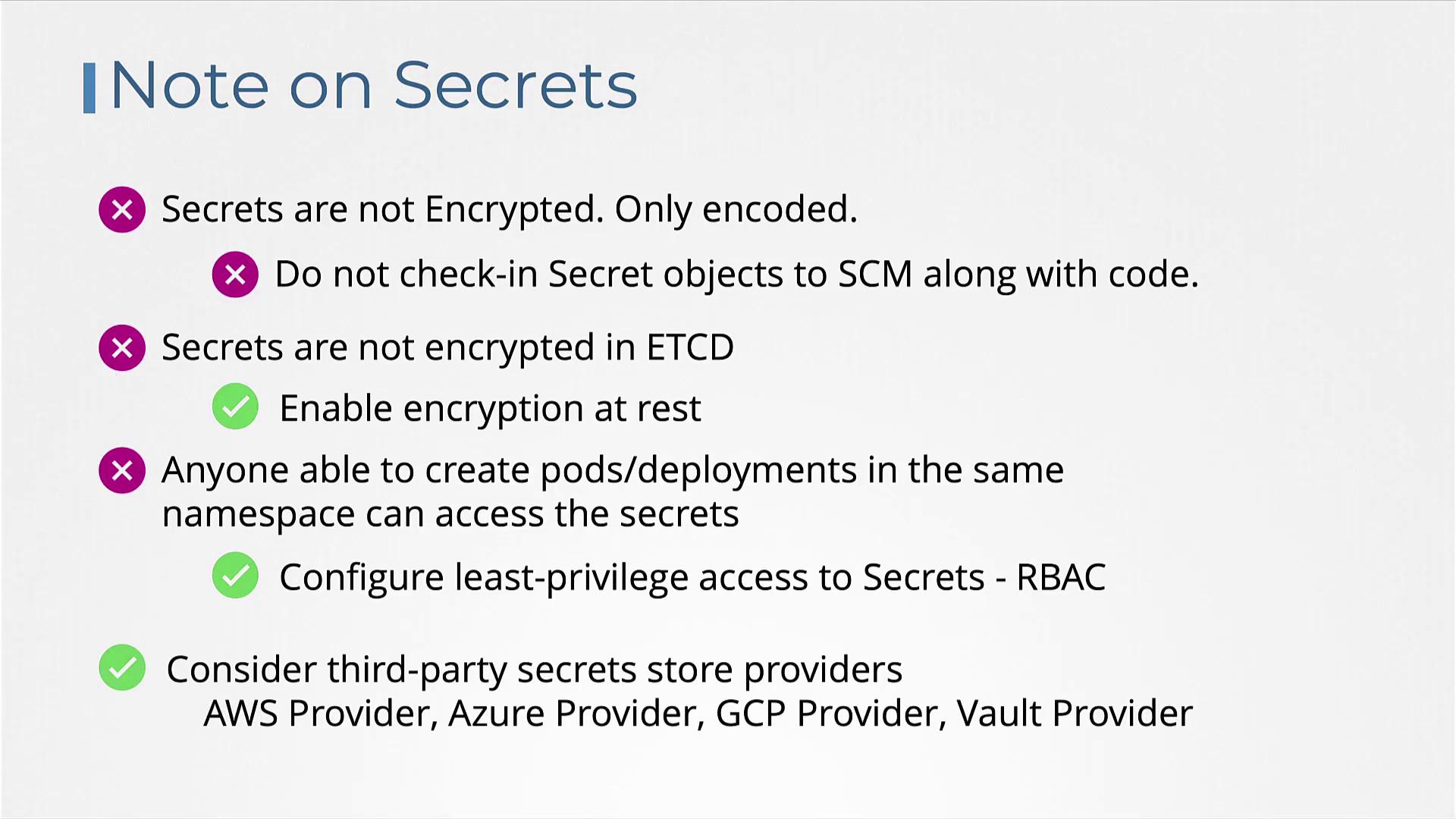

The image provides guidelines on handling secrets, emphasizing encryption, access control, and considering third-party providers for secure storage.

For further details on advanced secret management and external providers, check out the Certified Kubernetes Security Specialist (CKS) course.

That concludes our guide on Kubernetes Secrets. Now, head over to the labs and practice managing Secrets to enhance your security skills in a Kubernetes environment.
