Certified Kubernetes Application Developer - CKAD
Configuration
Solution Commands and Arguments Optional
In this lesson, we will explore several Kubernetes tasks related to pods, commands, and arguments while working with Dockerfiles. The content follows step-by-step lab instructions, and each technical diagram is kept with its associated explanation.
1. Examining a Pod's Command and Arguments
Begin by checking how many pods are currently running. In our example, there is a single pod.
Next, inspect the pod named ubuntu-sleeper
to reveal the command it is executing. According to its definition, the container uses the Ubuntu image and runs the command:
sleep 4800
To display these details, run:
kubectl describe pod ubuntu-sleeper
The output will include the following information:
- Command:
sleep
- Args:
4800
This confirms that the pod executes sleep 4800
.
2. Creating a Pod That Sleeps for 5000 Seconds
To modify an existing pod definition (ubuntu-sleeper-2.yaml
), update it so that the container using the Ubuntu image sleeps for 5000 seconds. An initial basic file may look like this:
apiVersion: v1
kind: Pod
metadata:
name: ubuntu-sleeper-2
spec:
containers:
- name: ubuntu
image: ubuntu
You can instruct the container to sleep for 5000 seconds using one of two options. Both methods are valid, but in this guide we use the first option.
Option 1: Single Command Array
Specify both the command and its argument in one array:
apiVersion: v1
kind: Pod
metadata:
name: ubuntu-sleeper-2
spec:
containers:
- name: ubuntu
image: ubuntu
command: ["sleep", "5000"]
Option 2: Separate Command and Args
Alternatively, define the command and arguments separately:
apiVersion: v1
kind: Pod
metadata:
name: ubuntu-sleeper-2
spec:
containers:
- name: ubuntu
image: ubuntu
command: ["sleep"]
args: ["5000"]
After creating this pod, verify that it is running and that the command and argument have been set to 5000.
3. Troubleshooting an Incorrect Pod Manifest
Consider a third file, ubuntu-sleeper-3.yaml
, intended to create a pod that runs sleep 1200
. The file is as follows:
apiVersion: v1
kind: Pod
metadata:
name: ubuntu-sleeper-3
spec:
containers:
- name: ubuntu
image: ubuntu
command:
- "sleep"
- "1200"
Even though the file appears correctly formatted, Kubernetes may return an error like:
Error
"cannot unmarshal number into the Go struct field Container.command of type string."
This error indicates that every element in the command array must be a string. Ensure both "sleep"
and "1200"
are enclosed in quotes. Use the below command to create the pod:
kubectl create -f ubuntu-sleeper-3.yaml
Any deviation from quoted strings will trigger an error, reinforcing the importance of proper YAML syntax.
4. Updating a Pod That Is Not Directly Editable
Suppose you need to update the ubuntu-sleeper-3
pod, altering its sleep duration from 1200 seconds to 2000 seconds. Directly editing a running pod using a command like:
kubectl edit pod ubuntu-sleeper-3
may trigger an error because Kubernetes restricts modifications of most pod fields once created.
Best Practice
The recommended approach is to update your local pod manifest file and then perform a forced replace.
To force an update, use:
kubectl replace --force -f /tmp/kubectl-edit-2693604347.yaml
This command deletes the existing pod and creates a new one with the updated specifications. Note that termination may take some time as the container handles the kill signal.
5. Analyzing Dockerfiles and Container Startup Commands
Understanding Dockerfiles is crucial. Below are two examples that illustrate how the ENTRYPOINT
and CMD
instructions interact.
Dockerfile 1
Located at /root/webapp-color/Dockerfile
, this file contains:
FROM python:3.6-alpine
RUN pip install flask
COPY . /opt/
EXPOSE 8080
WORKDIR /opt
ENTRYPOINT ["python", "app.py"]
This Dockerfile instructs the container to run python app.py
on startup.
Dockerfile 2
The second file, /root/webapp-color/Dockerfile2
, uses a CMD
instruction along with the ENTRYPOINT
:
FROM python:3.6-alpine
RUN pip install flask
COPY . /opt/
EXPOSE 8080
WORKDIR /opt
ENTRYPOINT ["python", "app.py"]
CMD ["--color", "red"]
When a container is created from this image, it executes the entrypoint (python app.py
) followed by the CMD arguments (--color red
), resulting in:
python app.py --color red
6. Overriding Commands and Arguments in a Pod Manifest
In the webapp-color-2
directory, there are two files:
Dockerfile2:
FROM python:3.6-alpine RUN pip install flask COPY . /opt/ EXPOSE 8080 WORKDIR /opt ENTRYPOINT ["python", "app.py"] CMD ["--color", "red"]
webapp-color-pod.yaml:
apiVersion: v1 kind: Pod metadata: name: webapp-green labels: name: webapp-green spec: containers: - name: simple-webapp image: kodekloud/webapp-color command: ["--color", "green"]
Despite the Dockerfile specifying an ENTRYPOINT
and CMD
, the pod manifest overrides these settings by providing a new command. As a consequence, the container starts with the arguments --color green
and does not execute the original entrypoint command.
Overriding ENTRYPOINT
To override the ENTRYPOINT, you must use the --command
flag or specify a new command array that includes the entire command.
7. Combining Command and Arguments in a Pod Manifest
In the webapp-color-3
directory, similar files are used:
Dockerfile2:
FROM python:3.6-alpine RUN pip install flask COPY . /opt/ EXPOSE 8080 WORKDIR /opt ENTRYPOINT ["python", "app.py"] CMD ["--color", "red"]
webapp-color-pod-2.yaml:
apiVersion: v1 kind: Pod metadata: name: webapp-green labels: name: webapp-green spec: containers: - name: simple-webapp image: kodekcloud/webapp-color command: ["python", "app.py"] args: ["--color", "pink"]
Here, the pod manifest explicitly sets both the command and the arguments. The actual command executed by the container will be:
python app.py --color pink
This demonstrates the flexibility Kubernetes offers when combining command and argument settings.

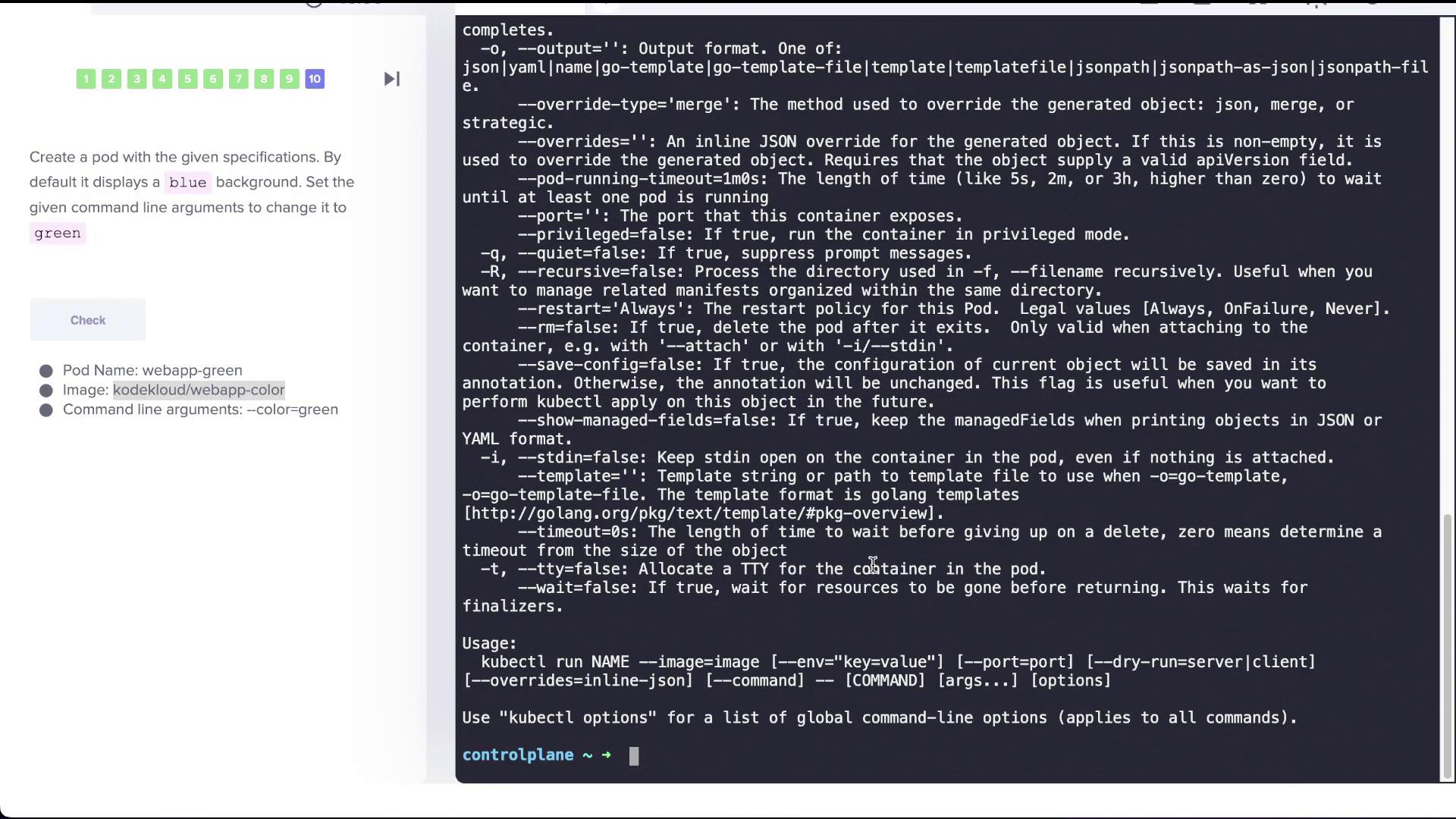

8. Creating a Pod with Overridden Application Arguments
The final task involves creating a pod using the image kodekloud/webapp-color
. By default, this image displays a blue background, but we want to override its startup arguments to display green.
Running the pod without overrides uses the default CMD:
kubectl run webapp-green --image=kodekloud/webapp-color
To override the default arguments and pass --color=green
, separate the options for kubectl
from those passed to the container using a double dash (--
):
kubectl run webapp-green --image=kodekloud/webapp-color -- --color=green
This command instructs Kubernetes to use the image’s default entrypoint (python app.py
) and pass the --color=green
argument to the container. Verify that the pod runs with the updated settings, resulting in a green background.
Conclusion
This lesson has covered several important practices in Kubernetes:
- Inspecting pod commands and arguments.
- Defining pod manifests with command arrays.
- Understanding the distinctions between
ENTRYPOINT
and CMD in a Dockerfile. - Overriding default commands and arguments at runtime using a pod manifest.
- Employing the double dash (
--
) to separatekubectl
options from container arguments.
Happy learning and keep exploring Kubernetes!
