Readiness Probes

Welcome to this comprehensive guide on observability in Kubernetes. In this guide, we explore readiness and liveness probes, logging, and monitoring concepts to help you build reliable applications.

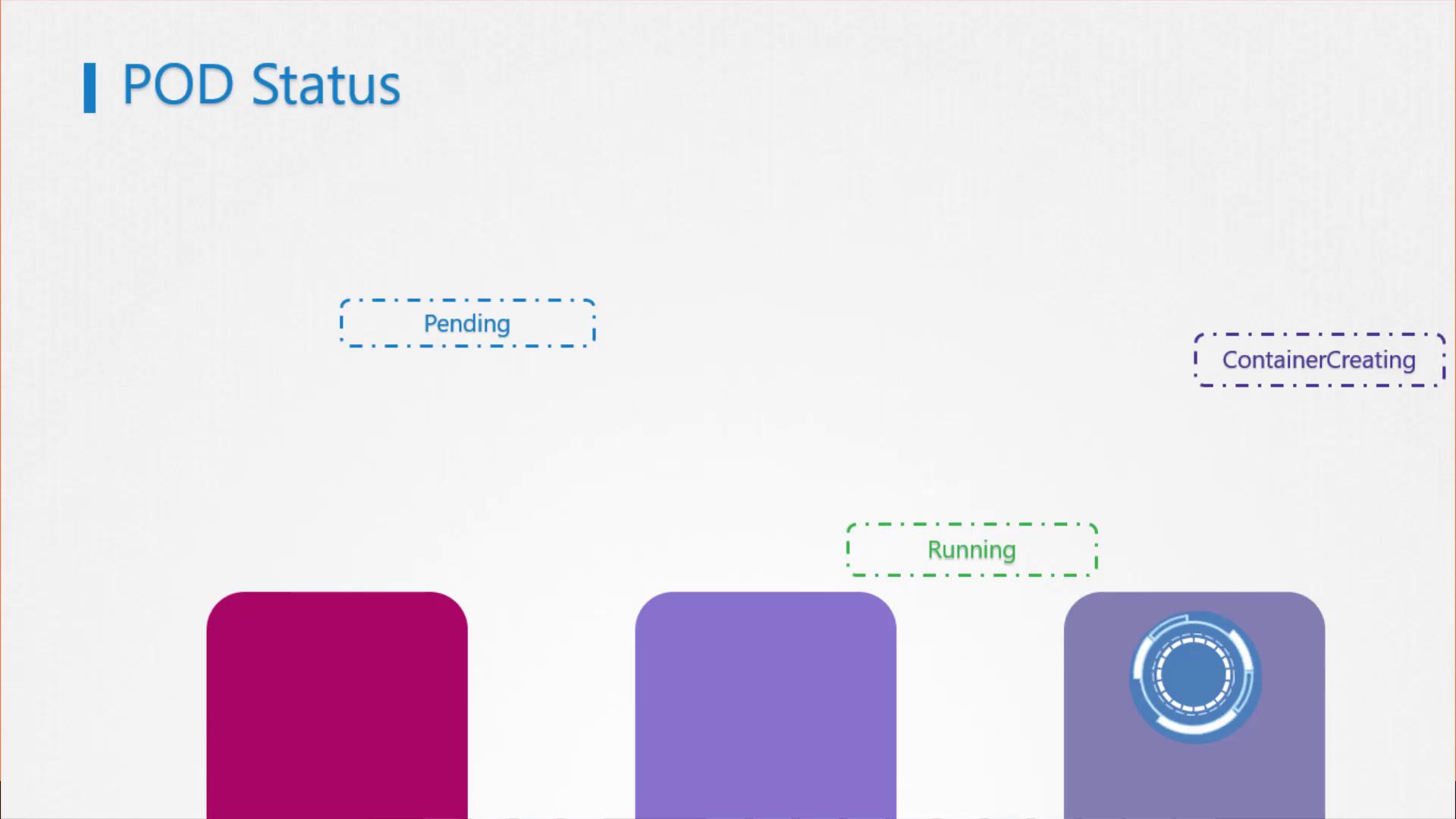

Below is a brief recap of the pod lifecycle stages, which is essential for understanding how readiness probes function:

• When a pod is first created, it enters a Pending state while the scheduler selects an appropriate node for placement. If no node is immediately available, the pod stays in the Pending state. Use kubectl describe pod to investigate any delays.
• After scheduling, the pod transitions to the ContainerCreating state as images are pulled and containers begin their startup process.
• Once all containers launch successfully, the pod moves into the Running state and remains there until the application completes execution or is terminated.

To view the current status of your pods, run the following command:

osboxes@kubemaster:~$ kubectl get pods
NAME                        READY   STATUS    RESTARTS   AGE
jenkins-566f687bf-c7nzf     1/1     Running   0          12m
nginx-65899c769f-9lzh       1/1     Running   0          6h
redis-b48685f8b-fbnmx       1/1     Running   0          6h

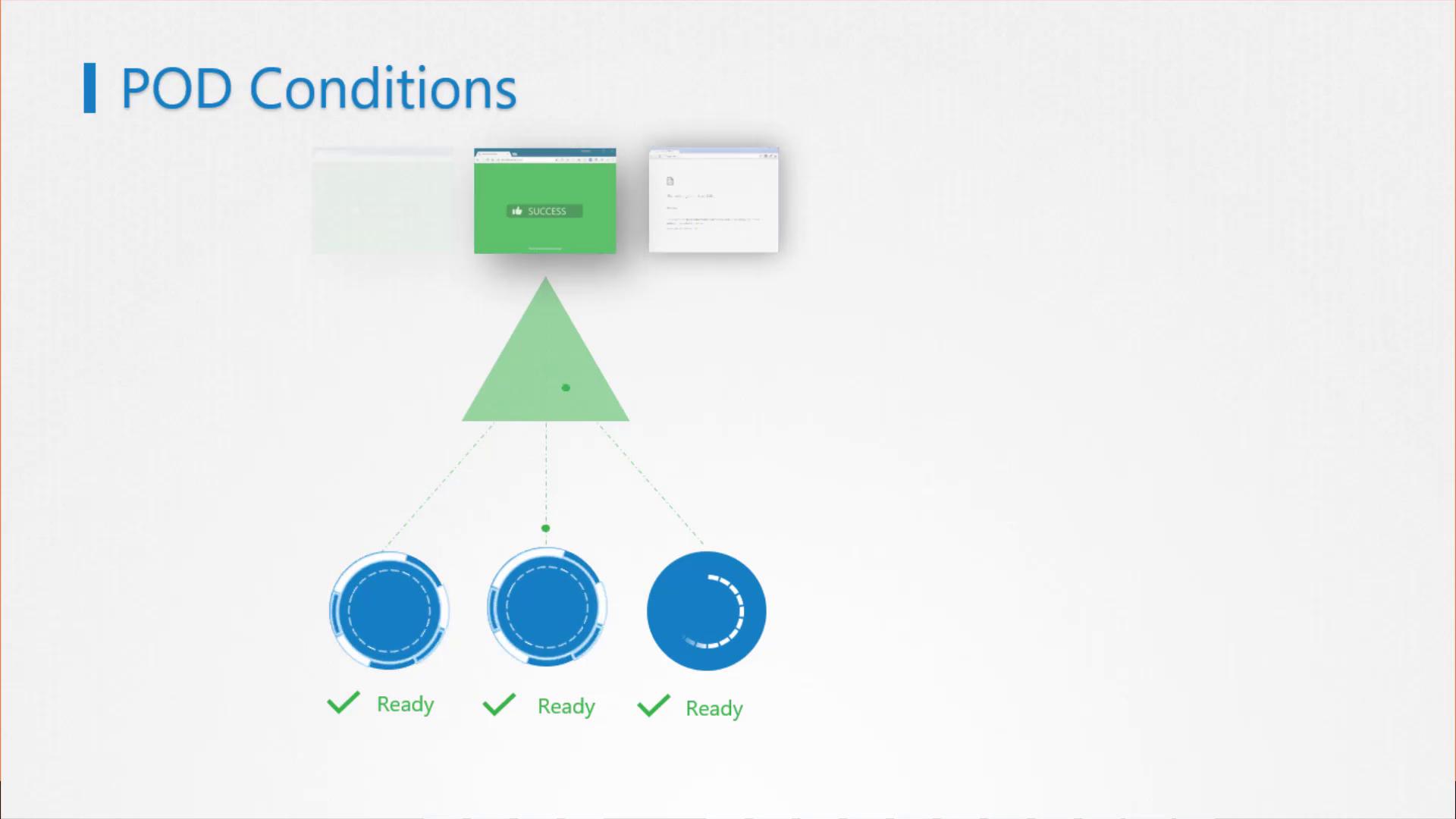

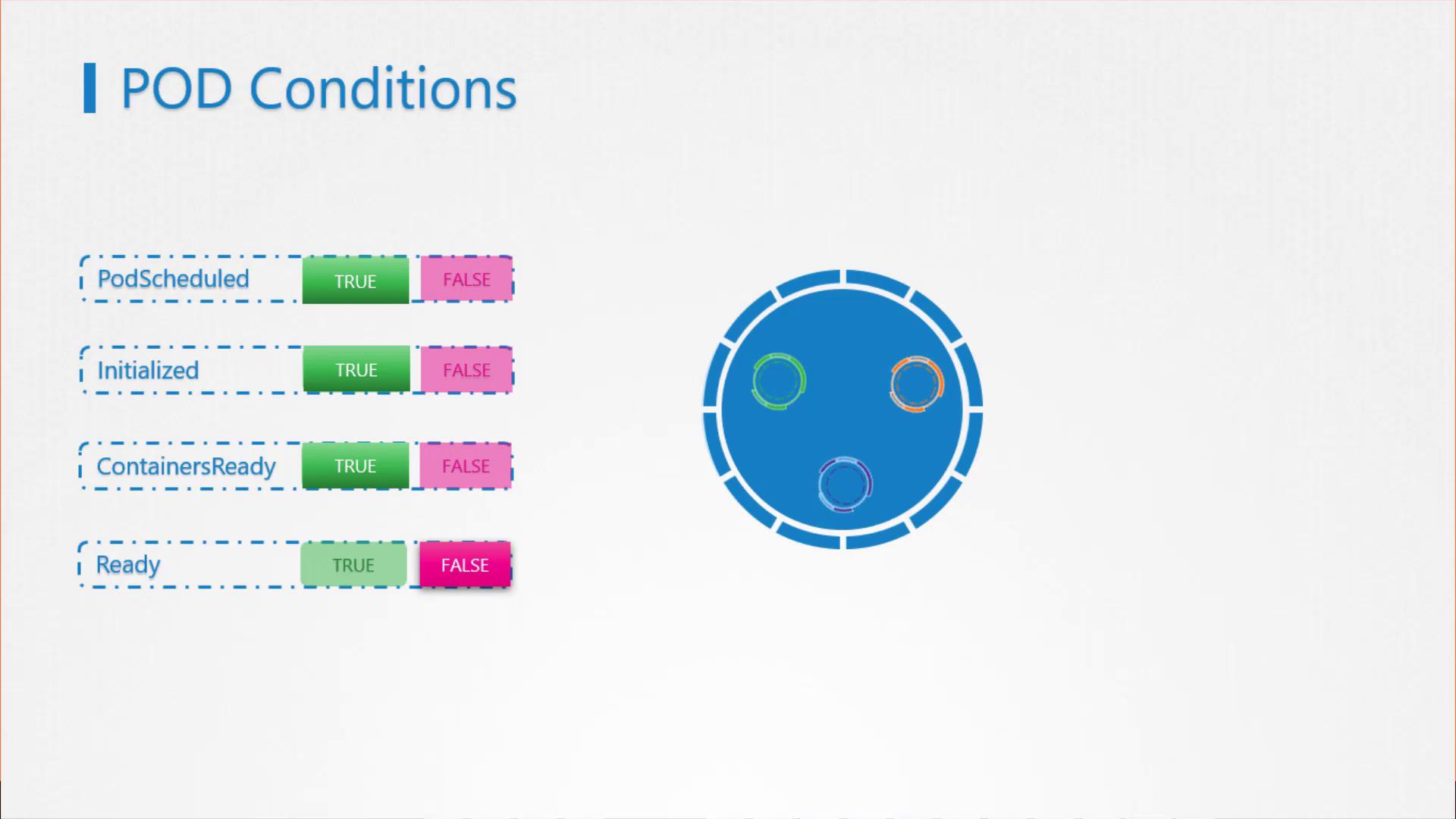

For more detailed insights, inspect the pod’s conditions. Initially, when a pod is scheduled, the "PodScheduled" condition becomes true. Following initialization, the "Initialized" condition is set to true, and finally, once all containers are ready, the "ContainersReady" condition is affirmed. When all these conditions are true, the pod is officially considered ready.

Examine these conditions by running:

osboxes@kubemaster:~$ kubectl describe pod <pod-name>

Additionally, the kubectl get pods command output reflects the ready state, confirming whether the application's components are fully operational:

osboxes@kubemaster:~$ kubectl get pods
NAME                                     READY   STATUS    RESTARTS   AGE
jenkins-566f687bf-c7nzf                  1/1     Running   0          12m
nginx-65899c769f-9lwzh                  1/1     Running   0          6h
redis-b48685f8b-fbnmx                    1/1     Running   0          6h

For example:

• A minimal script might be ready within milliseconds.
• A database service may take several seconds to become responsive.
• Complex web servers could require minutes to fully initialize.

A Jenkins server, for instance, might take 10 to 15 seconds to initialize followed by a brief warm-up period. Without suitable readiness checks, traffic might be erroneously routed to an unready pod:

osboxes@kubemaster:~$ kubectl get all
NAME          READY   STATUS    RESTARTS   AGE
pod/jenkins   1/1     Running   0          11s

Kubernetes relies on the pod’s ready condition to determine if it should receive traffic. By default, it assumes that container creation equates to readiness. This is where readiness probes are critically important—they help signal the true readiness of the application within the container.

As an application developer, you can define tests (probes) that confirm the application has reached a ready state. Examples include:

• An HTTP GET request to check API responsiveness for a web application.
• A TCP port check for database services.
• Executing a custom command that confirms the application is ready.

To configure a readiness probe, include the readinessProbe field in your pod specification. For an HTTP-based readiness probe, specify the endpoint path and port. For example:

apiVersion: v1
kind: Pod
metadata:
  name: simple-webapp
  labels:
    name: simple-webapp
spec:
  containers:
  - name: simple-webapp
    image: simple-webapp
    ports:
    - containerPort: 8080
    readinessProbe:
      httpGet:
        path: /api/ready
        port: 8080
      initialDelaySeconds: 10
      periodSeconds: 5
      failureThreshold: 8

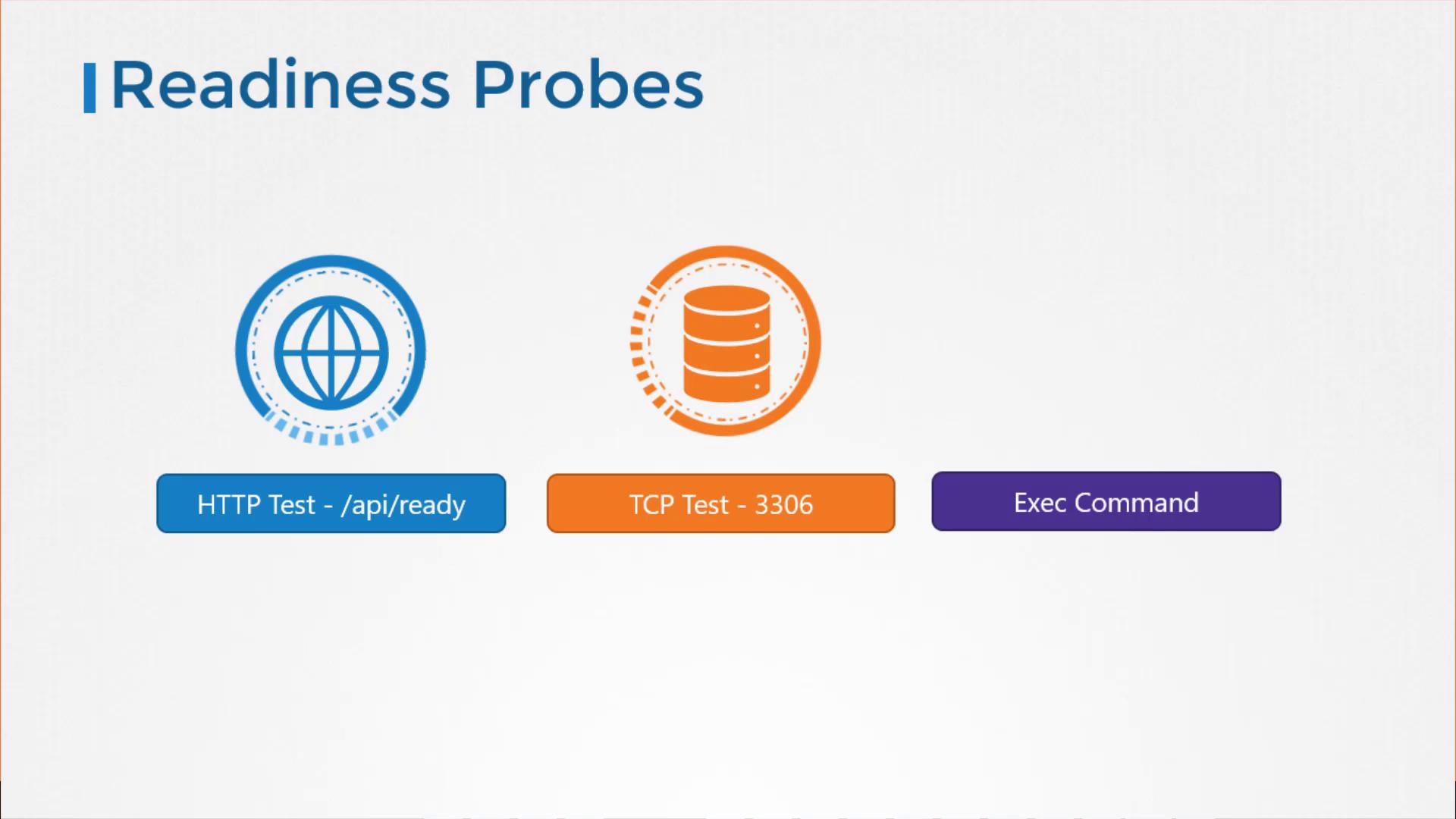

There are three primary types of readiness probes you can use:

1. HTTP GET Probe:

   readinessProbe:
     httpGet:
       path: /api/ready
       port: 8080


2. TCP Socket Probe:

   readinessProbe:
     tcpSocket:
       port: 3306


3. Exec Command Probe:

   readinessProbe:
     exec:
       command:
         - cat
         - /app/is_ready


In addition to the probe type, you can also configure parameters such as:

• initialDelaySeconds: The delay before the first probe.
• periodSeconds: How frequently the probe is executed.
• failureThreshold: The number of consecutive failures that trigger the pod to be marked as not ready.

Now, consider a multi-pod setup under a ReplicaSet or Deployment. When scaling up, a new pod might take a minute or more to warm up. Without properly configured readiness probes, traffic could be routed to a pod that isn't fully ready, leading to potential service disruptions.

That concludes our discussion on readiness probes. To further reinforce these concepts, we encourage you to practice with the available labs and exercises. For more details on Kubernetes observability, refer to the Kubernetes Documentation.

Happy probing!
