KubeConfig

Welcome to this guide on kubeconfig files in Kubernetes. In this article, we will explore how kubeconfig files streamline authentication and context management for kubectl, enhancing your workflow by reducing repetitive command-line options.

So far, you learned how to generate a certificate for a user and how a client can use the certificate file and key to query the Kubernetes REST API. For example, assume your cluster is named "my kube playground." You can send a curl request to the Kubernetes API server with the client certificate, key, and CA certificate:

curl https://my-kube-playground:6443/api/v1/pods \
  --key admin.key \
  --cert admin.crt \
  --cacert ca.crt

The API server validates the certificate and responds with output similar to:

{
  "kind": "PodList",
  "apiVersion": "v1",
  "metadata": {
    "selfLink": "/api/v1/pods"
  },
  "items": []
}

When using kubectl, you normally pass the same connection information with the corresponding options:

kubectl get pods \
  --server my-kube-playground:6443 \
  --client-key admin.key \
  --client-certificate admin.crt \
  --certificate-authority ca.crt

This command might return:

No resources found.

Typing these options every time can become tedious. To simplify your workflow, you can move the connection details into a configuration file known as a kubeconfig file. By default, kubectl looks for a file named config under the .kube directory in your home directory. If the kubeconfig file is in its default location, you don’t have to specify connection options for each command:

kubectl get pods

Kubeconfig Structure

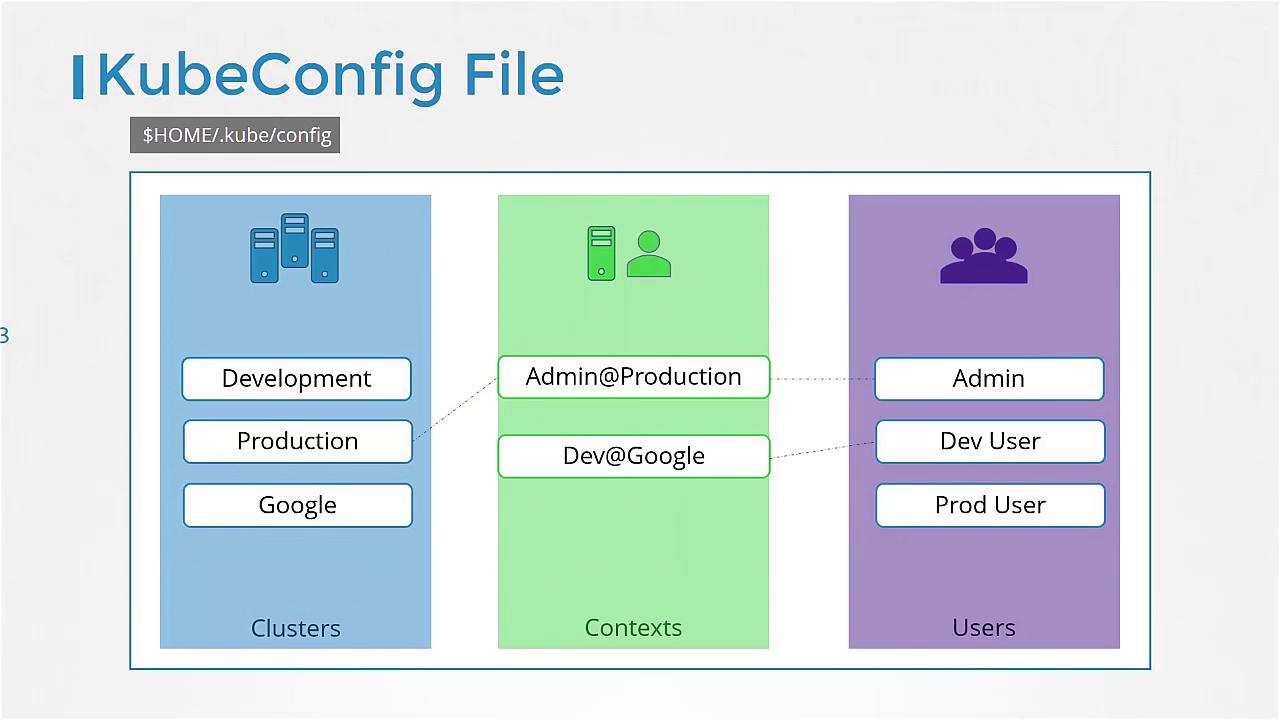

The kubeconfig file is organized into three primary sections:

• Clusters: Define the various Kubernetes clusters you need access to. You might have separate clusters for development, testing, production, or different cloud providers.
• Users: Define the user accounts holding credentials (such as client certificates and keys) needed to access these clusters.
• Contexts: Link clusters and users together. A context specifies which user credentials should be used to access a particular cluster. For example, you could have a context called “admin@production,” which uses the admin user’s credentials for the production cluster.

These components work together to streamline connectivity and authentication in your Kubernetes environment.

In our example, the server address and CA certificate information belong in the clusters section, while the admin user’s keys and certificates go in the users section. A context then binds these settings together. Below is a sample kubeconfig file in YAML format:

apiVersion: v1
kind: Config
clusters:
- name: my-kube-playground  # values hidden for brevity
- name: development
- name: production
- name: google
contexts:
- name: my-kube-admin@my-kube-playground
- name: dev-user@google
- name: prod-user@production
users:
- name: my-kube-admin
- name: admin
- name: dev-user
- name: prod-user

Note that you do not create Kubernetes objects for these configurations. Instead, kubectl reads this file to obtain the necessary connection details.

kubectl selects a context from the kubeconfig based on the current-context field. For example, if you set:

current-context: my-kube-admin@my-kube-playground

kubectl will default to that context. Alternatively, you can specify a different kubeconfig file from the command line using the --kubeconfig flag:

kubectl config view --kubeconfig=my-custom-config

Default Kubeconfig Example

An example output of the default kubeconfig file might be:

apiVersion: v1
kind: Config
current-context: kubernetes-admin@kubernetes
clusters:
- cluster:
    certificate-authority-data: REDACTED
    server: https://172.17.0.5:6443
  name: kubernetes
contexts:
- context:
    cluster: kubernetes
    user: kubernetes-admin
  name: kubernetes-admin@kubernetes
users:
- name: kubernetes-admin
  user:
    client-certificate-data: REDACTED
    client-key-data: REDACTED

And when using a custom config file:

kubectl config view --kubeconfig=my-custom-config
apiVersion: v1
kind: Config
current-context: my-kube-admin@my-kube-playground
clusters:
- name: my-kube-playground
- name: development
- name: production
contexts:
- name: my-kube-admin@my-kube-playground
- name: prod-user@production
users:
- name: my-kube-admin
- name: prod-user

Switching Contexts

To switch your current context—for example, changing from the my-kube-admin account on the playground cluster to the prod-user account on the production cluster—use the kubectl config use-context command:

kubectl config use-context prod-user@production

After running this command, your current-context in the kubeconfig file updates to prod-user@production. You can verify the change by viewing the configuration:

apiVersion: v1
kind: Config
current-context: prod-user@production
clusters:
- name: my-kube-playground
- name: development
- name: production
contexts:
- name: my-kube-admin@my-kube-playground
- name: prod-user@production
users:
- name: my-kube-admin
- name: prod-user

Additional variations of the kubectl config command let you update or delete entries within the kubeconfig file as needed.

Configuring Namespaces

Each Kubernetes cluster can span multiple namespaces. You can designate a default namespace within a context so that switching contexts automatically sets the working namespace. For example, here is a configuration for the production cluster that sets "finance" as the default namespace:

apiVersion: v1
kind: Config
clusters:
- name: production
  cluster:
    certificate-authority: ca.crt
    server: https://172.17.0.51:6443
contexts:
- name: admin@production
  context:
    cluster: production
    user: admin
    namespace: finance
users:
- name: admin
  user:
    client-certificate: admin.crt
    client-key: admin.key

When you switch to the admin@production context, kubectl will automatically use the finance namespace.

Working with Certificates in Kubeconfig

The kubeconfig file typically references certificate file paths. For clarity and robustness, it is best practice to use the full path to each certificate. Alternatively, you can embed the certificate data directly into the file by base64-encoding the certificate. For instance, instead of defining:

apiVersion: v1
kind: Config
clusters:
- name: production
  cluster:
    certificate-authority: /etc/kubernetes/pki/ca.crt

you can embed the certificate data:

apiVersion: v1
kind: Config
clusters:
- name: production
  cluster:
    certificate-authority-data: LS0tLS1CRUdJTiBDRVJU...

If you encounter certificate data in base64 format and need to decode it, use the following command:

echo "LS0t...bnJ" | base64 --decode

This command will output the certificate in its standard PEM format:

-----BEGIN CERTIFICATE-----
MIICDCCAuCAQAoA...AIBDwAw...-----END CERTIFICATE-----

Summary

In this article, we covered how kubeconfig files simplify connection management for Kubernetes by consolidating user credentials, cluster details, and context settings into a single file. Use this knowledge to streamline your kubectl commands and manage multiple Kubernetes environments effectively.

Next, apply these concepts by creating and troubleshooting your kubeconfig files to enhance your Kubernetes workflow.
