Certificates API

Welcome to this lesson on managing certificates and exploring the Kubernetes Certificates API. In this guide, you’ll learn how Kubernetes automates certificate signing, rotation, and how it integrates with cluster security.

When setting up a Kubernetes cluster, administrators initially configure a Certificate Authority (CA) server to generate certificates for various components. After assigning these certificates to the services, the cluster operates securely. As the cluster administrator, you already have your own certificate and key pair. However, when a new administrator joins your team, they need their own certificate and key to access the cluster. The process involves the new user generating a private key, creating a certificate signing request (CSR), and sending it to you. You then use the CA server—which signs the CSR using its private key and root certificate—to generate a certificate for the user. Note that certificates have a validity period and may require periodic renewal, a process known as certificate rotation.

In many Kubernetes setups, such as those created with kubeadm, these CA files are stored on the master node.

Automating Certificate Management with the Certificates API

Traditionally, signing requests were handled manually. However, as the size of teams and clusters grows, automation becomes essential. Kubernetes introduces a built-in Certificates API to streamline handling certificate signing requests (CSRs) and to automate certificate rotation.

Instead of logging into the master node to sign certificates manually, administrators can now create a Kubernetes object called "CertificateSigningRequest" to submit CSRs directly to the API. This object is visible to cluster administrators, making it easy to review, approve, and manage CSRs using simple kubectl commands.

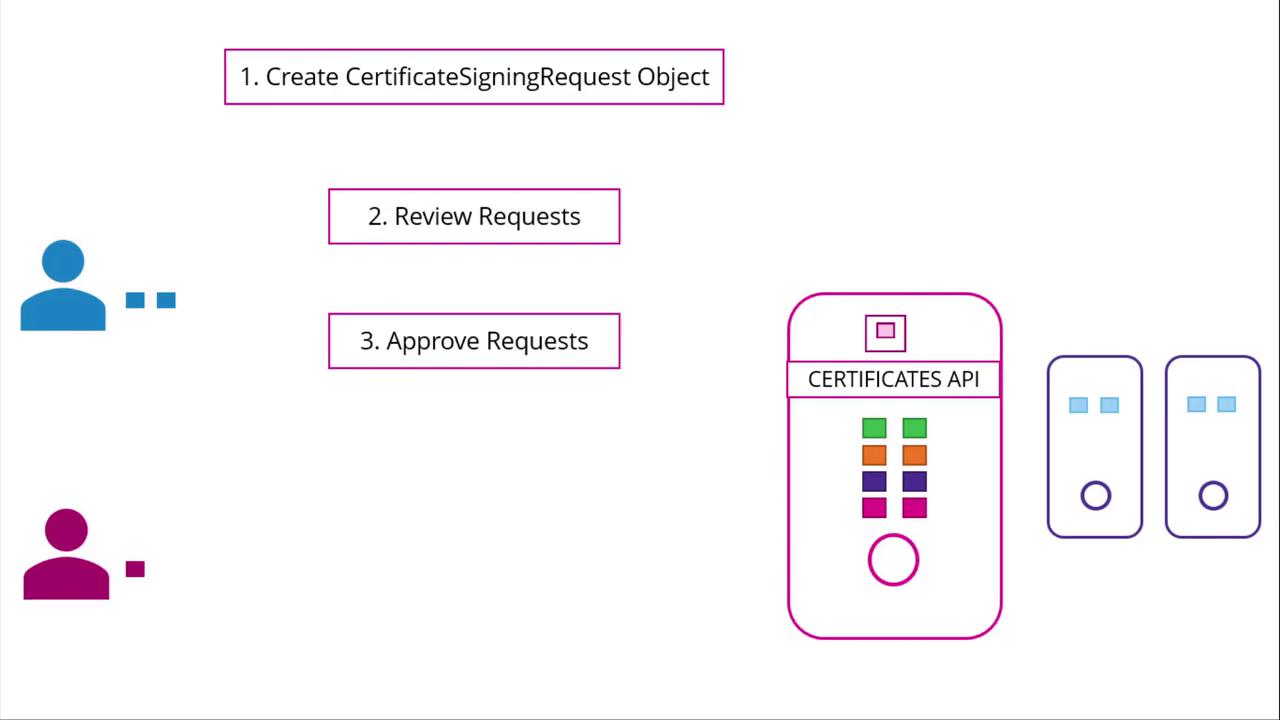

The following diagram illustrates the automated process:

Step-by-Step Process

1. Generate a Private Key and CSR

   A user, such as Jane, first creates a private key and generates a CSR with their details. Run the following commands:

   openssl genrsa -out jane.key 2048
   openssl req -new -key jane.key -subj "/CN=jane" -out jane.csr


   The generated CSR (jane.csr) will have a structure similar to:

   -----BEGIN CERTIFICATE REQUEST-----
   MIICWDCCCAAwE...dhk
   -----END CERTIFICATE REQUEST-----


2. Submit the CSR to the Administrator

   The user sends the generated CSR to the administrator. The administrator then creates a Kubernetes CSR object with a manifest file. Under the spec section, specify the groups the user qualifies for and the intended usages of the certificate. Make sure to Base64-encode the CSR before including it in the request field. Here’s an example manifest:

   apiVersion: certificates.k8s.io/v1beta1
   kind: CertificateSigningRequest
   metadata:
     name: jane
   spec:
     groups:
     - system:authenticated
     usages:
     - digital signature
     - key encipherment
     - server auth
     request: <base64-encoded-CSR>


   Replace <base64-encoded-CSR> with your actual Base64-encoded CSR output. Once this manifest is applied, you can review all pending CSRs.

3. Review Pending CSRs

   To view pending certificate signing requests, use the following command:

   kubectl get csr


   The output may look like:

   NAME   AGE   REQUESTOR           CONDITION
   jane   10m   [email protected]   Pending


4. Approve the CSR

   After thorough review, approve the request by running:

   kubectl certificate approve jane


   Kubernetes will then sign the certificate using the CA key pair.

5. Retrieve the Signed Certificate

   To view the signed certificate in YAML format, execute:

   kubectl get csr jane -o yaml


   The signed certificate appears in Base64-encoded format in the YAML output. Decode it using Base64 utilities and share the decoded certificate with the end user.

   Below is an example of a CSR object with its signed certificate in the status field:

   apiVersion: certificates.k8s.io/v1beta1
   kind: CertificateSigningRequest
   metadata:
     creationTimestamp: 2019-02-13T16:36:43Z
     name: new-user
   spec:
     groups:
     - system:masters
     - system:authenticated
     usages:
     - digital signature
     - key encipherment
     - server auth
     username: kubernetes-admin
   status:
     certificate: |
       L$0tS1CRUdJTiBDRVJUSUZJQ09FURS0tL0tCk1SURDakNDQWL
       Z0F3SUJBZ0lVRmwyQ2wxyXYoawl5M3JNVisreFRQUW0uJ3dnd0R
       Wplb1JaHZjTkFRRUkQlfBd0ZURVRNQkVHQTlRVU4FUtHMlZpw
       lKdVpMjkE9UQX1NVE14TmpNeU1QmFGd1dnY0ZFEl2ajNuSyX
       2dFsD1IRmS5u041c0tS0Z0vXUwzTFM5VZ96hlZ0dWCmIEZ2F
       OMWVRMFBXThJ9N0FvNjVwJclWk1weEVHTkVRU5tdulB1NiwH
       S1h6a61d9DwMEd1MGUQYFKWK1WkVmjbVRfcY3dd2xi0C1i9Dk
       L0tLS0tL1FkTQgOVSVELG5UNVE8=
     conditions:
     - lastUpdateTime: 2019-02-13T16:37:21Z
       message: This CSR was approved by kubectl certificate approve.
       reason: KubectlApprove
       type: Approved


Certificate Management in the Kubernetes Control Plane

The Kubernetes control plane components, including the kube-apiserver, scheduler, and controller manager, coordinate to manage cluster operations. Certificate-related operations, such as CSR approval and signing, are performed by the controller manager through dedicated controllers.

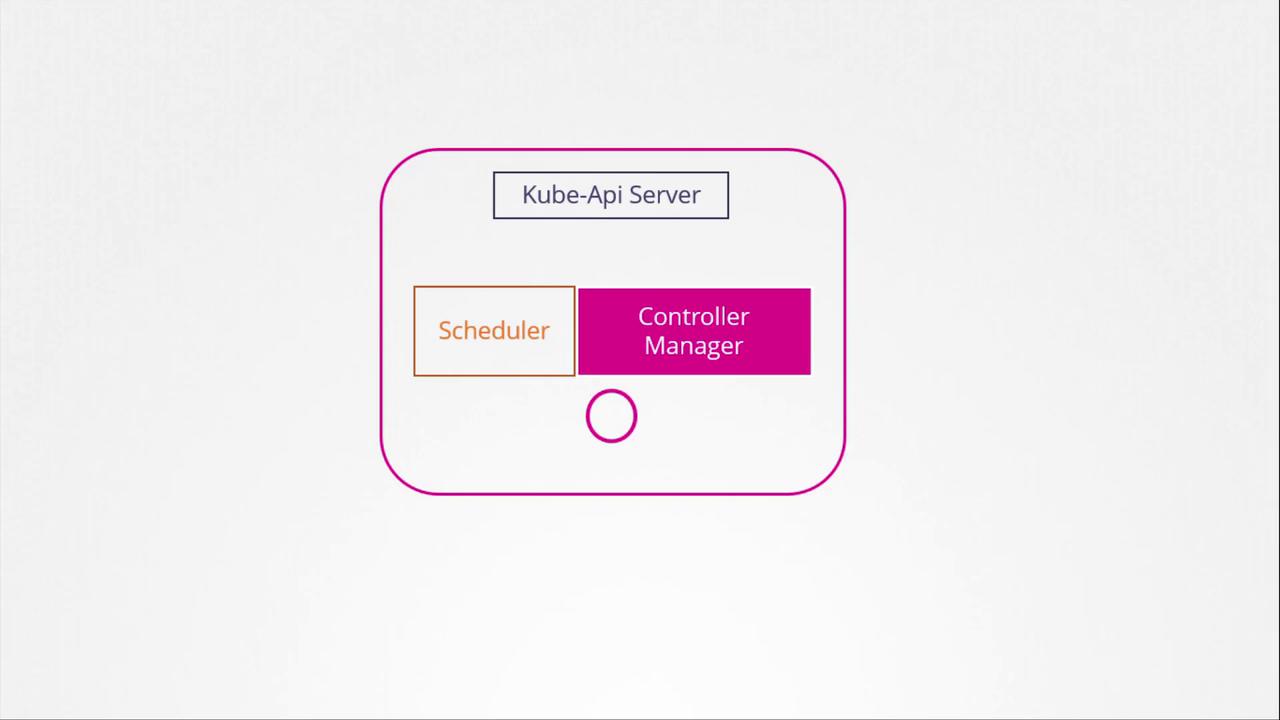

The diagram below shows the controller manager as part of the Kubernetes architecture:

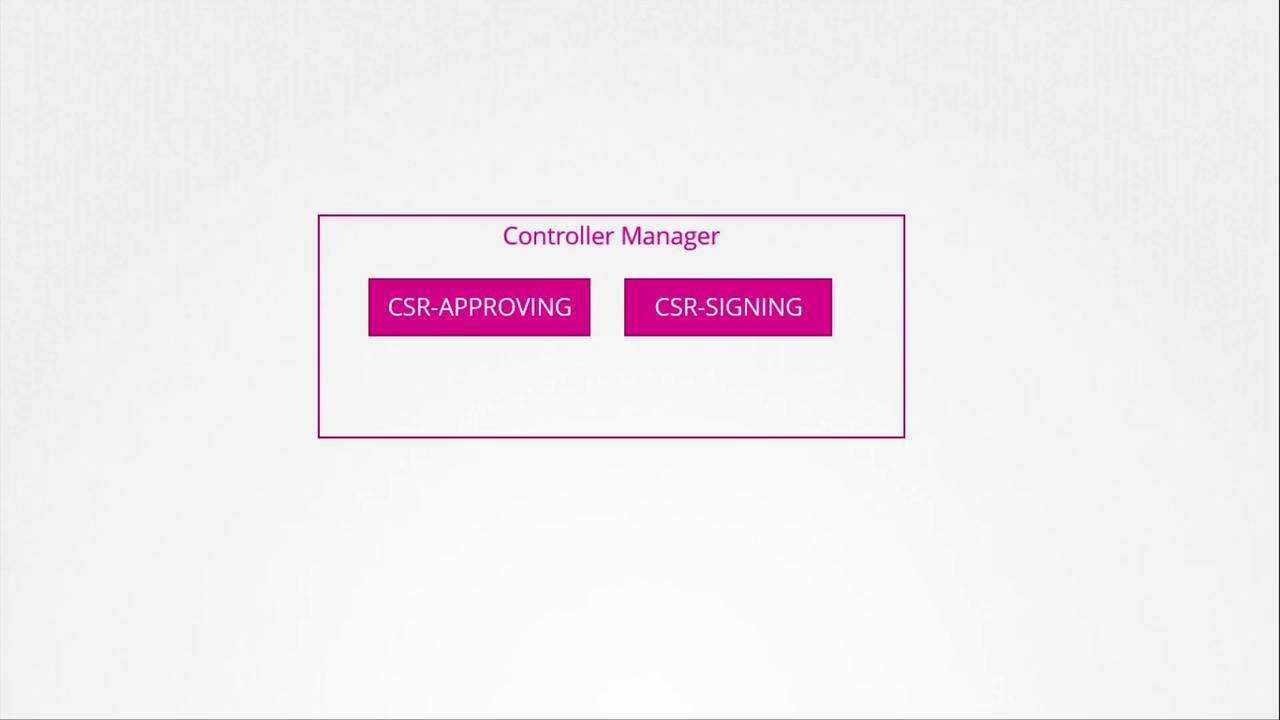

A closer look at the certificate operations of the controller manager is presented in the following diagram:

The controller manager requires the CA’s root certificate and private key, which are specified in its configuration. Here’s an excerpt from the configuration file:

spec:
  containers:
    - command:
      - kube-controller-manager
      - --address=127.0.0.1
      - --cluster-signing-cert-file=/etc/kubernetes/pki/ca.crt
      - --cluster-signing-key-file=/etc/kubernetes/pki/ca.key
      - --controllers=*,bootstrapsigner,tokencleaner
      - --kubeconfig=/etc/kubernetes/controller-manager.conf
      - --leader-elect=true
      - --root-ca-file=/etc/kubernetes/pki/ca.crt
      - --service-account-private-key-file=/etc/kubernetes/pki/sa.key
      - --use-service-account-credentials=true

This configuration ensures the controller manager can securely sign certificates and manage certificate lifecycles.

That concludes our lesson on the Kubernetes Certificates API. For further hands-on practice with certificate management, head over to our practice test section and deepen your understanding.

See you in the next lesson!
