Levels of Isolation in Kubernetes Namespace Pod Node

In this lesson, we explore the multiple layers of isolation in Kubernetes. We focus on how workloads, teams, or customers sharing the same cluster can operate securely without interfering with one another. Kubernetes offers isolation at different levels, each with varying trade-offs in implementation effort, operational complexity, and cost.

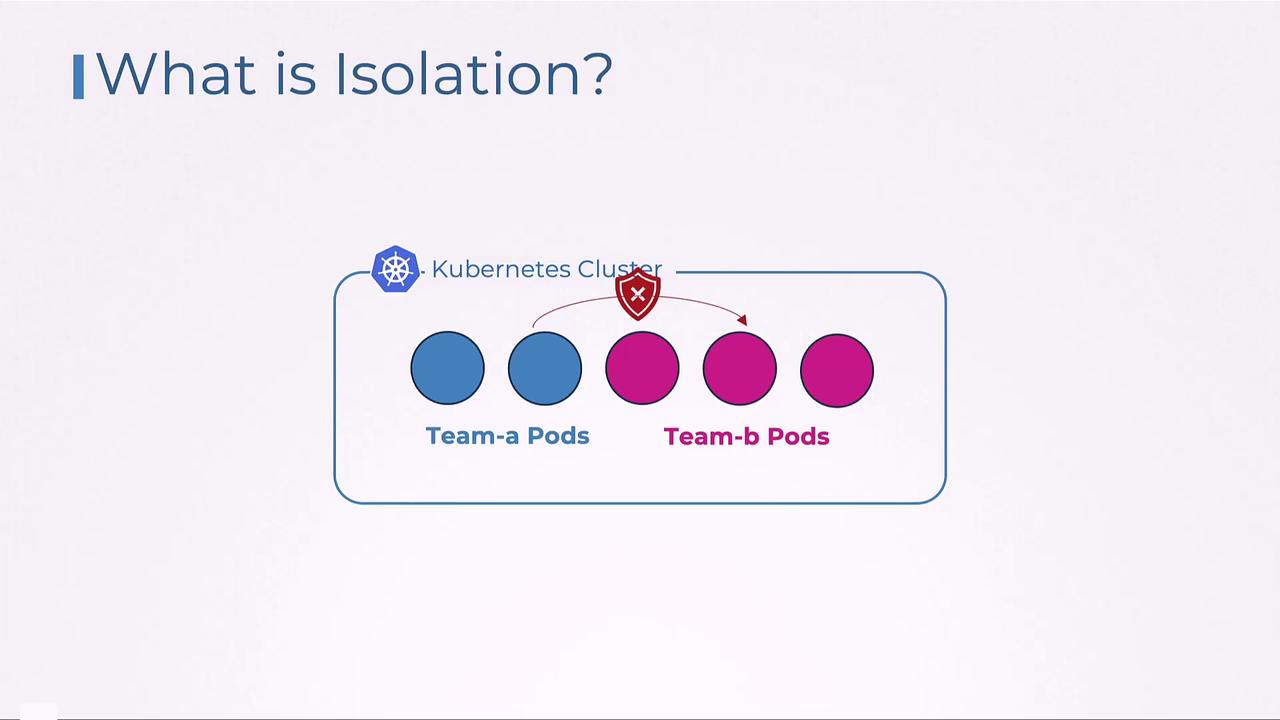

Imagine a Kubernetes cluster where different teams—say, Team A and Team B—deploy their own pods. Without proper isolation, a pod from one team might inadvertently or maliciously access or interfere with the pods of another team, such as gaining access to a team’s database.

Kubernetes achieves tenant isolation across both the control plane and the data plane:

• Control Plane Isolation: Implemented using namespaces and access control mechanisms such as Role-Based Access Control (RBAC).
• Data Plane Isolation: Managed via network policies, storage isolation, and node isolation.

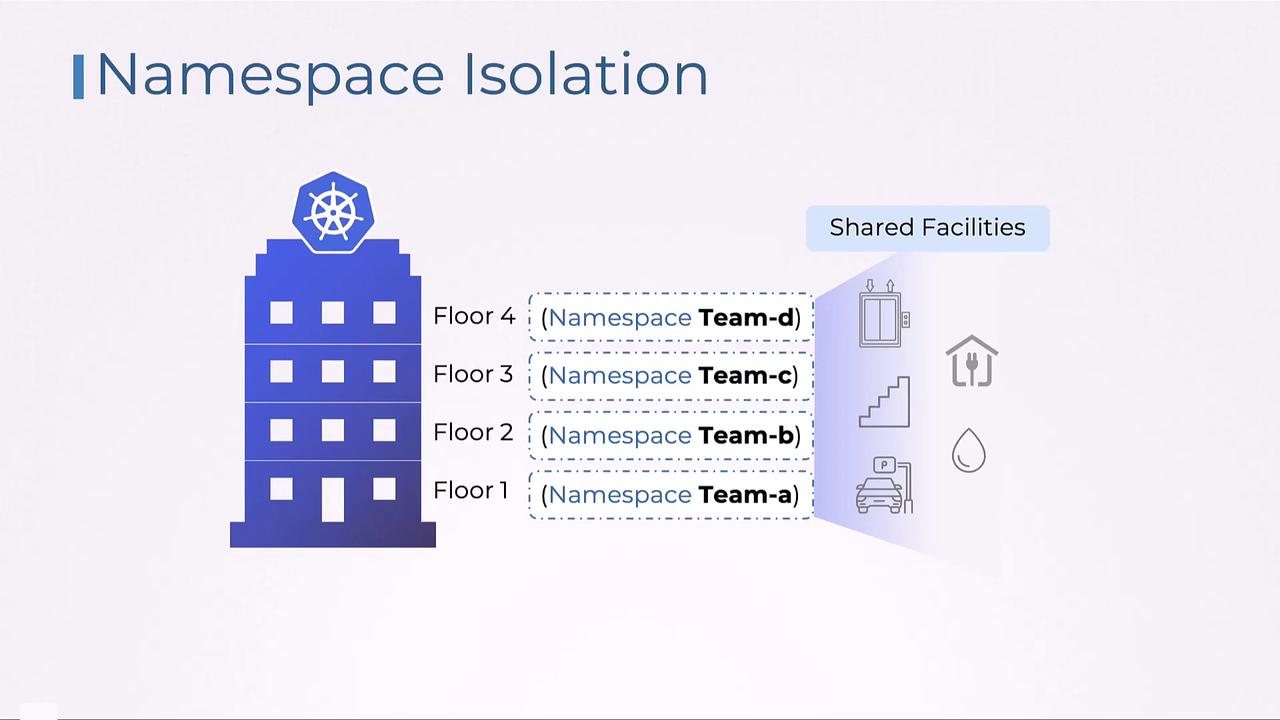

Namespace Isolation

Think of namespaces as different office spaces within a large building. Each team, department, or customer is allocated its own office with dedicated resources, but they still share common infrastructure like electricity and water. In Kubernetes, namespaces allow each team to have isolated resources without affecting other teams.

Within these namespaces, RBAC acts like key cards in an office building—granting employees different levels of access based on their roles. Managers might have broad access, while regular team members have limited access to only their designated areas.

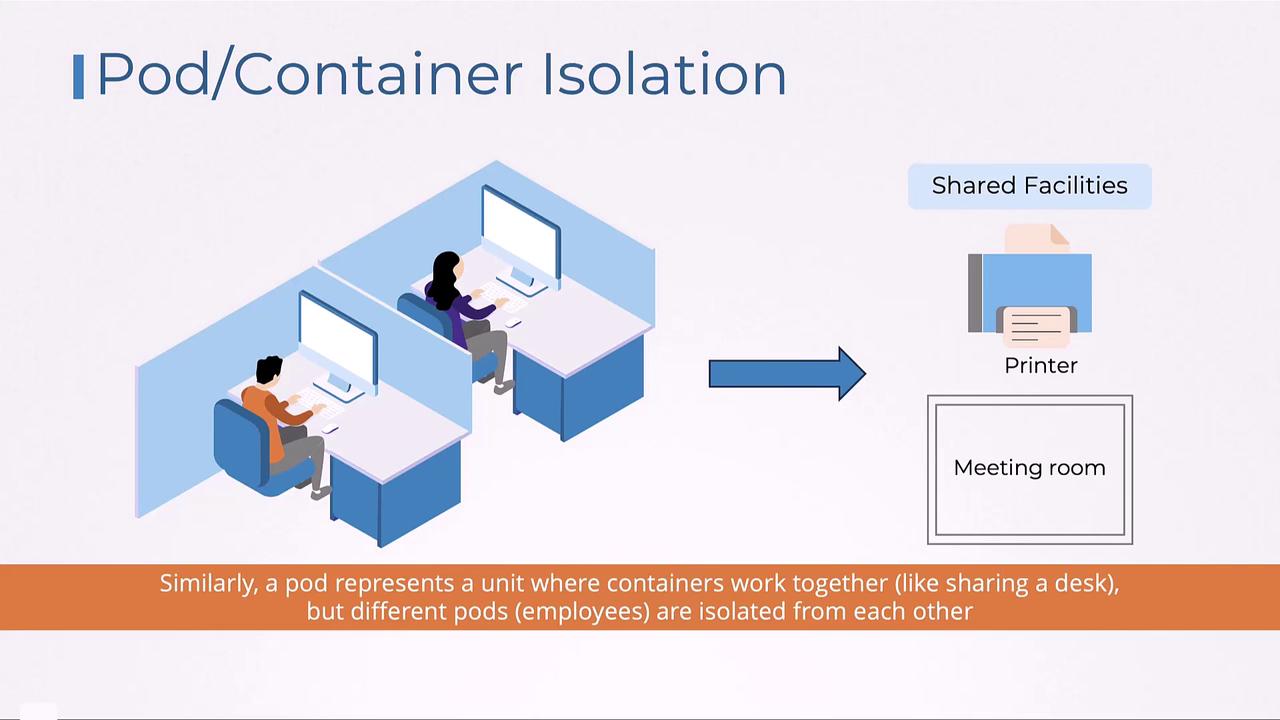

Pod Isolation

Within each namespace, pods serve as individual workspaces. A pod is a set of one or more containers that closely share resources, similar to employees sharing a desk workspace. Although containers within a pod collaborate, different pods remain isolated to securely allocate resources and limit interference.

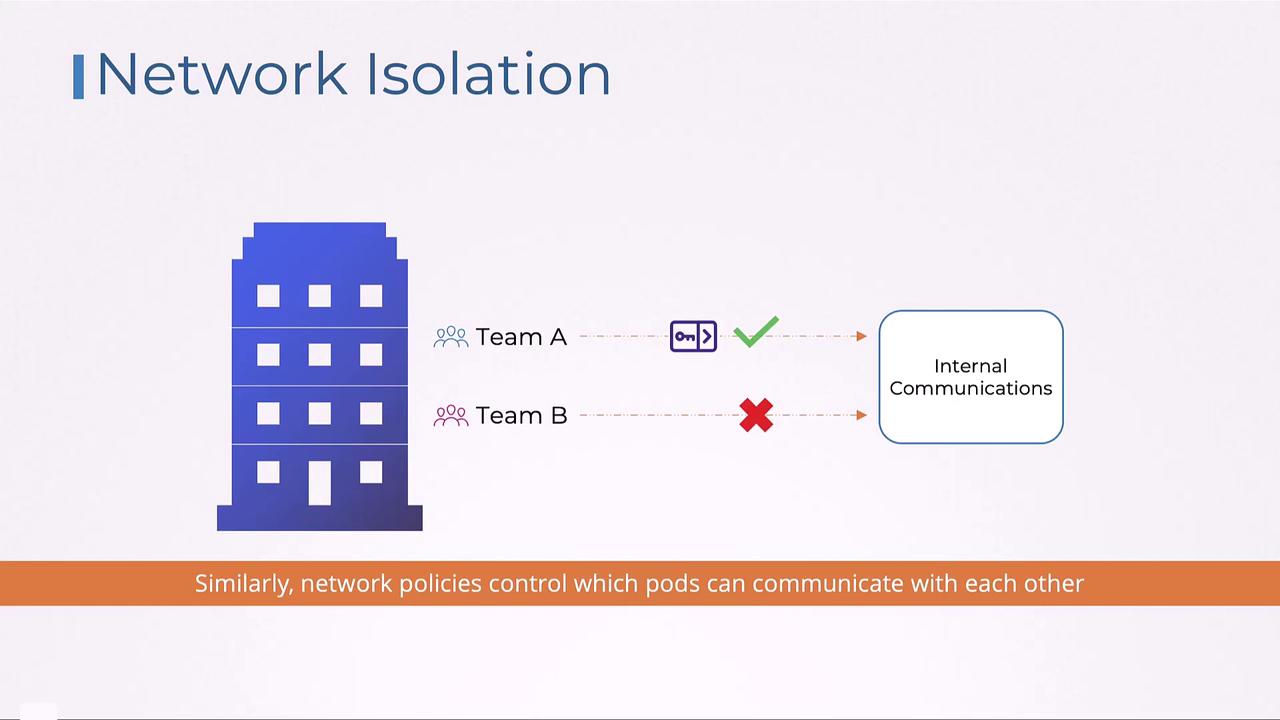

Network Isolation

Just as an office building might have exclusive meeting rooms or secure network segments, Kubernetes employs network policies to restrict communication between pods. These rules ensure that only allowed pods interact, maintaining security within the internal network.

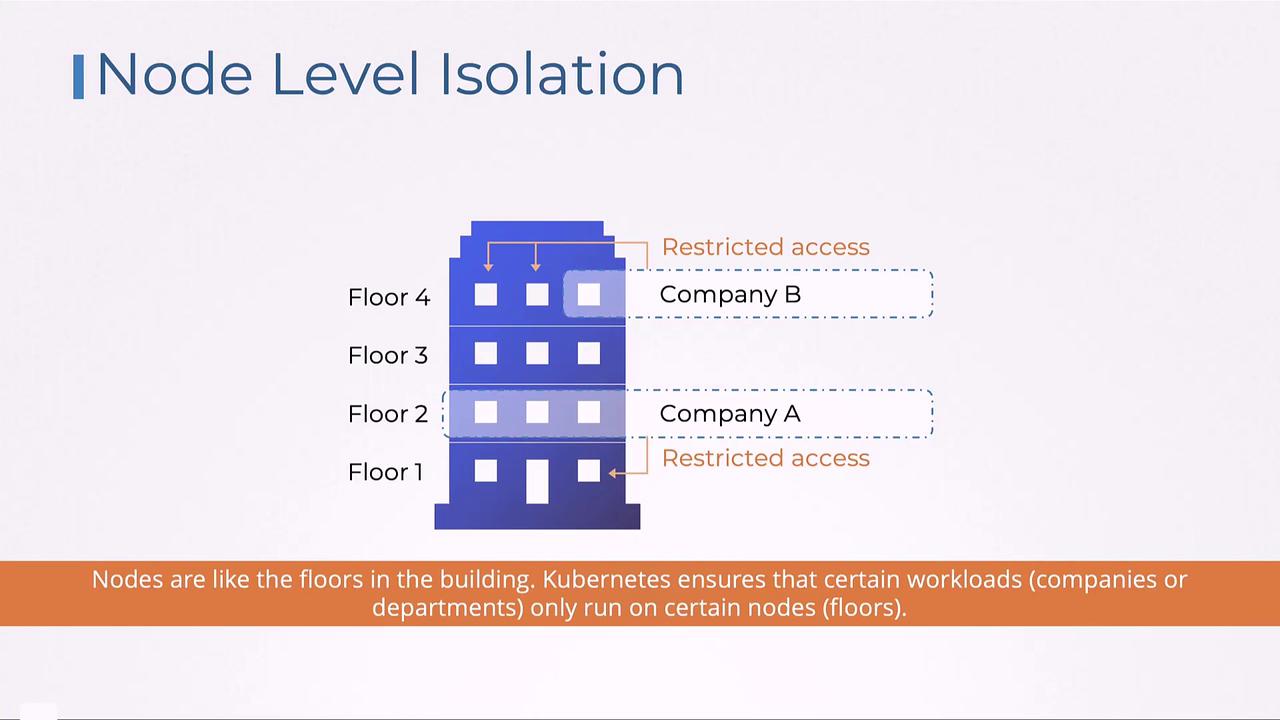

Node Isolation

Nodes in a Kubernetes cluster can be compared to floors in a building. Each floor (node) can host multiple teams under strict access policies or, in some cases, be dedicated entirely to a single team. This approach further enforces isolation at the infrastructure level.

Hard Isolation vs. Soft Isolation

Kubernetes supports two primary models of tenant isolation:

Hard Isolation

Hard isolation involves dedicating physical or virtual infrastructure to each tenant so that compute, storage, and networking resources are not shared. This model guarantees complete segregation of workloads.

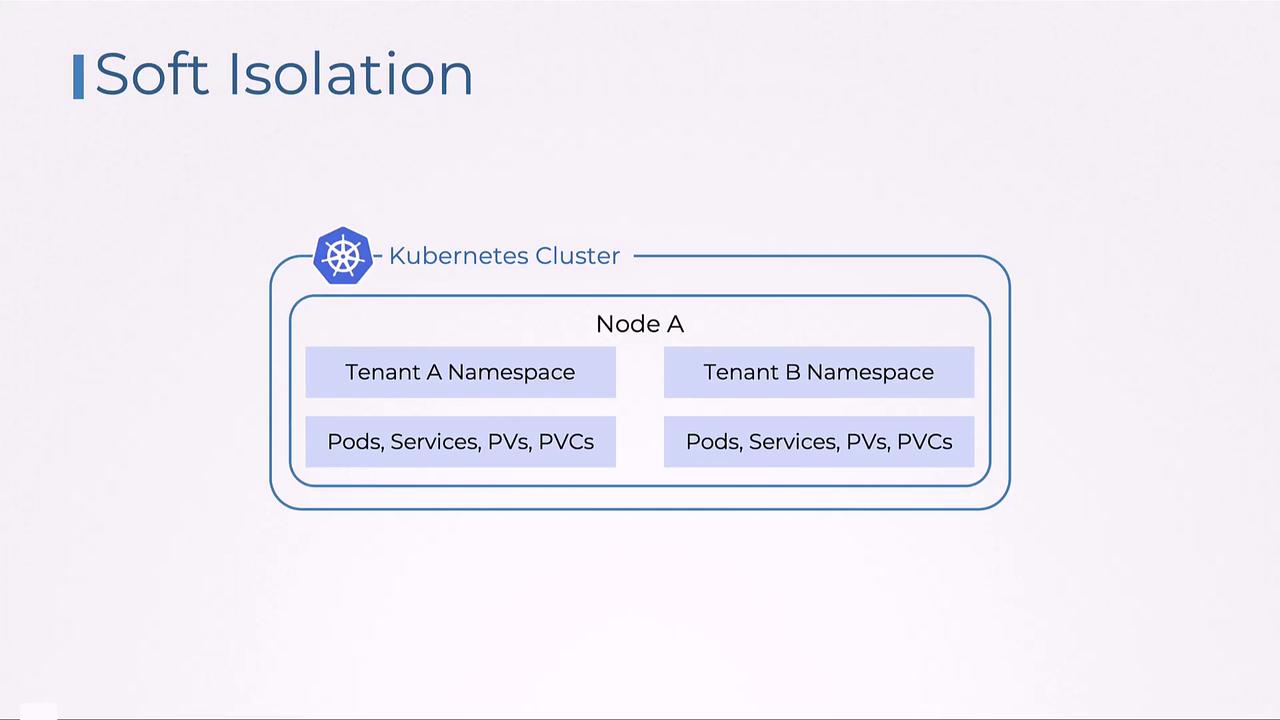

Soft Isolation

Soft isolation, on the other hand, allows tenants to share the underlying infrastructure while enforcing logical separations using namespaces. Resource quotas and limits prevent any single tenant from consuming too much of the cluster’s resources, and network policies continue to define clear communication boundaries.

Conclusion

Kubernetes provides a robust framework for isolating workloads through namespaces, RBAC, network policies, and node-level controls. Whether employing hard isolation with dedicated infrastructure or soft isolation through shared resources with logical segmentation, Kubernetes ensures that multiple tenants can coexist securely and efficiently within the same environment.
