What is an Availability Zone AZ

In this lesson, we’ll explore AWS Availability Zones (AZs), how they differ from Regions, and why they’re fundamental for designing resilient, highly available cloud architectures. We’ll also preview a Fault Injection Simulation of an AZ power interruption.

Availability Zones vs. Regions

An AWS Region is a geographically isolated area containing multiple, physically separate Availability Zones. Each AZ has its own power, cooling, and network infrastructure, minimizing correlated failures.

Key characteristics:

Region: A collection of AZs in the same geographic area (e.g., US West – Northern California us-west-1).
AZ: A standalone data center within a region, labeled like us-west-1a, us-west-1b, us-west-1c.

Benefits of separating workloads across AZs:

Fault tolerance: If one AZ suffers a power failure, other AZs in the same region continue operating normally.
Isolation from regional disasters: An earthquake affecting one region won’t impact other AWS Regions.

Depending on your application’s high-availability requirements, you can choose to:

Replication Type	Description	AWS Service Examples
Cross-AZ replication	Distribute data within the same region	S3, RDS Multi-AZ
Cross-region replication	Distribute data across different geographic regions	S3 Cross-Region Replication, RDS Read Replica

Note

By default, AWS resources are created in the region you select. To replicate resources across regions, you must enable features like S3 Cross-Region Replication or RDS Read Replicas.

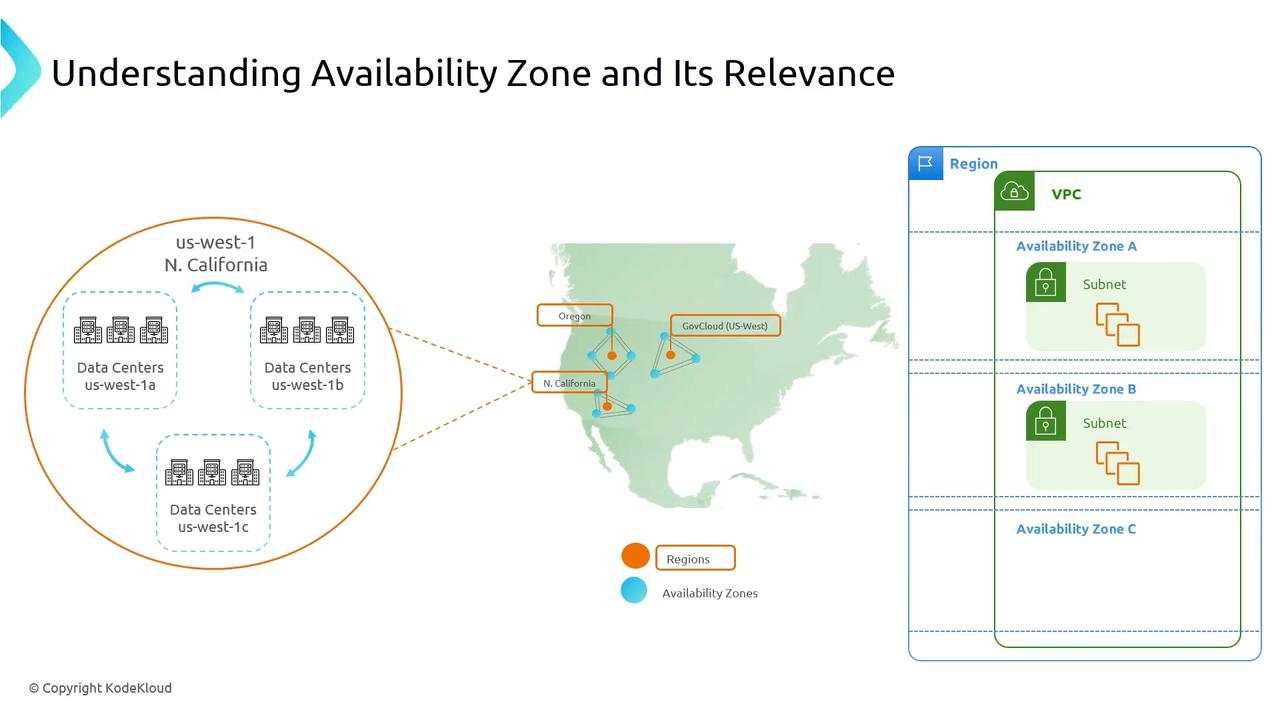

The image illustrates the concept of availability zones and regions in cloud computing, showing data centers in Northern California and their organization within a virtual private cloud (VPC) structure. It includes a map highlighting regions and availability zones in the US.

AWS Global Regions

AWS operates multiple Regions around the world. Each Region is fully isolated to maximize fault tolerance:

Region	Identifier
US West (Northern California)	us-west-1
US West (Oregon)	us-west-2
Asia Pacific (Tokyo)	ap-northeast-1
Asia Pacific (Singapore)	ap-southeast-1
Hong Kong	ap-east-1
…and more	…

If an entire Region (for example, US West 1) experiences an outage, workloads in other Regions (such as US West 2) remain unaffected.

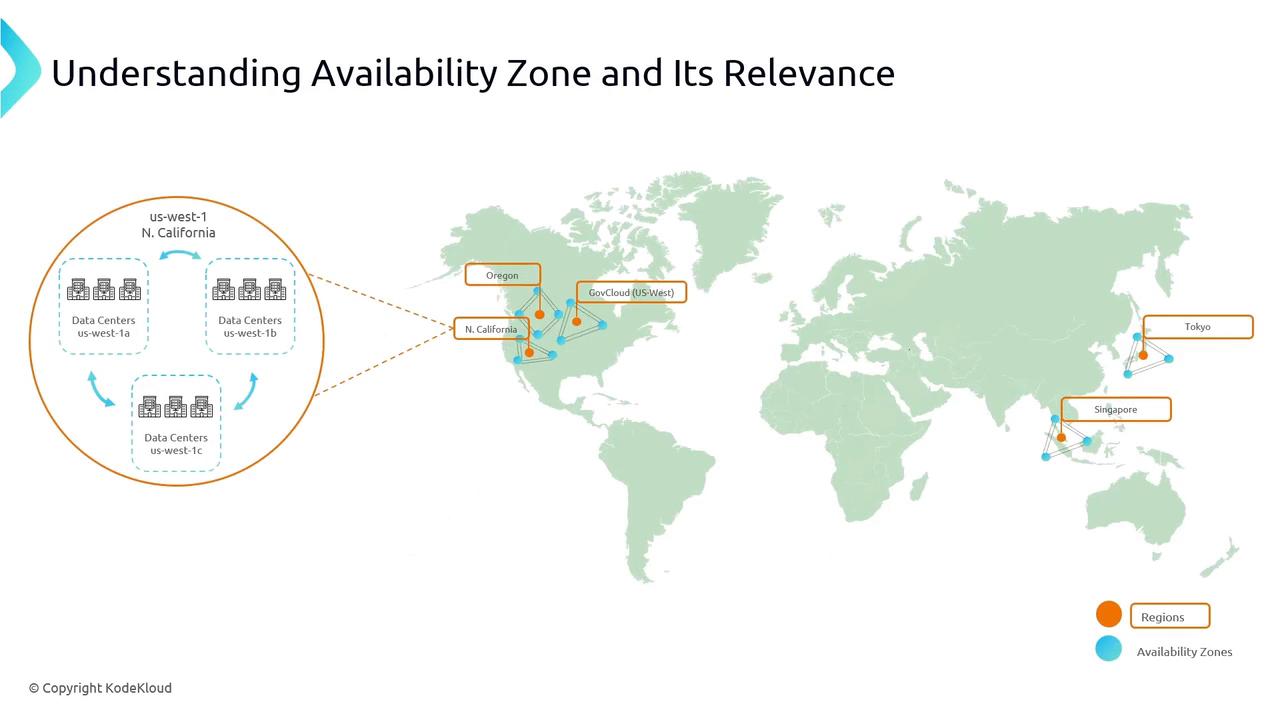

The image is a map illustrating the concept of availability zones and regions, highlighting specific locations such as North California, Oregon, GovCloud (US-West), Tokyo, and Singapore. It includes a detailed view of data centers in the North California region.

Note

While cross-region architectures deliver maximum resilience against geographic disasters, distributing resources across multiple AZs within a single Region often provides sufficient high availability and lower latency for most applications.
