Demo FIS Experiment Disk Fill Scenario on EC2 and before metrics in X Ray

In this tutorial, you’ll run a disk fill Fault Injection Simulation (FIS) on an EC2 instance in the “EKS pet site” group. You will:

Record baseline metrics
Configure the AWSFIS-Run-Disk-Fill SSM document
Create and run an FIS experiment template
Compare post-fault metrics against the baseline

Prerequisites

EC2 instances tagged EKS pet site, running Amazon Linux or Ubuntu
SSM Agent installed on target instances
IAM role with permissions for SSM commands and CloudWatch logging

1. Record Baseline Metrics

Filter the running instances by name “EKS pet site” and select instance 03DF9.

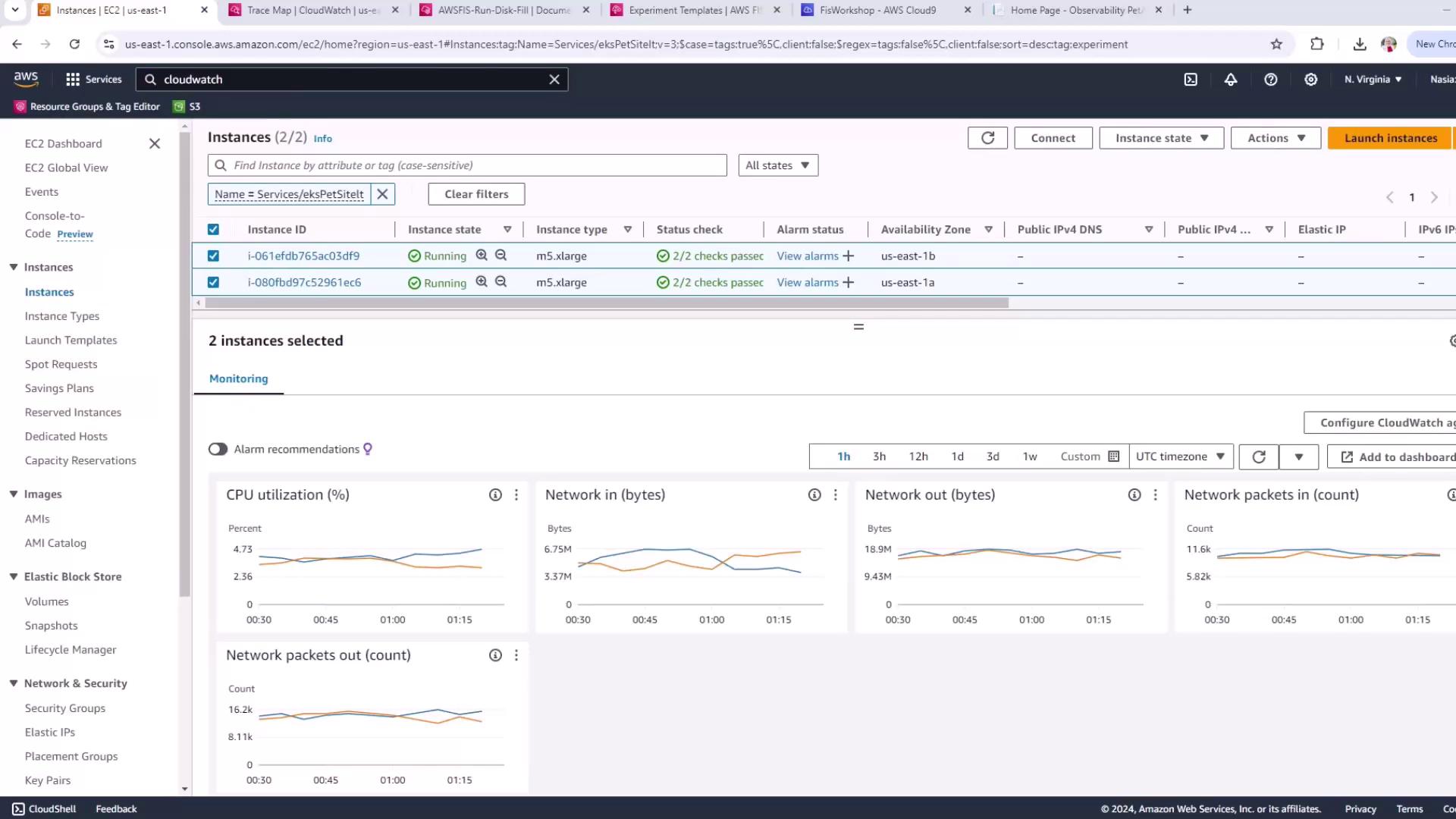

The image shows an AWS EC2 dashboard with two running instances, displaying monitoring metrics such as CPU utilization, network in/out bytes, and network packets.

Metric	Baseline Value
CPU Utilization	~4%
Network Out (Bytes)	16–18 million

These values establish our steady-state before fault injection.

2. Configure the Disk Fill SSM Document

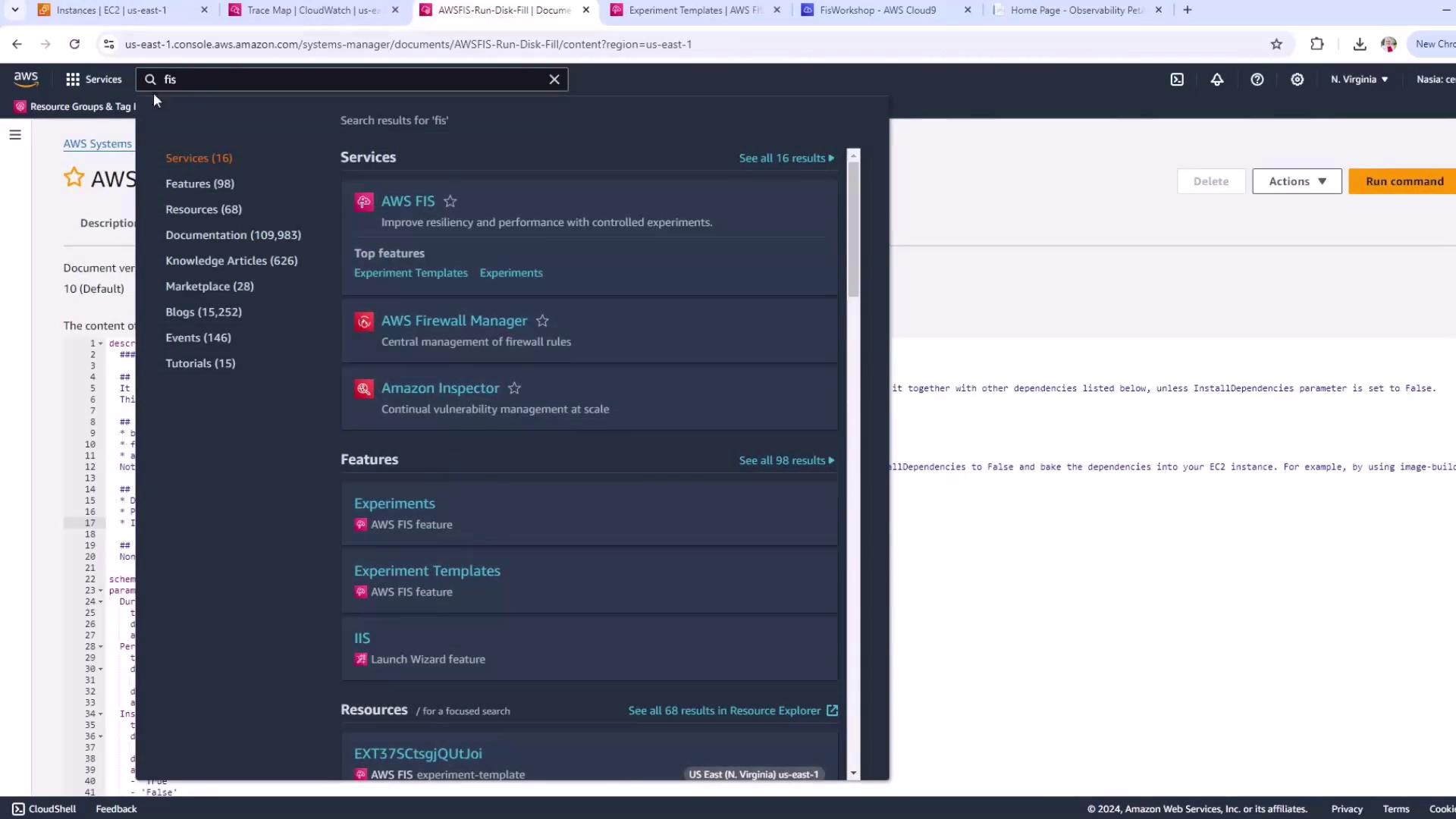

Navigate to AWS Systems Manager and search for fis services.

Select the AWSFIS-Run-Disk-Fill document. This automation uses fallocate to stress disk allocation and installs bc and fallocate if needed.

description: |
  ### Document name - AWSFIS-Run-Disk-Fill
  Runs disk filling stress on an instance using fallocate.
  Installs dependencies if InstallDependencies=true.
schemaVersion: '2.2'
parameters:
  DurationSeconds:
    type: String
    description: (Required) Duration of the disk fill stress in seconds.
  Percent:
    type: String
    description: (Optional) Percent of disk space to allocate (1–100).
    default: '95'
  InstallDependencies:
    type: String
    description: (Optional) Install `bc` & `fallocate` if missing (True/False).
    default: 'True'

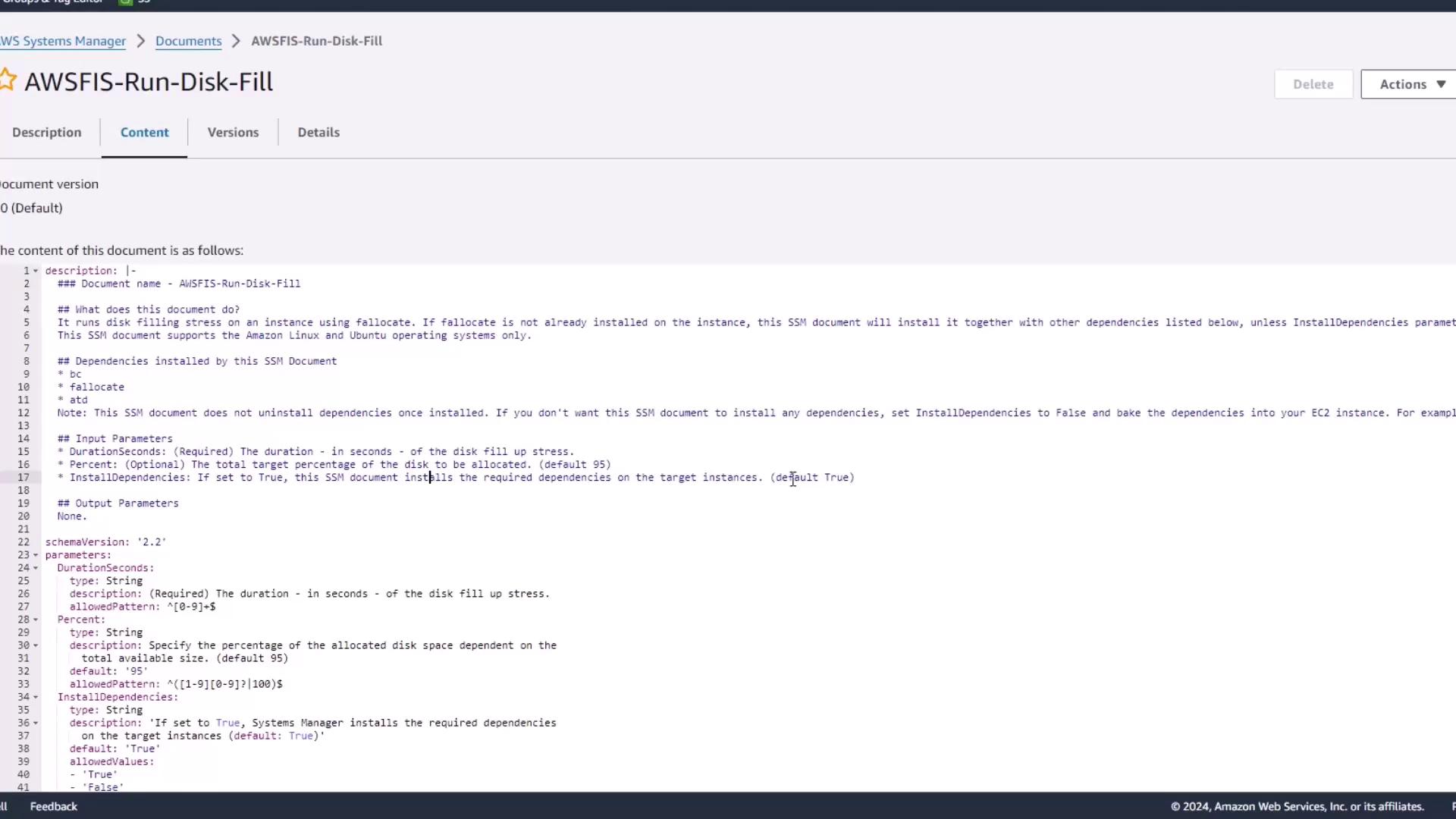

The image shows a document from AWS Systems Manager titled "AWSFIS-Run-Disk-Fill," detailing a script that runs disk filling stress on an instance using fallocate, with input parameters for duration and percentage of disk space to allocate.

Note

This SSM document does not uninstall dependencies after the test. To avoid repeated installs, pre-bake bc and fallocate and set InstallDependencies=false.

Input Parameters

Parameter	Required	Default	Description
DurationSeconds	Yes	—	Duration of the disk fill stress (in seconds).
Percent	No	'95'	Percentage of disk space to allocate.
InstallDependencies	No	'True'	Install dependencies if missing (True/False).

3. Create the FIS Experiment Template

Open AWS Fault Injection Simulator (FIS) and click Create experiment template.
Enter your AWS account, a name (e.g., ec2-disk-fill-test), and a description.
Under Actions, choose Add action:
- Name: disk-fill
- Action type: aws:ssm:send-command
- Document: AWSFIS-Run-Disk-Fill
- Parameters:
```
{"DurationSeconds":"120","Percent":"95","InstallDependencies":"True"}
```
- Action timeout: 600 seconds
In Targets:
- Resource type: AWS::EC2::Instance
- Resource IDs: 03DF9
- Selection mode: All
Assign an IAM role with SSM permissions. For logging, choose CloudWatch log group FIS experiments.
Review and create the template.

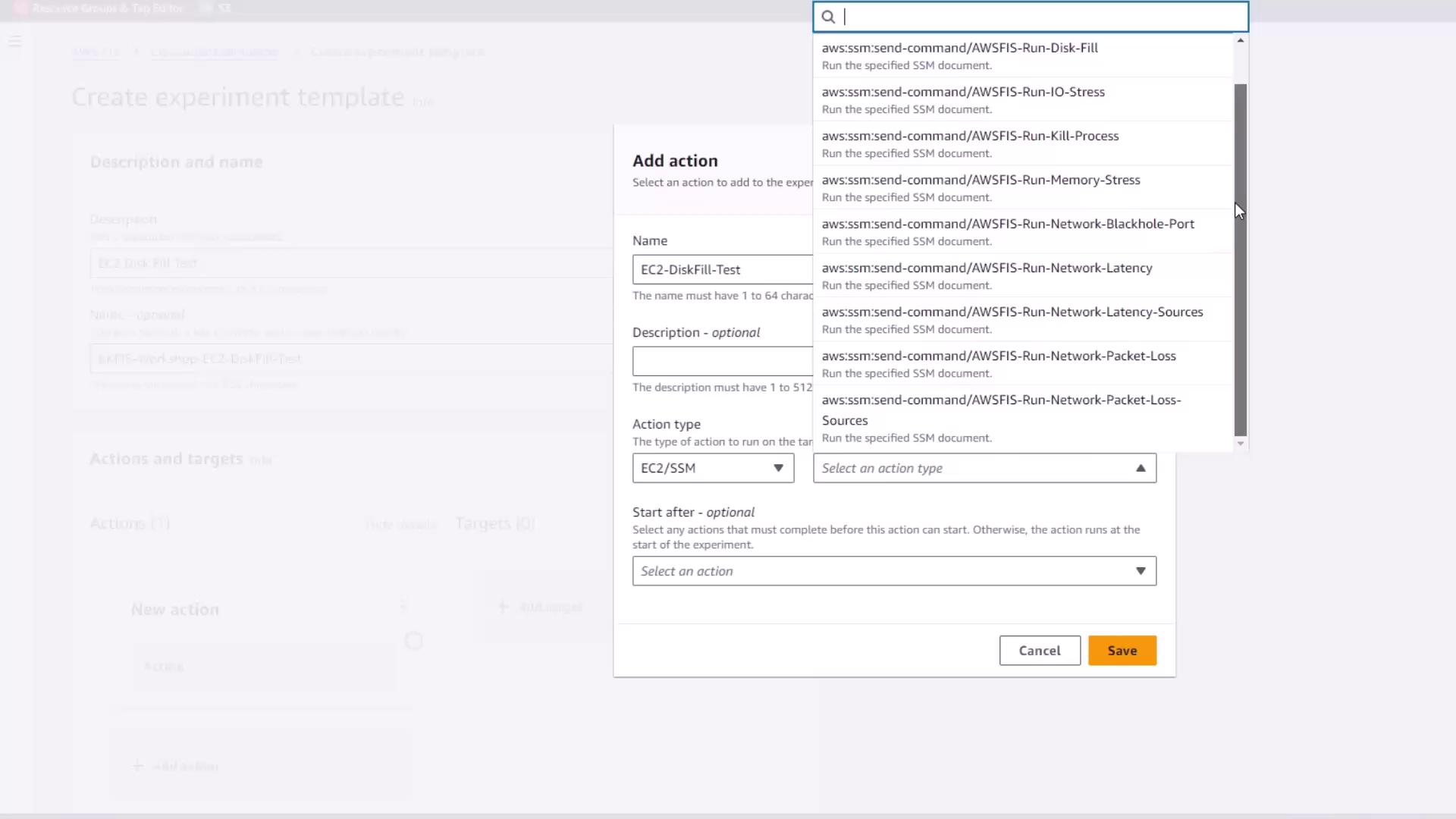

The image shows a user interface for creating an experiment template, with fields for description, name, and action type, and a dropdown menu listing various AWS SSM commands.

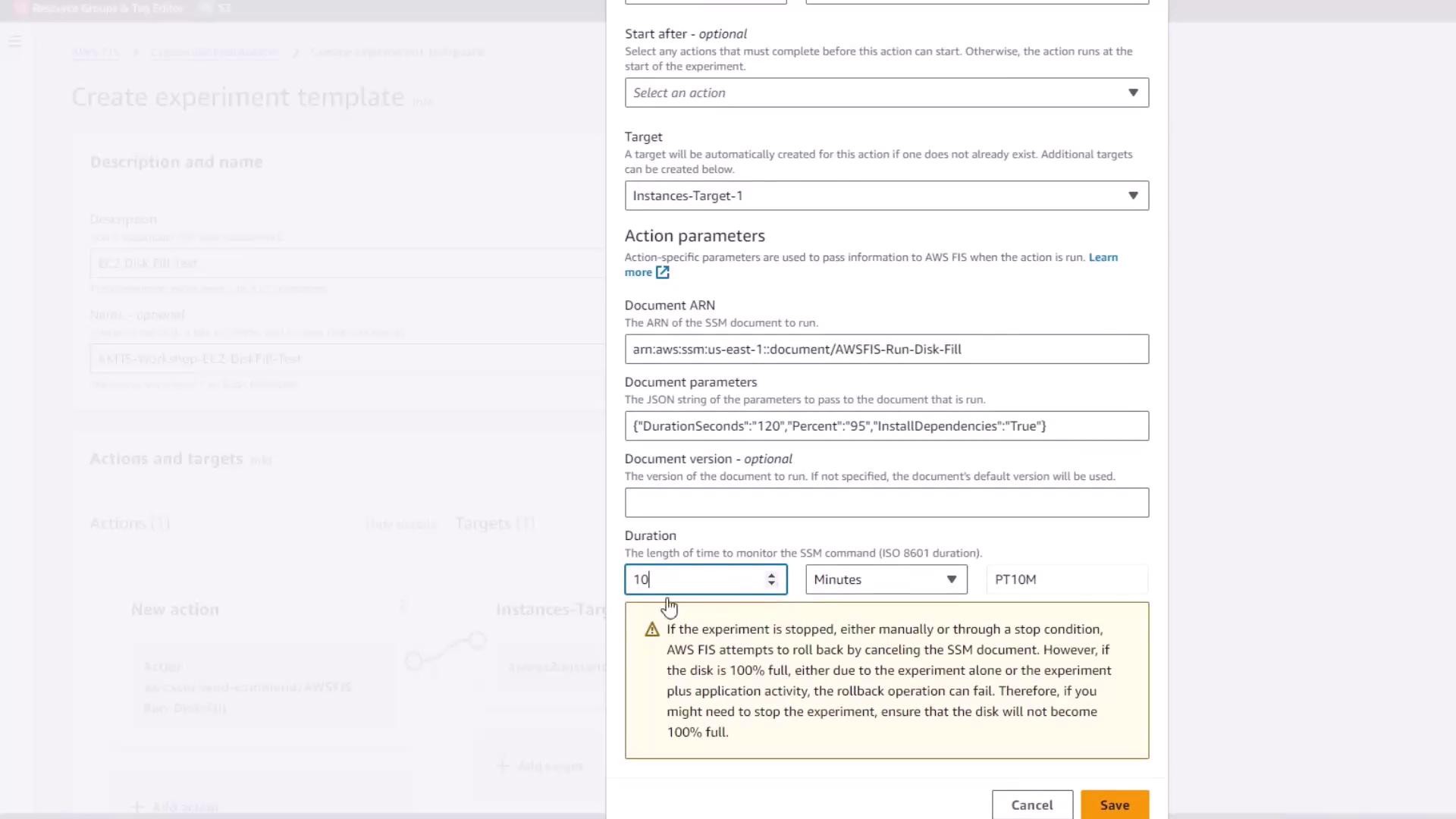

The image shows a configuration screen for creating an experiment template in AWS, specifically for an EC2 disk fill test. It includes fields for description, name, action parameters, and duration settings.

Generate a preview to confirm instance 03DF9 is selected.

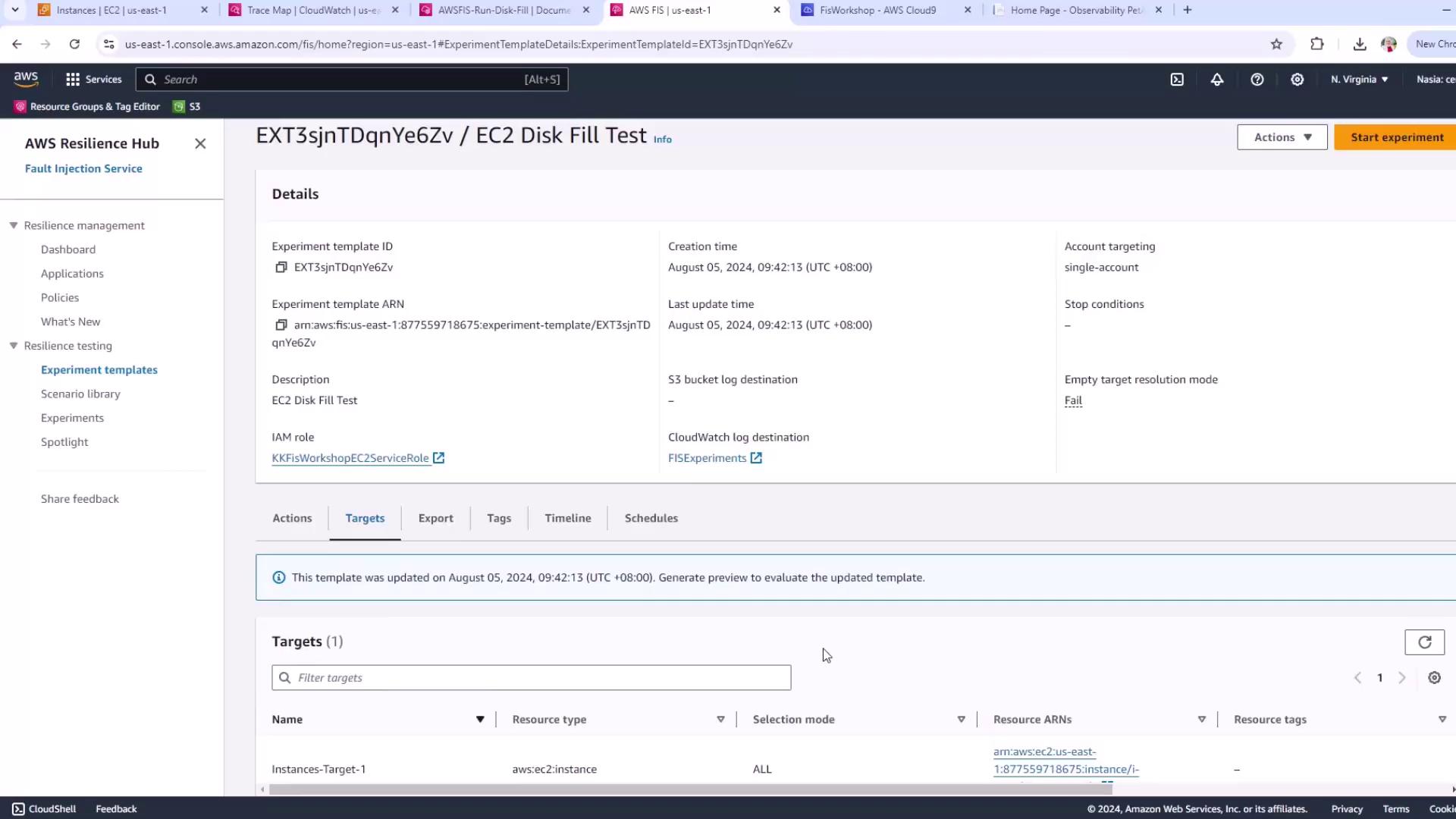

The image shows an AWS Fault Injection Simulator (FIS) interface for an EC2 Disk Fill Test experiment template. It includes details like the experiment template ID, creation time, and target information.

4. Run and Monitor the Experiment

Start the experiment. Observe its state transition from Pending → Running → Completed.

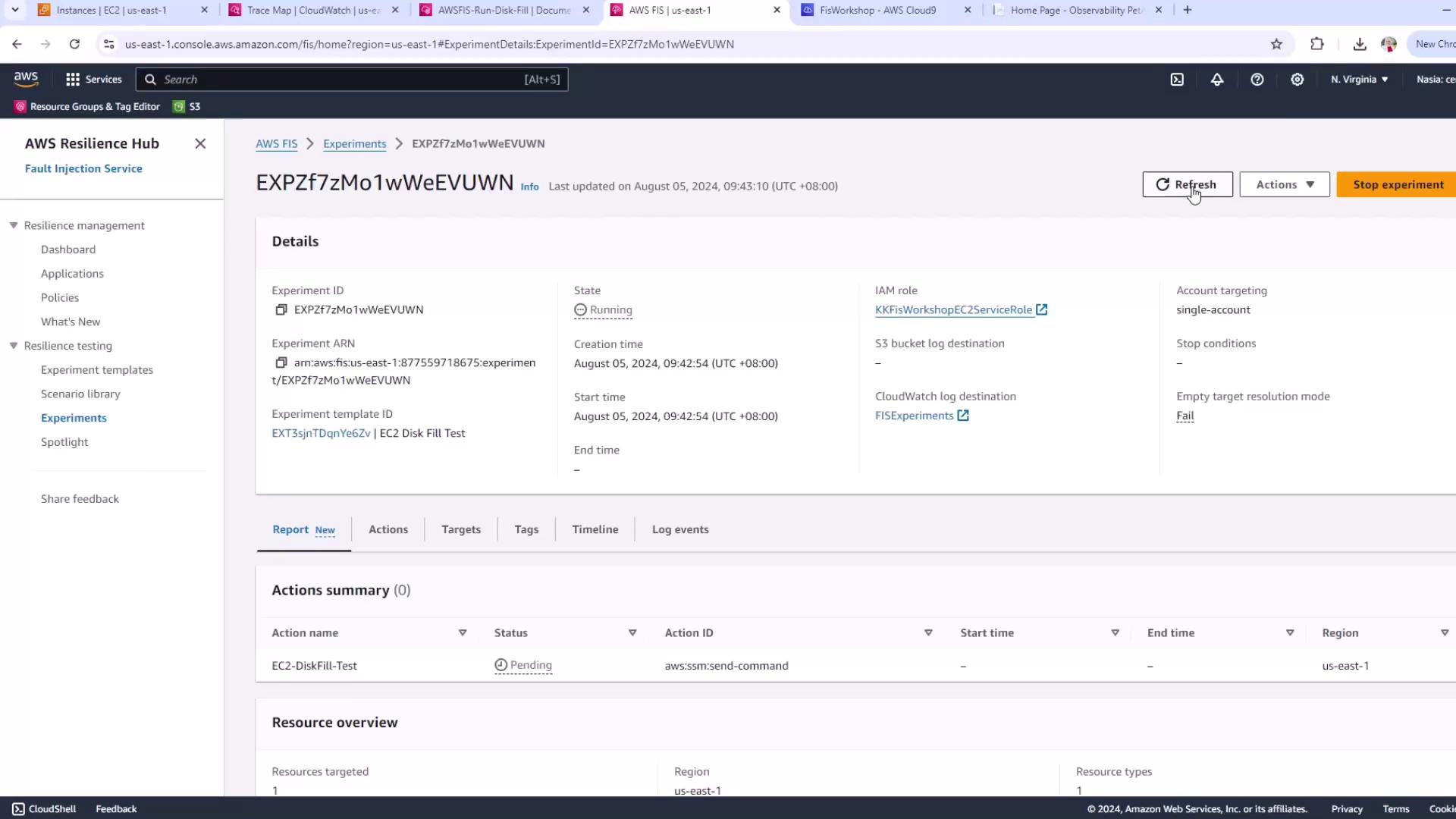

The image shows an AWS Fault Injection Simulator (FIS) dashboard with details of a running experiment, including its ID, state, and associated resources. The experiment is related to an EC2 Disk Fill Test.

State	Description
Pending	Scheduled but not yet started.
Running	Disk fill stress is in progress.
Completed	Experiment finished; metrics recorded.

Warning

Disk fill stress can cause system instability and data loss. Only run on non-production or isolated environments.

5. Analyze Post-Fault Metrics

After completion, revisit the CPU and Network Out metrics on instance 03DF9 and compare them to your baseline.
