Demo Fargate IAM role creation

In this walkthrough, you'll learn how to create an IAM role for running chaos experiments on Amazon ECS Fargate using AWS Fault Injection Simulator (FIS). By the end, your ECS-Fargate-FIS-Role will have the permissions needed for logging, SSM commands, and ECS operations.

Prerequisites

An AWS account with permissions to create roles and attach policies (iam:CreateRole, iam:AttachRolePolicy).
Basic familiarity with AWS IAM, ECS Fargate, and AWS FIS.

Step 1: Start Role Creation

Open the AWS IAM console and click Create role.
Under Select trusted entity, choose AWS service.
From the service list, select AWS Fault Injection Simulator (FIS).
In the Use case section, pick ECS Fargate since your experiments will target Fargate tasks.

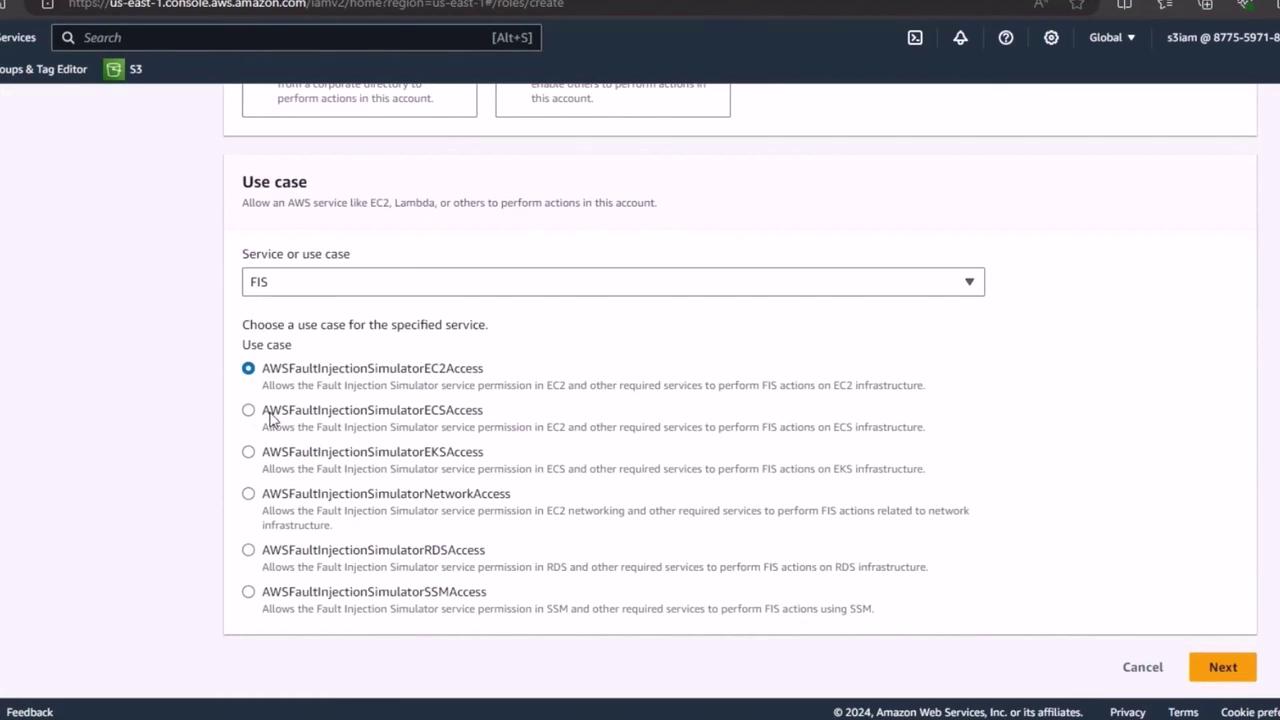

The image shows an AWS console interface where a user is selecting a use case for the Fault Injection Simulator (FIS) service, with options for different types of access like EC2, ECS, and EKS.

Note

Selecting the correct trusted entity and use case ensures FIS can assume this role during experiments.

Step 2: Configure Role Details

Click Next to proceed to the role details page.
Enter a descriptive name, for example ECS-Fargate-FIS-Role.
(Optional) Add a description such as “Role for FIS chaos experiments on ECS Fargate.”
Click Create role to finalize.

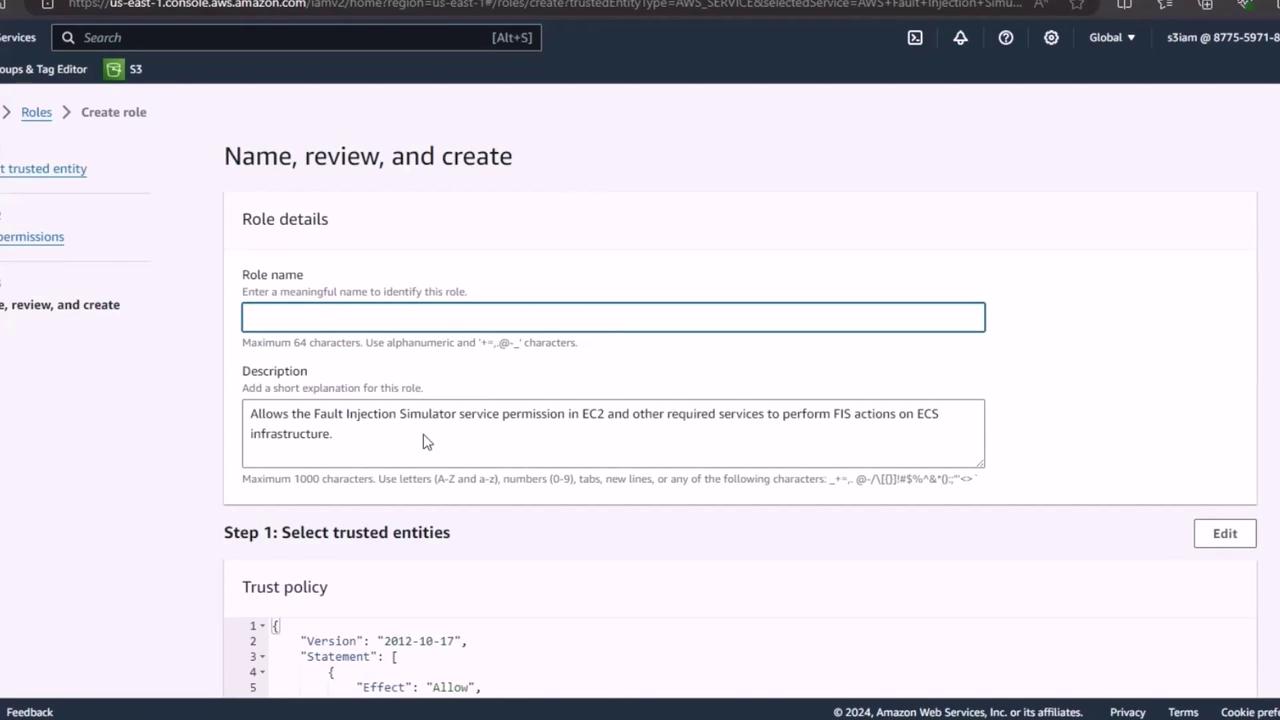

The image shows an AWS console interface for creating a role, with fields for entering a role name and description, and a section for selecting trusted entities and trust policy details.

Step 3: Attach Required IAM Policies

Now that the role exists, attach the following managed policies to grant FIS the necessary permissions:

Policy Name	Purpose
CloudWatch Logs Full Access	Allow FIS to write experiment logs to CloudWatch Logs
AmazonSSMFullAccess	Enable running SSM documents (commands) during the experiment
AWSFaultInjectionSimulatorECSAccess	Grant FIS permissions specific to ECS operations on Fargate

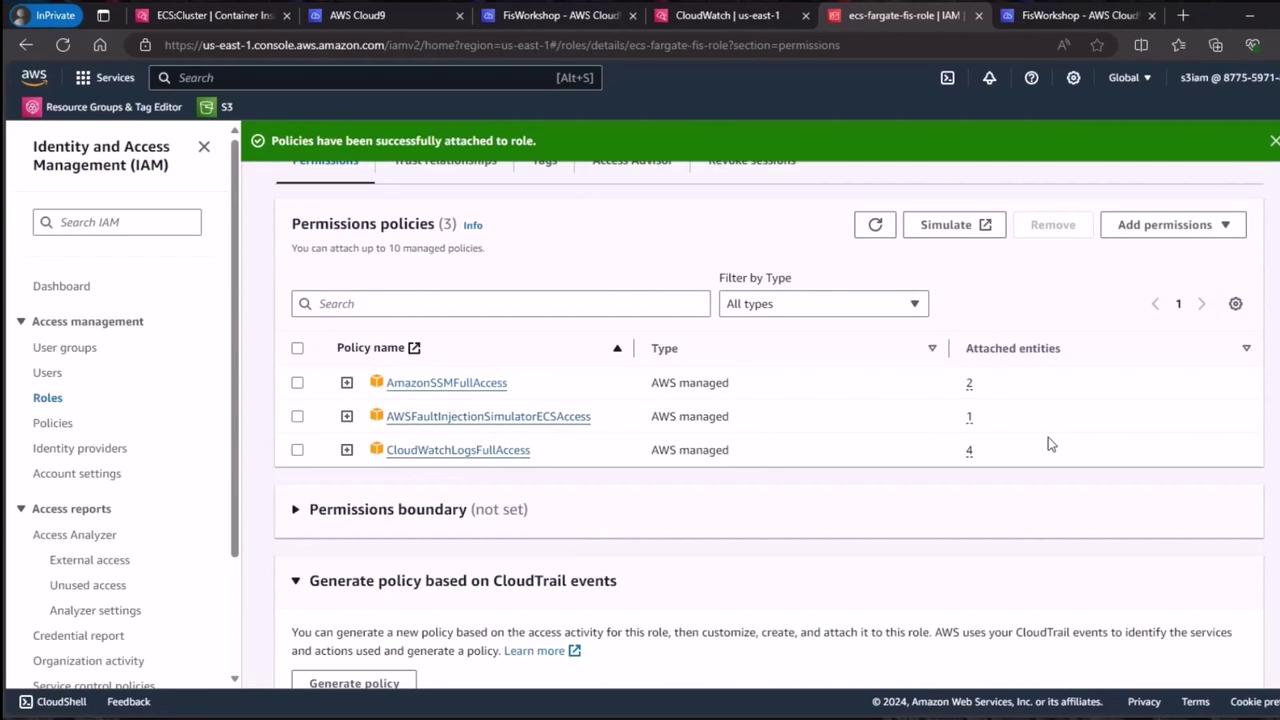

The image shows an AWS Identity and Access Management (IAM) interface with a list of permission policies attached to a role. The policies include AmazonSSMFullAccess, AWSFaultInjectionSimulatorECSAccess, and CloudWatchLogsFullAccess.

Warning

For production environments, consider using least-privilege custom policies rather than full-access managed policies.

Finalize and Verify

Your IAM role ECS-Fargate-FIS-Role is now ready. You can reference this role ARN when creating FIS experiments targeting ECS Fargate tasks.
