Demo Kafka Connect in Action

In this tutorial, you’ll send JSON events to an Apache Kafka topic and watch Kafka Connect’s S3 sink connector automatically persist them to Amazon S3. This workflow highlights how event streaming architectures offload storage concerns and streamline analytics.

Prerequisites

• A running Kafka broker and Connect cluster on your EC2 instance
• AWS credentials configured for the S3 sink connector
• An S3 bucket created for storing topic data (e.g., my-kafka-bucket)

1. Start the Kafka Console Producer

1. SSH into the EC2 instance and elevate to root:

   sudo su


2. Navigate to your Kafka installation:

   cd ~/kafka_2.13-3.0.0


3. Launch the console producer for the cartevent topic:

   bin/kafka-console-producer.sh \
     --bootstrap-server 98.81.233.254:9092 \
     --topic cartevent


2. Publish Sample Car Events

Copy and paste each line below into the producer terminal. Each JSON message represents a single car event:

{"eventId":1,"carId":"CAR001","eventType":"SPEED_CHANGE","fuelLevel":65,"timestamp":"2025-02-11T10:00:52Z"}
{"eventId":2,"carId":"CAR002","eventType":"ENGINE_START","timestamp":"2025-02-11T10:01:02Z"}
{"eventId":3,"carId":"CAR006","eventType":"LOW_FUEL","fuelLevel":10,"timestamp":"2025-02-11T10:05:30Z"}
{"eventId":4,"carId":"CAR002","eventType":"LOW_FUEL","fuelLevel":15,"timestamp":"2025-02-11T10:01:30Z"}
{"eventId":5,"carId":"CAR006","eventType":"LOW_FUEL","fuelLevel":10,"timestamp":"2025-02-11T10:05:30Z"}
{"eventId":6,"carId":"CAR008","eventType":"LOW_FUEL","fuelLevel":1,"timestamp":"2025-02-11T10:01:30Z"}
{"eventId":7,"carId":"CAR008","eventType":"LOW_FUEL","fuelLevel":1,"timestamp":"2025-02-11T10:02:30Z"}
{"eventId":8,"carId":"CAR009","eventType":"LOW_FUEL","fuelLevel":2,"timestamp":"2025-02-11T10:03:30Z"}

3. Verify JSON Files in Amazon S3

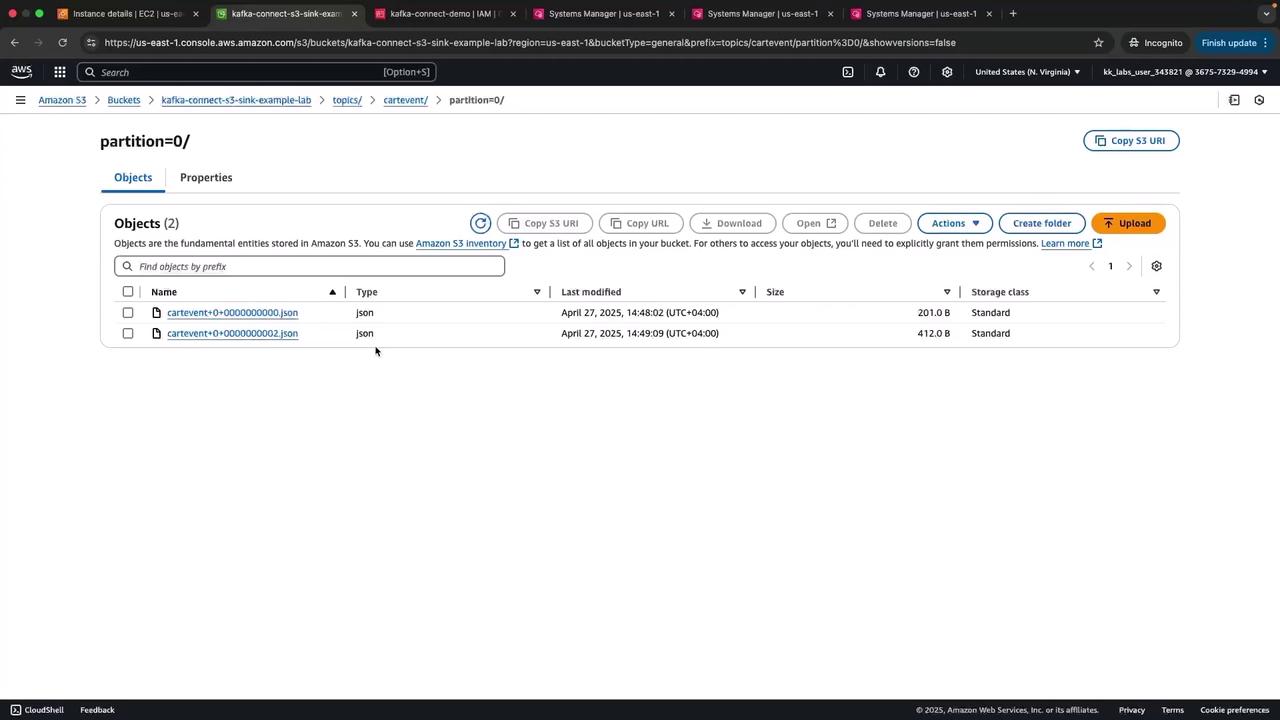

Navigate to the S3 console and open the prefix topics/cartevent/partition=0/ in your bucket. You should see JSON files named using the convention topic+partition+startOffset.json.

Refreshing after more events produces additional files:

4. How It Works

• The Kafka Connect S3 sink connector continuously polls the cartevent topic.
• Upon reaching the configured batch size or interval, it writes a bulk JSON file to S3.
• Connector handles offset management, retries, and error handling automatically.
• You can query these files directly with Amazon Athena or integrate with downstream analytics tools.

Supported Kafka Connectors

For a full list of available connectors and configurations, see the Confluent Hub.

That wraps up this demo of the Kafka Connect S3 sink. Next, explore additional connectors and integration patterns to build scalable event-driven architectures!
