Exploring WebAssembly (WASM)
WebAssembly Core Concepts
Instructions and Data Types
In this guide, we’ll dive into WebAssembly’s core instructions (the verbs) and data types (the nouns) that power efficient, predictable execution in browsers and other WASM runtimes. By mastering these fundamentals, you can write low-level modules that perform reliably across platforms.
WebAssembly Instructions
WebAssembly instructions are low-level opcodes executed by the WASM virtual machine. Because they resemble machine code more than high-level languages, browsers can optimize them aggressively for speed.
Basic Arithmetic Examples
i32.add‒ adds two 32-bit integersf64.sub‒ subtracts one 64-bit float from another
i32.add ;; adds two i32 values
f64.sub ;; subtracts one f64 value from another
Each instruction strictly enforces its operand types. Supplying mismatched types (e.g., passing a boolean into an arithmetic opcode) will trigger a runtime trap.
Warning
Always verify operand types before invoking an instruction. WebAssembly performs no implicit conversions and will trap on type mismatches.
WebAssembly Data Types

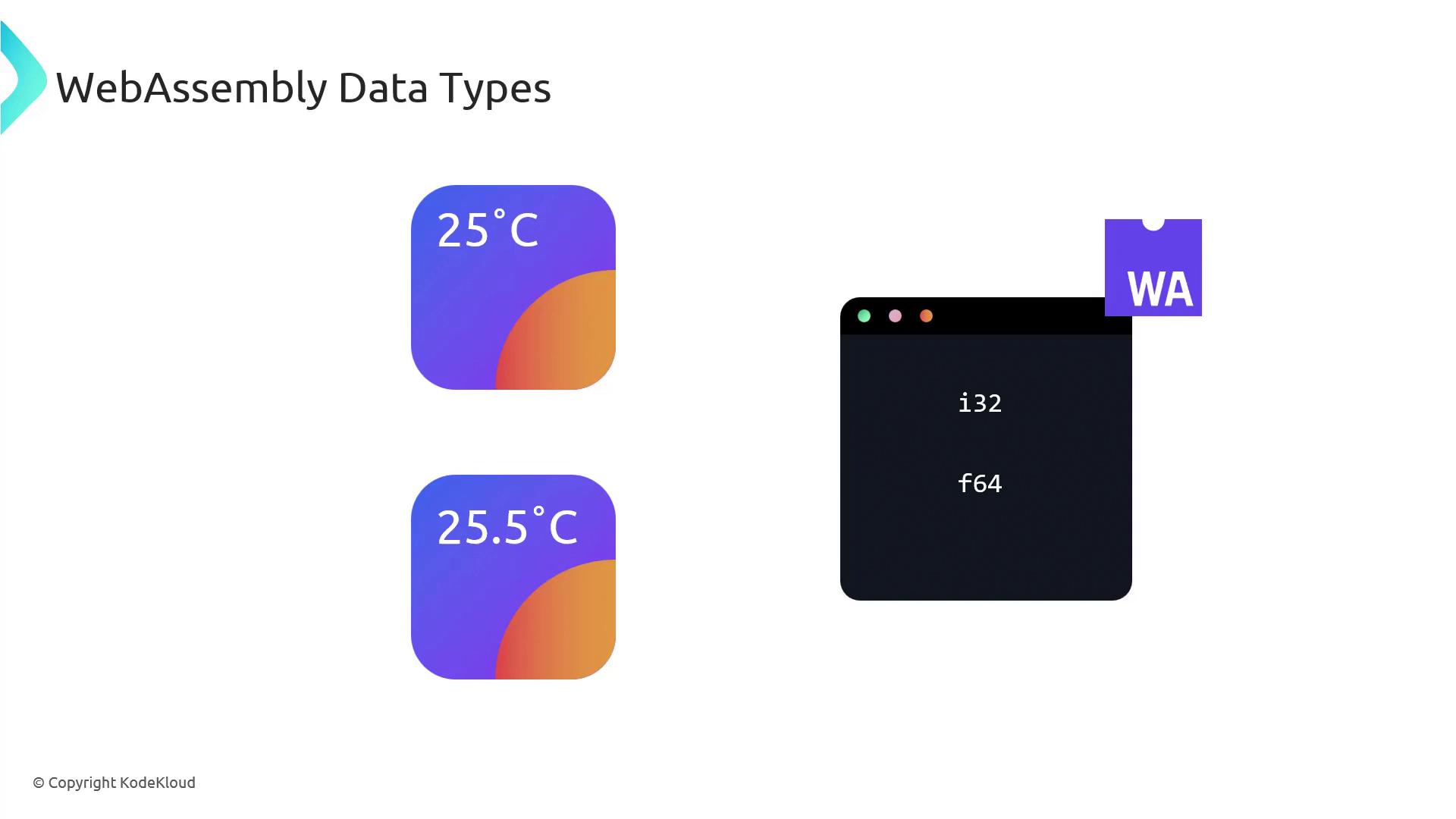

Choosing the right data type in WebAssembly ensures efficient memory usage and accurate calculations. For instance, consider a web app that displays two temperature readings:
- 25 °C (an integer)
- 25.5 °C (a decimal)
In WASM you’d represent these as:
- 25 °C →
i32 - 25.5 °C →
f64

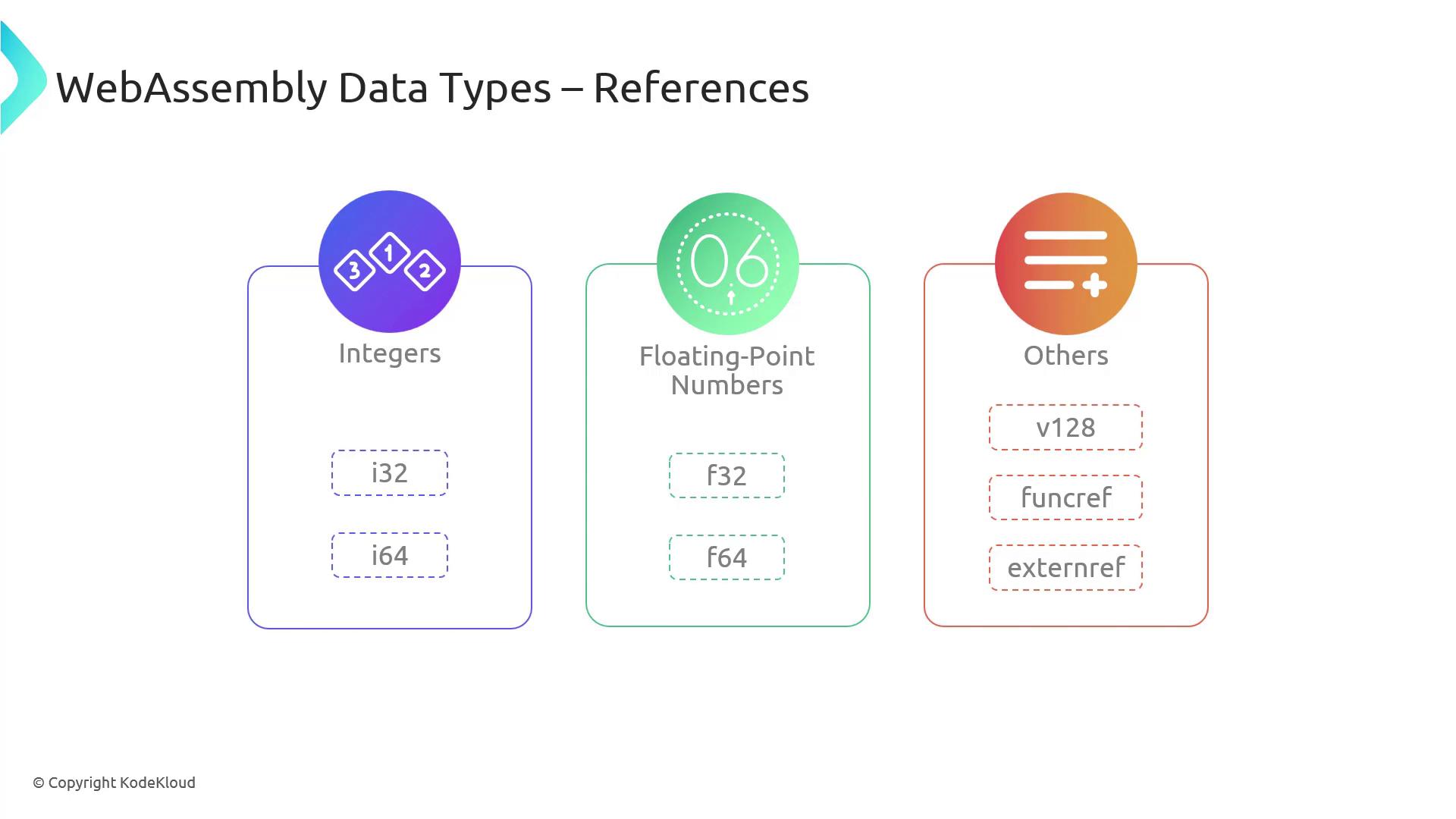

Below is a quick overview of the core WebAssembly types:
| Data Type | Size & Kind | Use Case |
|---|---|---|
i32 | 32-bit integer | Counters, array indices |
i64 | 64-bit integer | High-precision integer math |
f32 | 32-bit floating point | Graphics, simple physics |
f64 | 64-bit floating point | Scientific calculations, audio DSP |
v128 | 128-bit SIMD vector | Parallel data processing |
funcref | Reference to a function | Indirect calls, function tables |
externref | Reference to external value | Interop with host (e.g., JavaScript) |
Fundamental WebAssembly Instructions
WebAssembly categorizes its instructions into arithmetic, comparison, control flow, and memory operations. Here’s a concise reference:
;; Arithmetic
i32.add ;; add two 32-bit integers
i64.sub ;; subtract two 64-bit integers
f32.mul ;; multiply two 32-bit floats
f64.div ;; divide two 64-bit floats
;; Comparison
i32.eq ;; equal? (32-bit integers)
f64.ne ;; not equal? (64-bit floats)
i32.lt_s ;; less than (signed 32-bit integers)
f32.ge ;; greater than or equal (32-bit floats)
;; Control Flow
block ;; start a block
loop ;; start a loop
if ;; conditional branch
br ;; branch to a label
;; Memory
i32.load ;; load a 32-bit integer from memory
f64.store ;; store a 64-bit float to memory
memory.size ;; query current memory pages
memory.grow ;; expand memory by pages
