WebAssembly (WASM) is revolutionizing web development by delivering near-native performance in the browser. Its modular, sandboxed design and compact binary format make it ideal for compute-intensive applications, gaming, and cross-platform libraries. The following sections break down WebAssembly’s core components and show how they interact to power modern web apps.

The image features a stylized illustration of a mechanical or robotic component with two circular icons, one with a lightning bolt and the other with an arrow. The word "WebAssembly" is written in the top left corner.

Binary Format

WebAssembly’s Binary Format is a highly efficient, machine-friendly encoding. It reduces transfer size and accelerates parsing compared to text-based formats, enabling faster start-up times in browsers and runtimes.

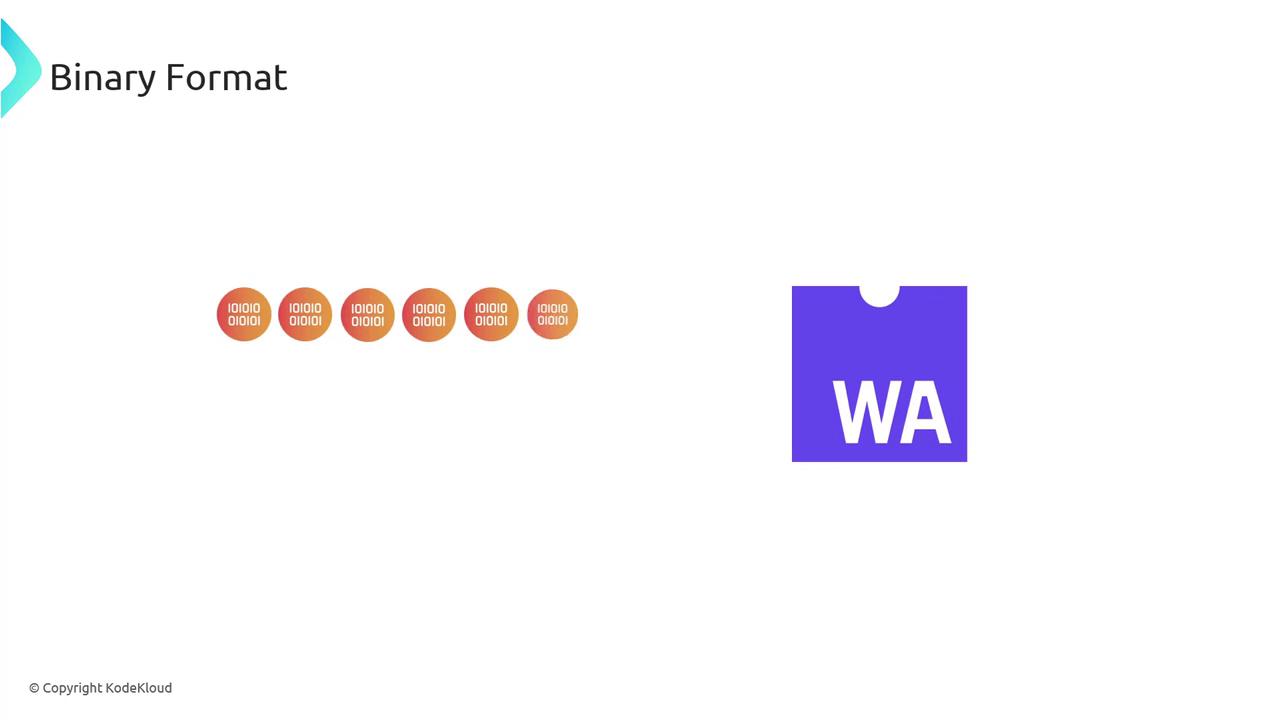

The image shows a series of orange circles with binary code inside them and a purple square with "WA" on it, labeled "Binary Format."

Consider this simple C function:

int add(int a, int b) {
    return a + b;
}

When compiled to WASM, it becomes a compact byte sequence optimized for decoding and execution.

Note

Reducing code size and parse overhead is critical for applications with large codebases or limited bandwidth.

Stack-Based Virtual Machine

WebAssembly uses a stack-based virtual machine (VM) with a Last-In, First-Out (LIFO) execution model. Operands are pushed onto the stack, operations pop them, then push results back on.

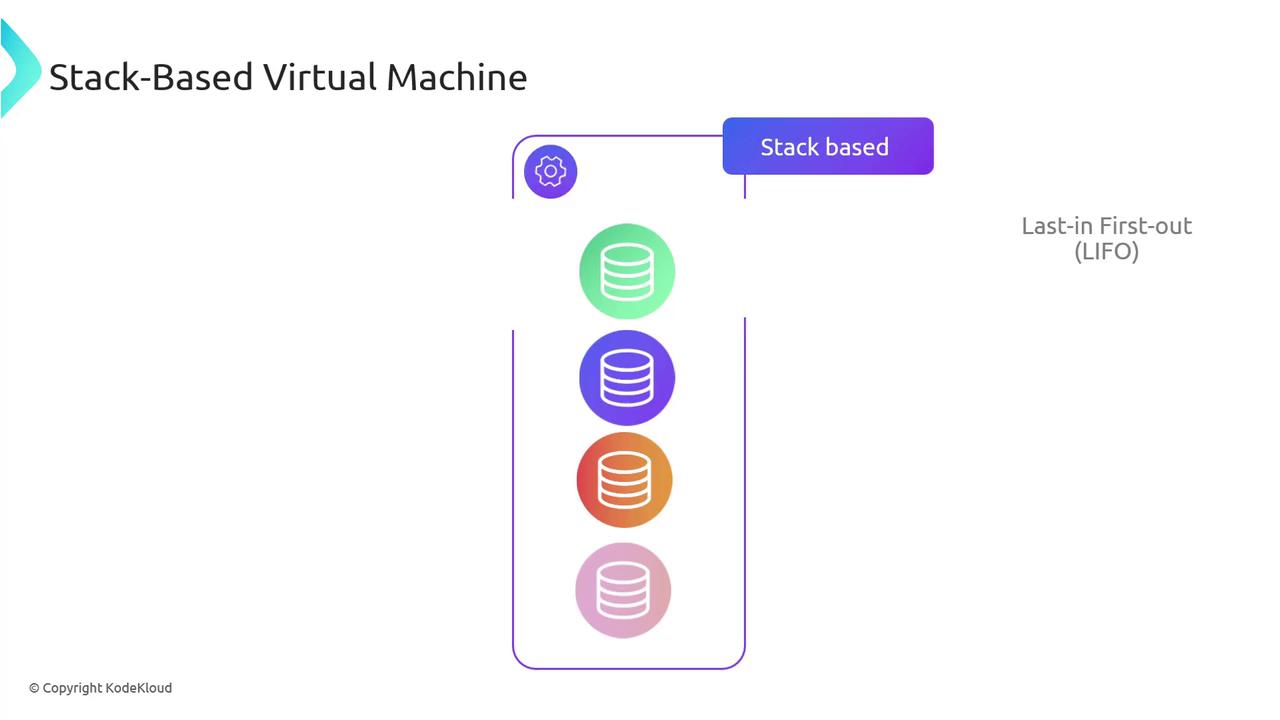

The image illustrates a stack-based virtual machine with a vertical stack of colored disks, labeled as "Stack based" and "Last-in First-out (LIFO)."

Example in WebAssembly Text Format (WAT):

(func $add (param $a i32) (param $b i32) (result i32)
  local.get $a
  local.get $b
  i32.add
)

local.get $a → Pushes the first parameter.
local.get $b → Pushes the second parameter.
i32.add → Pops both values, adds them, then pushes the sum.

Linear Memory

Linear memory in WASM is a contiguous, mutable array of bytes with addresses starting at zero. Data types (i32, i64, f32, f64) specify how many bytes to read/write.

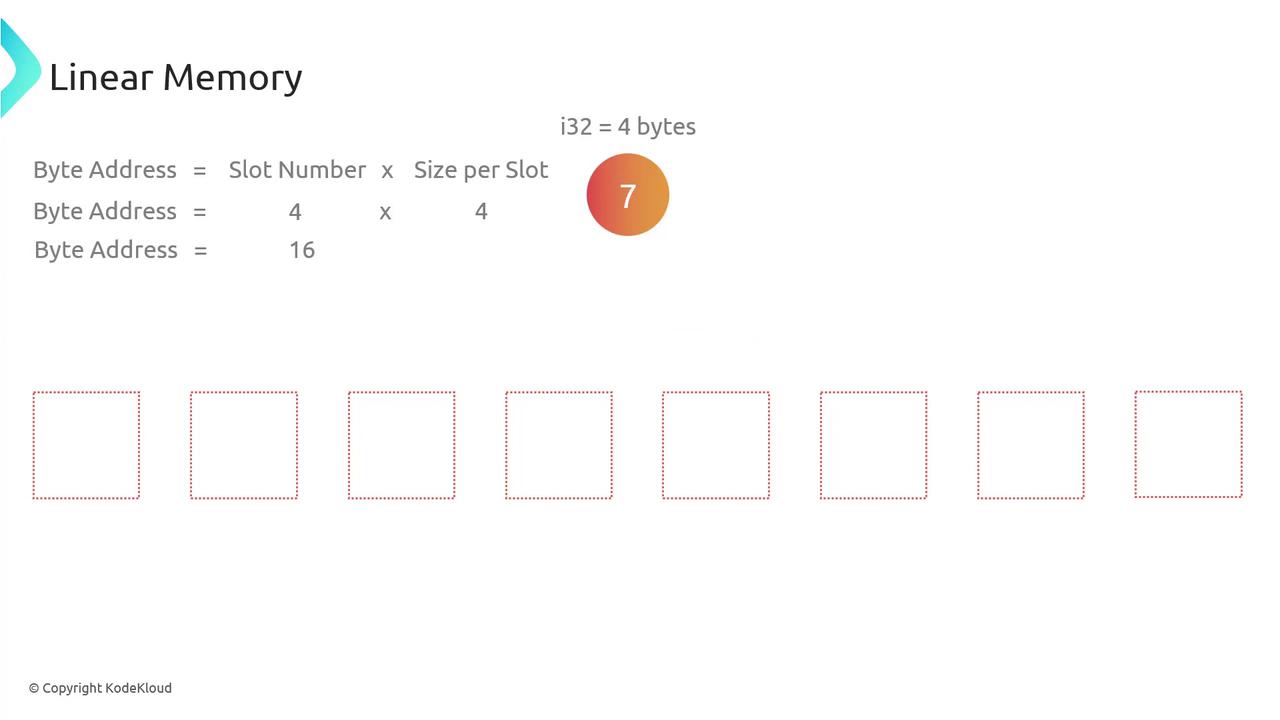

The image illustrates a concept of linear memory with a calculation for byte address, showing a slot number multiplied by size per slot, and includes a visual representation of memory slots.

Instruction	Description
`i32.load`	Read 4 bytes (32 bits) from linear memory
`i32.store`	Write 4 bytes (32 bits) to linear memory

The example below allocates one 64 KiB page of memory, stores the integer 7 at byte address 16, and then reads it back:

(module
  (memory 1)               ;; 1 page = 64 KiB

  (func $storeValue
    i32.const 7            ;; Push 7
    i32.store offset=16    ;; Store at address 16
  )
  (export "storeValue" (func $storeValue))

  (func $loadValue (result i32)
    i32.load offset=16     ;; Load from address 16
  )
  (export "loadValue" (func $loadValue))
)

Modules

A WebAssembly module bundles functions, memory, globals, and tables into a self-contained unit. Modules can be imported, instantiated, and linked with other modules or JavaScript.

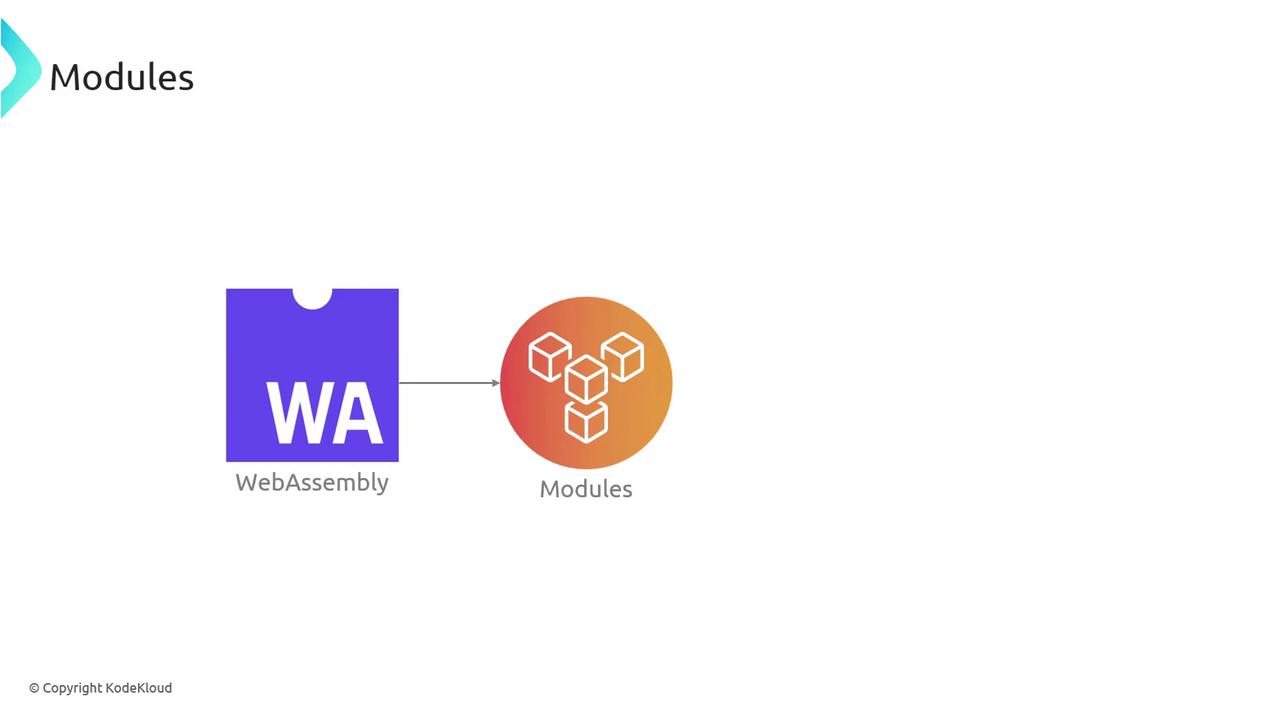

The image shows a diagram with a purple puzzle piece labeled "WebAssembly" connected by an arrow to an orange circle labeled "Modules," featuring cube icons.

Example of a module exporting an add function:

(module
  (func $add (param $a i32) (param $b i32) (result i32)
    local.get $a
    local.get $b
    i32.add
  )
  (export "add" (func $add))
)

You can load this module in JavaScript and invoke add at runtime.

Security and Sandboxing

WebAssembly executes inside a secure sandbox, preventing unauthorized access to host resources. The browser enforces strict boundaries: any out-of-bounds memory access or forbidden system call triggers an immediate trap.

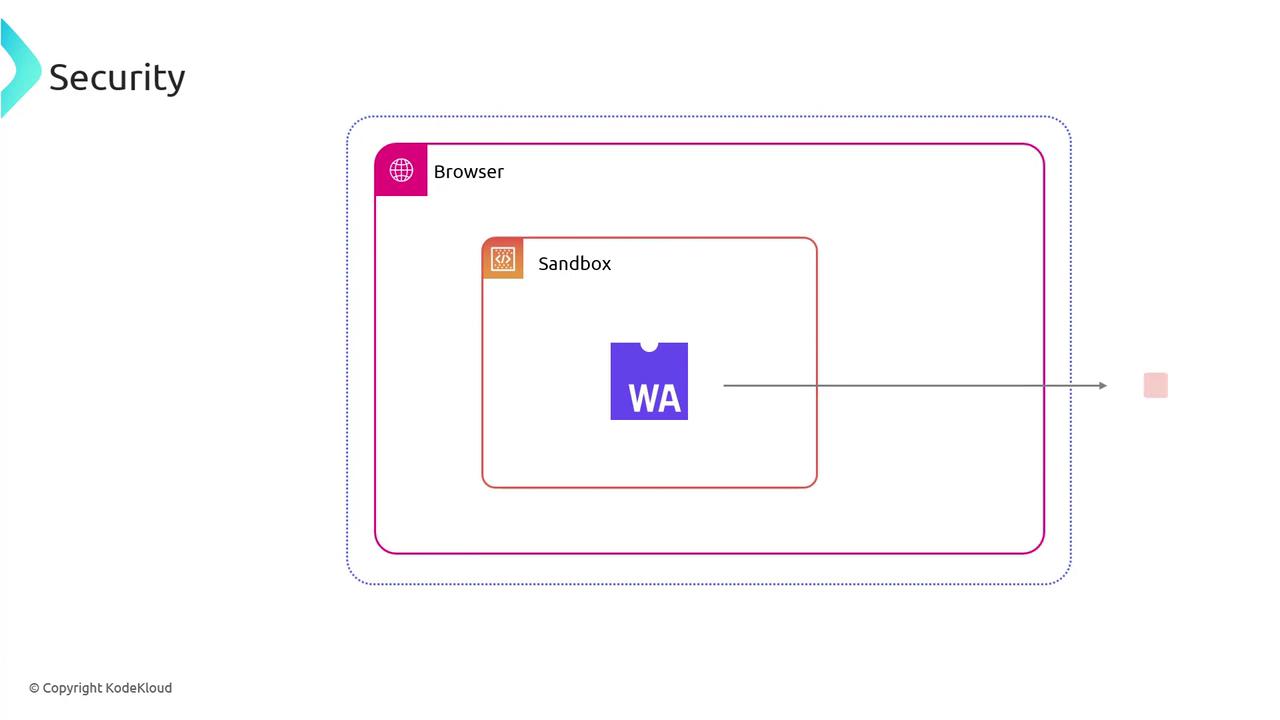

The image is a diagram showing a browser containing a sandbox with a "WA" (WebAssembly) module inside, illustrating a security concept.

Warning

Always validate and limit the memory and table sizes a module can request. Untrusted modules should never be granted excessive resource quotas.

JavaScript Interoperability

WebAssembly modules interoperate seamlessly with JavaScript. You can import functions from JS into WASM and export WASM functions back to JS, sharing linear memory when needed.

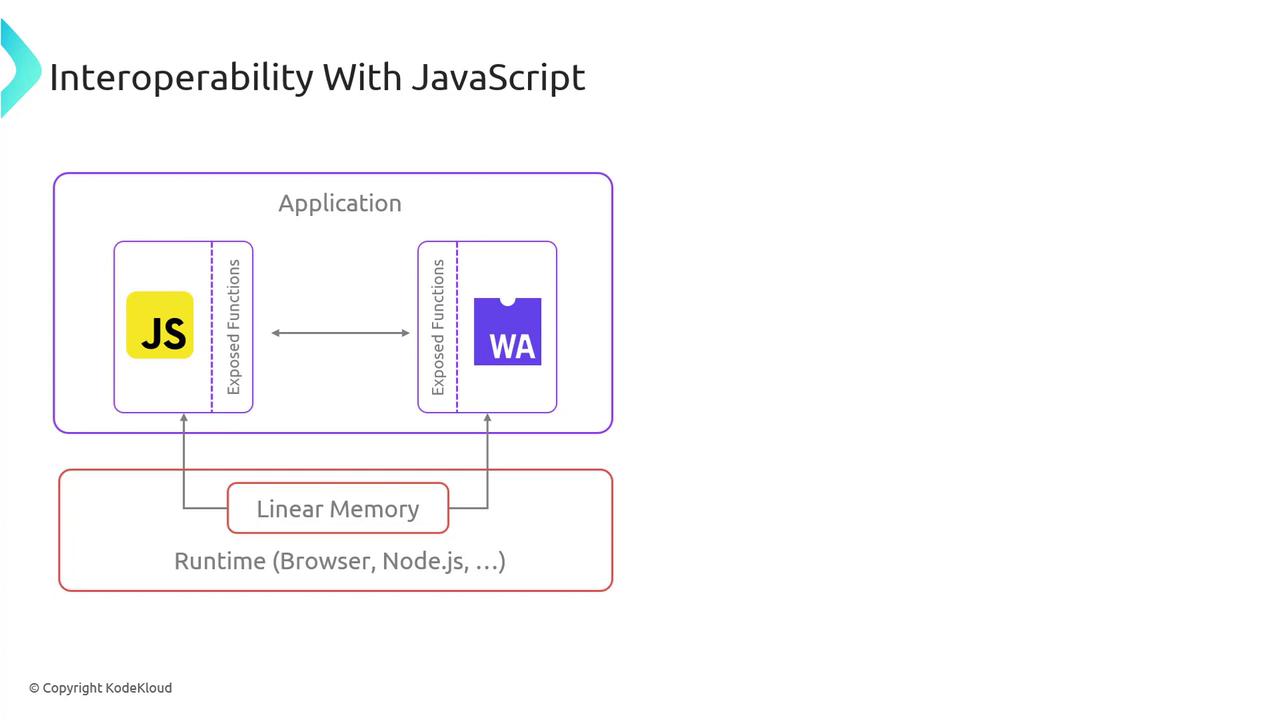

The image illustrates the interoperability between JavaScript and WebAssembly within an application, highlighting the use of exposed functions and shared linear memory in a runtime environment like a browser or Node.js.

Example of invoking a WASM add function from JavaScript:

// After compiling and instantiating your WebAssembly module:
const { instance } = await WebAssembly.instantiateStreaming(fetch('add.wasm'));
const result = instance.exports.add(3, 4);
console.log(result); // 7

Note

The WebAssembly Text Format (WAT) is invaluable for debugging and learning, but production workflows typically use the binary format for performance.
