Instance group

Welcome back. In our previous discussion, we explored the challenges of scalability and high availability on GCP and introduced the solution: instance groups.

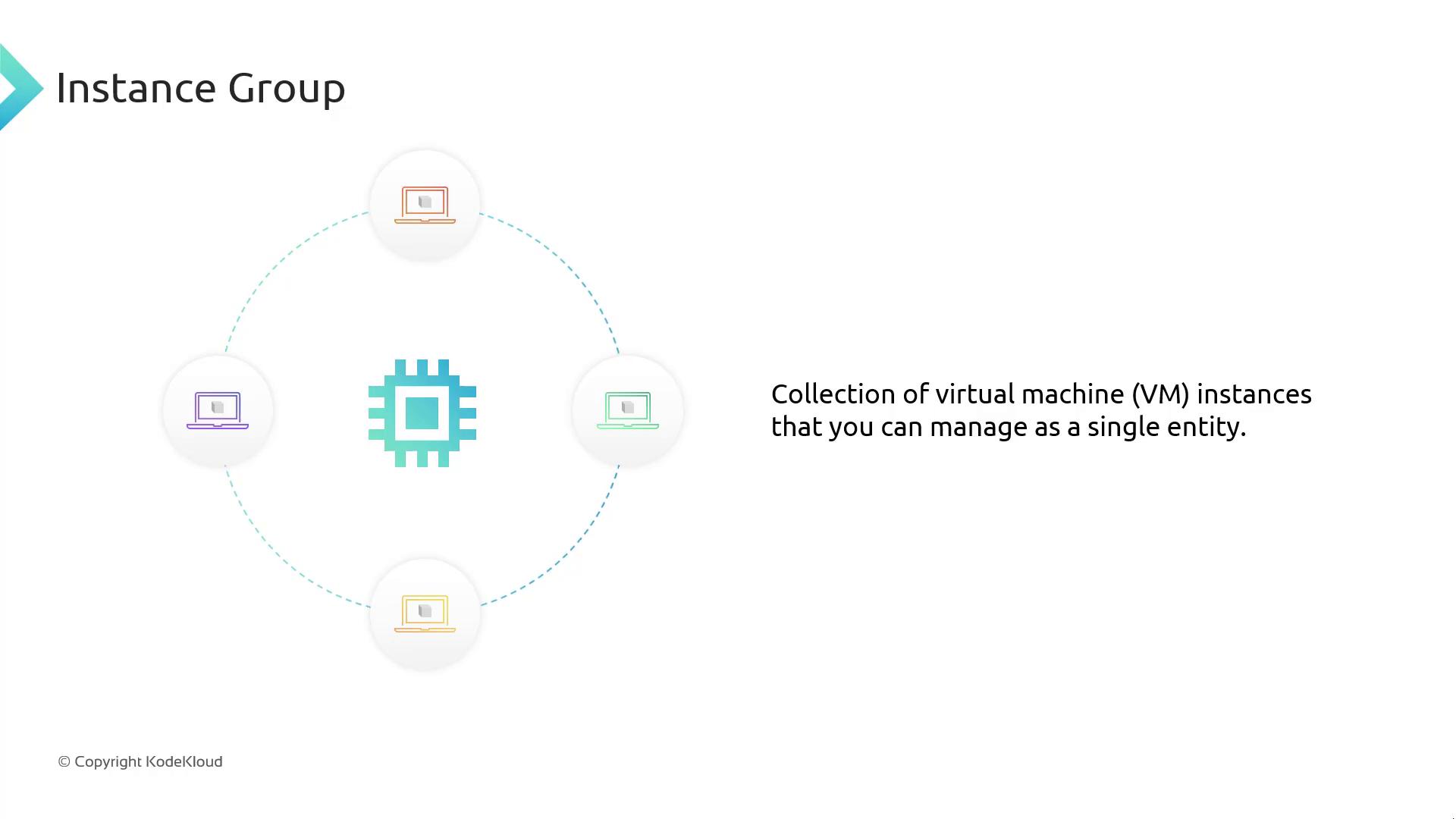

What Is an Instance Group?

Instead of launching multiple virtual machines (VMs) independently, you can deploy them under a single instance group. This approach allows you to manage multiple VMs as one entity. When creating an instance group, you can configure essential parameters such as the desired number of VMs and set minimum and maximum limits for the group. Additionally, autoscaling rules can be defined to automatically add or remove VMs based on resource usage.

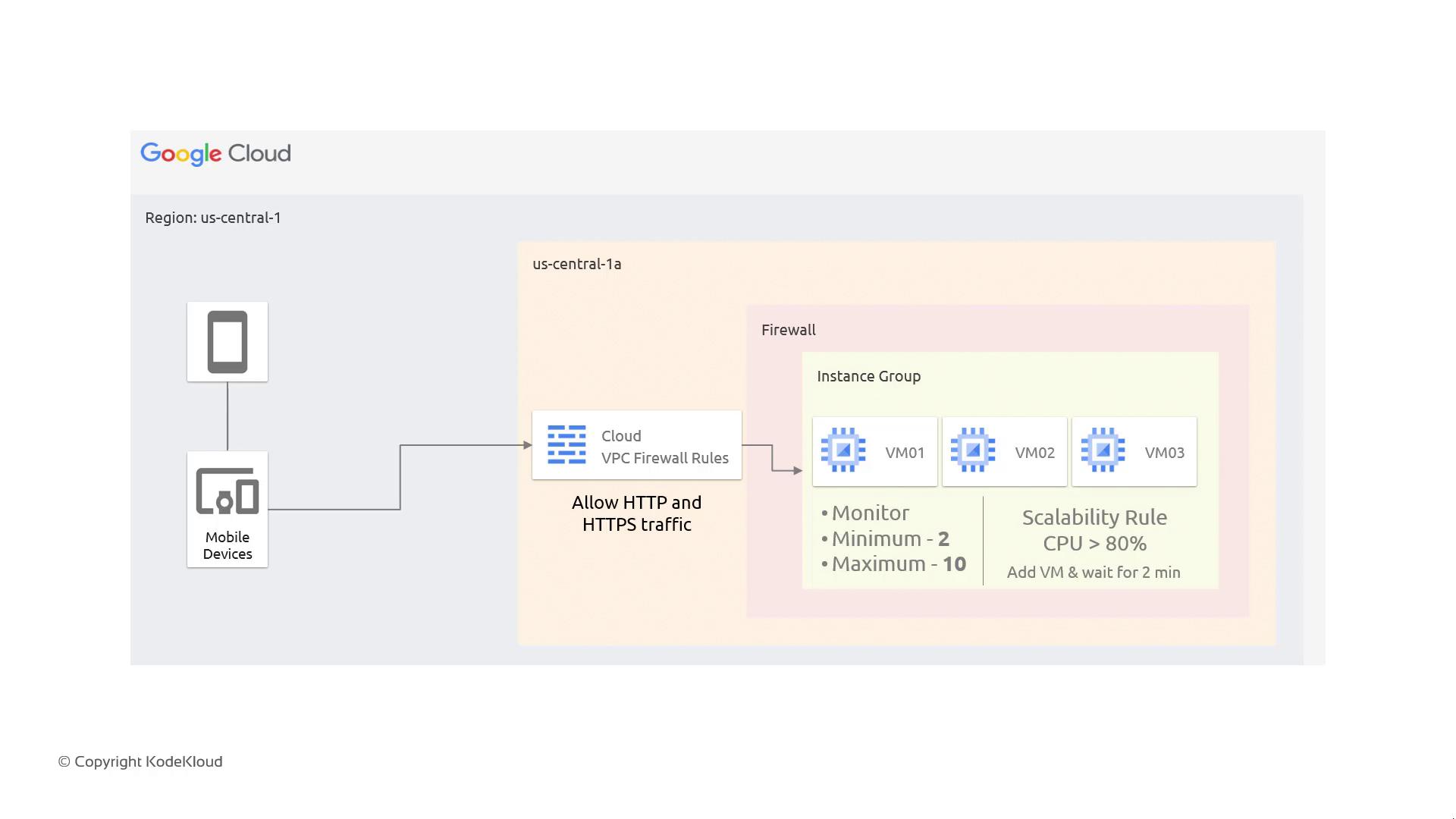

For example, consider the following architecture:

In this setup, the instance group consists of three VMs monitored as a single unit. You could configure the system to ensure that a minimum of 2 machines and a maximum of 10 machines are active. To manage scaling, you might define a rule: if the total CPU utilization exceeds 80%, add one more VM, wait two minutes, and recheck. This process continues until the group reaches the limit of 10 machines. These combined features provide a robust solution for achieving both scalability and high availability.

High Availability and Self-Healing

Relying on a single VM for high availability can be risky—if the VM fails, there’s no backup. Instance groups address this risk by automatically spinning up a replacement if a VM becomes unresponsive.

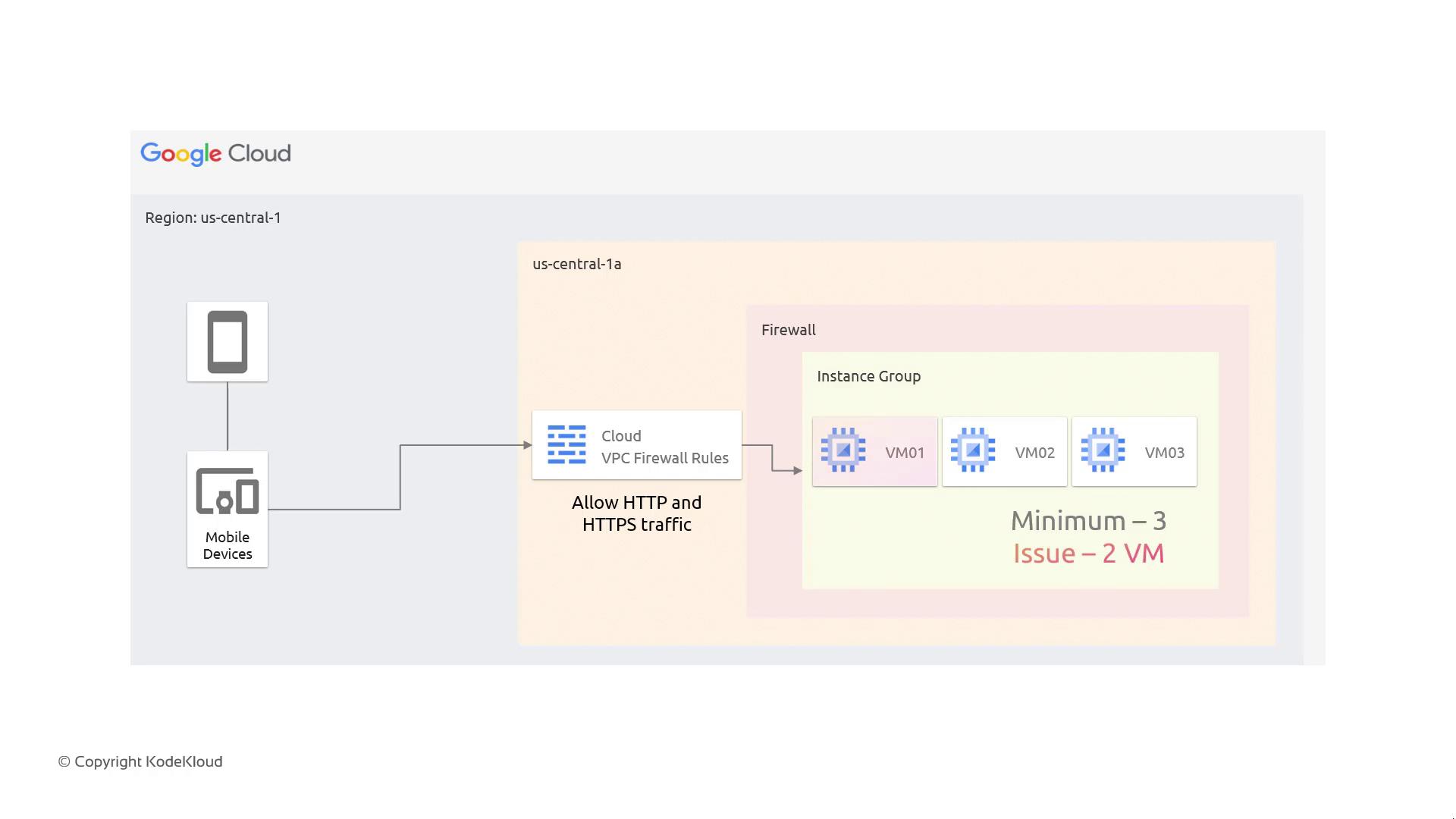

Consider a scenario where an instance group comprises three VMs—VM01, VM02, and VM03. If VM01 fails, dropping the active count to two, the autoscaling mechanism detects this deficit and launches a replacement (e.g., VM04). The problematic VM is then marked as out of service, and the instance group self-heals to maintain the desired capacity.

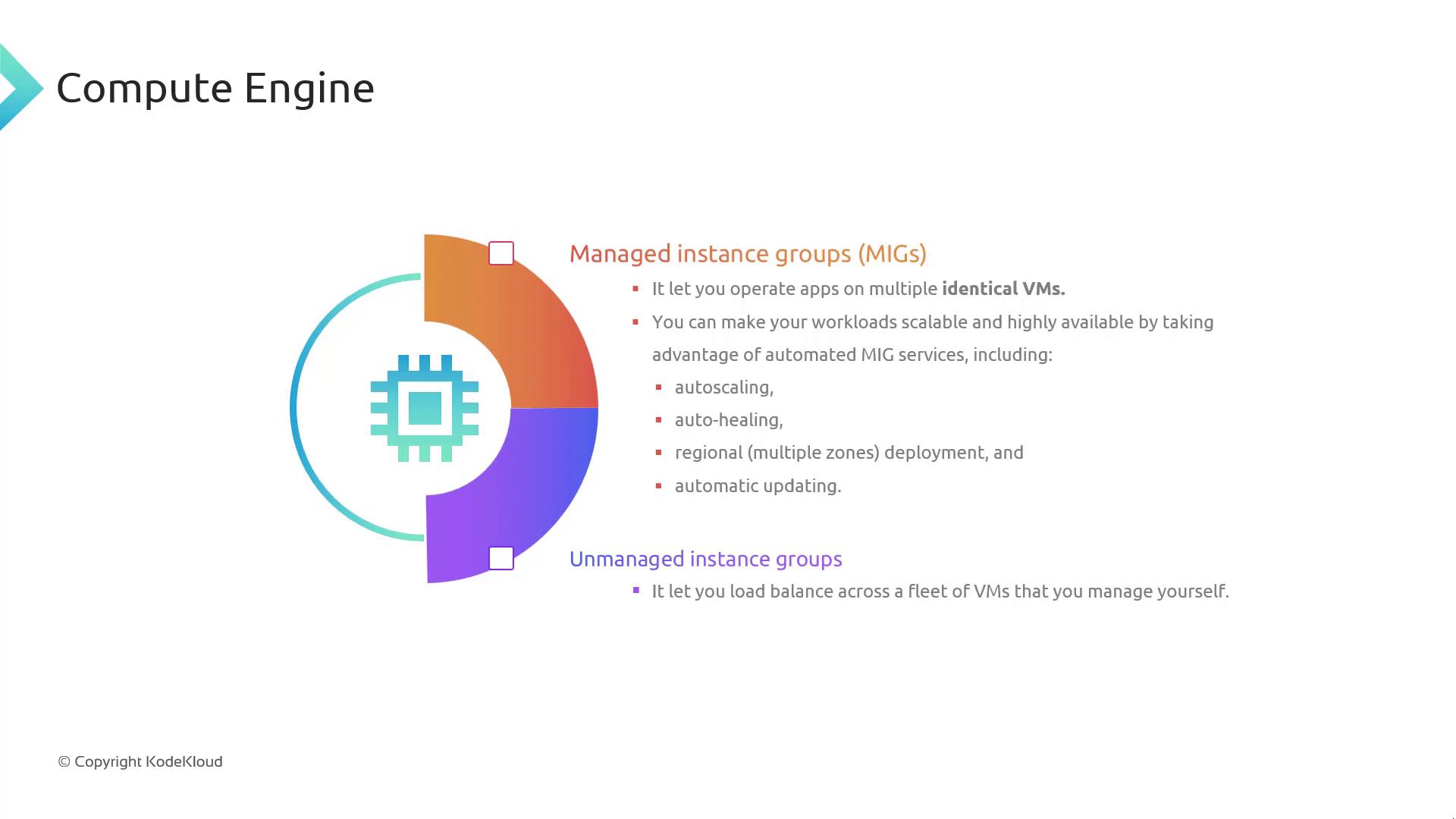

Types of Instance Groups

An instance group is a collective of VMs managed as a single entity. There are two primary types:

1. Managed Instance Groups:
   These groups consist of identical VMs that are automatically created and maintained. Features such as autoscaling, automated updates, self-healing, and high availability make Managed Instance Groups ideal for production environments.

2. Unmanaged Instance Groups:
   In unmanaged instance groups, VMs are created independently and require separate management. Lacking built-in autoscaling and self-healing capabilities, they are less suited for scenarios where high availability and scalability are critical.

Managing Incoming Traffic

After establishing an instance group, the next step involves managing incoming traffic and implementing effective load balancing. How do you route traffic to the appropriate instance group when multiple groups are available? How do you ensure efficient load distribution? These questions will be addressed in upcoming discussions focused on load balancing and traffic management.

That concludes this article. Thank you for reading!
