Understanding GIT

In this lesson, we dive into Git's internal mechanisms, explaining how Git uses a key-value store model to manage files. Each file added to a commit is hashed using the SHA-1 algorithm, and the resulting hash uniquely identifies the folder where the file's contents are stored.

Git commands are divided into two main categories:

  • Porcelain Commands: These are user-friendly commands such as git add, git status, git commit, and git stash.
  • Plumbing Commands: These commands, including git hash-object and git cat-file, allow you to interact directly with Git's internal data structures.

Below is an overview of these commands:

# Porcelain Commands
git add
git status
git commit
git stash
…

# Plumbing Commands
git hash-object

Using plumbing commands, you can compute the hash that Git uses internally. This process is similar to what happens when you run git commit. For example, suppose you have a file named first_story.txt containing a short sentence. First, add some content to the file:

$ echo "This is my first story" >> first_story.txt

Next, generate a SHA-1 hash for this file using the following command. Notice how Git returns a hash value where the first two characters indicate the folder in which the content is stored:

$ git hash-object first_story.txt
bea8d7fee8e7b11c2235ca623935e6ccccd8bac3

If you commit the first_story.txt file, Git will generate the same hash:

$ git hash-object first_story.txt
bea8d7fee8e7b11c2235ca623935e6ccccd8bac3

Git then creates a folder using the first two characters of the hash—in this case, "be". You can inspect the internal Git structure by navigating to the .git folder, which is created when you run git init. For instance, after adding and committing the file, you might see:

$ git add first_story.txt
$ git commit -m "First story"
$ ls .git/objects
26  be  a0  info  pack
$ ls .git/objects/be
a8d7fee8e7b11c2235ca623935e6ccccd8bac3

Note

To view the content corresponding to a particular hash, use the plumbing command git cat-file with the -p flag for pretty-printing:

For example, using the first part of the hash:

$ git cat-file -p bea8d7
"This is my first story"

When you inspect a commit object, Git includes additional metadata along with the file content. Consider the following example:

$ git cat-file -p 4cdf4
tree 2ea7de7ff3bd48cbb020b215b36feb67ee7f9a30
parent f4e830485cc852686cf115e75a79cbb41a0de713
author Lydia Hallie <[email protected]> 1594547678 +0200
committer Lydia Hallie <[email protected]> 1594547678 +0200

First story

This commit object contains:

  • A tree reference that points to the repository's folder structure.
  • A parent commit reference.
  • Author information indicating who made the changes.
  • Committer details showing who committed the changes.

Next, let's discuss Git's object types. Git organizes its internal storage into three primary object types:

Object TypeDescriptionExample Use Case
CommitRepresents a snapshot of your repository at a given time, recording metadata and pointers to tree objects.Storing commit history
TreeRepresents a directory structure and links to blobs or subtrees.Organizing folder hierarchy
BlobContains file data such as the contents of first_story.txt.Storing actual file content

When you make multiple commits, Git builds a structure where each commit points to its parent. Each commit references trees (representing directory structures) and blobs (file data). For example, the first commit might reference a blob for first_story.txt, and a subsequent commit might reference both the previous blob and a new blob for another file.

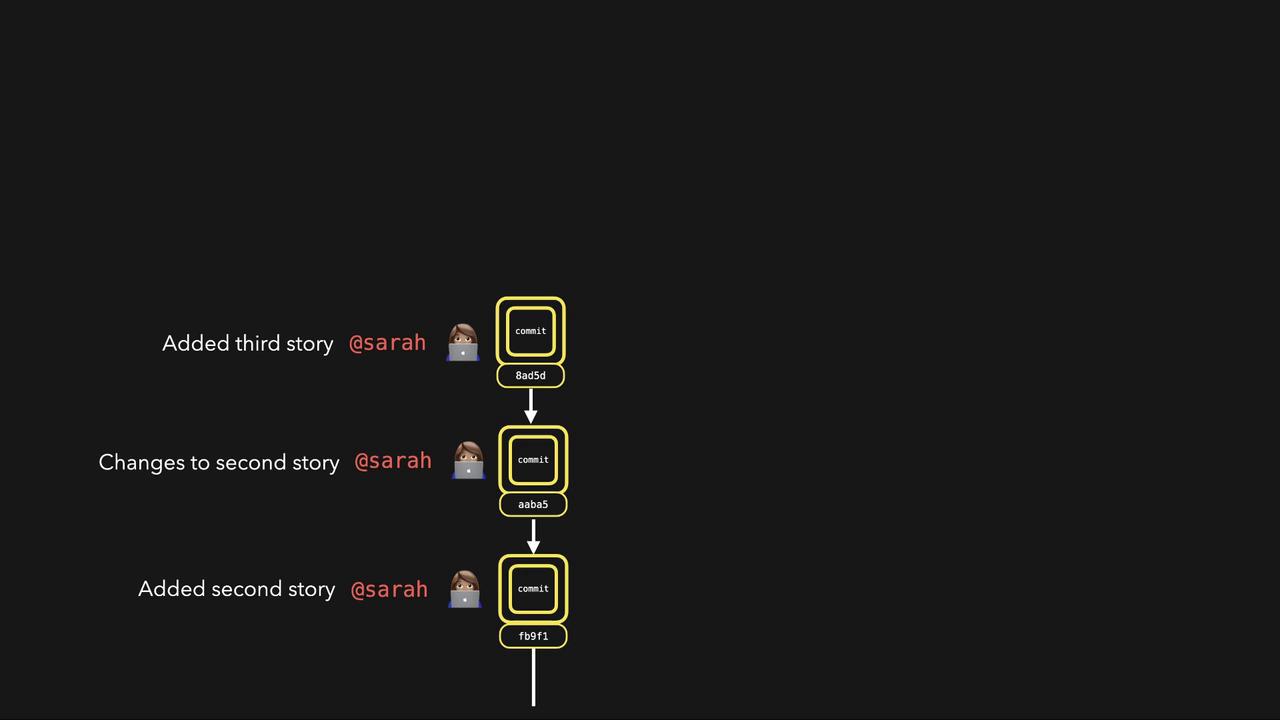

The image shows a commit history with three entries by @sarah, detailing additions and changes to stories, each with unique commit hashes.

Every commit acts as a snapshot of the repository, linking together trees and blobs to facilitate powerful version control features.

That concludes our lesson on how Git works internally. Stay tuned for the next lesson as we continue to explore Git's capabilities and best practices!
