GitOps with ArgoCD

ArgoCD AdvancedAdmin

ArgoCD Vault Plugin CLI

This guide demonstrates how the ArgoCD Vault Plugin connects with HashiCorp Vault to fetch secrets and generate Kubernetes manifest files by replacing placeholders with actual secret data.

Overview

The ArgoCD Vault Plugin is a Git repository tool that retrieves secrets from various secret management systems, including HashiCorp Vault, IBM Cloud Secret Manager, and AWS Secret Manager. In this demo, we will focus on integrating with HashiCorp Vault.

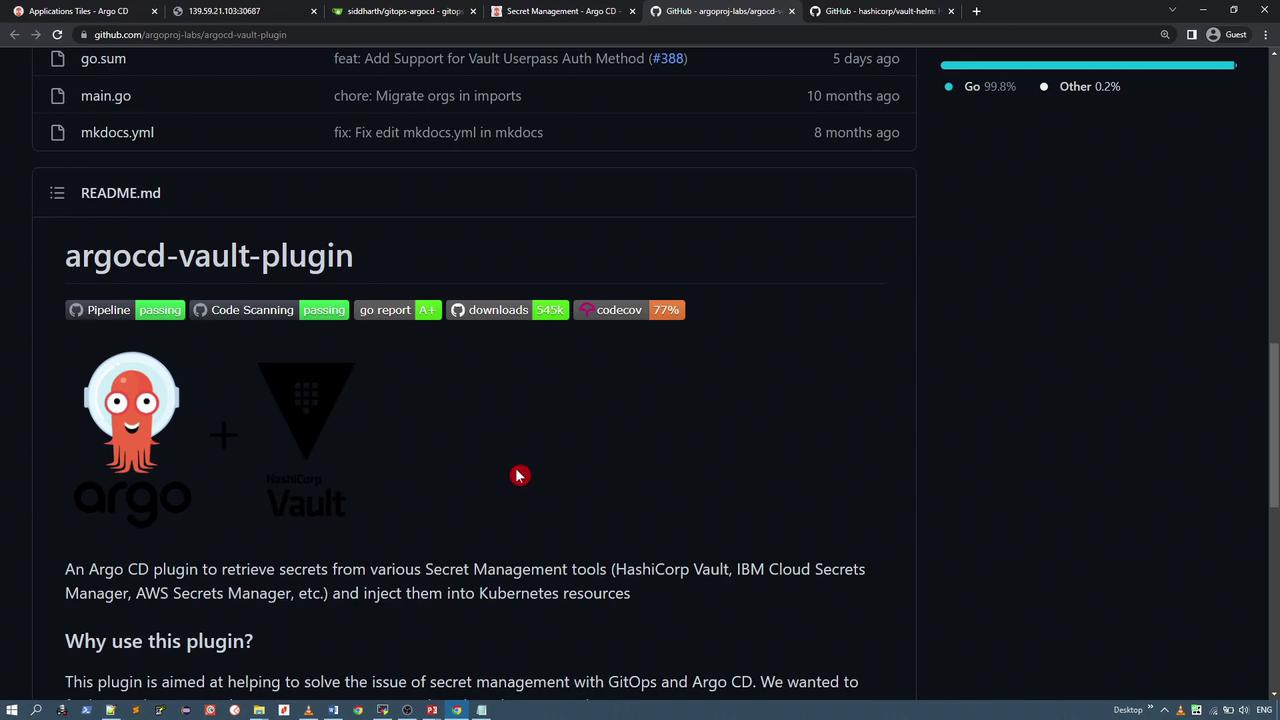

The image shows a GitHub page for the "argocd-vault-plugin," displaying its status badges and a brief description of its functionality related to secret management in Kubernetes.

Setting Up HashiCorp Vault

To get started, you need to deploy a Vault instance where you can add and later retrieve secrets. For this demo, we will deploy Vault using the HashiCorp Vault Helm chart and manage the deployment via ArgoCD.

Installing Vault via Helm

Follow these steps to install Vault with Helm:

  1. Add the HashiCorp Helm repository:

    helm repo add hashicorp https://helm.releases.hashicorp.com
# "hashicorp" has been added to your repositories

  2. Install Vault:

    helm install vault hashicorp/vault

  3. Create an ArgoCD application for the Vault Helm chart. For this example, we deploy version 0.16.0 into the namespace “vault-demo.” Modify the Vault configuration to disable data storage by setting server.datastore.enabled to false and change the UI service type to NodePort to access the Vault UI through a browser.

    For instance, your Vault configuration snippet might resemble:

    ui = true
listener "tcp" {
  tls_disable = 1
  address = "[::]:8200"
  cluster_address = "[::]:8201"
}
storage "consul" {
  path = "vault"
  address = "HOST_IP:8500"
}

    And update the service configuration with:

    apiVersion: v1
kind: Service
metadata:
  name: vault-app
spec:
  type: NodePort
  ports:
    - name: http
      port: 8200
      targetPort: 8200
    - name: https-internal
      port: 8201
      targetPort: 8201
  selector:
    app.kubernetes.io/instance: vault-app
    app.kubernetes.io/name: vault
    component: server

    After synchronizing the application, multiple resources will be created. The Vault pod may be in a progressing state until Vault is fully initialized.

The image shows a dashboard interface of an application management tool, displaying a tree structure of components related to a "vault-app" with various sync and health statuses.

Accessing and Initializing Vault

After the Vault application is deployed, check the “vault-demo” namespace to verify the running resources:

# List all resources in the vault-demo namespace
kubectl -n vault-demo get all

# Example output:
# NAME                                               READY   STATUS      RESTARTS   AGE
# pod/vault-app-0                                    0/1     Running     0          54s
# pod/vault-app-agent-injector-6947cc4648-wd9dt       1/1     Running     0          54s
#
# NAME                                               TYPE       CLUSTER-IP      EXTERNAL-IP   PORT(S)              AGE
# service/vault-app                                  ClusterIP  10.110.125.148  <none>        8200/TCP,8201/TCP      54s
# service/vault-app-agent-injector-svc              ClusterIP  10.104.23.127   <none>        443/TCP              54s
# service/vault-app-internal                        ClusterIP  None            <none>        8200/TCP,8201/TCP      54s
#
# NAME                                               READY   UP-TO-DATE   AVAILABLE   AGE
# deployment.apps/vault-app-agent-injector           1/1     1            1           54s
#
# NAME                                               DESIRED   CURRENT   READY   AGE
# replicaset.apps/vault-app-agent-injector-6947cc4648  1         1         1       54s
#
# NAME                                               READY   AGE
# statefulset.apps/vault-app                         0/1     54s

Manual Update Notice

If the Vault service does not reflect the NodePort settings, update the service manifest manually as described above. Once updated, you can access the Vault UI using the assigned NodePort (e.g., port 31986).

Next, initialize Vault via the UI. When initializing, choose three key shares with a threshold of at least two keys required to unseal. Save the initial root token and unseal keys securely.

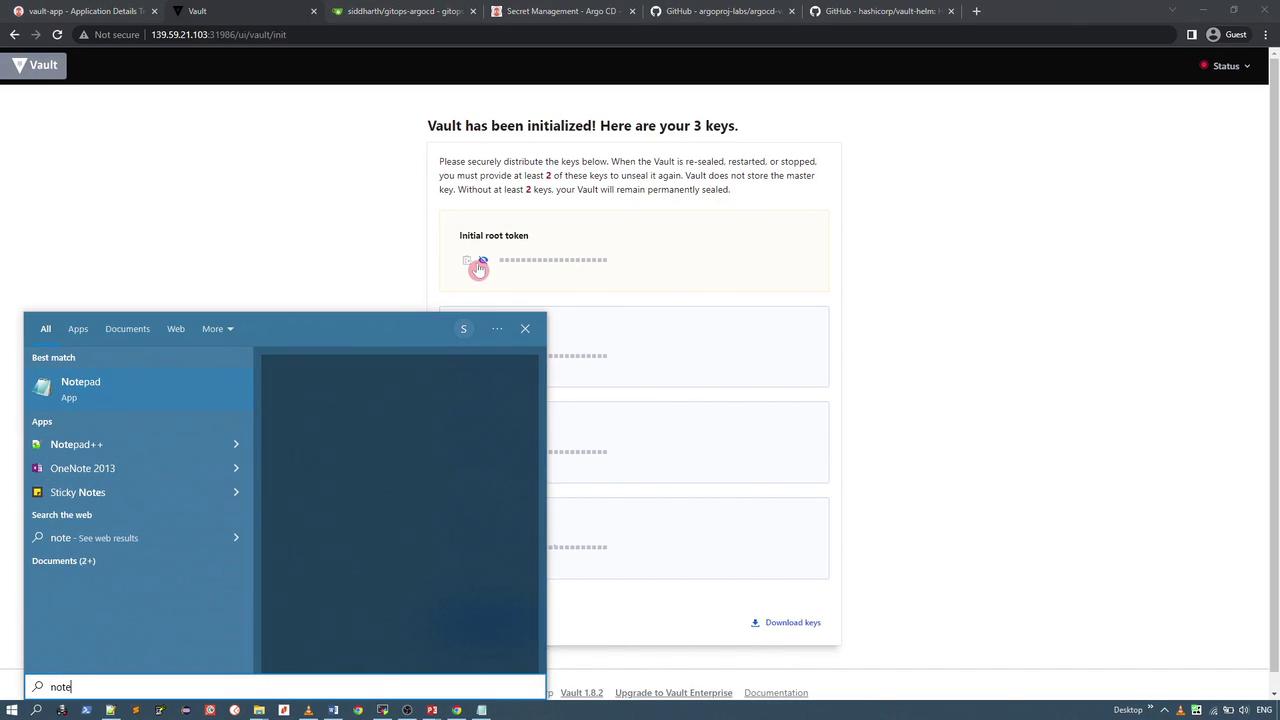

The image shows a computer screen with a web page displaying a message about Vault initialization and keys, alongside a Windows start menu with a search for "Notepad."

Unseal Vault by entering two of the keys in the UI:

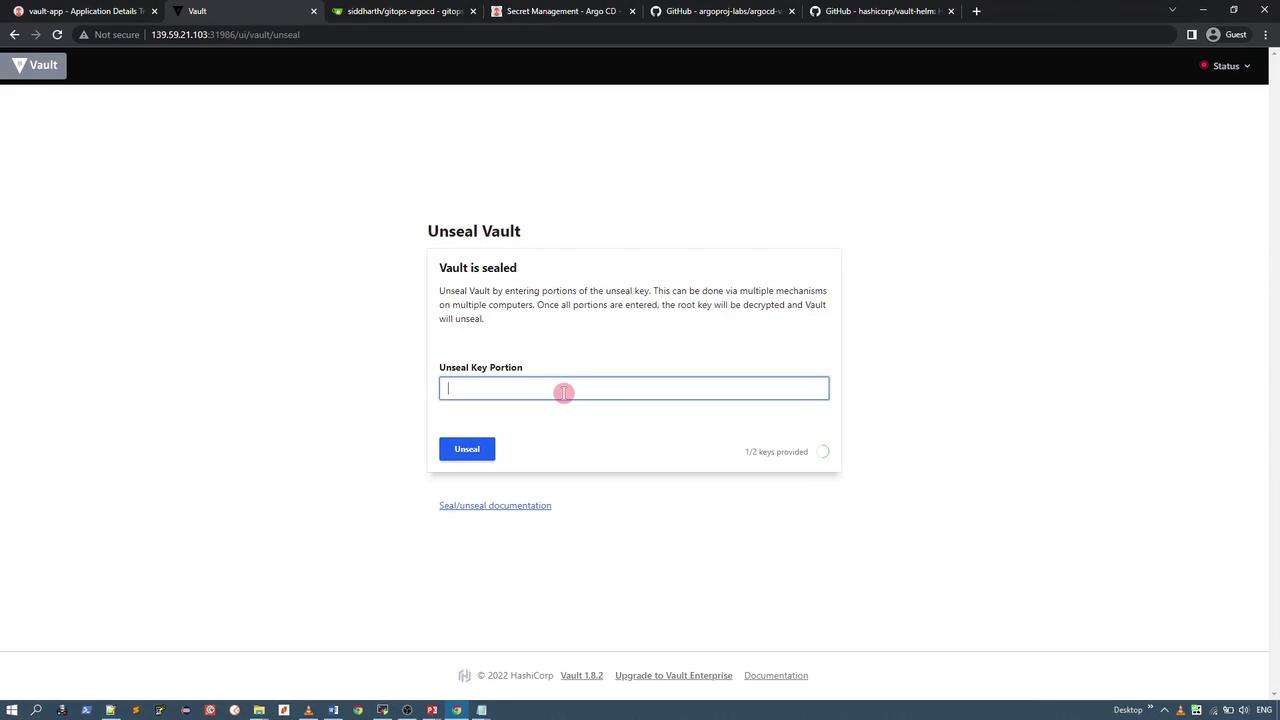

The image shows a web interface for unsealing a Vault, with a field to enter an unseal key portion and a button labeled "Unseal." The page indicates that the Vault is currently sealed.

Finally, log in using the default token authentication—the root token saved earlier. By default, only the "cubbyhole" secret engine is enabled.

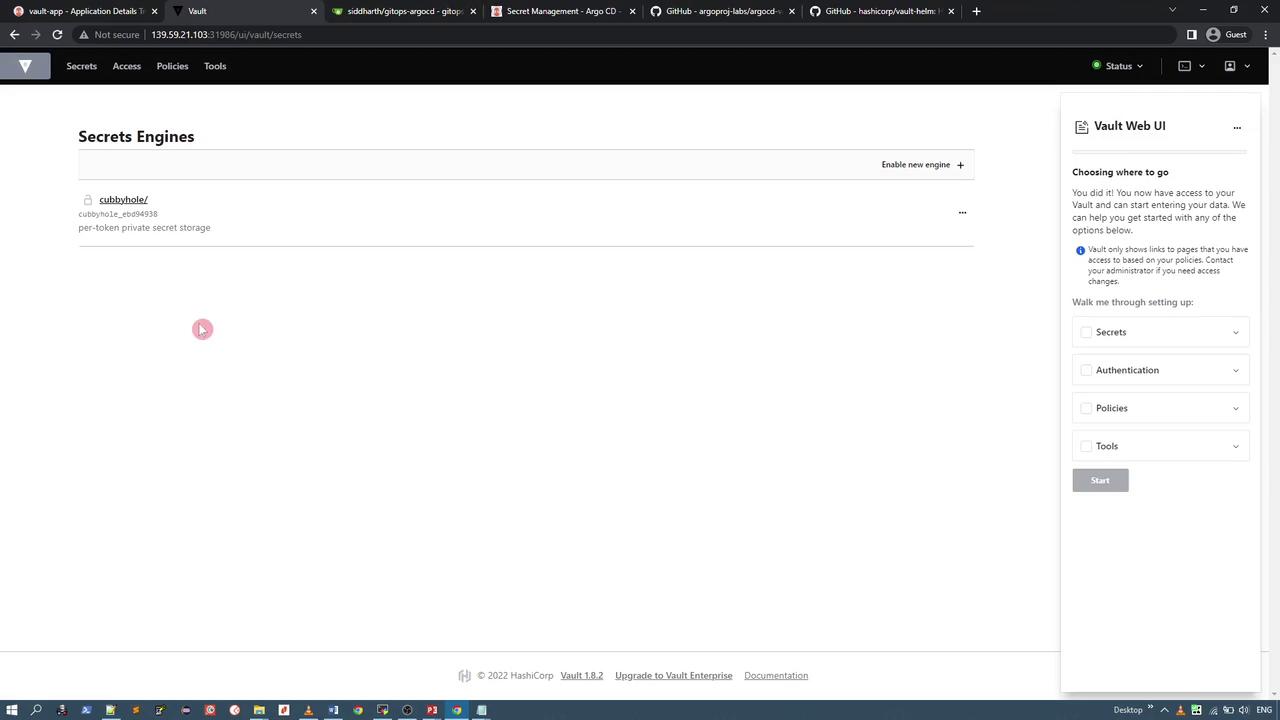

The image shows a web interface for HashiCorp Vault, displaying the "Secrets Engines" section with a "cubbyhole" engine listed. There is a sidebar on the right with options for setting up secrets, authentication, policies, and tools.

Enabling a Key-Value Secret Engine and Creating Secrets

To store application credentials, enable the KV (key-value) secret engine and create a secret:

  1. In the Vault UI, enable a new secret engine.
  2. Choose the key-value secret engine (version 2).
  3. Set the engine path to credentials using default configurations.

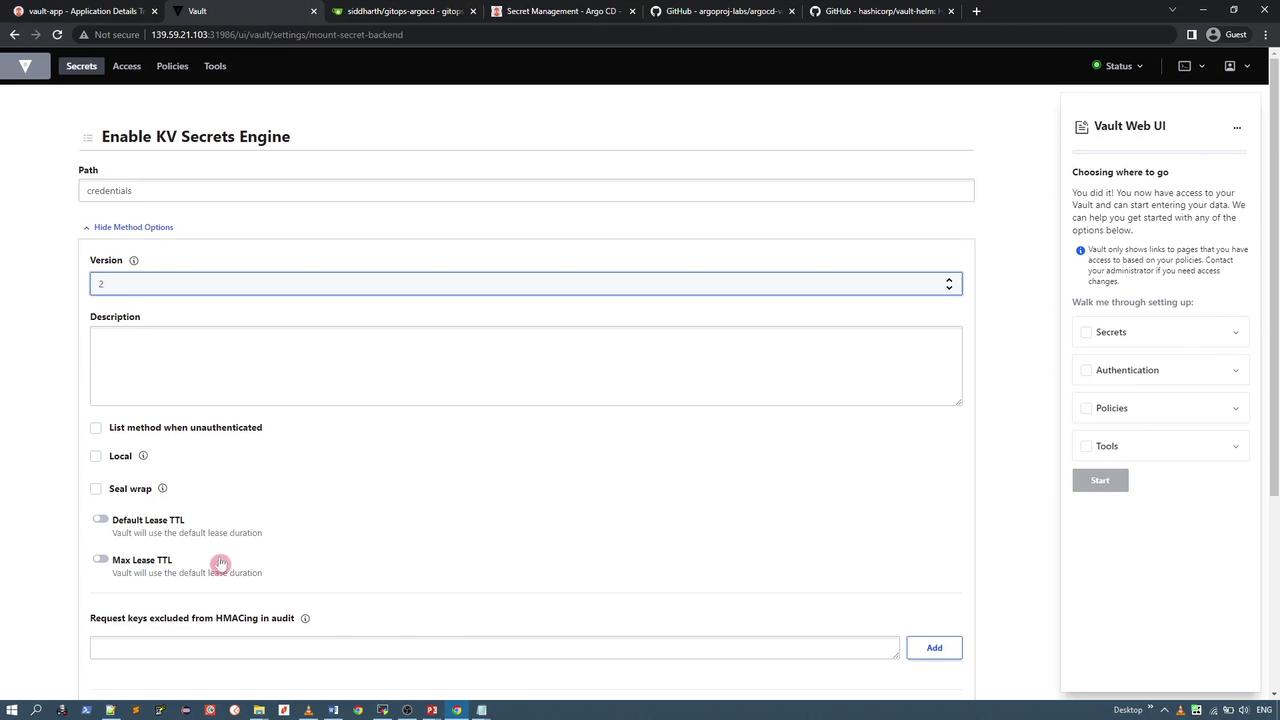

The image shows a web interface for enabling a KV Secrets Engine, with fields for path, version, and description, along with various configuration options. There is also a sidebar with navigation options for setting up secrets, authentication, policies, and tools.

Within the credentials secret engine, add a new secret under a specific path (for example, app) with the following fields:

  • username (e.g., your name suffixed with -vault for demo purposes)
  • password (e.g., secure-password-vault)
  • API key (a random string)

The image shows a web interface for creating a secret in a vault application, with fields for entering a username, password, and API key. There are options for setting metadata and saving or canceling the secret creation.

After saving, verify that the secret is stored under the credentials/app path:

The image shows a web interface for managing secrets in Vault, displaying keys like "apikey," "password," and "username" with their values hidden. There are options for managing secrets, authentication, policies, and tools on the right sidebar.

Using the ArgoCD Vault Plugin

Once Vault is running, initialized, unsealed, and holds your secret data, you can use the ArgoCD Vault Plugin to access these credentials.

Defining a Kubernetes Secret Manifest

To automatically retrieve secrets, define a Kubernetes Secret manifest with an annotation that instructs the plugin where to fetch the Vault data. For example, if your secret is stored at credentials/app, your manifest should be configured like this:

kind: Secret
apiVersion: v1
metadata:
  name: app-crds
  annotations:
    avp.kubernetes.io/path: "credentials/data/app"
type: Opaque
stringData:
  apikey: <apikey>
  username: <username>
  password: <password>

The plugin replaces each placeholder (the values between < and >) with the actual secret data from Vault and outputs a valid manifest, encoding values in Base64 if necessary.

Local Installation of the ArgoCD Vault Plugin

For local testing outside of ArgoCD, follow these steps to install the ArgoCD Vault Plugin:

  1. Install via Homebrew:

    brew install argocd-vault-plugin

  2. Alternatively, download the Linux binary from GitHub:

    wget https://github.com/argoproj-labs/argocd-vault-plugin/releases/download/v1.12.0/argocd-vault-plugin_1.12.0_linux_amd64
chmod +x argocd-vault-plugin_1.12.0_linux_amd64
mv argocd-vault-plugin_1.12.0_linux_amd64 /usr/local/bin/argocd-vault-plugin

  3. Verify the installation:

    argocd-vault-plugin version
# Expected output:
# argocd-vault-plugin v1.12.0 (9c7288a5b2d395fea19c1100f2cd07b547cc1ee2) BuildDate: 2022-07-08T13:27:45Z

The plugin supports commands such as generate, completion, and help. The generate command is used to replace placeholder values in your secret manifest with actual data from Vault.

Creating the Secret Manifest

Store your Kubernetes Secret manifest into a file, for example, secret.yaml:

kind: Secret
apiVersion: v1
metadata:
  name: app-crds
  annotations:
    avp.kubernetes.io/path: "credentials/data/app"
type: Opaque
stringData:
  apikey: <apikey>
  username: <username>
  password: <password>

Tip

Using stringData here allows plain text entries, which are then encoded as needed, avoiding manual Base64 encoding.

Configuring Vault Connection

Create an environment file (e.g., vault.env) that contains the necessary Vault configuration parameters:

VAULT_ADDR=http://localhost:31986
VAULT_TOKEN=s.0nqTxN3rmQcoKku7DX87bWz
AVP_TYPE=vault
AVP_AUTH_TYPE=token

Make sure to adjust the VAULT_ADDR and VAULT_TOKEN to match your Vault instance. The AVP_TYPE should be set to vault and AVP_AUTH_TYPE to token for this demo setup.

Generating the Manifest

Run the following command to generate the final Kubernetes manifest with secrets fetched from Vault:

argocd-vault-plugin generate -c vault.env - < secret.yaml

The output will be a complete manifest with all placeholder values replaced by the actual secrets, similar to:

apiVersion: v1
kind: Secret
metadata:
  annotations:
    avp.kubernetes.io/path: credentials/data/app
  name: app-crds
stringData:
  apiKey: 5FGJVasdnjl-yidis67-asdkasd
  password: secure-password-vault
  username: siddharth-vault
type: Opaque

This manifest is now ready for deployment into your Kubernetes cluster.

Conclusion

In this guide, we covered the deployment of HashiCorp Vault using Helm, enabling a key-value secret engine, and storing application credentials. We then demonstrated how to use the ArgoCD Vault Plugin locally to generate a Kubernetes Secret manifest populated with secrets from Vault. In the next demo, you will learn how to configure ArgoCD to automatically generate these manifests when an application is created.

Thank you for following along.
