In this lesson, you will learn how to utilize Prometheus and Grafana to visualize ArgoCD metrics. ArgoCD exposes a variety of Prometheus metrics across its different components—including the application controller, API server, repository server, and applicationset controller. This guide walks you through inspecting these metrics within your cluster, setting up Prometheus and Grafana using Helm, configuring ServiceMonitor resources to scrape ArgoCD metrics, and visualizing the collected data.

​
Examining ArgoCD Metrics

ArgoCD’s documentation provides detailed descriptions of the metrics exposed by its components. For instance, the following image illustrates the metrics for the ArgoCD application controller, including names, types, and descriptions:

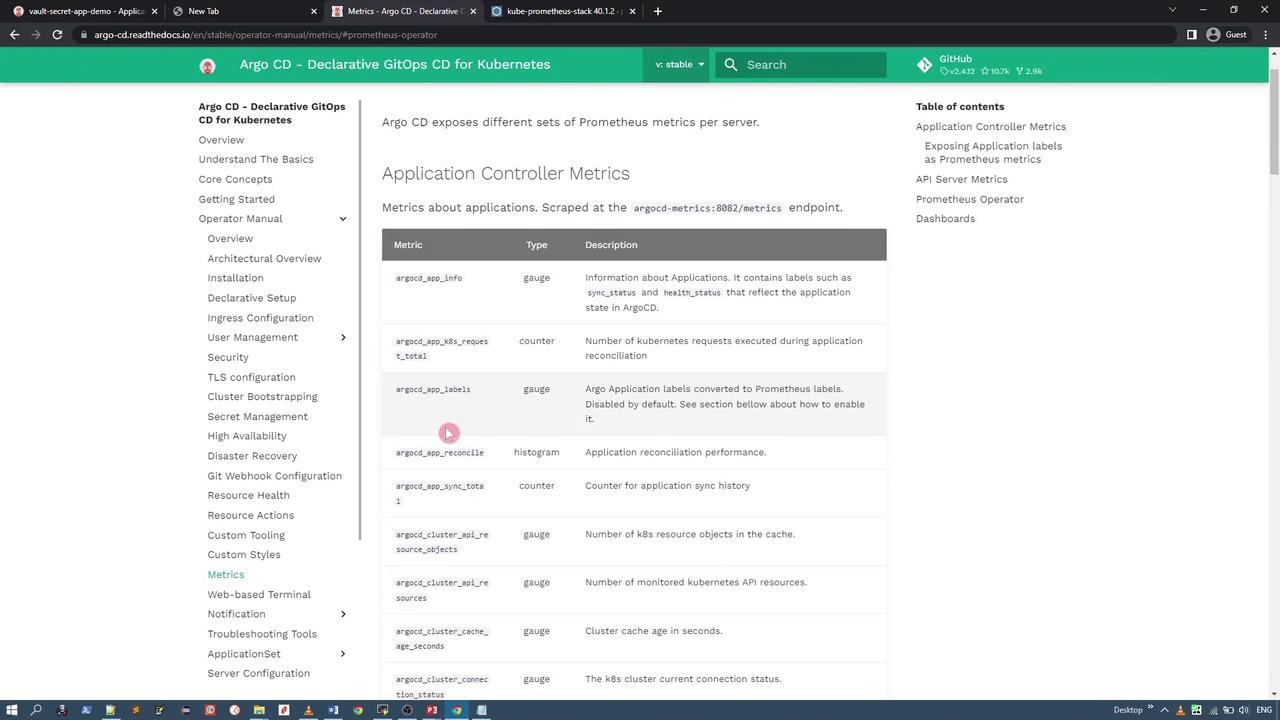

The image shows a webpage from the Argo CD documentation, detailing application controller metrics for Prometheus, including metric names, types, and descriptions. The page includes a navigation menu on the left and a table of contents on the right.
Similarly, the API server provides its own set of metric endpoints:

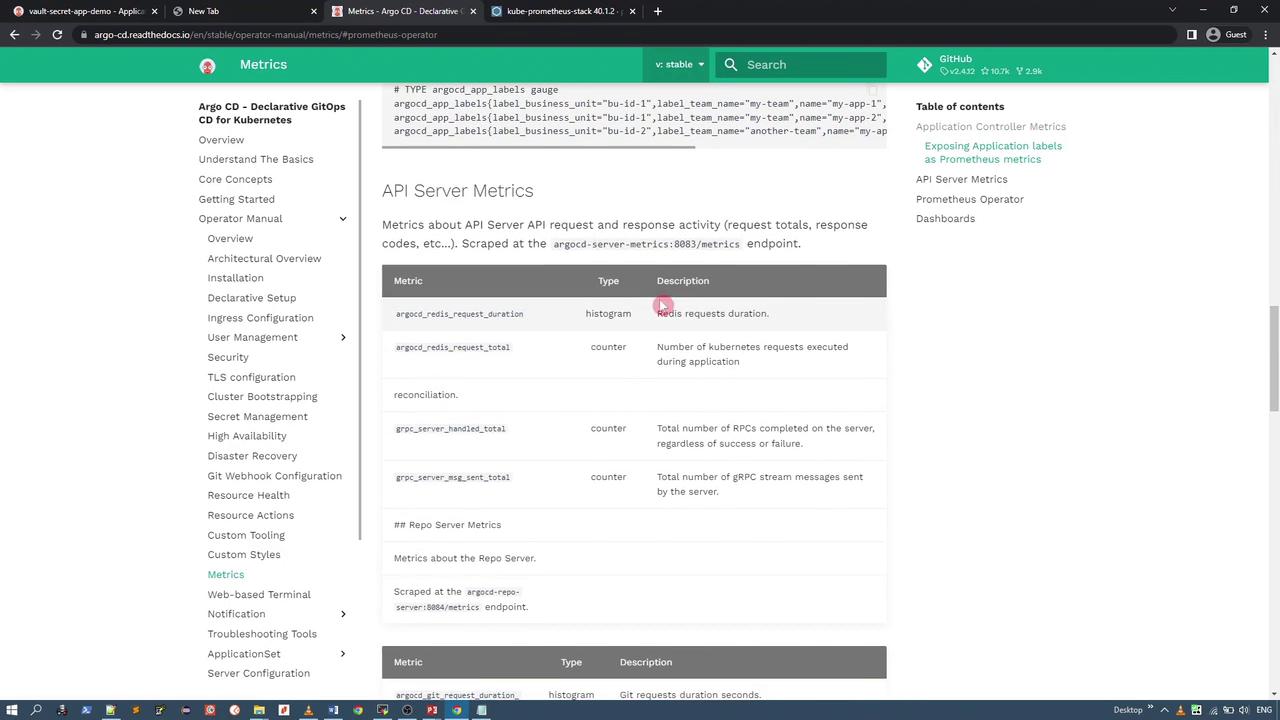

The image shows a webpage from the Argo CD documentation, specifically detailing API server metrics with a table listing various metrics, their types, and descriptions. The page includes a navigation menu on the left and a table of contents on the right.
To inspect all ArgoCD services in your cluster, run the following command to list the services in the ArgoCD namespace:
kubectl -n argocd get svc
You might see output similar to this:
NAME                                     TYPE        CLUSTER-IP      EXTERNAL-IP  PORT(S)                     AGE
argocd-applicationset-controller         ClusterIP   10.100.58.34    <none>       7000/TCP,8080/TCP           29h
argocd-dex-server                        ClusterIP   10.109.179.192  <none>       5556/TCP,5557/TCP,5558/TCP   29h
argocd-metrics                           ClusterIP   10.100.111.162  <none>       8082/TCP                    29h
argocd-notifications-controller-metrics   ClusterIP   10.110.116.143  <none>       9001/TCP                    29h
argocd-redis                             ClusterIP   10.106.239.172  <none>       6379/TCP                    29h
argocd-repo-server                       ClusterIP   10.101.4.27     <none>       8081/TCP,8084/TCP           29h
argocd-server                            NodePort    10.98.110.228   <none>       80:30663/TCP,443:31194/TCP   29h
argocd-server-metrics                    ClusterIP   10.97.180.219   <none>       8083/TCP                    29h
Accessing the server’s metrics using a curl command on the default port (80) may return a “404 page not found” error:
curl 10.98.110.228:80/metrics
Instead, use the dedicated metrics endpoint on the argocd-metrics service (port 8082) to retrieve Prometheus metrics. You might see output similar to:
workqueue_work_duration_seconds_bucket{name="app_reconciliation_queue",le="1e-05"} 413
workqueue_work_duration_seconds_bucket{name="app_reconciliation_queue",le="0.001"} 5333
workqueue_work_duration_seconds_bucket{name="app_reconciliation_queue",le="0.01"} 5978
...
workqueue_work_duration_seconds_count{name="project_reconciliation_queue"} 1225

​
Setting Up Prometheus and Grafana

To visualize ArgoCD metrics, you must deploy a Prometheus server. The Kube Prometheus Stack available on Artifact Hub provides Prometheus, Grafana, Alertmanager, and other essential custom resource definitions.

​
Adding the Prometheus Helm Repository

First, add the Prometheus community repository and update your local Helm repository cache:
helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
helm repo update

​
Installing the Prometheus Stack

Create a new namespace for monitoring (e.g., monitoring) and install the Prometheus stack. Depending on your requirements, you can choose between different chart versions. Here are two examples: Using a recent version (e.g., 40.1.2):
kubectl create ns monitoring
helm install my-kube-prometheus-stack prometheus-community/kube-prometheus-stack --version 40.1.2 -n monitoring
Or using an alternative version (e.g., 35.3.0):
kubectl create ns monitoring
helm install my-kube-prometheus-stack prometheus-community/kube-prometheus-stack --version 35.3.0 -n monitoring
The installation process creates multiple resources (services, pods, daemonsets, statefulsets, etc.). To view the Prometheus service (set as NodePort), run:
kubectl -n monitoring get svc
You can then access the Prometheus UI by navigating to the node’s IP with the assigned NodePort (e.g., 31534). In the Prometheus interface, go to “Status” → “Targets” to see the list of scraped endpoints.

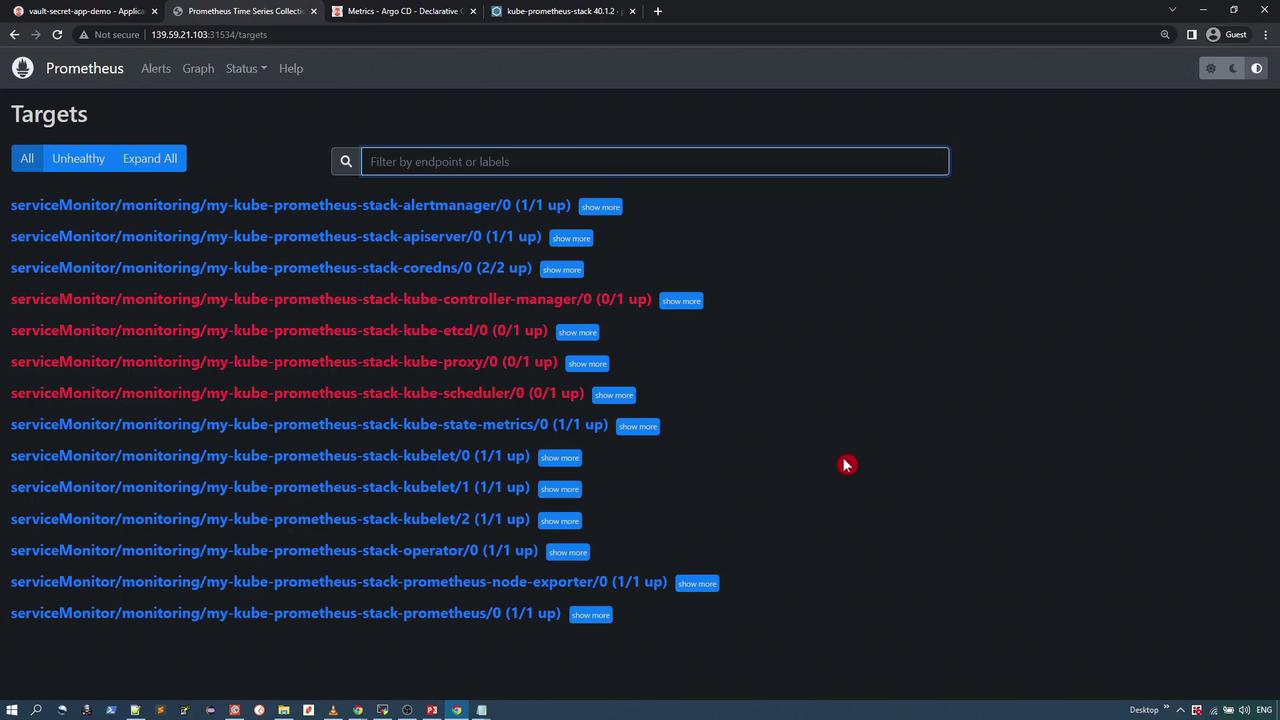

The image shows a Prometheus monitoring dashboard with a list of service targets, some of which are marked as unhealthy in red. The interface includes options to filter and expand the list of targets.
Filtering the target list for ArgoCD-related endpoints should display the newly added targets:

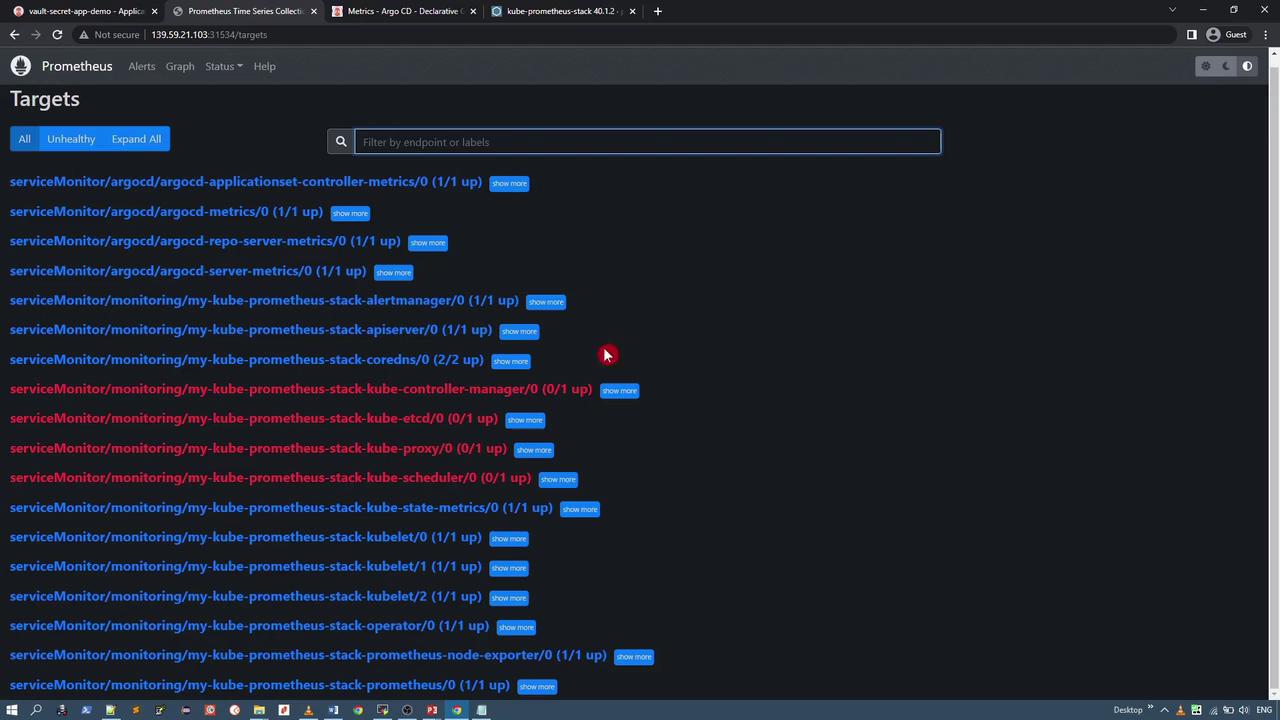

The image shows a Prometheus web interface displaying a list of monitoring targets, with some services marked as "up" in blue and others in red, indicating issues.

​
Configuring ServiceMonitors for ArgoCD

To allow Prometheus to scrape ArgoCD metrics, create ServiceMonitor resources in the ArgoCD namespace. These YAML manifests specify the services to be monitored and must include a label that matches the Prometheus operator’s selector (in this case, the release name “my-kube-prometheus-stack”). Below is an example configuration with three ServiceMonitors—for general metrics, server metrics, and repository server metrics. Similar manifests can be created for monitoring the applicationset controller.
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: argocd-metrics
  labels:
    release: my-kube-prometheus-stack
spec:
  selector:
    matchLabels:
      app.kubernetes.io/name: argocd-metrics
  endpoints:
    - port: metrics
---
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: argocd-server-metrics
  labels:
    release: my-kube-prometheus-stack
spec:
  selector:
    matchLabels:
      app.kubernetes.io/name: argocd-server-metrics
  endpoints:
    - port: metrics
---
apiVersion: monitoring.coreos.com/v1
kind: ServiceMonitor
metadata:
  name: argocd-repo-server-metrics
  labels:
    release: my-kube-prometheus-stack
spec:
  selector:
    matchLabels:
      app.kubernetes.io/name: argocd-repo-server
  endpoints:
    - port: metrics
Apply these manifests to the ArgoCD namespace (replace argocd-service-monitors.yaml with your filename):
kubectl -n argocd apply -f argocd-service-monitors.yaml
Verify the ServiceMonitors are set up correctly:
kubectl -n argocd get servicemonitors
You should see output similar to:
NAME                                      AGE
argocd-applicationset-controller-metrics  11s
argocd-metrics                            11s
argocd-repo-server-metrics                11s
argocd-server-metrics                     11s
Ensure that the metadata label “release” in each ServiceMonitor exactly matches the Helm release name used during the Prometheus stack installation (e.g., “my-kube-prometheus-stack”). You can confirm the Prometheus operator’s selector labels by running:
kubectl -n monitoring get prometheus.monitoring.coreos.com -o yaml | grep -i servicemonitorselector -A5

​
Visualizing ArgoCD Metrics

After the ServiceMonitors are active, Prometheus automatically adds ArgoCD targets. In the Prometheus UI, search for “argocd” (for example, using a query like argocd_app_info) to display detailed metrics and statuses for your applications.

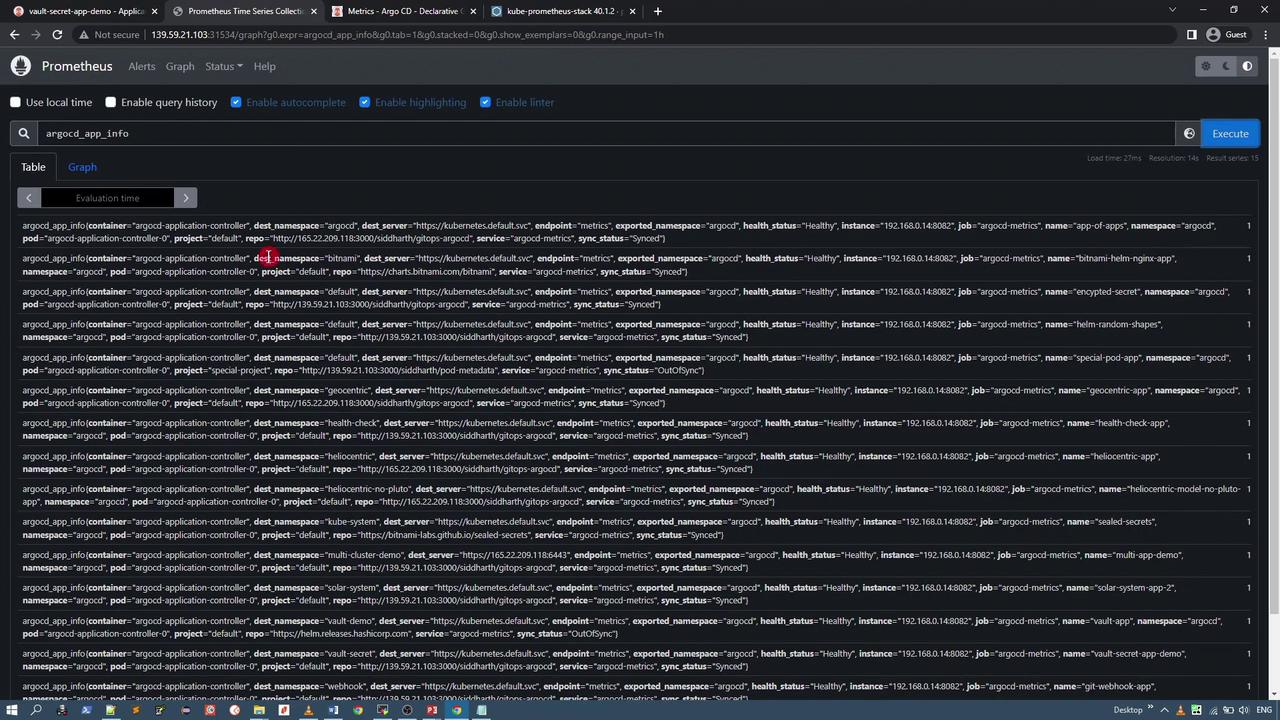

The image shows a Prometheus dashboard displaying query results for argocd_app_info, listing various application metrics and statuses in a tabular format.

​
Using Grafana for Visualization

Grafana offers rich visual dashboards to analyze these metrics. The recommended ArgoCD Grafana dashboard displays application health, sync status, component statistics, and more. For reference, the image below shows a portion of the ArgoCD Grafana dashboard:

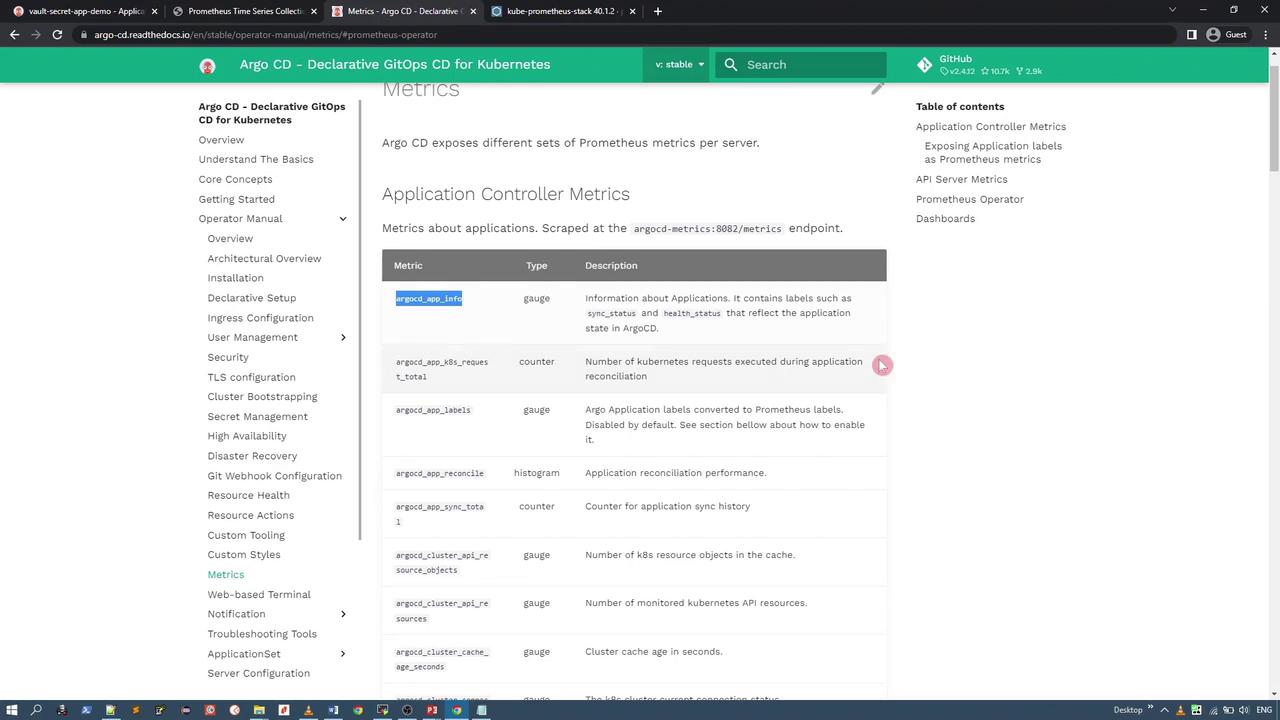

The image shows a webpage from Argo CD documentation, detailing application controller metrics for Kubernetes, including metric names, types, and descriptions.

​
Steps to Access the Grafana Dashboard

  1. Identify the Grafana Service:
    Locate the Grafana service in the monitoring namespace. By default, it is a ClusterIP service; modify it to a NodePort for external access if needed. Use the following command to edit the service:
    kubectl -n monitoring edit svc my-kube-prometheus-stack-grafana
  2. Access Grafana:
    After changing the service to NodePort (e.g., port 31762), navigate to the URL:
    http://<node-ip>:31762
  3. Log In:
    The default username is admin. Retrieve the password from the Grafana secret using:
    kubectl -n monitoring get secret my-kube-prometheus-stack-grafana -o json | jq -r '.data["admin-password"]' | base64 --decode
  4. Import the ArgoCD Dashboard:
    Click on the “+” icon in Grafana and select “Import.” You can import the ArgoCD dashboard using its ID or by supplying a JSON file. For example, import directly from this link:
    ArgoCD Grafana Dashboard
After importing, you will see a comprehensive dashboard that displays metrics such as application status, sync performance, and overall health.

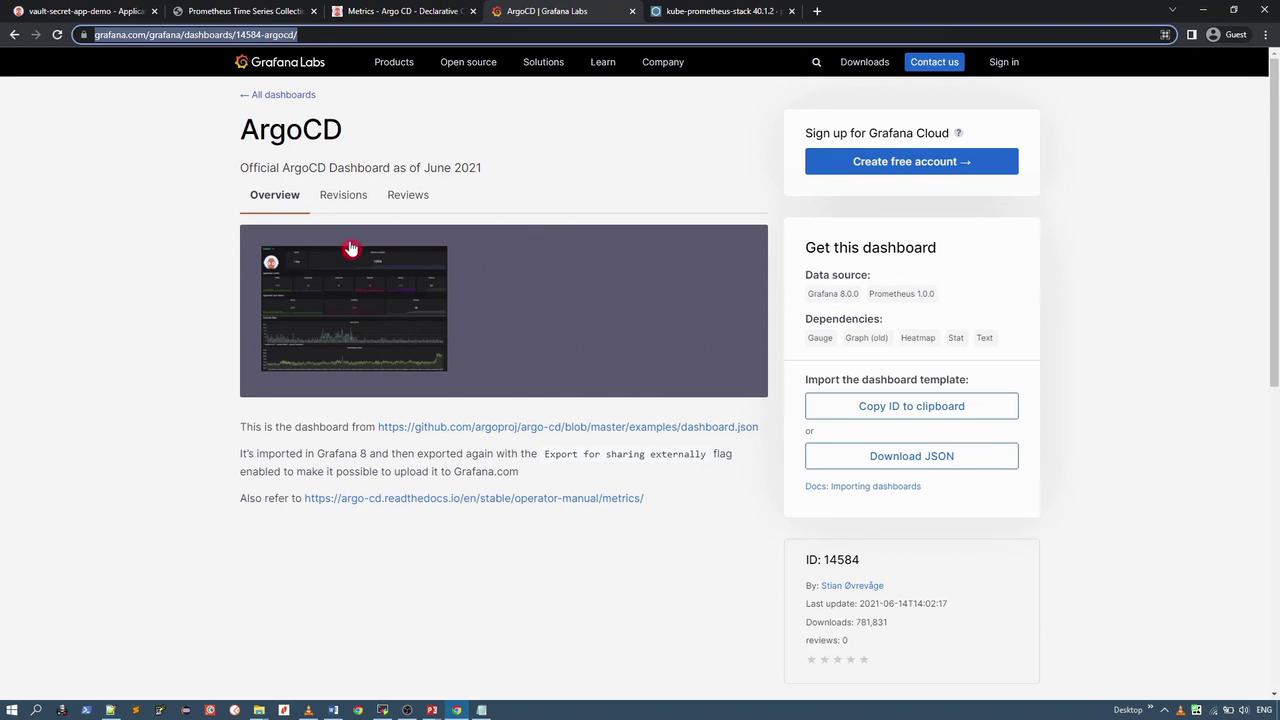

The image shows a webpage from Grafana Labs featuring the ArgoCD dashboard, with options to sign up for Grafana Cloud, download the dashboard JSON, and view dependencies.

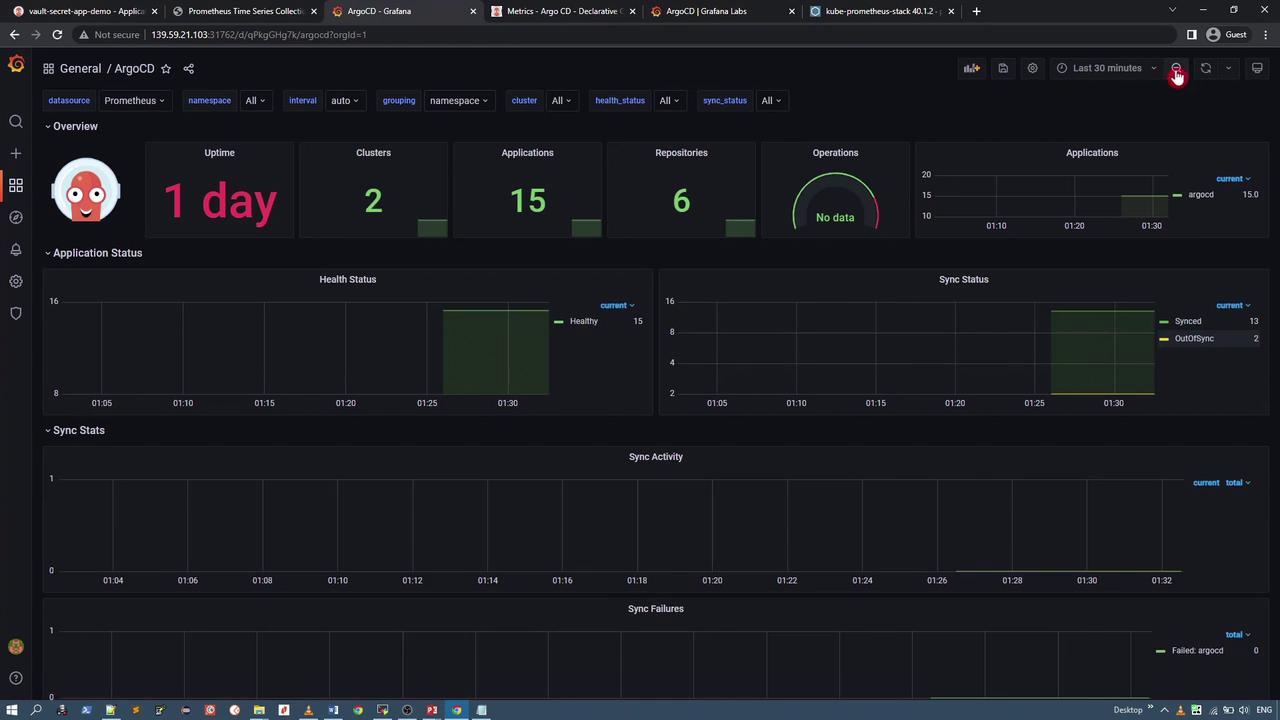

The image shows a Grafana dashboard displaying metrics for ArgoCD, including uptime, clusters, applications, and sync status. Various graphs and statistics are presented, such as health status and sync activity.

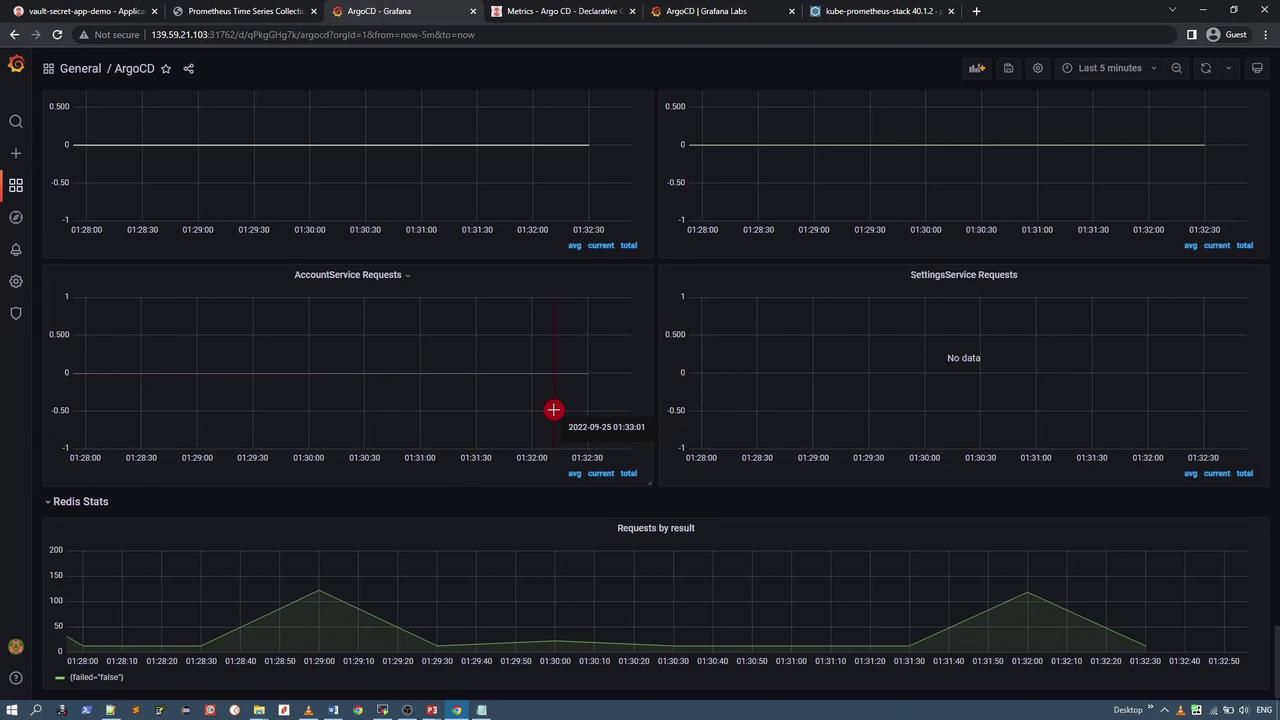

The image shows a Grafana dashboard with multiple time-series graphs displaying metrics such as requests and Redis stats. The graphs are mostly flat, indicating minimal activity, with one graph showing a spike in "AccountService Requests."
This Grafana dashboard provides actionable insights for both operations and development teams by summarizing the health, performance, and synchronization status of your ArgoCD-managed applications.

​
Conclusion

In this lesson, we have shown you how to expose ArgoCD metrics using Prometheus and visualize these metrics with Grafana. By deploying the Kube Prometheus Stack and integrating ServiceMonitor resources, you can achieve real-time monitoring of your ArgoCD environment, ensuring optimized application delivery and system performance. Thank you for reading, and happy monitoring!
