GitOps with FluxCD

Secret Management Sign Verification

DEMO Cosign OCI Artifacts

In this guide, we’ll walk through signing and verifying an OCI artifact using Cosign and then configuring Flux CD to fetch and verify that artifact before deploying it in Kubernetes.

Prerequisites

  • A fork or clone of the bb-appsource-git repository
  • Docker CLI installed and authenticated
  • A GitHub personal access token with read:packages and write:packages scopes
  • Flux CLI installed
  • A Cosign key pair generated (cosign.key and cosign.pub)

1. Prepare the Repository

  1. Switch to a new feature branch:

    git checkout -b 10-demo

  2. Under the manifests/ folder, confirm you have:

    • namespace.yaml
    • deployment.yaml
    • service.yaml
  3. Verify your deployment.yaml uses version 7.10.0:

    apiVersion: apps/v1
    kind: Deployment
    metadata:
      name: block-buster
      labels:
        app: block-buster
        api: downward
        usage: global
    spec:
      replicas: 1
      selector:
        matchLabels:
          app: block-buster
      template:
        metadata:
          labels:
            app: block-buster
            env: dev
            version: 7.10.0
        spec:
          containers:
          - name: app
            image: siddharth67/block-buster-dev:7.10.0
            imagePullPolicy: Always
            resources:
              requests:
                cpu: "100m"
                memory: "256Mi"


2. Authenticate to GitHub Container Registry

Log in to GitHub Container Registry (GHCR) using your username and personal access token:

docker login ghcr.io --username sidd-harth-2
# Enter your GHCR token when prompted

Note

Ensure your token has at least read:packages and write:packages scopes to push and pull images.


3. Push the OCI Artifact with Flux

Package your manifests folder and push it as an OCI artifact:

flux push artifact \
  oci://ghcr.io/sidd-harth-2/bb-app:7.10.0-$(git rev-parse --short HEAD) \
  --path="./manifests" \
  --source="$(git config --get remote.origin.url)" \
  --revision="7.10.0/$(git rev-parse --short HEAD)"

Expected output:

pushing artifact to ghcr.io/sidd-harth-2/bb-app:7.10.0-d6c285f
artifact successfully pushed to ghcr.io/sidd-harth-2/bb-app:7.10.0-d6c285f@sha256:eda014...

Verify the new package under Packages → bb-app on GitHub.


4. Sign the Artifact with Cosign

  1. Pull the image by tag:

    docker pull ghcr.io/sidd-harth-2/bb-app:7.10.0-d6c285f

  2. Sign by digest:

    cosign sign \
      --key ../cosign/cosign.key \
      ghcr.io/sidd-harth-2/bb-app@sha256:eda014...


Approve uploading to the transparency log when prompted. A .sig blob is now attached to your OCI package.


5. Verify the Signature Locally

Use your public key to confirm the artifact’s integrity:

cosign verify \
  --key ../cosign/cosign.pub \
  ghcr.io/sidd-harth-2/bb-app@sha256:eda014...

You should see:

Verification for ghcr.io/sidd-harth-2/bb-app@sha256:eda014...
  - The cosign claims were validated
  - Evidence of claims in the transparency log was verified offline
  - The signatures were verified against the specified public key

6. Configure Flux to Pull and Verify

  1. Change to your Flux cluster repo:

    cd ~/block-buster/flux-clusters/dev-cluster

  2. Create an OCIRepository source for GHCR:

    flux create source oci 10-demo-source-oci-bb-app \
      --url oci://ghcr.io/sidd-harth-2/bb-app \
      --tag 7.10.0-d6c285f \
      --secret-ref ghcr-auth \
      --provider generic \
      --export > 10-demo-source-oci-bb-app.yaml

  3. Edit 10-demo-source-oci-bb-app.yaml to include Cosign verification:

    apiVersion: source.toolkit.fluxcd.io/v1beta2
    kind: OCIRepository
    metadata:
      name: 10-demo-source-oci-bb-app
      namespace: flux-system
    spec:
      interval: 1m0s
      provider: generic
      url: oci://ghcr.io/sidd-harth-2/bb-app
      ref:
        tag: 7.10.0-d6c285f
      secretRef:
        name: ghcr-auth
      verify:
        provider: cosign
        secretRef:
          name: cosign-pub

  4. Apply the source:

    kubectl apply -f 10-demo-source-oci-bb-app.yaml

  5. Ensure secrets exist:

    kubectl -n flux-system get secret ghcr-auth cosign-pub

  6. Create and apply a Kustomization to deploy the manifests:

    flux create kustomization 10-demo-kustomize-oci-bb-app \
      --source=OCIRepository/10-demo-source-oci-bb-app \
      --target-namespace=10-demo \
      --path="./" \
      --prune=false \
      --interval=10s \
      --export > 10-demo-kustomize-oci-bb-app.yaml

    kubectl apply -f 10-demo-kustomize-oci-bb-app.yaml


7. Confirm Verification and Deployment

  1. Reconcile and check the OCI source status:

    flux reconcile source oci -n flux-system 10-demo-source-oci-bb-app
    flux get sources oci -n flux-system


    You should see READY True.

  2. Inspect the SourceVerified condition:

    kubectl -n flux-system get ocirepository 10-demo-source-oci-bb-app -o yaml

  3. Verify deployment in the 10-demo namespace:

    kubectl -n 10-demo get all

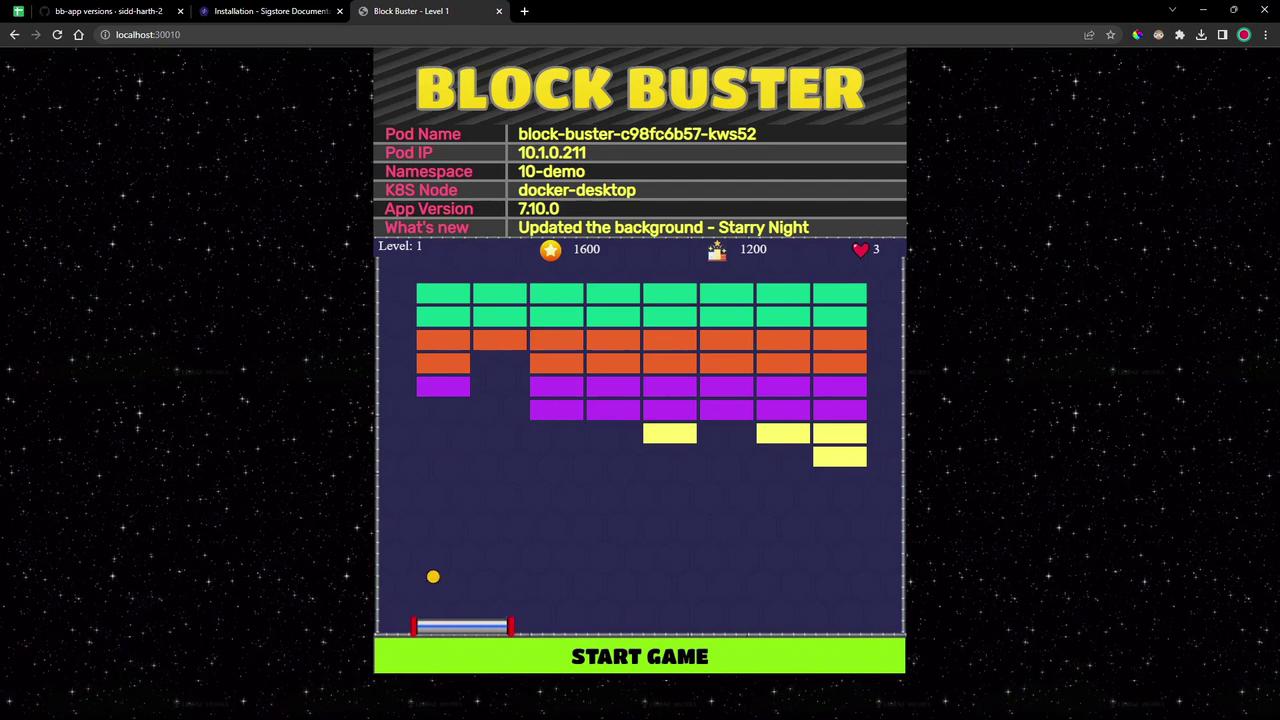

  4. Access the application on its NodePort (e.g., localhost:30010). You should see version 7.10.0 of Block Buster:

The image shows a "Block Buster" game interface with colorful blocks, a paddle, and a ball, set against a starry background. Game details like pod name, IP, and version are displayed at the top.
