DEMO Source Controller S3 Bucket

Leverage Flux’s Source Controller to fetch Kubernetes manifests from an S3-compatible store (MinIO) and deploy them via GitOps. In this walkthrough, you will:

• Set up a dedicated Git branch with demo manifests
• Deploy MinIO locally as an S3 replacement
• Create a bucket, upload manifests, and configure Flux sources
• Apply and verify your application in the cluster

1. Prepare the Demo Branch

Open your terminal in Visual Studio Code and switch to the 4-demo branch of the bb-app-source repo:

root ~/bb-app-source 3-demo
➤ git checkout 4-demo
Branch '4-demo' set up to track remote branch '4-demo' from 'origin'.
Switched to a new branch '4-demo'
root ~/bb-app-source 4-demo
➤

In this branch, the 4-demo directory contains three manifests:

• namespace.yml
• deployment.yml (version 7.4.0)
• service.yml

Example excerpt from deployment.yml:

env: dev
version: 7.4.0
spec:
  containers:
    - name: app
      image: siddharth67/block-buster-dev:7.4.0
      imagePullPolicy: Always
      resources:
        requests:
          memory: "10Mi"
          cpu: "10m"
        limits:
          memory: "64Mi"
          cpu: "20m"

2. Deploy MinIO as an S3-Compatible Store

Apply the MinIO manifest to create a namespace, pod, and service:

root ~/bb-app-source 4-demo
▶ kubectl apply -f minio/minio-s3.yml
namespace/minio-dev created
pod/minio created
service/minio created

Verify the MinIO deployment:

kubectl -n minio-dev get all

3. Create a Bucket and Upload Manifests

1. Open the MinIO console at http://localhost:30040

2. Authenticate with:

   • Username: minio-admin
   • Password: minio-admin

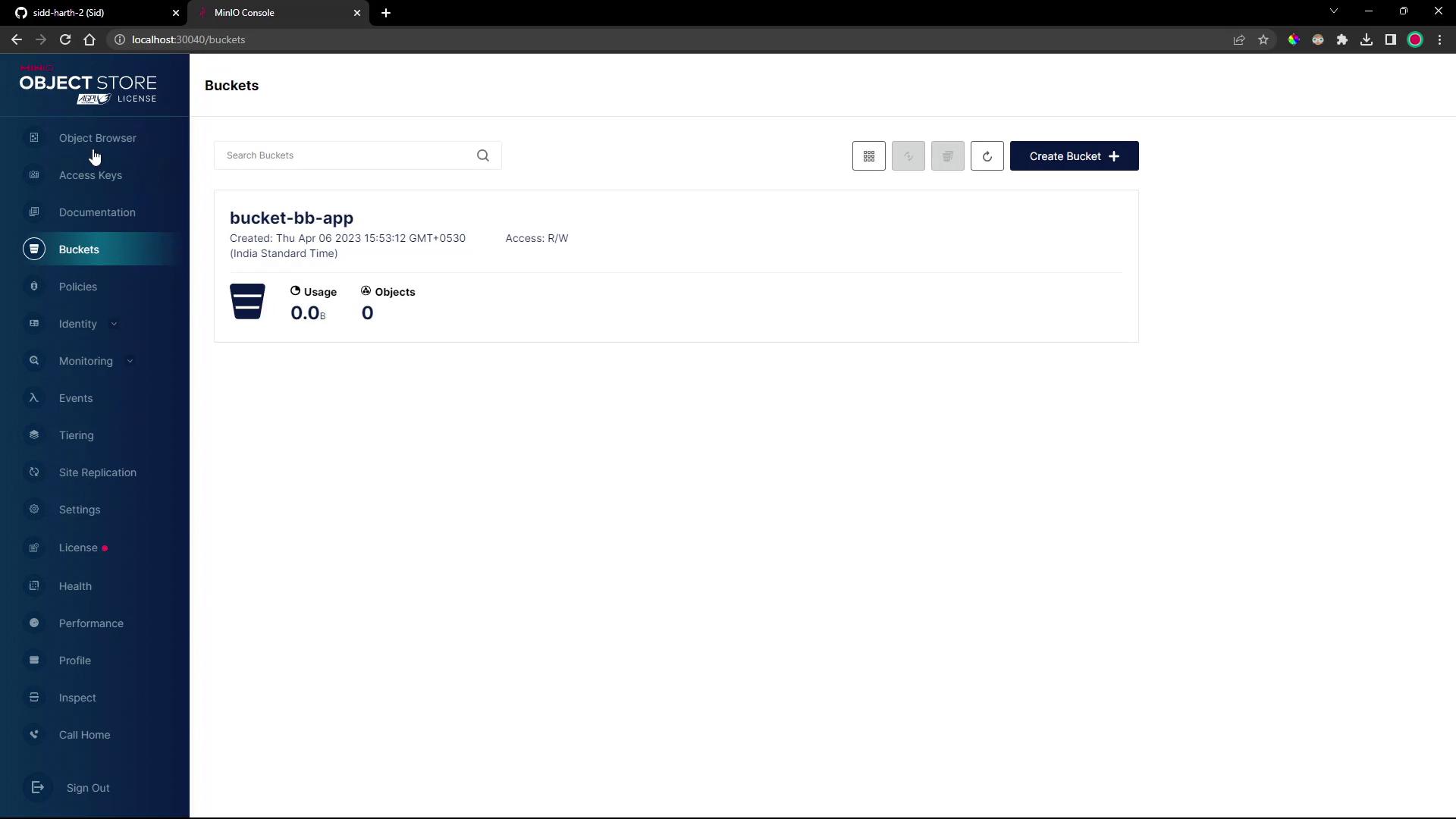

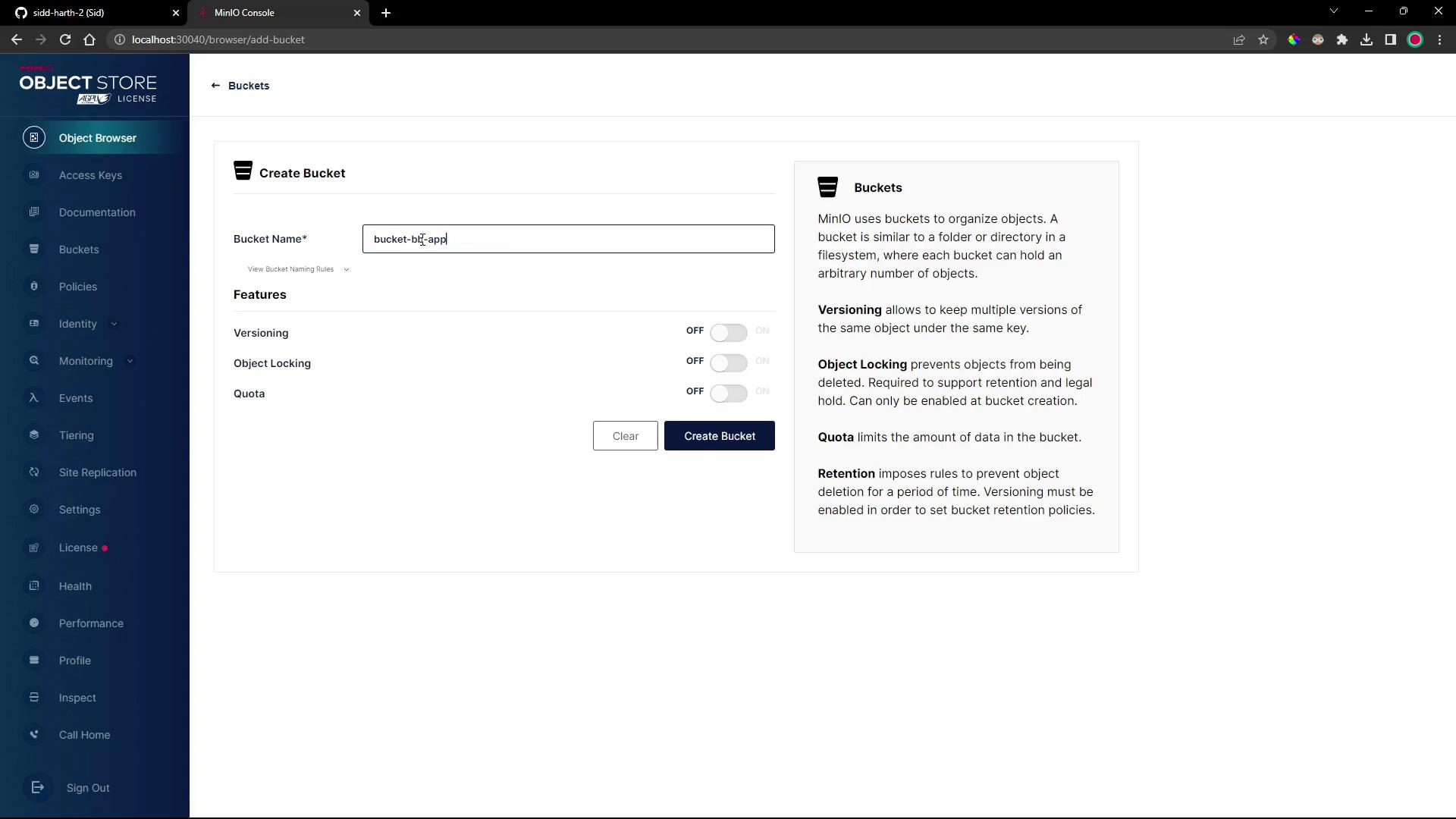

3. Create a bucket named bucket-bb-app using all defaults.

4. In the Object Browser, select bucket-bb-app.

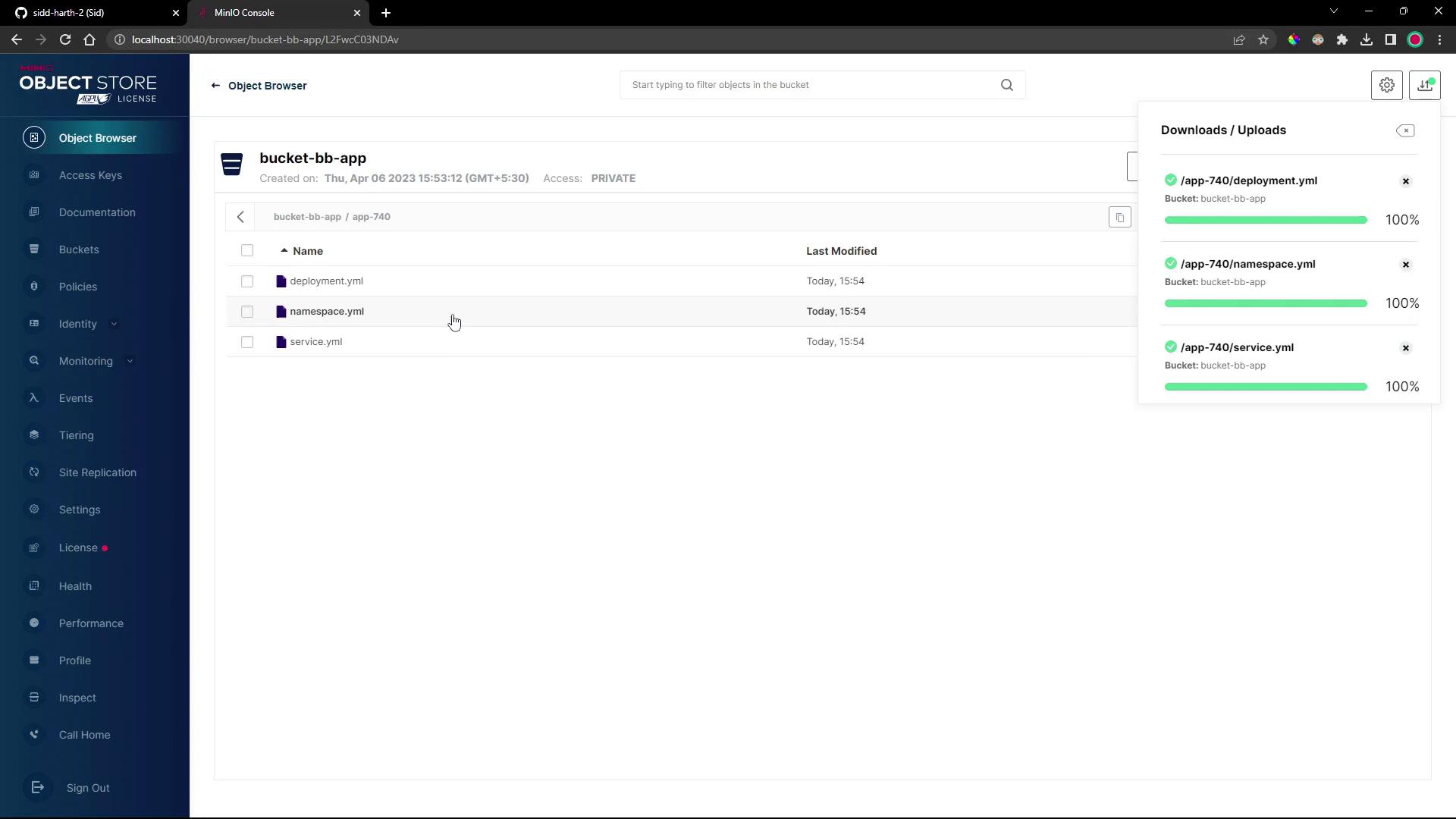

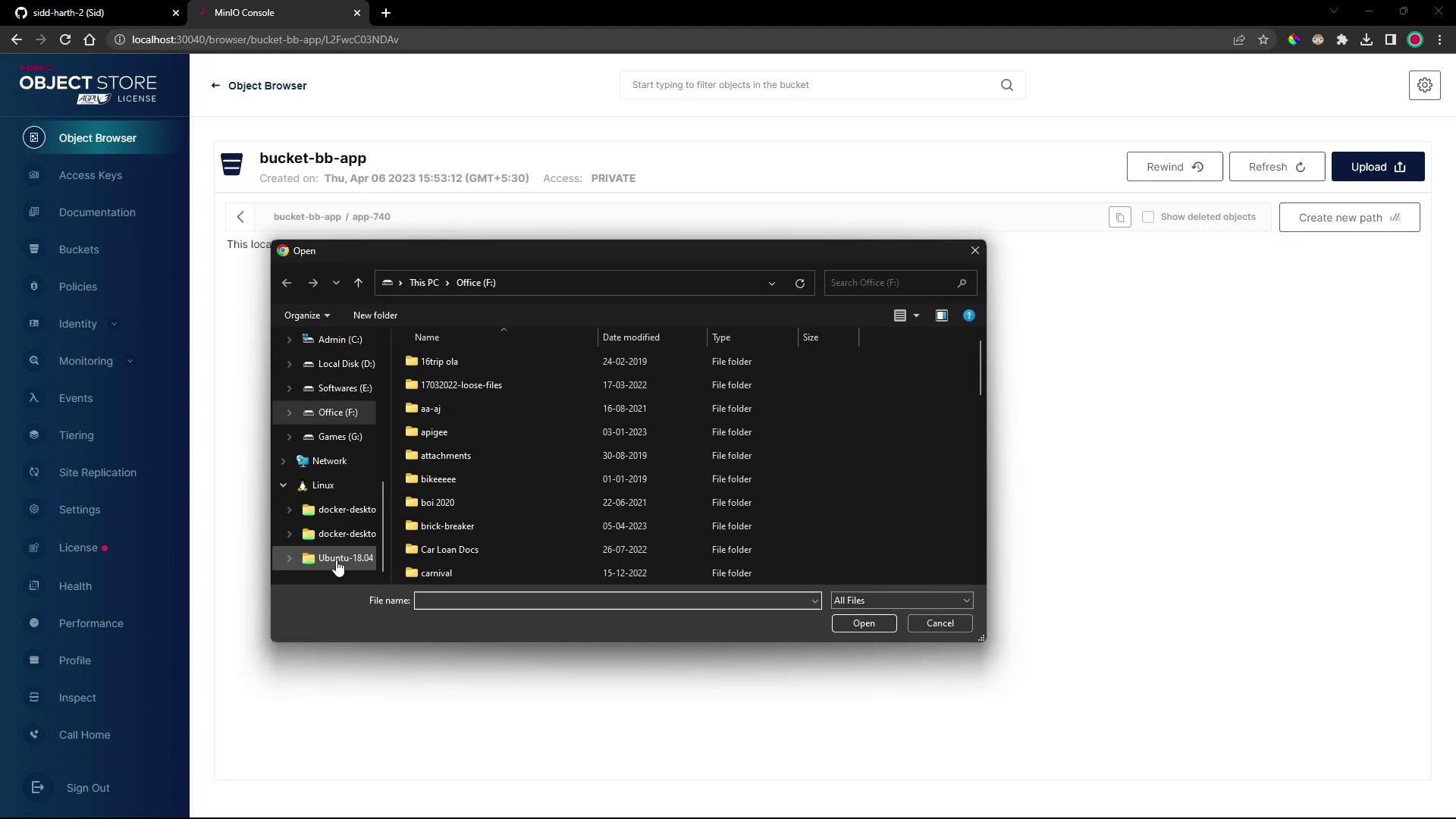

5. Create a folder called app740 and upload namespace.yml, deployment.yml, and service.yml from your local bb-app-source/4-demo folder.

6. Confirm all three manifests appear under bucket-bb-app/app740/.

4. Create a Flux Bucket Source

Instead of Git, Flux will track this S3 bucket via the Bucket API. Generate the source manifest and export it to your cluster repo:

flux create source bucket 4-demo-source-minio-s3-bucket-bb-app \
  --bucket-name bucket-bb-app \
  --endpoint minio.minio-dev.svc.cluster.local:9000 \
  --provider generic \
  --secret-ref minio-crds \
  --insecure \
  --interval 1m \
  --export > ../block-buster/flux-clusters/dev-cluster/4-demo-source-minio-s3-bucket-bb-app.yml

Generated Bucket resource:

apiVersion: source.toolkit.fluxcd.io/v1beta2
kind: Bucket
metadata:
  name: 4-demo-source-minio-s3-bucket-bb-app
  namespace: flux-system
spec:
  bucketName: bucket-bb-app
  endpoint: minio.minio-dev.svc.cluster.local:9000
  provider: generic
  insecure: true
  secretRef:
    name: minio-crds
  interval: 1m0s

5. Create a Flux Kustomization

Point your Kustomization at the app-740 folder in the bucket:

flux create kustomization 4-demo-kustomize-minio-s3-bucket-bb-app \
  --source Bucket/4-demo-source-minio-s3-bucket-bb-app \
  --path ./app-740 \
  --prune=true \
  --target-namespace 4-demo \
  --interval 1m \
  --export > ../block-buster/flux-clusters/dev-cluster/4-demo-kustomization-minio-s3-bucket-bb-app.yml

Generated Kustomization:

apiVersion: kustomize.toolkit.fluxcd.io/v1beta2
kind: Kustomization
metadata:
  name: 4-demo-kustomize-minio-s3-bucket-bb-app
  namespace: flux-system
spec:
  sourceRef:
    kind: Bucket
    name: 4-demo-source-minio-s3-bucket-bb-app
  path: ./app-740
  prune: true
  targetNamespace: 4-demo
  interval: 1m0s

6. Create the MinIO Credentials Secret

Flux requires a Kubernetes secret for S3 access. First, confirm Flux sees no secret:

flux get sources bucket

Create minio-crds in the flux-system namespace:

kubectl -n flux-system create secret generic minio-crds \
  --from-literal=accesskey=minioadmin \
  --from-literal=secretkey=minioadmin

Reconcile and verify:

flux reconcile source bucket 4-demo-source-minio-s3-bucket-bb-app
flux get sources bucket
# NAME                                  READY  MESSAGE
# 4-demo-source-minio-s3-bucket-bb-app  True

7. Confirm Deployment in 4-demo

Flux will now apply the manifests under the 4-demo namespace:

kubectl -n 4-demo get all

Example output:

NAME                                      READY   STATUS    RESTARTS   AGE
pod/block-buster-7f8c7c588f-xqf8k        1/1     Running   0          40s

NAME                                TYPE       CLUSTER-IP       EXTERNAL-IP   PORT(S)         AGE
service/block-buster-service        NodePort   10.98.175.100    <none>        80:30004/TCP    40s

NAME                                 READY   UP-TO-DATE   AVAILABLE   AGE
deployment.apps/block-buster         1/1     1            1           40s

Access the application at http://localhost:30004. In version 7.4.0, a new score counter updates whenever a brick is hit.
