Access the Consul KeyValue KV

Interacting with Consul KV

Consul’s key/value (KV) store lets you centrally manage configuration data, feature flags, and more. You can interact with the KV store in three ways:

InterfaceDescriptionIdeal For
HTTP APIPerform CRUD operations over HTTPApplications, automation, SDKs
Command-Lineconsul kv subcommands for KV managementAdministrators, scripts
Web UIBrowser-based view and editExploratory or ad hoc changes

Below, we’ll explore each interface in detail.


1. Consul KV HTTP API

The HTTP API exposes a /v1/kv endpoint. Use standard HTTP verbs (PUT, GET, DELETE) to manage keys.

1.1 Writing a Key (PUT)

curl --request PUT \
     --data 'enabled' \
     https://consul.example.com:8500/v1/kv/data/app4
# => true

A response of true means the write succeeded. If the path (data/app4) doesn’t exist, Consul creates it automatically.

1.2 Reading a Key (GET)

curl https://consul.example.com:8500/v1/kv/data/app4 | jq
[
  {
    "LockIndex": 0,
    "Key": "data/app4",
    "Flags": 0,
    "Value": "J2VuYWJsZWQn",
    "CreateIndex": 69,
    "ModifyIndex": 87
  }
]

The Value field is Base64-encoded. Decode it:

echo "J2VuYWJsZWQn" | base64 --decode
# => 'enabled'

Note

Base64 encoding is not encryption. Data at rest in Consul is unencrypted by default; the API simply returns values encoded in Base64.

For full API reference, see the Consul KV HTTP API documentation.


2. Consul Command-Line Interface

The consul kv set of commands provides a quick way to interact with the KV store from your terminal.

# Write or update a key
consul kv put app1/config/apikey 4fe20s12a02$23
# Read back the value
consul kv get app1/config/apikey
# Delete the key
consul kv delete app1/config/apikey
# Output: Success! Data deleted at key: app1/config/apikey
SubcommandAction
putCreate or update a key
getRetrieve the plaintext value
deleteRemove a key and its data

Consult the Consul CLI documentation for additional flags and examples.


3. Consul Web UI

The Consul UI provides a visual way to browse and modify KV entries.

  1. Log in to your Consul cluster.
  2. Click on the Key/Value tab in the top navigation.
  3. Drill down through key prefixes to locate your entry.
  4. Click on a key to view or edit its value in JSON, YAML, or HCL format.

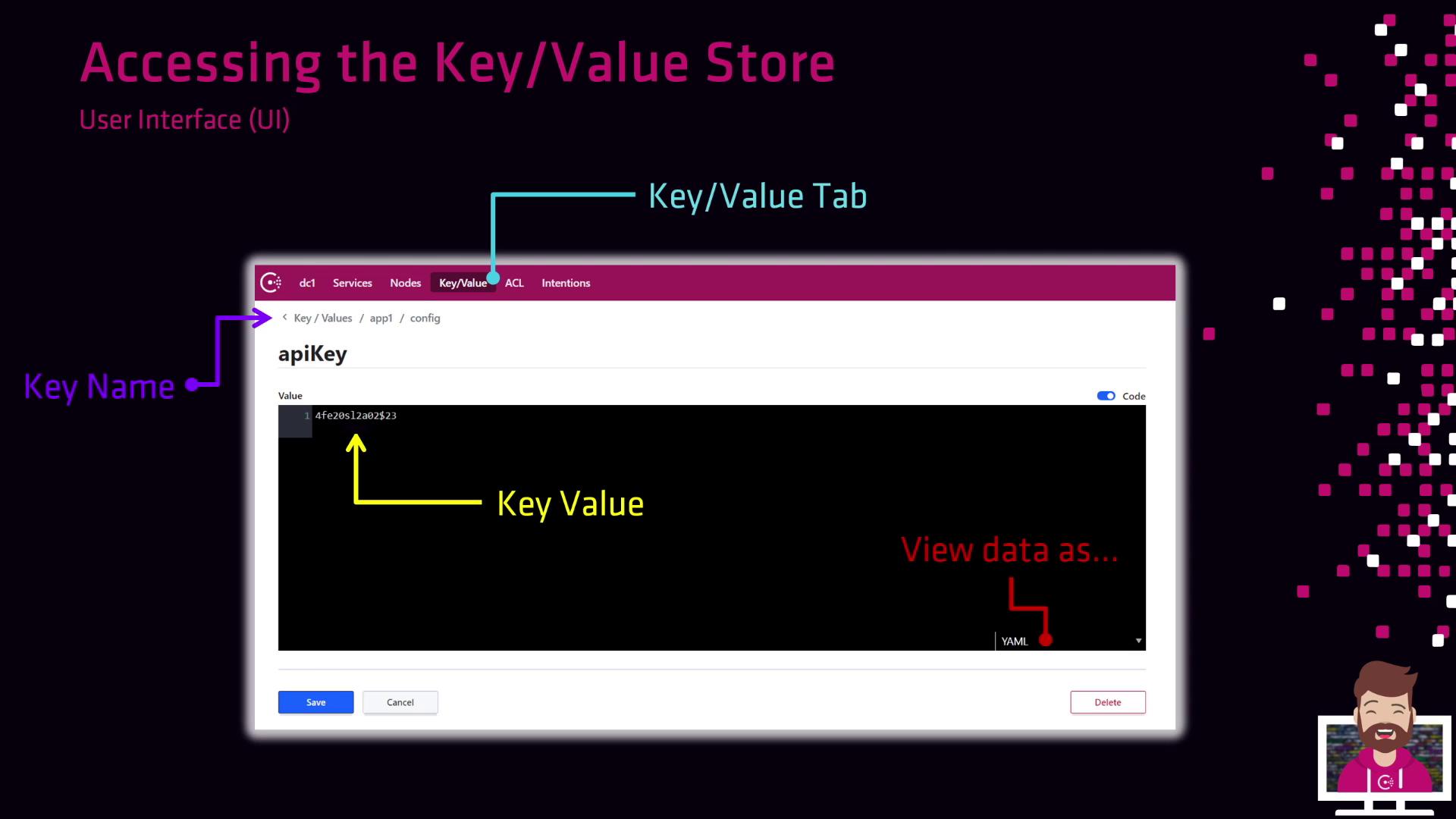

The image is a screenshot of a user interface for accessing a key/value store, highlighting the key name, key value, and options to view data in different formats. It includes labeled annotations and a cartoon character in the bottom right corner.


4. Limiting Access with ACLs

By default, Consul’s KV store is open to all clients. To enforce security:

  1. Enable ACLs in your Consul configuration.
  2. Bootstrap an ACL management token.
  3. Create policies that grant read/write permissions on specific key prefixes.
  4. Distribute tokens to users or applications.

Warning

Once ACLs are enabled, all API, CLI, and UI requests require a valid token. Plan your migration and token distribution carefully.

For a deep dive, see the Consul ACL guide.
