AddingRemoving Consul Agents to the Cluster

In this guide, you’ll learn how to add and remove Consul agents—both servers and clients—in your cluster. We’ll cover three primary join methods, how to gracefully remove agents, and how to list all cluster members.

Overview of Agent Membership

Consul agents use the Gossip Protocol to share membership updates. When a new agent joins, it contacts an existing member; the protocol then propagates that change across the entire cluster. You can even merge two independent clusters by having an agent in one contact a node in the other.

Join Method	Description	Use Case
CLI (`consul join`)	One-off join via DNS name or IP address	Ad-hoc testing, quick lab setups
Static Configuration (`join`/`retry_join`)	Defined in agent config file; supports one-time and retry logic	Automated deployments, predictable startup
Cloud Auto-Join	Leverages cloud metadata (tags) to discover and join peers	Dynamic cloud environments (AWS, GCP, Azure)

1. Joining via the CLI

You can manually join an agent to the cluster by specifying any existing member’s hostname or IP:

consul join consul-node-a.example.com
# Successfully joined cluster by contacting 1 nodes.

Replace consul-node-a.example.com with an IP address if preferred. CLI joins are best suited for testing or small labs—automated config is recommended in production.

2. Joining via Configuration

Add join settings directly to your agent’s JSON or HCL config. There are two options:

Parameter	Behavior
join	One-time contact; agent startup fails if unreachable
retry_join	Continuously retries until it successfully joins or the agent stops

Example (config.json):

{
  "bootstrap": false,
  "bootstrap_expect": 3,
  "server": true,
  "retry_join": ["10.0.10.34", "10.0.11.72"]
}

This instructs the agent to keep retrying until it joins one of the specified IPs.

Tip

Use retry_join for environments where agents start in an unpredictable order.
If you need a single attempt only, use the join option instead.

3. Cloud Auto-Join

Cloud auto-join uses provider metadata (tags or labels) to discover peers automatically. Supported providers include AWS, Azure, GCP, Kubernetes, and more. You must grant the agent appropriate API permissions (for example, via an AWS IAM role).

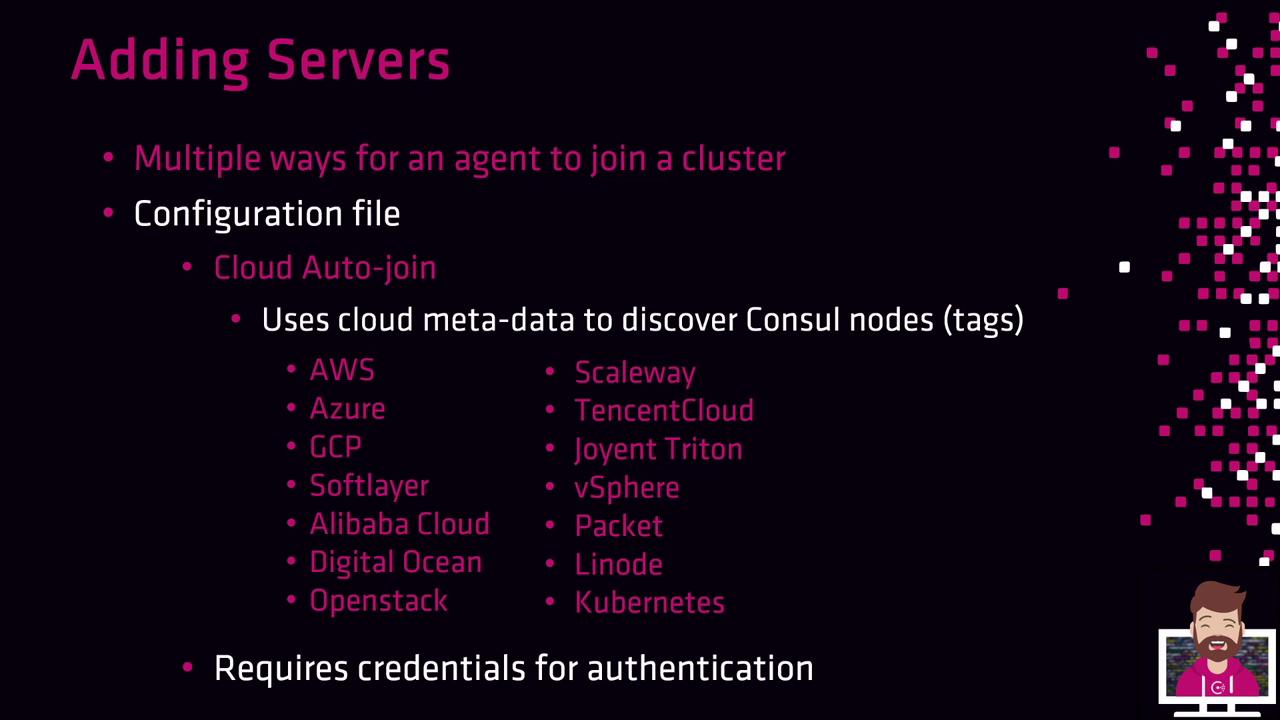

The image is a slide titled "Adding Servers," detailing methods for an agent to join a cluster using a configuration file and cloud auto-join, listing various cloud services like AWS, Azure, and Kubernetes. It also mentions the requirement of credentials for authentication.

Example AWS auto-join config:

{
  "bootstrap": false,
  "bootstrap_expect": 3,
  "server": true,
  "retry_join": ["provider=aws tag_key=consul tag_value=true"]
}

Each agent queries AWS EC2 for instances tagged consul=true and attempts to join them.

Warning

Ensure your cloud credentials or IAM roles only grant enough permissions to list instances—avoid overly broad access.

Removing Agents from the Cluster

To gracefully remove an agent and inform the cluster:

consul leave
# Graceful leave complete

A graceful leave updates the Raft peer set (for servers) and ensures nodes treat the departure as intentional rather than a failure.

Listing Cluster Members

Use the members command to see all servers and clients:

consul members
# Node        Address         Status  Type    Build   Protocol  DC    Segment
# consul-a    10.0.2.10:8301  alive   server  1.9.0   2         dc1   -
# consul-b    10.0.2.11:8301  alive   server  1.9.0   2         dc1   -
# web-app-01  10.0.8.9:8301   alive   client  1.8.6   2         dc1   -

In production, clusters can scale to hundreds or thousands of nodes across multiple datacenters.
