Redundancy Zones

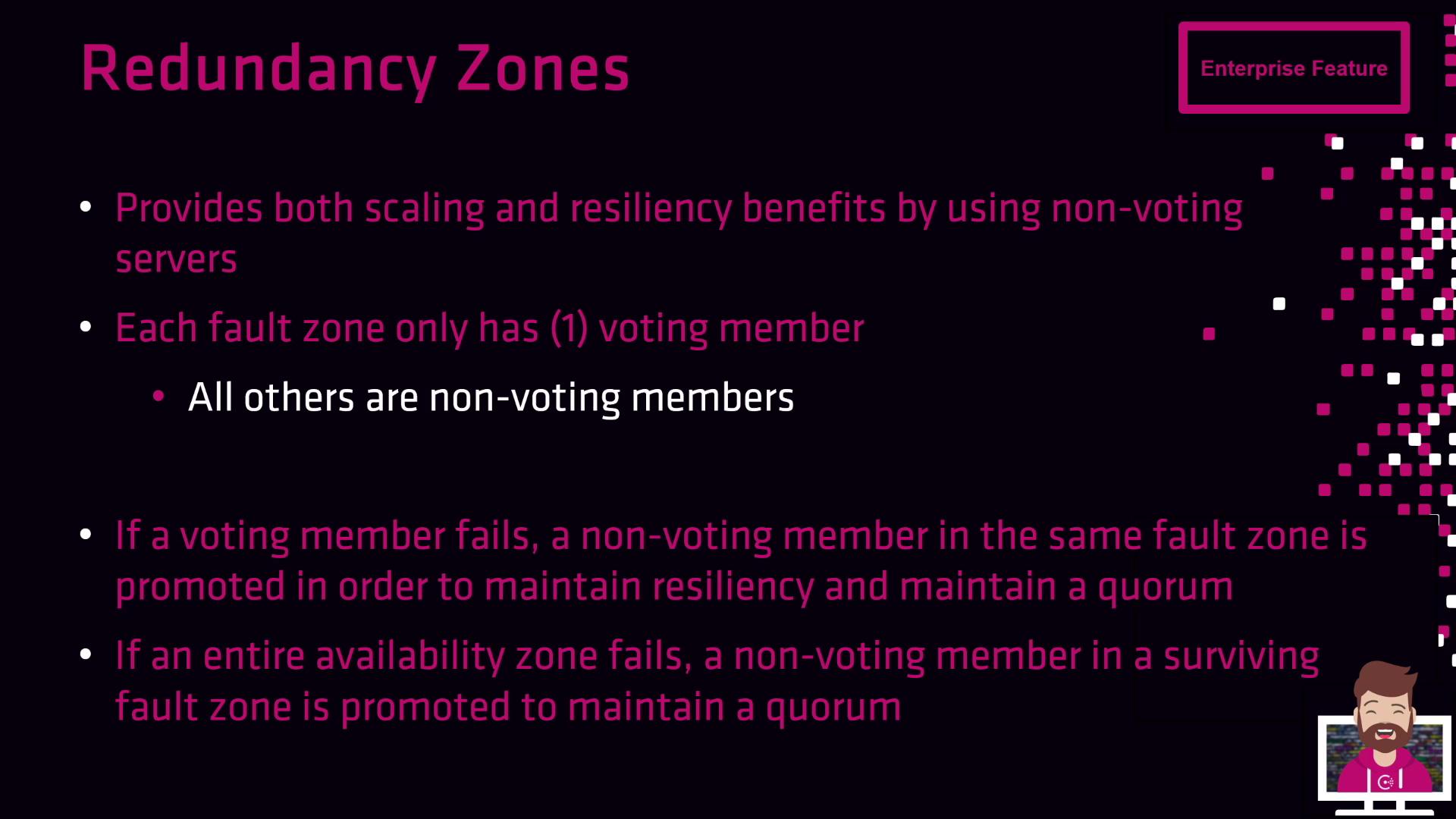

Consul Enterprise’s Redundancy Zones feature partitions your server cluster into distinct fault domains—such as cloud availability zones or separate on-premise racks—to improve both scaling and high availability. By assigning exactly one voting server per zone and running additional non-voting peers alongside it, Consul ensures automatic promotion and maintains quorum if a voting member fails.

How Redundancy Zones Work

1. Define fault domains (e.g., AZs or data center racks).
2. Deploy one voting server and one or more non-voting servers in each zone.
3. On voting-server failure, a non-voting peer is automatically promoted within the same zone.

Example: Three Availability Zones

Imagine an AWS setup with three availability zones (AZ1, AZ2, AZ3) and a six-node Consul server cluster:

• If the voting server in AZ2 fails, its non-voting peer in AZ2 is promoted.
• Quorum (3 of 5 voting servers) is maintained with one voting member in each zone.
• Topology still spans three zones, giving you time to replace the failed node.

Handling an Entire Zone Failure

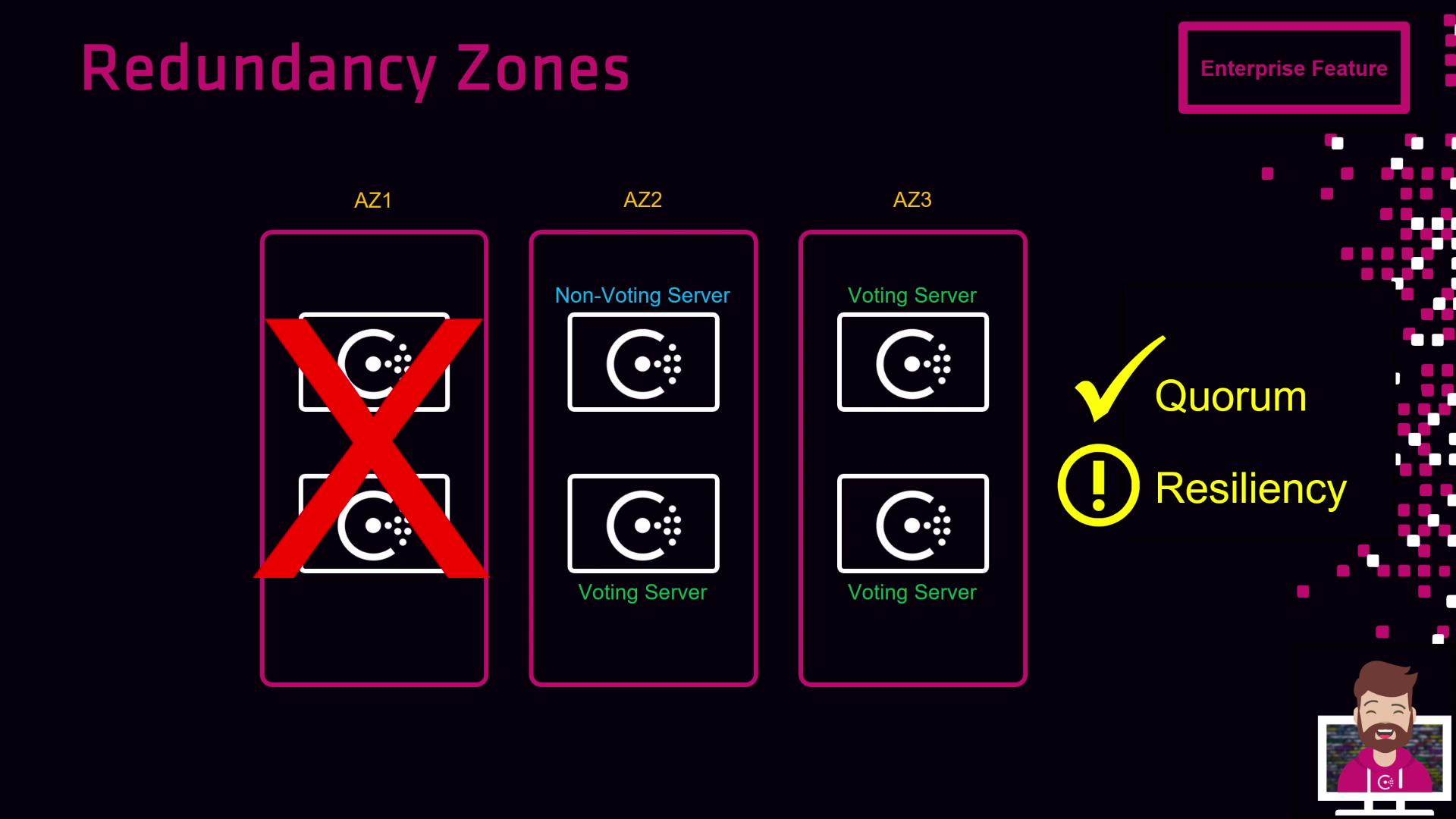

If a entire zone (for example, AZ1) goes offline:

• AZ2: 1 voting, 1 non-voting
• AZ3: 1 voting, 1 non-voting
• Quorum remains intact (2 of 3 voting servers), and Consul continues to serve requests.

Benefits of Using Redundancy Zones

• High availability with cross-zone failover
• Automated promotion of non-voting peers
• Fault-domain isolation to prevent cascade failures
• Simplified operations in multi-region or hybrid environments
