Managing Consul Service Mesh Intentions

In this lesson, you’ll discover how to define and manage Consul Service Mesh intentions using the Config Entry API, HTTP API, CLI, and UI. Intentions created in one interface instantly appear in all others, ensuring consistent policies across your cluster.

Defining Intentions with a Service-Intentions Config Entry

The recommended approach for declaring service intentions is to use a service-intentions config entry. This keeps your intentions version-controlled and declarative.

kind = "service-intentions"
name = "db-01"

sources = [
  {
    name   = "web-01"
    action = "deny"
  },
]

• kind: Must be service-intentions.
• name: The upstream service (here, db-01).
• sources: List of downstream services and their actions (allow or deny).

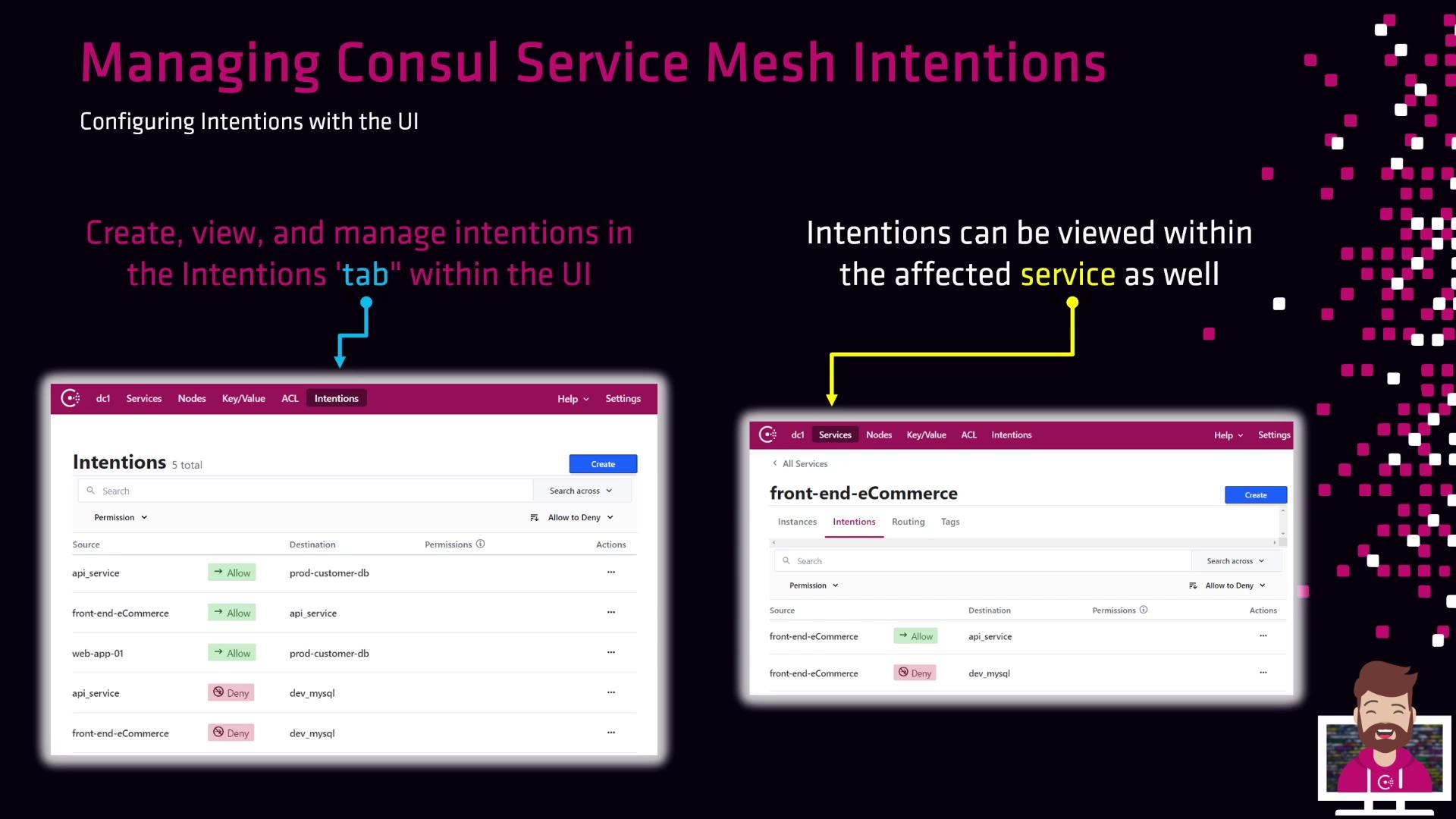

Viewing and Managing Intentions in the UI

1. Log in to the Consul UI.
2. Click the Intentions tab in the sidebar to see all configured intentions.

Example mappings in the UI:

To inspect intentions for a single service:

1. Select the service (e.g., front-end e-commerce).
2. Open its Intentions tab.
3. Delete or modify any intention directly.

Managing Intentions with the HTTP API

Consul’s HTTP API enables programmatic creation, retrieval, and deletion of intentions. Note that the /v1/connect/intents endpoint was deprecated in v1.9.0 in favor of /v1/connect/intentions/exact.

Create or Update an Intention

Allow web-01 to communicate with db-01:

1. Create a payload.json:

   {
     "SourceType": "consul",
     "Action": "allow"
   }


2. Send the PUT request:

   curl --request PUT \
     --data @payload.json \
     https://consul.example.com:8500/v1/connect/intentions/exact?source=web-01&destination=db-01


A successful call returns:

true

List and Delete

Managing Intentions via CLI

The consul intention command provides a full suite of subcommands to create, list, inspect, and remove intentions.

# Set your ACL token
export CONSUL_HTTP_TOKEN=aba7cbe5-879b-999a-07cc-2efd9ac0ffe

Common Commands

Examples

# Allow web-01 → db-01
consul intention create web-01 db-01
# Deny web-01 → db-01
consul intention create --deny web-01 db-01
# Output: Created: web-01 => db-01 (deny)

Next, apply these approaches within your own Consul cluster to enforce secure, service-to-service communication.
