Certificates Required in Consul

Consul relies on TLS certificates to secure its control plane, data plane, and HTTP APIs. In this guide, we’ll cover the certificates needed for:

API and RPC encryption between clients and servers
Mutual TLS (mTLS) in the service mesh (Connect)
Optional HTTPS on the HTTP API endpoint

Proper certificate management ensures confidentiality, integrity, and authentication across your Consul deployment.

Overview of TLS Certificate Requirements

Communication Channel	Purpose	Certificates Required
API & RPC	Secure HTTP API and internal RPC traffic	Server and client TLS certificates
Service Mesh (Connect)	mTLS for all service-to-service communication	Mutual TLS certificates issued by Consul’s CA
HTTPS API (Optional)	Encrypt HTTP listener on port 8500	HTTP TLS certificate and private key

TLS for API and RPC

By default, Consul’s HTTP API and internal RPC talk over plain TCP/HTTP. To enable encryption:

Generate a server certificate (with server.service.consul as a SAN).
Generate client certificates for each agent or external client.
Distribute cert_file and key_file in the agent configuration.

Note

Without TLS, all API calls and gossip traffic are unencrypted. Enable certificates to protect sensitive data in transit.

Service Mesh (Connect) and mTLS

When Connect is enabled, Consul automatically issues and rotates certificates for every service proxy:

Each side presents a certificate signed by the same CA.
Identity is verified before any data exchange.
Traffic is fully encrypted in transit.

Consul’s built-in CA handles issuance and rotation by default. You do not need an external CA unless you have specific compliance needs.

HTTP API over HTTPS (Optional)

If you prefer to secure only the HTTP API (port 8500) without using Connect, configure the HTTP listener for TLS:

# consul.hcl
ports {
  http = 8500
}

tls {
  http      = true
  cert_file = "/path/to/consul.crt"
  key_file  = "/path/to/consul.key"
}

After restarting the agent, the API endpoint will require HTTPS.

Consul as an Integrated CA

When no external CA provider is configured, Consul’s built-in CA will:

Issue leaf certificates for servers, clients, and Connect proxies
Automatically distribute new certificates as agents join
Rotate certificates based on your CA configuration

Note

Consul’s integrated CA simplifies setup by removing manual renewal tasks. It’s ideal for most small-to-medium deployments.

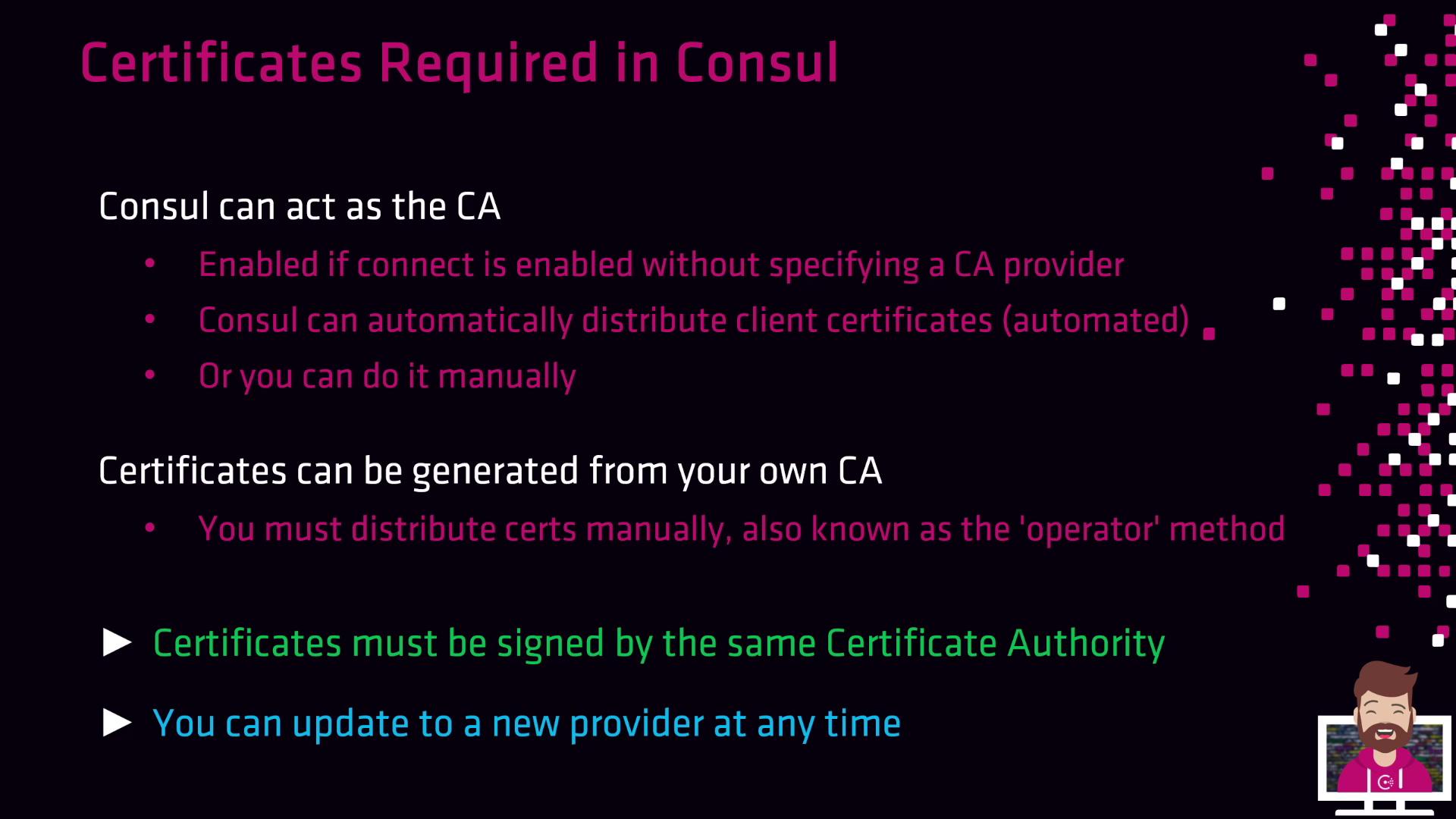

The image is an informational slide about certificates required in Consul, explaining how Consul can act as a Certificate Authority (CA) and the process of certificate distribution. It also mentions that certificates must be signed by the same CA and can be updated to a new provider at any time.

Operator Method: Manual Certificate Management

If you need full control or must integrate with an existing PKI, use the operator method:

Use your internal CA (or Consul’s CA) to generate server and client certificates.
Manually copy *.crt and *.key files to each Consul agent.
Update the agent configuration to point at your certificates.

This approach grants maximum flexibility but increases operational overhead.

Signing and Trust Requirements

All certificates in your Consul cluster—server, client, and proxy—must be signed by the same CA. Consul only accepts a single root CA bundle for validation. Mixing certificates from multiple CAs will lead to trust failures.

Warning

If any certificate chain does not match the configured root CA bundle, Consul agents will refuse to connect, causing service disruptions.

Migrating to an External CA

You can switch from the built-in CA to an external provider (e.g., Vault) without downtime:

Start Consul with the embedded CA.
Configure the external CA provider in your consul.hcl (e.g., Vault).
Restart agents one by one—Consul will re-issue certificates using the new provider.

This in-place migration ensures continuous cluster operation.
