HashiCorp Certified: Vault Associate Certification
Assess Vault Tokens
Token Hierarchy
In this lesson, we’ll dive into how HashiCorp Vault manages token time-to-live (TTL), renewal, revocation, and the parent-child relationships that form a token hierarchy. Understanding these concepts is essential for secure, scalable Vault deployments.

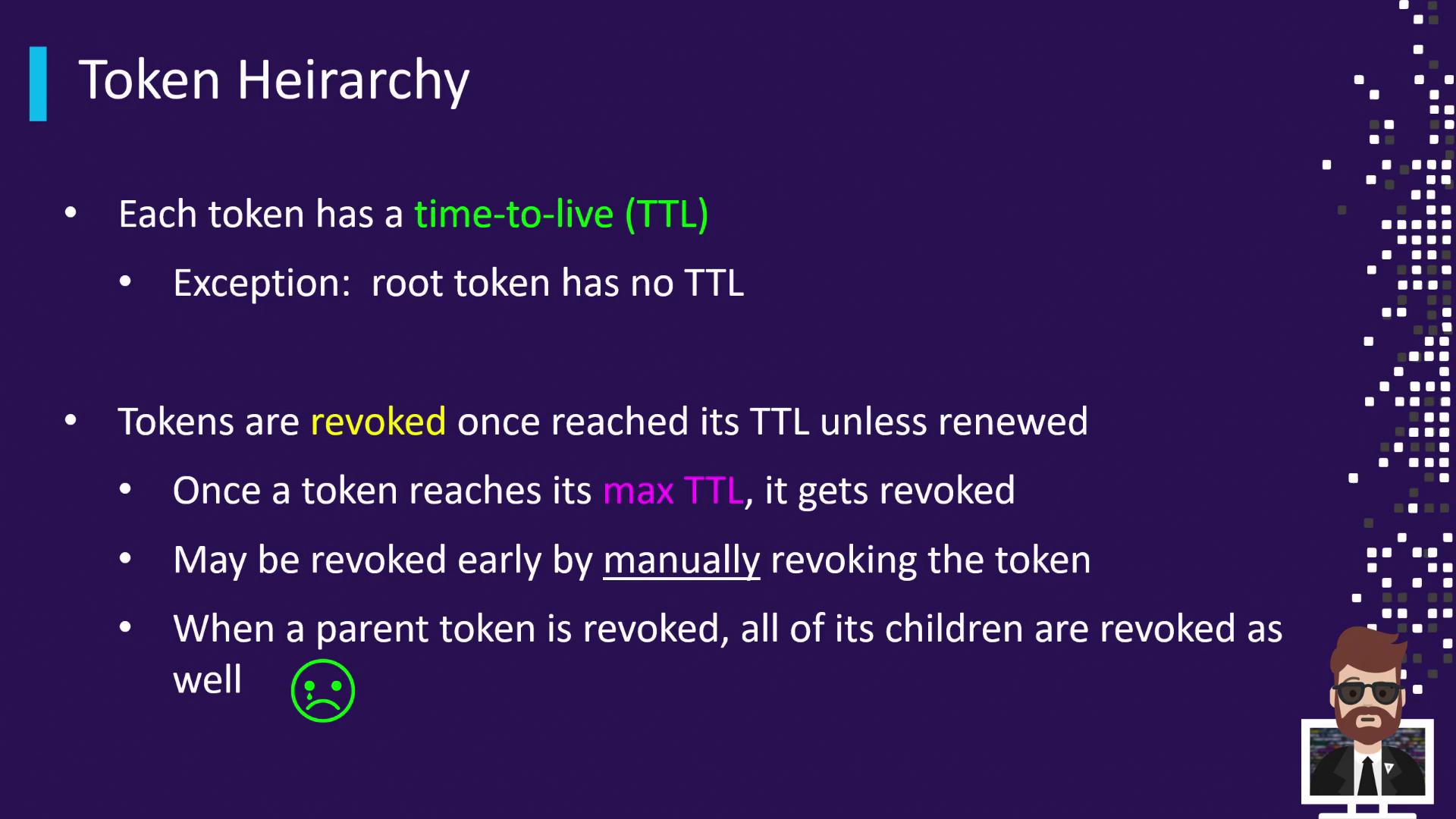

Token TTL and Renewal
Every Vault token is issued with a TTL—the duration after which Vault automatically revokes the token. The initial root token is the exception, as it has no TTL by default (though you can configure a TTL for additional root tokens).
| Scenario | Description |
|---|---|
| Token TTL = 1 hour; Max Renewable = 24 h | Must renew within 1 hour. Each renewal resets the TTL until 24 hours total have elapsed. |
| Renewal before TTL expiry | Resets the TTL back to its original value, up to the maximum renewable period. |
| Exceeding Max Renewable Period | Vault permanently revokes the token, regardless of further renewal attempts. |
Note
Root tokens have no TTL by default. Use vault token create -policy="root" -ttl="48h" to issue a root token with a custom TTL.
Manual Revocation
You can revoke tokens on demand using either the Vault CLI or the HTTP API. Immediate revocation invalidates the token and its descendants.
| Method | Command / Endpoint |
|---|---|
| CLI | vault token revoke <token> |
| HTTP API | POST /v1/sys/revoke with JSON payload { "token": ... } |
# Revoke a token via CLI
vault token revoke s.1234567890abcdef
Warning
Revoking a parent token will also revoke all of its child tokens, regardless of their remaining TTL.

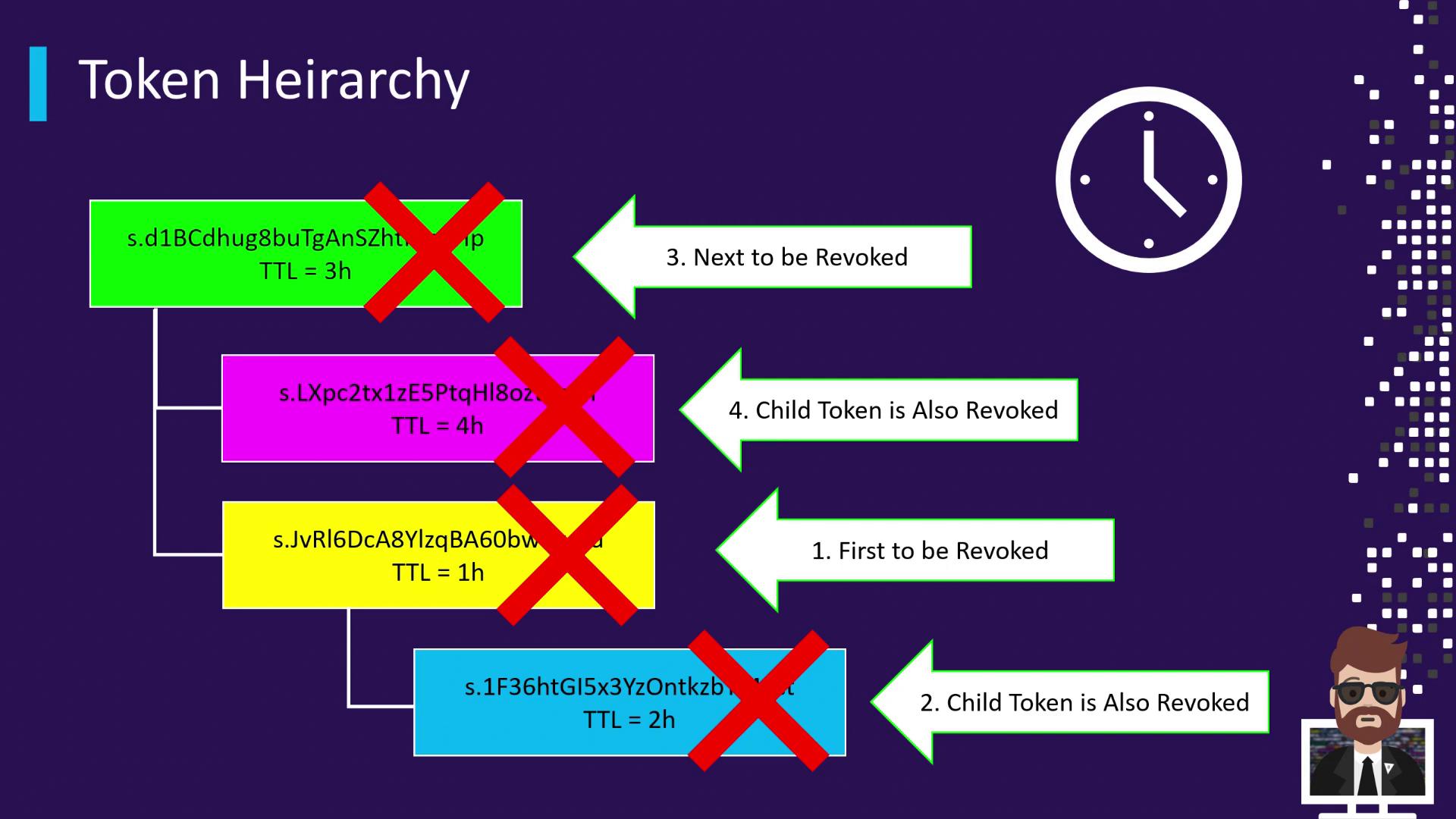

Parent-Child Token Relationships
When you authenticate with a Vault token and create another token, the new token becomes a “child” of the creator (“parent”). Revoking a parent cascades through all descendants.
- A green token (parent) is issued with a 3-hour TTL.
- The green token spawns two children:
- A pink token (4 h TTL).
- A yellow token (1 h TTL).
- The yellow token issues a blue token (2 h TTL).
Cascading Revocation Timeline
- After 1 hour:
- The yellow token expires → revoked automatically.
- Its child (blue token) is immediately revoked, despite having remaining TTL.
- After 3 hours:
- The green token expires → revoked automatically.
- Its remaining child (pink token) is immediately revoked.
This cascading revocation model ensures no orphaned tokens remain when a parent token becomes invalid.
