Vault’s Identity Secrets Engine (enabled by default) provides a unified way to map users and machines—across various auth methods—to logical entities. In this guide, you’ll learn how Vault auto-creates entities and aliases, understand the challenges of multiple auth methods, and see how to consolidate them into a single, manageable entity.

1. Entities and Aliases

Note

An entity represents a user or machine in Vault with a unique ID, metadata, and attached policies. An alias links that entity to a specific auth method (e.g., auth mount accessor + username).

Entity
- Unique identifier (ID)
- Optional metadata (e.g., email, department)
- Attached policies defining capabilities
Alias
- Maps one auth method and credential identifier to an entity
- An entity can have zero or more aliases

When a user first logs in via any supported auth method (UserPass, LDAP, OIDC, AppRole, AWS, GitHub, etc.), Vault automatically:

Creates a new entity.
Creates an alias for that auth path and user identifier.
Applies policies attached to both the alias and the entity.

2. Single Auth Method Example

Julia Smith logs in with the UserPass method as jsmith:

Vault creates an entity for Julia (ent-userpass-xxxx).
Vault attaches an alias combining the UserPass accessor and jsmith.
Any policies assigned to that alias or entity govern her token’s permissions.

3. Multiple Auth Methods: The Challenge

If Julia also logs in via LDAP ([email protected]) and GitHub (JSmith22), Vault will create separate entities and aliases for each method:

Auth Method	Entity ID	Attached Policy
UserPass	ent-userpass-1234	accounting
LDAP	ent-ldap-5678	finance
GitHub	ent-github-9012	accounts_payable

Warning

Each login issues a token scoped only to that specific entity’s policies. To switch permissions, users must log out and authenticate with a different method.

4. Consolidating into a Single Entity

You can streamline user access by creating one master entity (e.g., “Julia Smith”) and assigning all auth-method aliases to it. Attach a shared policy (e.g., management) at the entity level so any login inherits both alias and entity policies.

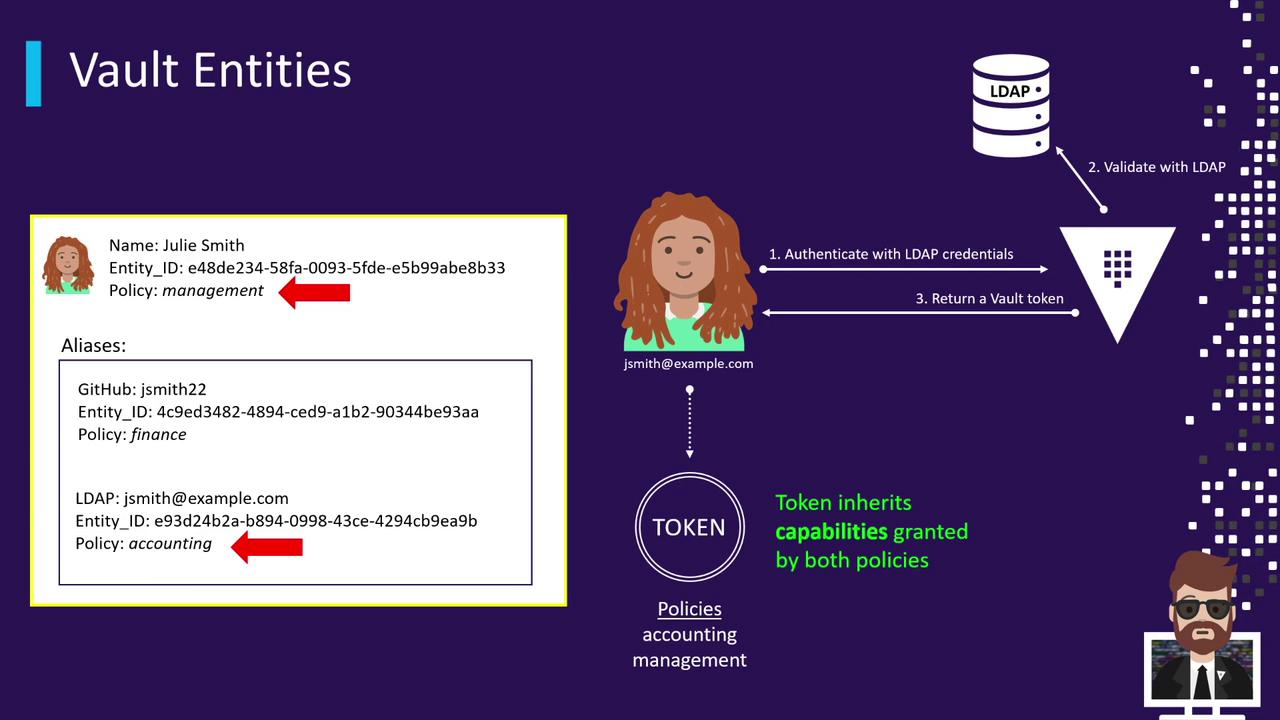

The image illustrates the concept of Vault Entities, showing how a user named Julie Smith is associated with multiple policies through different aliases, and how authentication with LDAP credentials results in a Vault token that inherits capabilities from these policies.

User logs in via LDAP ([email protected]).
Vault validates credentials against the LDAP server.
Vault resolves the LDAP alias to the master “Julia Smith” entity.
Vault issues a token that includes:
- Policies on the LDAP alias (e.g., finance)
- Policies on the entity (e.g., management)

6. Creating the Entity and Aliases

Use the Vault CLI to set up the consolidated entity and its aliases:

# 1. Create the master entity with the 'management' policy
vault write identity/entity name="Julia Smith" policies="management"

# Capture the generated entity ID
ENTITY_ID=$(vault read -field=id identity/entity/name/Julia-Smith)

# UserPass alias
USERPASS_ACCESSOR=$(vault auth list -format=json | jq -r '.["userpass/"].accessor')
vault write identity/entity-alias \
    name="jsmith" \
    canonical_id="$ENTITY_ID" \
    mount_accessor="$USERPASS_ACCESSOR"

# LDAP alias
LDAP_ACCESSOR=$(vault auth list -format=json | jq -r '.["ldap/"].accessor')
vault write identity/entity-alias \
    name="[email protected]" \
    canonical_id="$ENTITY_ID" \
    mount_accessor="$LDAP_ACCESSOR"

# GitHub alias
GITHUB_ACCESSOR=$(vault auth list -format=json | jq -r '.["github/"].accessor')
vault write identity/entity-alias \
    name="JSmith22" \
    canonical_id="$ENTITY_ID" \
    mount_accessor="$GITHUB_ACCESSOR"

After this configuration, any login—UserPass, LDAP, or GitHub—will automatically combine the alias’s policies with the shared management policy on the entity.
