Demo TOTP Secrets Engine

In this tutorial, you’ll leverage HashiCorp Vault’s TOTP (Time-Based One-Time Password) secrets engine to act as a virtual MFA device for AWS IAM users. We’ll walk through:

  1. Enabling the TOTP engine in Vault
  2. Creating an AWS IAM user and setting up a virtual MFA device
  3. Registering the TOTP key in Vault
  4. Generating and applying TOTP codes for AWS sign-in

1. Enable the TOTP secrets engine

Start by enabling the TOTP engine at the totp/ path in Vault:

vault secrets enable totp

You should see:

Success! Enabled the totp secrets engine at: totp/

Verify it’s enabled:

vault secrets list

Ensure the totp/ entry appears in the output.

Note

Be sure you’re authenticated as a Vault user with permission to enable secrets engines.


2. Create an AWS IAM user and assign a virtual MFA device

2.1 Create a new IAM user

  1. In the AWS IAM console, click Users → Add user.
  2. Enter TOTP as the username.
  3. Enable Programmatic access and AWS Management Console access.
  4. Attach the necessary policies (e.g., AdministratorAccess).
  5. Review and create the user.

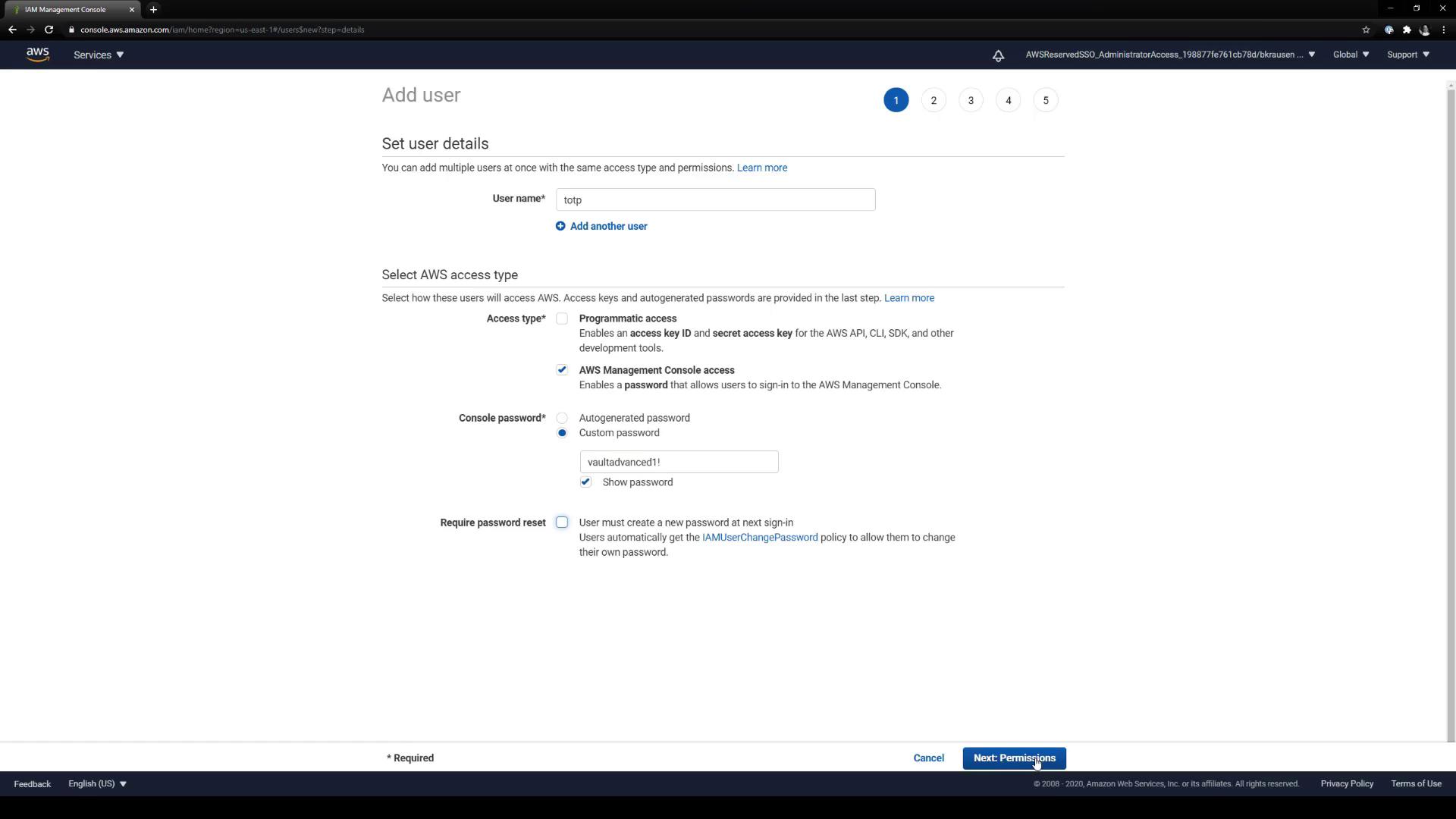

The image shows the AWS IAM Management Console's "Add User" page, where user details and access types are being configured. It includes options for setting a username, selecting AWS access types, and creating a console password.

2.2 Open MFA settings

  1. In IAM, go to Users and select TOTP.
  2. Under Security credentials, locate MFA device: None assigned and click Manage.

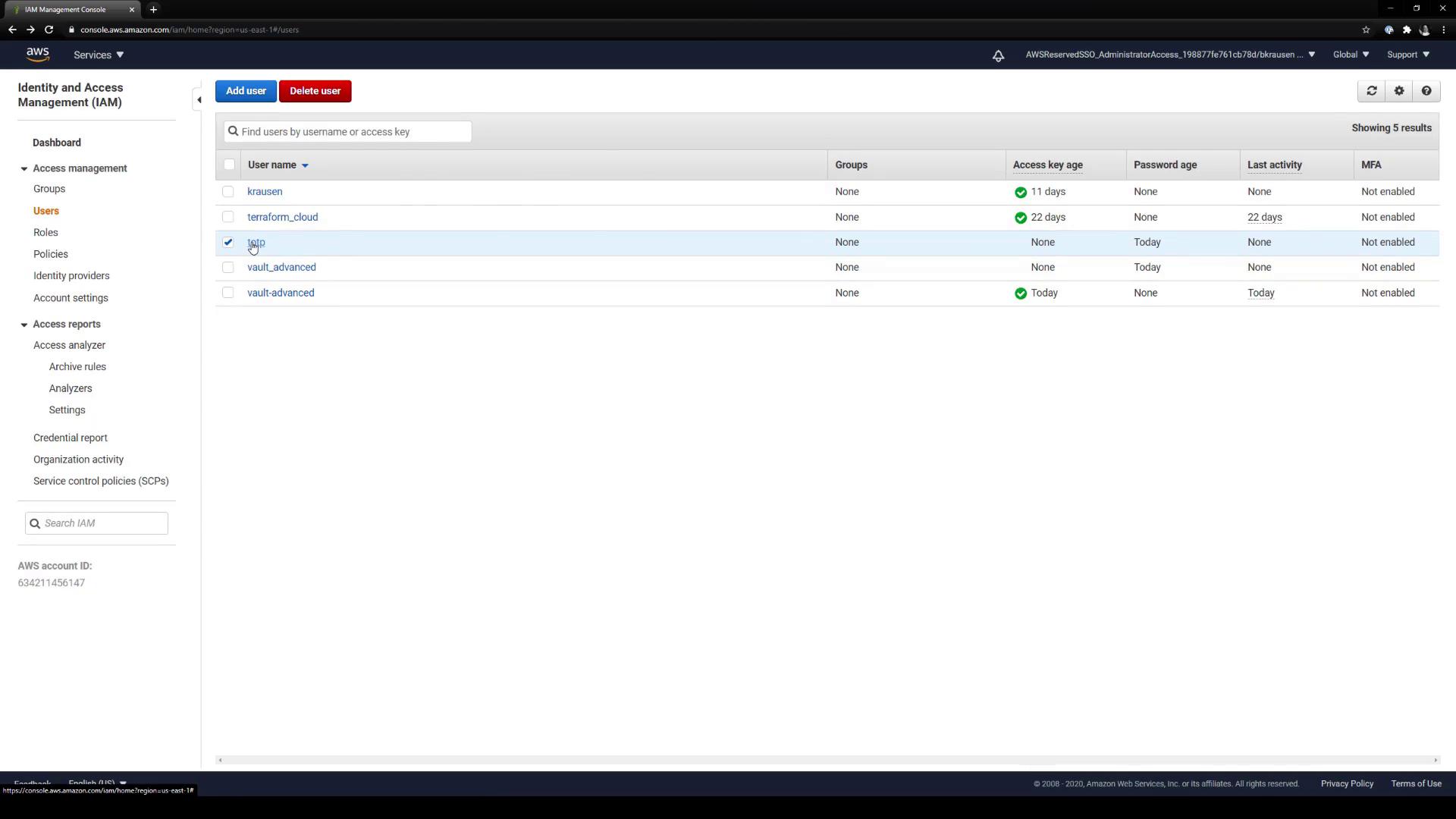

The image shows the AWS Identity and Access Management (IAM) console, displaying a list of users with details such as access key age, password age, last activity, and MFA status.

2.3 Select Virtual MFA

In the Manage MFA popup, choose Virtual MFA device and click Continue.

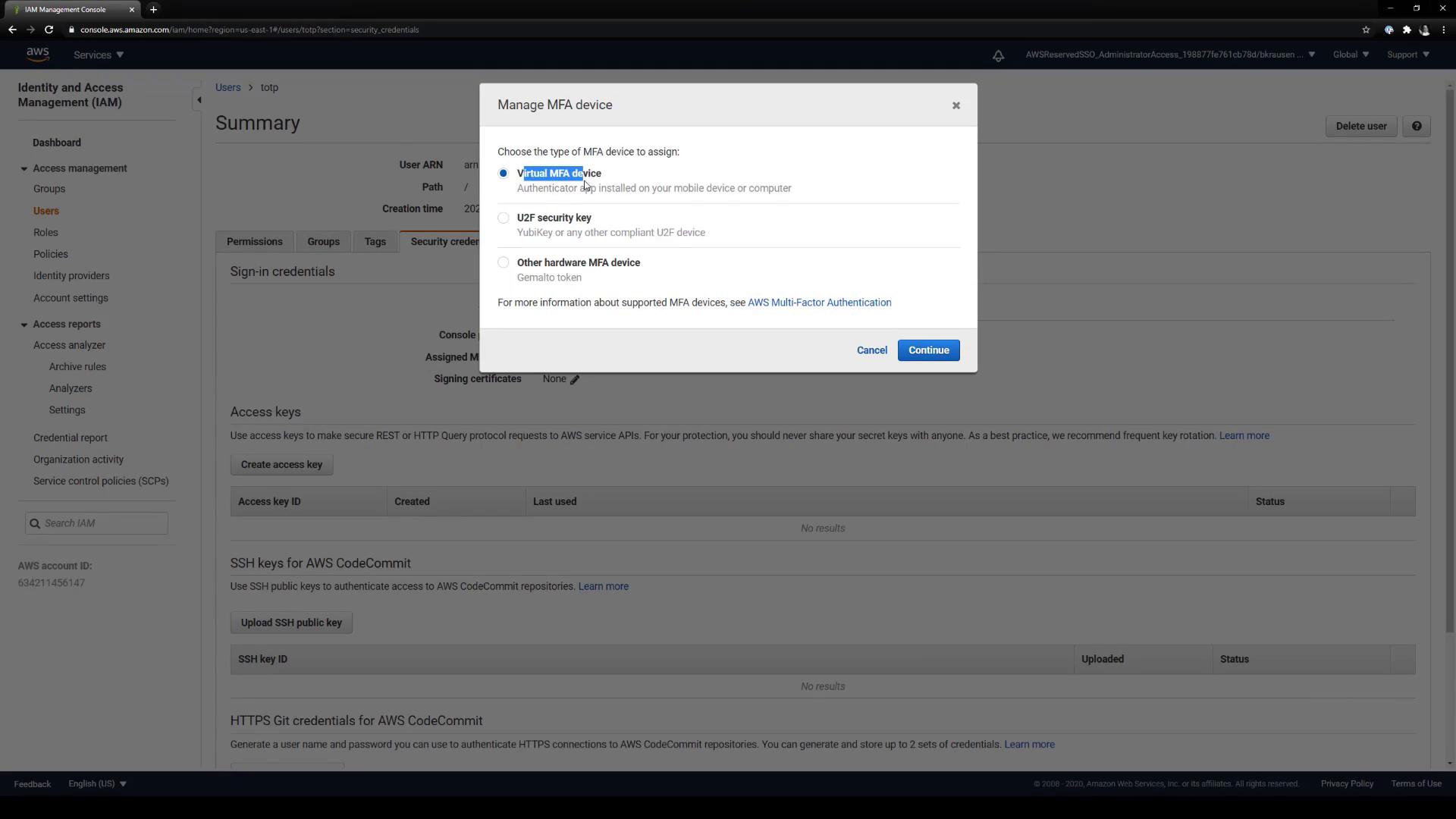

The image shows the AWS Identity and Access Management (IAM) console with a pop-up window for managing MFA devices, offering options like a virtual MFA device, U2F security key, or other hardware MFA device.

2.4 Copy the QR code or Base32 secret

AWS displays both a QR code and a Base32-encoded secret. You need the underlying otpauth:// URL and the secret string to configure Vault.

The image shows an AWS Identity and Access Management (IAM) console screen with a pop-up for setting up a virtual MFA device, including a QR code and fields for entering MFA codes.

Warning

Keep the Base32 secret private. Anyone with this secret can generate valid MFA codes for your AWS account.


3. Register the TOTP key in Vault

With your <ACCOUNT_ID> and <SECRET>, write the TOTP key into Vault:

vault write totp/keys/aws \
  url="otpauth://totp/Amazon%20Web%20Services/TOTP@<ACCOUNT_ID>?secret=<SECRET>"

Expected response:

Success! Data written to: totp/keys/aws

4. Generate and use TOTP codes

Use Vault to generate the current 6-digit code:

vault read -field=code totp/code/aws
123456
ActionCommand
Generate current TOTP codevault read -field=code totp/code/aws
Verify code during AWS MFA assignmentEnter two consecutive codes from Vault
Sign in to AWS with Vault-generated MFAProvide code in the AWS console MFA prompt

4.1 Complete AWS MFA setup

In the AWS console’s Virtual MFA setup, enter two consecutive codes from the previous command to finalize the association.

4.2 Sign in to AWS with Vault MFA

When prompted for MFA at AWS login:

  1. Enter your TOTP username and password.

  2. Run:

    vault read -field=code totp/code/aws

  3. Supply the returned code in the MFA field.


Congratulations! You’ve successfully configured Vault’s TOTP secrets engine as a virtual MFA device for an AWS IAM user. This centralizes MFA management in Vault and eliminates the need for individual authenticator apps or hardware tokens.
